Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||
|---|---|---|---|---|---|---|---|---|---|---|
| mgm_id | numeric | 0 | null |
|
|
The id of the SUSE Multi-Linux Manager instance that contains this data |
||||
| system_id | numeric | 0 | null |
|
|
The id of the system |
||||
| interface_id | numeric | 0 | null |
|
|
The id of the network interface |
||||
| address | varchar | 64 | null |
|
|
The IPv4 address of the system |
||||
| netmask | varchar | 64 | √ | null |
|
|
The netmask associated to this address |
|||
| broadcast | varchar | 64 | √ | null |
|
|
The broadcast address associated to the network of this IPv4 host address |
|||
| synced_date | timestamptz | 35,6 | √ | CURRENT_TIMESTAMP |
|
|
The timestamp of when this data was last refreshed. |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| systemnetaddressv4_pk | Primary key | Asc/Asc/Asc/Asc | mgm_id + system_id + interface_id + address |
Check Constraints
| Constraint Name | Constraint |
|---|---|
| vn_systemnetaddressv4_address | (((address)::text <> ''::text)) |
| vn_systemnetaddressv4_broadcast | (((broadcast)::text <> ''::text)) |
| vn_systemnetaddressv4_netmask | (((netmask)::text <> ''::text)) |

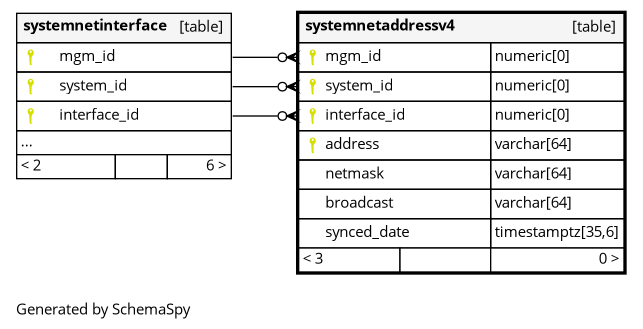

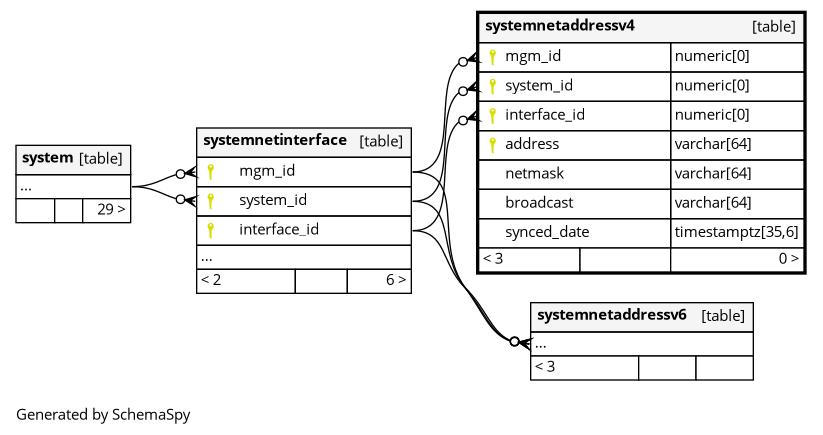

Relationships
Close relationships within degrees of separation
