SAP HANA System Replication Scale-Out High Availability in Amazon Web Services #

This document describes how to set up an SAP HANA Scale-Out system replication cluster installed on separated AWS Availability Zones based on SUSE Linux Enterprise Server for SAP Applications 12 SP4 or SUSE Linux Enterprise Server for SAP Applications 15.

To give a better overview, the installation and setup is separated into seven steps.

Figure 1: Installation Steps #



As the result of the setup process you will have a SUSE Linux Enterprise Server for SAP Applications cluster controlling two groups of SAP HANA Scale-Out nodes in system replication configuration. This architecture was named the 'performance optimized scenario' because failovers should only take a few minutes.

Figure 2: Cluster with SAP HANA SR - performance optimized #



Planning the installation is essential for a successful SAP HANA cluster setup.

Figure 3: Planning Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” Section 5, “Installing the SAP HANA Databases on both sites” Section 6, “Set up the SAP HANA System Replication” Section 7, “Integration of SAP HANA with the Cluster” Section 8, “Configuration of the Cluster and SAP HANA Resources” Section 9, “Testing the Cluster” #



What you need before you start:

3.1 Environment Requirements #



This section defines the minimum requirements to install SAP HANA Scale-Out and create a cluster in AWS.

Note

The minimum requirements mentioned here do not include SAP sizing information. For sizing information use the official SAP sizing tools and services.

Note

The preferred method to deploy SAP HANA scale-out clusters in AWS is to follow the AWS QuickStarts using the "single Availability Zone (AZ) and multi-node architecture" deployment option. If you are installing SAP HANA Scale-Out manually, refer to the AWS SAP HANA Guides documentation for detailed installation instructions, including recommended storage configuration and file systems.

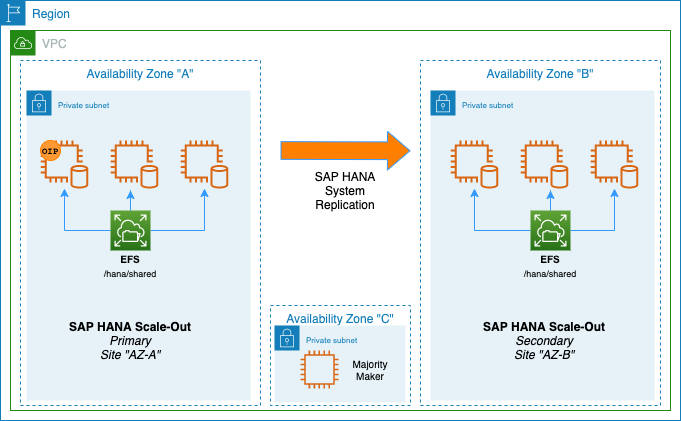

Figure 4: Simplified cluster architecture for SAP HANA Scale-Out system replication across two Availability Zones #



As an example, this guide will detail the implementation of a SUSE cluster composed of two 3-node SAP HANA Scale-Out clusters (one per Availability Zone), plus a Majority Maker (mm) node. But apart from the number of EC2 instances, all other requirements should be the same for different numbers of SAP HANA nodes:

• 3 HANA certified EC2 instances (bare metal or virtualized) in AZ-a

• 3 HANA certified EC2 instances (bare metal or virtualized) in AZ-b

• 1 EC2 instance, to be used as cluster Majority Maker, with at least 2 vCPUs, 2 GB RAM and 50 GB disk space in AZ-c

• 2 Amazon Elastic Filesystem (EFS) for /hana/shared

• 1 Overlay IP address for the primary (active) HANA System cluster

3.3 SAP Scale-Out Scenario in AWS with SUSE Linux Enterprise High Availability Extension #



An SAP HANA Scale-Out cluster in AWS requires the use of a majority maker node in a 3rd Availability Zone. A majority maker, also known as tie-breaker node, will ensure the cluster quorum is maintained in case of the loss of one Availability Zone. In AWS, to maintain functionality of the Scale-Out cluster, at least all nodes in one Availability Zone plus the majority maker node need to be running. Otherwise the cluster quorum will be lost and any remaining SAP HANA node will be automatically rebooted.

It is also recommended that each set of cluster nodes has its own EC2 placement group using "cluster" mode. This is needed to ensure that nodes can achieve the low-latency and high-throughput network performance needed for node-to-node communication required by SAP HANA in an Scale-Out deployment.

To automate the failover, the SUSE Linux Enterprise High Availability Extension (HAE) built into SUSE Linux Enterprise Server for SAP Applications is used. It includes two resource agents which have been created to support SAP HANA Scale-Out High Availability.

The first resource agent (RA) is SAPHanaController, which checks and manages the SAP HANA database instances. This RA is configured as a master/slave resource.

The master assumes responsibility for the active master name server of the SAP HANA database running in primary mode. All other instances are represented by the slave mode.

The second resource agent is SAPHanaTopology. This RA has been created to make configuring the cluster as simple as possible. It runs on all SAP HANA nodes (except the majority maker) of a SUSE Linux Enterprise High Availability Extension 12 cluster. It gathers information about the status and configuration of the SAP HANA system replication. It is designed as a normal (stateless) clone resource.

Figure 5: Cluster resource agents and master/slave status mapping #



SAP HANA system replication for Scale-Out is supported in the following scenarios or use cases:

Performance optimized, single container (A > B)

In the performance optimized scenario, an SAP HANA RDBMS on site "A" is synchronizing with an SAP HANA RDBMS on a second site "B". As the SAP HANA RDBMS on the second site is configured to preload the tables, the takeover time is typically very short.

Performance optimized, multi-tenancy also named MDC (%A > %B)

Multi-tenancy is supported for all above scenarios and use cases. This scenario is supported since SAP HANA 1 SPS12. The setup and configuration from a cluster point of view is the same for multi-tenancy and single containers. Thus you can use the above documents for both kinds of scenarios.

Multi-tenancy is the default installation type for SAP HANA 2.0.

3.5 Important Prerequisites #



The SAPHanaSR-ScaleOut resource agent software package supports Scale-Out (multiple-node to multiple-node) system replication with the following configurations and parameters:

• The cluster must include a valid STONITH method; in AWS the STONITH mechanism used is diskless SBD with watchdog.

• Since HANA primary and secondary reside in different Availability Zones (AZs), an Overlay IP address is required.

• Linux users and groups, such as <sid>adm, are defined locally in the Linux operating system.

• Time synchronization of all nodes relies on Amazon’s Time Sync Service by default.

• SAP HANA Scale-Out groups in different Availability Zones must have the same SAP Identifier (SID) and instance number.

• EC2 instances must have different host names.

• The SAP HANA Scale-Out system must only have one active master name server per site. It should have up to three master name server candidates (SAP HANA nodes with a configured role 'master<N>').

• The SAP HANA Scale-Out system must only have one failover group.

• The cluster described in this document does not manage any service IP address for a read-enabled secondary site.

• There is only one SAP HANA system replication setup - from AZ-a to AZ-b.

• The setup implements the performance optimized scenario but not the cost optimized scenario.

• The saphostagent must be running on all SAP HANA nodes, as it is needed to translate between the system node names and SAP host names used during the installation of SAP HANA.

• The replication mode should be either 'sync' or 'syncmem'.

• All SAP HANA instances controlled by the cluster must not be activated via sapinit autostart.

Warning

Automated registration of a failed primary after takeover is possible. But as a good starting configuration, it is recommended to switch off the automated registration of a failed primary. Therefore AUTOMATED_REGISTER="false" is set by default.

In this case, you need to manually register a failed primary after a takeover. Use SAP tools like hanastudio or hdbnsutil.

• Automated start of SAP HANA instances during system boot must be switched off in any case.

• You need at least SAPHanaSR-ScaleOut version 0.161, "SUSE Linux Enterprise Server for SAP Applications 12 SP4" or "SUSE Linux Enterprise Server for SAP Applications 15" and SAP HANA 1.0 SPS12 (122) or SAP HANA 2.0 SPS03 for all mentioned setups. Refer to SAP Note 2235581.

Important

You must implement a valid STONITH method. Without a valid STONITH method, the complete cluster is unsupported and will not work properly. For the document at hand, diskless SBD is used as STONITH.

This setup guide focuses on the performance optimized setup as it is the only supported scenario at the time of writing.

If you need to implement a different scenario, or customize your cluster configuration, it is strongly recommended to define a Proof-of-Concept (PoC) with SUSE and AWS. This PoC will focus on testing the existing solution in your scenario.

The SUSE Linux Enterprise High Availability Extension cluster will be installed in an AWS Region. An AWS Region consists of multiple Availability Zones (AZs). An Availability Zone (AZ) is one or more discrete data centers with redundant power, networking, and connectivity in an AWS Region. AZs give customers the ability to operate production applications and databases that are more highly available, fault tolerant, and scalable than would be possible from a single data center. All AZs in an AWS Region are interconnected with high-bandwidth, low-latency networking, over fully redundant, dedicated metro fiber providing high-throughput, low-latency networking between AZs. All traffic between AZs is encrypted. The network performance is sufficient to accomplish synchronous replication between AZs. AZs are physically separated by a meaningful distance, many kilometers, from any other AZ, although all are within 100 km (60 miles) of each other. AWS recommends architectural patterns where redundant cluster nodes are being spread across different Availability Zones to overcome individual Availability Zones failures.

An AWS Virtual Private Network (VPC) is spanning all Availability Zones. We assume that a customer will have:

The virtual IP address for the HANA services will be an Overlay IP address. This is a specific routing entry which can send network traffic to an instance, no matter which Availability Zones (and subnet) the instance is located in.

The cluster will update this routing entry as required. All SAP system components in the VPC can reach an AWS instance with an SAP system component inside a VPC through this Overlay IP address.

Overlay IP addresses have one requirement, they need to have a CIDR range outside of the VPC. Otherwise they would be part of a subnet and a given Availability Zone.

On premises users like HANA Studio cannot to reach this IP address since the AWS Virtual Private Network (VPN) gateway will not route traffic to such an IP address.

4.1 AWS Environment Configurations #



Here are the prerequisites which need to be met before starting the installation in AWS:

• Have an AWS account

• Have an AWS user with administrator permissions, or with the below permissions:

  • Create security groups

  • Modify AWS routing tables

  • Create policies and attach them to IAM roles

  • Enable/Disable EC2 instances' Source/Destination Check

  • Create placement groups

• Understand your landscape:

  • Know your AWS Region and its AWS name

  • Know your VPC and its AWS VPC ID

  • Know which Availability Zones (AZs) you will use

  • Have a subnet in each of the Availability Zones:

    • Have a routing table which is implicitly or explicitly attached to the subnets

    • Have free IP addresses in the subnets for your SAP installation

    • Allow network traffic in between the subnets

    • Allow outgoing Internet access from the subnets

Note

Using AWS SAP HANA QuickStart will automatically deploy all the required AWS resources listed above: This is the quickest and safest method to ensure all applicable SAP Notes and configurations are applied to the AWS resources.

4.2 Security Groups #



The following ports and protocols need to be configured to allow the cluster nodes to communicate with each other:

• Port 5405 for inbound UDP: It is used to configure the corosync communication layer. Port 5405 is being used in common examples. A different port may be used depending on the corosync configuration.

• Port 7630 for inbound TCP: It is used by the SUSE "HAWK" Web GUI.

Note

This section lists the ports which need to be available for the SUSE Linux Enterprise HAE cluster only. It does not include SAP related ports.

4.5 Host Names #



By default, the EC2 instances will have automatically generated host names. But it is recommended to assign host names that comply with the SAP requirements. See SAP note 611361. You need to edit /etc/cloud/cloud.cfg for host names to persist:

preserve_hostname: true

Note

To learn how to change the default host name for an EC2 instance running SUSE Linux Enterprise, refer to the AWS' public documentation at https://aws.amazon.com/premiumsupport/knowledge-center/linux-static-hostname-suse/.

4.6 AWS CLI Profile Configuration #



The cluster’s resource agents use the AWS Command Line Interface (CLI). They will use an AWS CLI profile which needs to be created for the root user on all instances. The SUSE cluster resource agents require a profile which generates output in text format.

The name of the profile is arbitrary, and will be added later to the cluster configuration. The name chosen in this example is cluster. The region of the instance needs to be added as well. Replace the string region-name with your target region in the following example.

One way to create such a profile is to create a file /root/.aws/config with the following content:

[default]
region = region-name
[profile cluster]
region = region-name
output = text

Another method is to use the aws configure CLI command in the following way:

# aws configure
AWS Access Key ID [None]:
AWS Secret Access Key [None]:
Default region name [None]: _region-name_
Default output format [None]:

# aws configure --profile cluster
AWS Access Key ID [None]:
AWS Secret Access Key [None]:
Default region name [None]: region-name
Default output format [None]: text

The above commands will create two profiles: a default profile and a cluster profile.

Note

AWS recommends NOT to store any AWS user credentials nor API signing keys in these profiles. Leave these fields blank and attach an EC2 IAM profile with the required permissions to the EC2 instance.

export HTTP_PROXY=http://a.b.c.d:n
export HTTPS_PROXY=http://a.b.c.d:m
export NO_PROXY="169.254.169.254"

export NO_PROXY="127.0.0.1,localhost,localaddress,169.254.169.254"

export HTTP_PROXY=http://username:password@a.b.c.d:n
export HTTPS_PROXY=http://username:password@a.b.c.d:m
export NO_PROXY="127.0.0.1,localhost,localaddress,169.254.169.254"

4.8 Disable the Source/Destination Check for the Cluster Instances #



The source/destination check needs to be disabled on all EC2 instances that are part of the cluster. This can be done through scripts using the AWS command line interface (AWS-CLI) or by using the AWS console. The following command needs to be executed one time only on all EC2 instances part of the cluster:

# aws ec2 modify-instance-attribute --instance-id EC2-instance-id --no-source-dest-check

Replace the variable EC2-instance-id with the instance ID of the AWS EC2 instances. The system on which this command gets executed needs temporarily a role with the following policy:

{
   "Version": "2012-10-17",
   "Statement": [
   {
      "Sid": "Stmt1424870324000",
      "Effect": "Allow",
      "Action": [ "ec2:ModifyInstanceAttribute"],
      "Resource": [
      "arn:aws:ec2:region-name:account-id:instance/instance-a",
      "arn:aws:ec2:region-name:account-id:instance/instance-b"
      ]
   }
   ]
}

Replace the following individual parameter with the appropriate values:

• region-name (Example: us-east-1)

• account-id (Example: 123456789012)

• instance-a, instance-b (Example: i-1234567890abcdef)

Note

The string "instance" in the policy is a fixed string. It is not a variable which needs to be substituted!

The source/destination check can be disabled as well from the AWS console. It takes the execution of the following drop-down box in the console for both EC2 instances (see below).

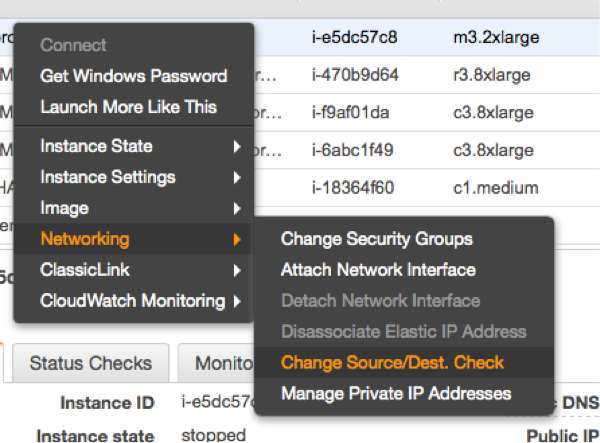

Figure 6: Disable Source/Destination Check at Console #



# zypper info cloud-netconfig-ec2

CLOUD_NETCONFIG_MANAGE='no'

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "EC2:DescribeInstances",
                "EC2:DescribeVolumes"
            ],
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": "cloudwatch:GetMetricStatistics",
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": "s3:GetObject",
            "Resource": "arn:aws:s3:::aws-data-provider/config.properties"
        }
    ]
}

{
    "Version": "2012-10-17",
    "Statement": [
        {
           "Sid": "Stmt1424870324000",
           "Action": "ec2:ReplaceRoute",
           "Effect": "Allow",
           "Resource": "arn:aws:ec2:region-name:account-id:route-table/rtb-XYZ"
        },
        {
           "Sid": "Stmt1424870324000",
           "Action": "ec2:DescribeRouteTables",
           "Effect": "Allow",
           "Resource": "*"
        }
    ]
}

4.11 Add Overlay IP Addresses to Routing Table #



Manually create a route entry in the routing table which is assigned to the two subnets used by the EC2 cluster instances. This IP address is the virtual service IP address of the HANA cluster. The Overlay IP address needs to be outside of the CIDR range of the VPC. Use the AWS console and search for “VPC”.

• Select VPC

• Click “Route Tables” in the left column

• Select route table used the subnets from one of your SAP EC2 instances and their application servers

• Click the tabulator “Routes”

• Click “Edit”

• Scroll to the end of the list and click “Add another route”

Add the overlay IP address of the HANA database. Use as filter /32 (example: 192.168.10.1/32). Add the Elastic Network Interface (ENI) name to EC2 instance to be the SAP HANA Master. The resource agent will modify this latter one automatically as required. Save your changes by clicking “Save”.

Note

It is important that the routing table, which will contain the routing entry, needs to be inherited to all subnets in the VPC which have consumers of the service. Check the AWS VPC documentation at http://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_Introduction.html for more details on routing table inheritance.

zypper remove SAPHanaSR SAPHanaSR-doc yast2-sap-ha

zypper in SAPHanaSR-ScaleOut SAPHanaSR-ScaleOut-doc

Refreshing service 'Advanced_Systems_Management_Module_12_x86_64'.
Refreshing service 'SUSE_Linux_Enterprise_Server_for_SAP_Applications_12_SP3_x86_64'.
Loading repository data...
Reading installed packages...
Resolving package dependencies...

The following 2 NEW packages are going to be installed:
  SAPHanaSR-ScaleOut SAPHanaSR-ScaleOut-doc

2 new packages to install.
Overall download size: 539.1 KiB. Already cached: 0 B. After the operation, additional 763.1 KiB will be used.
Continue? [y/n/...? shows all options] (y): y
Retrieving package SAPHanaSR-ScaleOut-0.161.1-1.1.noarch                                                                            (1/2),  48.7 KiB (211.8 KiB unpacked)
Retrieving: SAPHanaSR-ScaleOut-0.161.1-1.1.noarch.rpm ....................................[done]
Retrieving package SAPHanaSR-ScaleOut-doc-0.161.1-1.1.noarch                                                                        (2/2), 490.4 KiB (551.3 KiB unpacked)
Retrieving: SAPHanaSR-ScaleOut-doc-0.161.1-1.1.noarch.rpm ................................[done (48.0 KiB/s)]
Checking for file conflicts: .............................................................[done]
(1/2) Installing: SAPHanaSR-ScaleOut-0.161.1-1.1.noarch ..................................[done]
(2/2) Installing: SAPHanaSR-ScaleOut-doc-0.161.1-1.1.noarch ..............................[done]

zypper in --type pattern ha_sles

zypper patch

zypper update

4.14 Configure SLES for SAP to Run SAP HANA #



4.14.1 Tuning / Modification #



All needed operating system tuning are described in SAP Note 2684254 and in SAP Note 2205917. It is recommended to manually verify each parameter mentioned in the SAP Notes. This is to ensure all performance tunings for SAP HANA are correctly set.

The SAP note covers:

• SLES 15 or SLES 12

• Additional 3rd-party kernel modules

• Configure sapconf or saptune

• Turn off NUMA balancing

• Disable transparent hugepages

• Configure C-States for lower latency in Linux (applies to Intel-based systems only)

• CPU Frequency/Voltage scaling (applies to Intel-based systems only)

• Energy Performance Bias (EPB, applies to Intel-based systems only)

• Turn off kernel samepage merging (KSM)

• Linux Pagecache Limit

4.14.2 Enabling SSH access via public key (optional) #



Public key authentication provides SSH users access to their servers without entering their passwords. SSH keys are also more secure than passwords, because the private key used to secure the connection is never shared. Private keys can also be encrypted. Their encrypted contents cannot easily be read. For the document at hand, a very simple but useful setup is used. This setup is based on only one ssh-key pair which enables SSH access to all cluster nodes.

Note

Follow your company security policy to set up access to the systems.

Example 4: SSH key creation and exchange #



As user root create an SSH key on one node.

# ssh-keygen -t rsa

The ssh-key generation asks for missing parameters.

Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:ip/8kdTbYZNuuEUAdsaYOAErkwnkAPBR7d2SQIpIZCU root@<host1>
The key's randomart image is:
+---[RSA 2048]----+
|XEooo+ooo+o      |
|=+.= o=.o+.      |
|..B o. + o.      |
|   o  . +... .   |
|        S.. *    |
|     . o . B o   |
|    . . o o =    |
|     o . . +     |
|      +.. .      |
+----[SHA256]-----+

After the ssh-keygen is set up, you will have two new files under /root/.ssh/ .

# ls /root/.ssh/
id_rsa  id_rsa.pub

To allow password-free access for the user root between nodes in the cluster copy id_rsa.pub to authorized_keys and set the required permissions.

# cp /root/.ssh/id_rsa.pub /root/.ssh/authorized_keys
# chmod 600 /root/.ssh/authorized_keys

Collect the public host keys from all other node. For the document at hand, the ssh-keyscan command is used.

# ssh-keyscan

The SSH host key is automatically collected and stored in the file /root/.ssh/known_host during the first SSH connection. To avoid to confirm the first login with "yes" which accept the host key, we collect and store them beforehand.

# ssh-keyscan -t ecdsa-sha2-nistp256 <host1>,<host1 ip> >>.ssh/known_hosts
# ssh-keyscan -t ecdsa-sha2-nistp256 <host2>,<host2 ip> >>.ssh/known_hosts
# ssh-keyscan -t ecdsa-sha2-nistp256 <host3>,<host3 ip> >>.ssh/known_hosts
...

After collecting all host keys push the entire directory /root/.ssh/ from the first node to all further cluster members.

# rsync -ay /root/.ssh/ <host2>:/root/.ssh/
# rsync -ay /root/.ssh/ <host3>:/root/.ssh/
# rsync -ay /root/.ssh/ <host4>:/root/.ssh/
...

4.14.3 Set up Disk Layout for SAP HANA #



We highly recommend to follow the storage layout described at https://docs.aws.amazon.com/quickstart/latest/sap-hana/planning.html. The table on this Web site lists the minimum required number of EBS volumes, volume size and IOPS (for IO1) for your desired EC2 instance type. You can choose more storage or more IOPS depending on your workload’s requirements. Configure the EBS volumes for:

• /hana/data

• /hana/log

File systems:

/hana/shared/<SID>

On SAP HANA Scale-Out this directory is mounted on all nodes of the same Scale-Out cluster, and in AWS this directory uses EFS. It contains shared files, like binaries, trace, and log files.

/hana/log/<SID>

This directory contains the redo log files of the SAP HANA host. On AWS this directory is local to the instance.

/hana/data/<SID>

This directory contains the data files of the SAP HANA host. On AWS this directory is local to the instance.

/usr/sap

This is the path to the local SAP system instance directories. It is recommended to have a separate volume for /usr/sap.

vi /etc/hosts

192.168.201.151 suse01
192.168.201.152 suse02
...

As now the infrastructure is set up, we can install the SAP HANA database on both sites. In a cluster a machine is also called a node.

Figure 7: Section 3, “Planning the Installation” Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” SAPHanaInst Section 6, “Set up the SAP HANA System Replication” Section 7, “Integration of SAP HANA with the Cluster” Section 8, “Configuration of the Cluster and SAP HANA Resources” Section 9, “Testing the Cluster” #



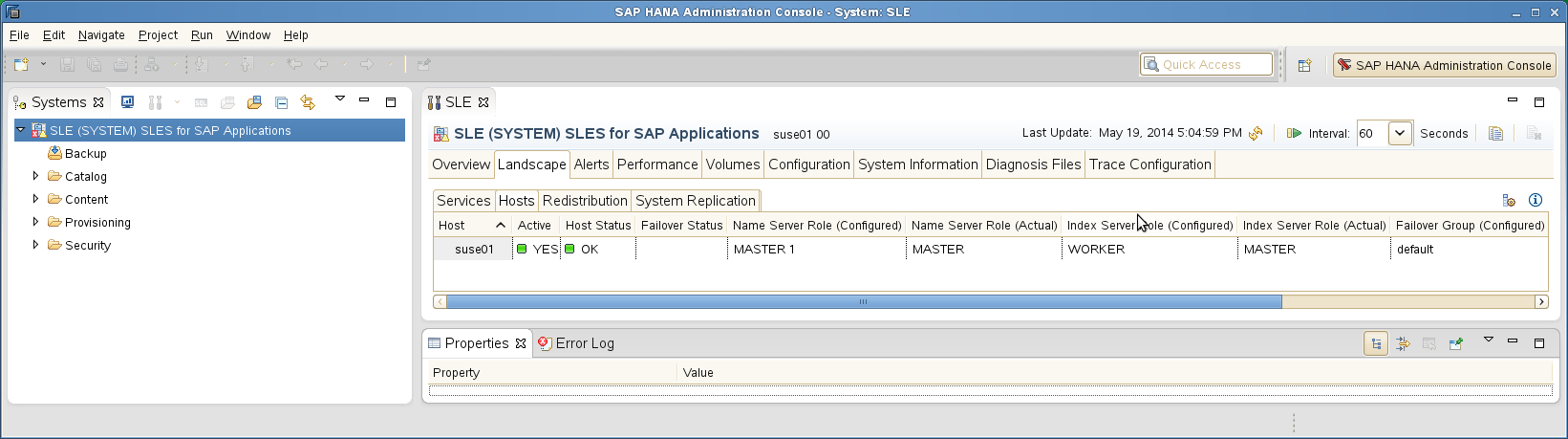

In our example here and to make it more easy to follow the documentation, we name the machines (or nodes) suse01, …​ suseXX. The nodes with odd numbers (suse01, suse03, suse05, …​) will be part of site "A" (WDF1) and the nodes with even (suse02, suse04, suse06, …​) will be part of site "B" (ROT1) .

The following users are automatically created during the SAP HANA installation:

ALTER SYSTEM ALTER CONFIGURATION ('global.ini', 'SYSTEM') SET ('persistence','basepath_shared')='no';

This section describes the setup of the system replication (HSR) after SAP HANA has been installed properly.

Procedure

Figure 8: Section 3, “Planning the Installation” Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” Section 5, “Installing the SAP HANA Databases on both sites” SAPHanaHsr Section 7, “Integration of SAP HANA with the Cluster” Section 8, “Configuration of the Cluster and SAP HANA Resources” Section 9, “Testing the Cluster” #



For more information read the Section Setting Up System Replication of the SAP HANA Administration Guide.

6.1 Back Up the Primary Database #



Please, first back up the primary database as described in the SAP HANA Administration Guide, Section SAP HANA Database Backup and Recovery.

We provide some examples to back up SAP HANA with SQL Commands:

Example 8: Simple backup for the system database and all tenants with one single backup call #



As user <sid>adm enter the following command:

hdbsql -u SYSTEM -d SYSTEMDB \
   "BACKUP DATA FOR FULL SYSTEM USING FILE ('backup')"

You get the following command output (or similar):

0 rows affected (overall time 15.352069 sec; server time 15.347745 sec)

Example 9: Simple backup for a single container (non MDC) database #



Enter the following command as user <sid>adm:

hdbsql -i <Inst> -u <dbuser> \
   "BACKUP DATA USING FILE ('backup')"

Important

Without a valid backup, you cannot bring SAP HANA into a system replication configuration.

hdbnsutil -sr_enable --name=HAP

nameserver is active, proceeding ...
successfully enabled system as system replication source site
done.

hdbnsutil -sr_stateConfiguration

checking for active or inactive nameserver ...
System Replication State
~~~~~~~~~~~~~~~~~~~~~~~~

mode: primary
site id: 1
site name: HAP
done.

sapcontrol -nr <Inst> -function StopSystem

hdbnsutil -sr_register --name=<site2> \
     --remoteHost=<node1-siteA> --remoteInstance=<Inst> \
     --replicationMode=syncmem --operationMode=logreplay

adding site ...
checking for inactive nameserver ...
nameserver suse02:30001 not responding.
collecting information ...
updating local ini files ...
done.

sapcontrol -nr <Inst> -function StartSystem

hdbnsutil -sr_stateConfiguration

System Replication State
~~~~~~~~~~~~~~~~~~~~~~~~
mode: sync
site id: 2
site name: HAS
active primary site: 1

primary masters: suse01 suse03 suse05
done.

HDBSettings.sh systemReplicationStatus.py

| Database | Host   | .. Site Name | Secondary | .. Secondary | .. Replication
|          |        | ..           | Host      | .. Site Name | .. Status
| -------- | ------ | .. --------- | --------- | .. --------- | .. ------
| SYSTEMDB | suse01 | .. HAP      | suse02    | .. HAS      | .. ACTIVE
| HA1      | suse01 | .. HAP      | suse02    | .. HAS      | .. ACTIVE
| HA1      | suse01 | .. HAP      | suse02    | .. HAS      | .. ACTIVE
| HA1      | suse03 | .. HAP      | suse04    | .. HAS      | .. ACTIVE

status system replication site "2": ACTIVE
overall system replication status: ACTIVE

Local System Replication State
~~~~~~~~~~

mode: PRIMARY
site id: 1
site name: HAP

Figure 9: Section 3, “Planning the Installation” Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” Section 5, “Installing the SAP HANA Databases on both sites” Section 6, “Set up the SAP HANA System Replication” Integration Section 8, “Configuration of the Cluster and SAP HANA Resources” Section 9, “Testing the Cluster” #



We need to proceed the following steps:

Procedure

suse01~ # mkdir -p /hana/shared/myHooks
suse01~ # cp /usr/share/SAPHanaSR-ScaleOut/SAPHanaSR.py /hana/shared/myHooks
suse01~ # chown -R <sid>adm:sapsys /hana/shared/myHooks

sapcontrol -nr <Inst> -function StopSystem

[ha_dr_provider_SAPHanaSR]
provider = SAPHanaSR
path = /hana/shared/myHooks
execution_order = 1

[trace]
ha_dr_saphanasr = info

[system_replication]
operation_mode = logreplay

# SAPHanaSR-ScaleOut needs for srHook
<sid>adm ALL=(ALL) NOPASSWD: /usr/sbin/crm_attribute -n hana_<sid>_glob_srHook -v *

# SAPHanaSR-ScaleOut needs for srHook
Cmnd_Alias SOK   = /usr/sbin/crm_attribute -n hana_<sid>_glob_srHook -v SOK   -t crm_config -s SAPHanaSR
Cmnd_Alias SFAIL = /usr/sbin/crm_attribute -n hana_<sid>_glob_srHook -v SFAIL -t crm_config -s SAPHanaSR
<sid>adm ALL=(ALL) NOPASSWD: SOK, SFAIL

# SAPHanaSR-ScaleOut needs for srHook
hd1adm ALL=(ALL) NOPASSWD: /usr/sbin/crm_attribute -n hana_ha1_glob_srHook -v *

sapcontrol -nr <Inst> -function StartSystem

11.06.2018 18:30:16
StartSystem
OK

sapcontrol -nr <Inst> -function WaitforStarted 300 20

suse01:ha1adm> cdtrace
suse01:ha1adm> awk '/ha_dr_SAPHanaS.*crm_attribute/ \
     { printf "%s %s %s %s\n",$2,$3,$5,$16 }' nameserver_suse01.*
2018-05-04 12:34:04.476445 ha_dr_SAPHanaS...SFAIL
2018-05-04 12:53:06.316973 ha_dr_SAPHanaS...SOK

This chapter describes the configuration of the _SUSE Linux Enterprise High Availability (SLE HA) cluster. The SUSE Linux Enterprise High Availability is part of the SUSE Linux Enterprise Server for SAP Applications. Further, the integration of SAP HANA System Replication with the SUSE Linux Enterprise High Availability cluster is explained. The integration is done by using the SAPHanaSR-ScaleOut package which also is part of the SUSE Linux Enterprise Server for SAP Applications.

Figure 10: Section 3, “Planning the Installation” Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” Section 5, “Installing the SAP HANA Databases on both sites” Section 6, “Set up the SAP HANA System Replication” Section 7, “Integration of SAP HANA with the Cluster” Cluster Section 9, “Testing the Cluster” #



Procedure

8.1 Basic Cluster Configuration #



8.1.1 Set up Watchdog for SBD Fencing #



All instances will use SUSE’s Diskless SBD fencing mechanism. This method does not require additional AWS permissions because SBD does not issue AWS API calls. Instead SBD relies on (hardware/software) watchdog timers.

Most AWS bare metal instances feature a hardware watchdog, and on these instances no additional action is required to use the hardware watchdog, and non-bare metal instances will use a software watchdog.

Whenever SBD is used, a correctly working watchdog is crucial. Modern systems support a watchdog that needs to be "tickled" or "fed" by a software component. The software component (usually a daemon) regularly writes a service pulse to the watchdog. If the daemon stops feeding the watchdog, the hardware will enforce a system restart. This protects against failures of the SBD process itself, such as dying, or becoming stuck on an I/O error.

Determine the right watchdog module. Alternatively, you can find a list of installed drivers with your kernel version.

ls -l /lib/modules/$(uname -r)/kernel/drivers/watchdog

Check if any watchdog module is already loaded.

lsmod | egrep "(wd|dog|i6|iT)"

If you get a result, the system has already a loaded watchdog.

Check if any software is using the watchdog

lsof /dev/watchdog

If no watchdog is available (on virtualized EC2 instances), you can enable the softdog.

To enable softdog persistently across reboots, execute the following step in all EC2 instances that are going to be part of the cluster (including the majority maker node)

echo softdog > /etc/modules-load.d/watchdog.conf
systemctl restart systemd-modules-load

This will also load the software watchdog kernel module during system boot.

Check if the watchdog module is loaded correctly.

lsmod | grep dog

Testing the watchdog can be done with a simple action. Take care to switch off your SAP HANA first because the watchdog will force an unclean reset / shutdown of your system.

In case of a hardware watchdog, a desired action is predefined after the timeout of the watchdog has reached. If your watchdog module is loaded and not controlled by any other application, run the command below.

Important

Triggering the watchdog without continuously updating the watchdog does reset/switches off the system. This is the intended mechanism. The following commands will force your system to be reset/switched off.

touch /dev/watchdog

In case of the softdog module is used the following can be done.

echo 1> /dev/watchdog

After your test was successful you can implement the watchdog on all cluster members. The example below applies to the softdog module.

for i in suse{02,03,04,05,06,-mm}; do
 ssh -T $i <<EOSSH
 hostname
 echo softdog > /etc/modules-load.d/watchdog.conf
 systemctl restart systemd-modules-load
 lsmod |grep -e dog
EOSSH
done

Once all cluster nodes have access to hardware/software watchdog devices at /dev/watchdog check the following attributes of the SBD configuration at /etc/sysconfig/sbd on all cluster nodes:

#SBD_DEVICE=""
SBD_PACEMAKER=yes
SBD_STARTMODE=always
SBD_DELAY_START=no
SBD_WATCHDOG_DEV=/dev/watchdog
SBD_WATCHDOG_TIMEOUT=5
SBD_TIMEOUT_ACTION=flush,reboot
SBD_OPTS=

Now enable diskless SBD on all cluster nodes:

systemctl enable sbd

8.1.2 Initial Cluster Setup #



Since AWS VPC does not support multicast traffic corosync communication requires unicast UDP, On the first cluster node create an encryption key for the cluster communication:

corosync-keygen

The above command will generate the file /etc/corosync/authkey. Copy this key over to all nodes while keeping the Unix file owner and permissions unchanged:

ls -l /etc/corosync/authkey
-r-------- 1 root root 128 Feb  5 19:47 /etc/corosync/authkey

After distributing the encryption key, create an initial /etc/corosync/corosync.conf configuration using these parameters for cluster timings, transport protocol and encryption. Exchange the bindnetaddr and the ring0_addr (IPv4 addresses) of all cluster nodes in the nodelist according to your network topology.

Example corosync.conf file:

# Read the corosync.conf.5 manual page
totem {
   version: 2
   token: 30000
   consensus: 32000
   token_retransmits_before_loss_const: 6
   secauth: on
   crypto_hash: sha1
   crypto_cipher: aes256
   clear_node_high_bit: yes
   interface {
      ringnumber: 0
      bindnetaddr: <<local-node-ip-address>>
      mcastport: 5405
      ttl: 1
   }
   transport: udpu
}
logging {
   fileline: off
   to_logfile: yes
   to_syslog: yes
   logfile: /var/log/cluster/corosync.log
   debug: off
   timestamp: on
   logger_subsys {
      subsys: QUORUM
      debug: off
   }
}
nodelist {
   node {
      ring0_addr: <<ip-node01-AZ-a>>
      nodeid: 1
   }
   node {
      ring0_addr: <<ip-node02-AZ-a>>
      nodeid: 2
   }
   node {
      ring0_addr: <<ip-node03-AZ-a>>
      nodeid: 3
   }
   node {
      ring0_addr: <<ip-node01-AZ-b>>
      nodeid: 4
   }
   node {
      ring0_addr: <<ip-node02-AZ-b>>
      nodeid: 5
   }
   node {
      ring0_addr: <<ip-node03-AZ-b>>
      nodeid: 6
   }
   node {
      ring0_addr: <<ip-majority-maker-node>>
      nodeid: 7
   }
}
quorum {
# Enable and configure quorum subsystem (default: off)
# see also corosync.conf.5 and votequorum.5
   provider: corosync_votequorum
}

Distribute the configuration to all nodes at /etc/corosync/corosync.conf

8.1.3 Start the Cluster #



Start the cluster on all nodes

systemctl start pacemaker

Note

All nodes should be started in parallel. Otherwise unseen nodes might get fenced.

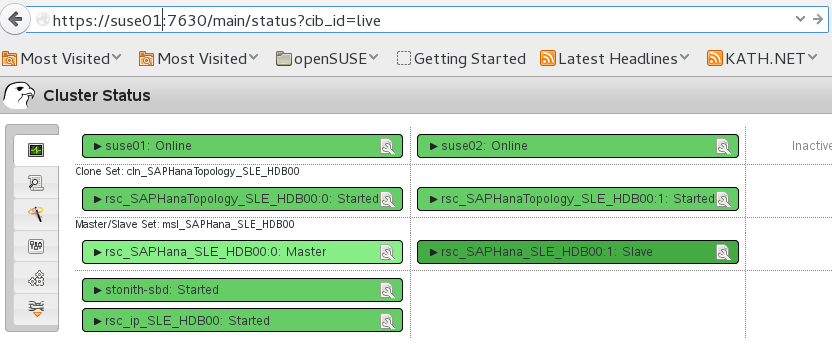

Check the cluster status with crm_mon. We use the option "-r" to also see resources, which are configured but stopped.

crm_mon -r

The command will show the "empty" cluster and will print something like the following screen output. The most interesting information for now is that there are two nodes in the status "online" and the message "partition with quorum".

Stack: corosync
Current DC: suse05 (version 1.1.18+20180430.b12c320f5-3.15.1-b12c320f5) - partition with quorum
Last updated: Fri Nov 29 14:23:19 2019
Last change: Fri Nov 29 12:31:06 2019 by hacluster via crmd on suse03

7 nodes configured
0 resource configured

Online: [ suse-mm suse01 suse02 suse03 suse04 suse05 suse06 ]

No resources

vi crm-file<XX>
crm configure load update crm-file<XX>

vi crm-bs.txt

property $id="cib-bootstrap-options" \
            no-quorum-policy="suicide" \
            stonith-enabled="true" \
            stonith-action="reboot" \
            stonith-watchdog-timeout="10" \

op_defaults $id="op-options" \
            timeout="600"

rsc_defaults rsc-options: \
            resource-stickiness="1000" \
            migration-threshold="5"

crm configure load update crm-bs.txt

# systemctl status sbd
● sbd.service - Shared-storage based fencing daemon
   Loaded: loaded (/usr/lib/systemd/system/sbd.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2019-02-15 08:12:57 UTC; 1 months 22 days ago
     Docs: man:sbd(8)
  Process: 10366 ExecStart=/usr/sbin/sbd $SBD_OPTS -p /var/run/sbd.pid watch (code=exited, status=0/SUCCESS)
 Main PID: 10374 (sbd)
    Tasks: 3 (limit: 4915)
   CGroup: /system.slice/sbd.service
           ├─10374 sbd: inquisitor
           ├─10375 sbd: watcher: Pacemaker
           └─10376 sbd: watcher: Cluster

crm configure property maintenance-mode=true

suse01:~ # vi crm-saphanatop.txt

primitive rsc_SAPHanaTop_<SID>_HDB<Inst> ocf:suse:SAPHanaTopology \
        op monitor interval="10" timeout="600" \
        op start interval="0" timeout="600" \
        op stop interval="0" timeout="300" \
        params SID="<SID>" InstanceNumber="<Inst>"

clone cln_SAPHanaTop_<SID>_HDB<Inst> rsc_SAPHanaTop_<SID>_HDB<Inst> \
        meta clone-node-max="1" interleave="true"

primitive rsc_SAPHanaTop_HA1_HDB00 ocf:suse:SAPHanaTopology \
        op monitor interval="10" timeout="600" \
        op start interval="0" timeout="600" \
        op stop interval="0" timeout="300" \
        params SID="HA1" InstanceNumber="00"

clone cln_SAPHanaTop_HA1_HDB00 rsc_SAPHanaTop_HA1_HDB00 \
        meta clone-node-max="1" interleave="true"

crm configure load update crm-saphanatop.txt

vi crm-saphanacon.txt

primitive rsc_SAPHanaCon_<SID>_HDB<Inst> ocf:suse:SAPHanaController \
        op start interval="0" timeout="3600" \
        op stop interval="0" timeout="3600" \
        op promote interval="0" timeout="3600" \
        op monitor interval="60" role="Master" timeout="700" \
        op monitor interval="61" role="Slave" timeout="700" \
        params SID="<SID>" InstanceNumber="<Inst>" \
        PREFER_SITE_TAKEOVER="true" \
        DUPLICATE_PRIMARY_TIMEOUT="7200" AUTOMATED_REGISTER="false"

ms msl_SAPHanaCon_<SID>_HDB<Inst> rsc_SAPHanaCon_<SID>_HDB<Inst> \
        meta clone-node-max="1" master-max="1" interleave="true"

primitive rsc_SAPHanaCon_HA1_HDB00 ocf:suse:SAPHanaController \
        op start interval="0" timeout="3600" \
        op stop interval="0" timeout="3600" \
        op promote interval="0" timeout="3600" \
        op monitor interval="60" role="Master" timeout="700" \
        op monitor interval="61" role="Slave" timeout="700" \
        params SID="HA1" InstanceNumber="00" PREFER_SITE_TAKEOVER="true" \
        DUPLICATE_PRIMARY_TIMEOUT="7200" AUTOMATED_REGISTER="false"

ms msl_SAPHanaCon_HA1_HDB00 rsc_SAPHanaCon_HA1_HDB00 \
        meta clone-node-max="1" master-max="1" interleave="true"

crm configure load update crm-saphanacon.txt

vi crm-oip.txt

primitive rsc_ip_<SID>_HDB<Inst> ocf:heartbeat:aws-vpc-move-ip \
        op start interval=0 timeout=180 \
        op stop interval=0 timeout=180 \
        op monitor interval=60 timeout=60 \
        params ip=<overlayIP> routing_table=<aws-route-table>[,<2nd-route-table>] \
        interface=eth0 profile=<aws-cli-profile>

crm configure load update crm-oip.txt

vi crm-cs.txt

colocation col_saphana_ip_<SID>_HDB<Inst> 2000: rsc_ip_<SID>_HDB<Inst>:Started \
 msl_SAPHanaCon_<SID>_HDB<Inst>:Master
order ord_SAPHana_<SID>_HDB<Inst> Optional: cln_SAPHanaTop_<SID>_HDB<Inst> \
 msl_SAPHanaCon_<SID>_HDB<Inst>
location OIP_not_on_majority_maker rsc_ip_<SID>_HDB<Inst> -inf: <majority maker>
location SAPHanaCon_not_on_majority_maker msl_SAPHanaCon_<SID>_HDB<Inst> -inf:
 <majority maker>
location SAPHanaTop_not_on_majority_maker cln_SAPHanaTop_<SID>_HDB<Inst> -inf:
 <majority maker>

colocation col_saphana_ip_HA1_HDB00 2000: rsc_ip_HA1_HDB00:Started \
 msl_SAPHanaCon_HA1_HDB00:Master
order ord_SAPHana_HA1_HDB00 Optional: cln_SAPHanaTop_HA1_HDB00 \
 msl_SAPHanaCon_HA1_HDB00
location OIP_not_on_majority_maker rsc_ip_HA1_HDB00 -inf: suse-mm
location SAPHanaCon_not_on_majority_maker msl_SAPHanaCon_HA1_HDB00 -inf: suse-mm
location SAPHanaTop_not_on_majority_maker cln_SAPHanaTop_HA1_HDB00 -inf: suse-mm

crm configure load update crm-cs.txt

crm configure property maintenance-mode=false

crm_attribute -G -n hana_<sid>_glob_srHook

scope=crm_config  name=hana_<sid>_glob_srHook value=SOK

suse01:ha1adm> /usr/sap/hostctrl/exe/saphostctrl -function ListInstances
 Inst Info : HA1 - 00 - suse01 - 749, patch 418, changelist 1816226

Testing is one of the most important project tasks for implementing clusters. Proper testing is crucial. Make sure that all test cases derived from project or customer expectations are defined and passed completely. Without testing the project is likely to fail in production use.

Figure 11: Section 3, “Planning the Installation” Section 4, “Using AWS with SUSE Linux Enterprise High Availability Extension Clusters” Section 5, “Installing the SAP HANA Databases on both sites” Section 6, “Set up the SAP HANA System Replication” Section 7, “Integration of SAP HANA with the Cluster” Section 8, “Configuration of the Cluster and SAP HANA Resources” Testing #



The test prerequisite, if not described differently, is always that all cluster nodes are booted, are already normal members of the cluster and the SAP HANA RDBMS is running. The system replication is in sync represented by 'SOK'. The cluster is idle, no actions are pending, no migration constraints left over, no failcounts left over.

In this version of the setup guide we provide a plain list of test cases. We plan to describe the test cases more detailed in the future. Either we will provide these details in an update of this guide or we will extract the test cases to a separate test plan document.

Copyright © 2006–2024 SUSE LLC and contributors. All rights reserved.

Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License, Version 1.2 or (at your option) version 1.3; with the Invariant Section being this copyright notice and license. A copy of the license version 1.2 is included in the section entitled "GNU Free Documentation License".

SUSE, the SUSE logo and YaST are registered trademarks of SUSE LLC in the United States and other countries. For SUSE trademarks, see https://www.suse.com/company/legal/.

Linux is a registered trademark of Linus Torvalds. All other names or trademarks mentioned in this document may be trademarks or registered trademarks of their respective owners.

Documents published as part of the SUSE Best Practices series have been contributed voluntarily by SUSE employees and third parties. They are meant to serve as examples of how particular actions can be performed. They have been compiled with utmost attention to detail. However, this does not guarantee complete accuracy. SUSE cannot verify that actions described in these documents do what is claimed or whether actions described have unintended consequences. SUSE LLC, its affiliates, the authors, and the translators may not be held liable for possible errors or the consequences thereof.

Below we draw your attention to the license under which the articles are published.

Copyright © 2000, 2001, 2002 Free Software Foundation, Inc. 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA. Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

The purpose of this License is to make a manual, textbook, or other functional and useful document "free" in the sense of freedom: to assure everyone the effective freedom to copy and redistribute it, with or without modifying it, either commercially or noncommercially. Secondarily, this License preserves for the author and publisher a way to get credit for their work, while not being considered responsible for modifications made by others.

This License is a kind of "copyleft", which means that derivative works of the document must themselves be free in the same sense. It complements the GNU General Public License, which is a copyleft license designed for free software.

We have designed this License in order to use it for manuals for free software, because free software needs free documentation: a free program should come with manuals providing the same freedoms that the software does. But this License is not limited to software manuals; it can be used for any textual work, regardless of subject matter or whether it is published as a printed book. We recommend this License principally for works whose purpose is instruction or reference.

This License applies to any manual or other work, in any medium, that contains a notice placed by the copyright holder saying it can be distributed under the terms of this License. Such a notice grants a world-wide, royalty-free license, unlimited in duration, to use that work under the conditions stated herein. The "Document", below, refers to any such manual or work. Any member of the public is a licensee, and is addressed as "you". You accept the license if you copy, modify or distribute the work in a way requiring permission under copyright law.

A "Modified Version" of the Document means any work containing the Document or a portion of it, either copied verbatim, or with modifications and/or translated into another language.

A "Secondary Section" is a named appendix or a front-matter section of the Document that deals exclusively with the relationship of the publishers or authors of the Document to the Document’s overall subject (or to related matters) and contains nothing that could fall directly within that overall subject. (Thus, if the Document is in part a textbook of mathematics, a Secondary Section may not explain any mathematics.) The relationship could be a matter of historical connection with the subject or with related matters, or of legal, commercial, philosophical, ethical or political position regarding them.

The "Invariant Sections" are certain Secondary Sections whose titles are designated, as being those of Invariant Sections, in the notice that says that the Document is released under this License. If a section does not fit the above definition of Secondary then it is not allowed to be designated as Invariant. The Document may contain zero Invariant Sections. If the Document does not identify any Invariant Sections then there are none.

The "Cover Texts" are certain short passages of text that are listed, as Front-Cover Texts or Back-Cover Texts, in the notice that says that the Document is released under this License. A Front-Cover Text may be at most 5 words, and a Back-Cover Text may be at most 25 words.

A "Transparent" copy of the Document means a machine-readable copy, represented in a format whose specification is available to the general public, that is suitable for revising the document straightforwardly with generic text editors or (for images composed of pixels) generic paint programs or (for drawings) some widely available drawing editor, and that is suitable for input to text formatters or for automatic translation to a variety of formats suitable for input to text formatters. A copy made in an otherwise Transparent file format whose markup, or absence of markup, has been arranged to thwart or discourage subsequent modification by readers is not Transparent. An image format is not Transparent if used for any substantial amount of text. A copy that is not "Transparent" is called "Opaque".

Examples of suitable formats for Transparent copies include plain ASCII without markup, Texinfo input format, LaTeX input format, SGML or XML using a publicly available DTD, and standard-conforming simple HTML, PostScript or PDF designed for human modification. Examples of transparent image formats include PNG, XCF and JPG. Opaque formats include proprietary formats that can be read and edited only by proprietary word processors, SGML or XML for which the DTD and/or processing tools are not generally available, and the machine-generated HTML, PostScript or PDF produced by some word processors for output purposes only.

The "Title Page" means, for a printed book, the title page itself, plus such following pages as are needed to hold, legibly, the material this License requires to appear in the title page. For works in formats which do not have any title page as such, "Title Page" means the text near the most prominent appearance of the work’s title, preceding the beginning of the body of the text.

A section "Entitled XYZ" means a named subunit of the Document whose title either is precisely XYZ or contains XYZ in parentheses following text that translates XYZ in another language. (Here XYZ stands for a specific section name mentioned below, such as "Acknowledgements", "Dedications", "Endorsements", or "History".) To "Preserve the Title" of such a section when you modify the Document means that it remains a section "Entitled XYZ" according to this definition.

The Document may include Warranty Disclaimers next to the notice which states that this License applies to the Document. These Warranty Disclaimers are considered to be included by reference in this License, but only as regards disclaiming warranties: any other implication that these Warranty Disclaimers may have is void and has no effect on the meaning of this License.

You may copy and distribute the Document in any medium, either commercially or noncommercially, provided that this License, the copyright notices, and the license notice saying this License applies to the Document are reproduced in all copies, and that you add no other conditions whatsoever to those of this License. You may not use technical measures to obstruct or control the reading or further copying of the copies you make or distribute. However, you may accept compensation in exchange for copies. If you distribute a large enough number of copies you must also follow the conditions in section 3.

You may also lend copies, under the same conditions stated above, and you may publicly display copies.

If you publish printed copies (or copies in media that commonly have printed covers) of the Document, numbering more than 100, and the Document’s license notice requires Cover Texts, you must enclose the copies in covers that carry, clearly and legibly, all these Cover Texts: Front-Cover Texts on the front cover, and Back-Cover Texts on the back cover. Both covers must also clearly and legibly identify you as the publisher of these copies. The front cover must present the full title with all words of the title equally prominent and visible. You may add other material on the covers in addition. Copying with changes limited to the covers, as long as they preserve the title of the Document and satisfy these conditions, can be treated as verbatim copying in other respects.

If the required texts for either cover are too voluminous to fit legibly, you should put the first ones listed (as many as fit reasonably) on the actual cover, and continue the rest onto adjacent pages.

If you publish or distribute Opaque copies of the Document numbering more than 100, you must either include a machine-readable Transparent copy along with each Opaque copy, or state in or with each Opaque copy a computer-network location from which the general network-using public has access to download using public-standard network protocols a complete Transparent copy of the Document, free of added material. If you use the latter option, you must take reasonably prudent steps, when you begin distribution of Opaque copies in quantity, to ensure that this Transparent copy will remain thus accessible at the stated location until at least one year after the last time you distribute an Opaque copy (directly or through your agents or retailers) of that edition to the public.

It is requested, but not required, that you contact the authors of the Document well before redistributing any large number of copies, to give them a chance to provide you with an updated version of the Document.

You may copy and distribute a Modified Version of the Document under the conditions of sections 2 and 3 above, provided that you release the Modified Version under precisely this License, with the Modified Version filling the role of the Document, thus licensing distribution and modification of the Modified Version to whoever possesses a copy of it. In addition, you must do these things in the Modified Version:

If the Modified Version includes new front-matter sections or appendices that qualify as Secondary Sections and contain no material copied from the Document, you may at your option designate some or all of these sections as invariant. To do this, add their titles to the list of Invariant Sections in the Modified Version’s license notice. These titles must be distinct from any other section titles.

You may add a section Entitled "Endorsements", provided it contains nothing but endorsements of your Modified Version by various parties—​for example, statements of peer review or that the text has been approved by an organization as the authoritative definition of a standard.

You may add a passage of up to five words as a Front-Cover Text, and a passage of up to 25 words as a Back-Cover Text, to the end of the list of Cover Texts in the Modified Version. Only one passage of Front-Cover Text and one of Back-Cover Text may be added by (or through arrangements made by) any one entity. If the Document already includes a cover text for the same cover, previously added by you or by arrangement made by the same entity you are acting on behalf of, you may not add another; but you may replace the old one, on explicit permission from the previous publisher that added the old one.

The author(s) and publisher(s) of the Document do not by this License give permission to use their names for publicity for or to assert or imply endorsement of any Modified Version.

You may combine the Document with other documents released under this License, under the terms defined in section 4 above for modified versions, provided that you include in the combination all of the Invariant Sections of all of the original documents, unmodified, and list them all as Invariant Sections of your combined work in its license notice, and that you preserve all their Warranty Disclaimers.

The combined work need only contain one copy of this License, and multiple identical Invariant Sections may be replaced with a single copy. If there are multiple Invariant Sections with the same name but different contents, make the title of each such section unique by adding at the end of it, in parentheses, the name of the original author or publisher of that section if known, or else a unique number. Make the same adjustment to the section titles in the list of Invariant Sections in the license notice of the combined work.

In the combination, you must combine any sections Entitled "History" in the various original documents, forming one section Entitled "History"; likewise combine any sections Entitled "Acknowledgements", and any sections Entitled "Dedications". You must delete all sections Entitled "Endorsements".

You may make a collection consisting of the Document and other documents released under this License, and replace the individual copies of this License in the various documents with a single copy that is included in the collection, provided that you follow the rules of this License for verbatim copying of each of the documents in all other respects.

You may extract a single document from such a collection, and distribute it individually under this License, provided you insert a copy of this License into the extracted document, and follow this License in all other respects regarding verbatim copying of that document.

A compilation of the Document or its derivatives with other separate and independent documents or works, in or on a volume of a storage or distribution medium, is called an "aggregate" if the copyright resulting from the compilation is not used to limit the legal rights of the compilation’s users beyond what the individual works permit. When the Document is included in an aggregate, this License does not apply to the other works in the aggregate which are not themselves derivative works of the Document.

If the Cover Text requirement of section 3 is applicable to these copies of the Document, then if the Document is less than one half of the entire aggregate, the Document’s Cover Texts may be placed on covers that bracket the Document within the aggregate, or the electronic equivalent of covers if the Document is in electronic form. Otherwise they must appear on printed covers that bracket the whole aggregate.

Translation is considered a kind of modification, so you may distribute translations of the Document under the terms of section 4. Replacing Invariant Sections with translations requires special permission from their copyright holders, but you may include translations of some or all Invariant Sections in addition to the original versions of these Invariant Sections. You may include a translation of this License, and all the license notices in the Document, and any Warranty Disclaimers, provided that you also include the original English version of this License and the original versions of those notices and disclaimers. In case of a disagreement between the translation and the original version of this License or a notice or disclaimer, the original version will prevail.

If a section in the Document is Entitled "Acknowledgements", "Dedications", or "History", the requirement (section 4) to Preserve its Title (section 1) will typically require changing the actual title.

You may not copy, modify, sublicense, or distribute the Document except as expressly provided for under this License. Any other attempt to copy, modify, sublicense or distribute the Document is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

The Free Software Foundation may publish new, revised versions of the GNU Free Documentation License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. See http://www.gnu.org/copyleft/.

Each version of the License is given a distinguishing version number. If the Document specifies that a particular numbered version of this License "or any later version" applies to it, you have the option of following the terms and conditions either of that specified version or of any later version that has been published (not as a draft) by the Free Software Foundation. If the Document does not specify a version number of this License, you may choose any version ever published (not as a draft) by the Free Software Foundation.

Copyright (c) YEAR YOUR NAME.
   Permission is granted to copy, distribute and/or modify this document
   under the terms of the GNU Free Documentation License, Version 1.2
   or any later version published by the Free Software Foundation;
   with no Invariant Sections, no Front-Cover Texts, and no Back-Cover Texts.
   A copy of the license is included in the section entitled “GNU
   Free Documentation License”.

If you have Invariant Sections, Front-Cover Texts and Back-Cover Texts, replace the “ with…​Texts.” line with this:

with the Invariant Sections being LIST THEIR TITLES, with the
   Front-Cover Texts being LIST, and with the Back-Cover Texts being LIST.

If you have Invariant Sections without Cover Texts, or some other combination of the three, merge those two alternatives to suit the situation.

If your document contains nontrivial examples of program code, we recommend releasing these examples in parallel under your choice of free software license, such as the GNU General Public License, to permit their use in free software.
