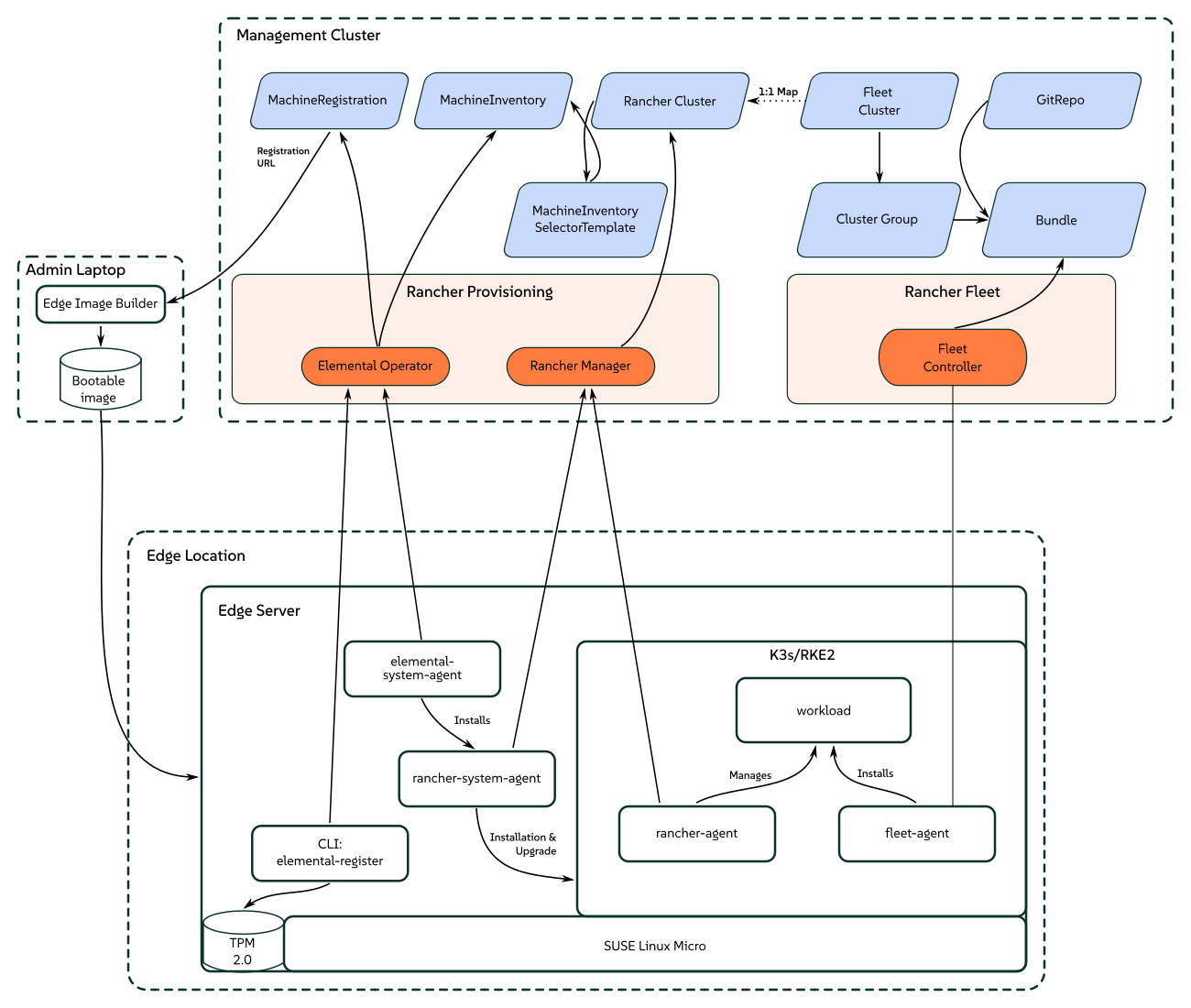

The following describes the minimum system and environmental requirements to run through this quickstart:

Note

Existing data found on target machines will be overwritten as part of the process, please make sure you backup any data on any USB storage devices and disks attached to target deployment nodes.

This guide is created using a Digital Ocean droplet to host the upstream cluster and an Intel NUC as the downstream device. For building the installation media, SUSE Linux Enterprise Server is used.

Start by creating a cluster capable of hosting Rancher and Elemental. This cluster needs to be routable from the network that the downstream nodes are connected to.

1.3.2 Set up DNS #



Before continuing, you need to set up access to your cluster. As with the setup of the cluster itself, how you configure DNS will be different depending on where it is being hosted.

Tip

If you do not want to handle setting up DNS records (for example, this is just an ephemeral test server), you can use a service like sslip.io instead. With this service, you can resolve any IP address with <address>.sslip.io.

To install Rancher, you need to get access to the Kubernetes API of the cluster you just created. This looks different depending on what distribution of Kubernetes is being used.

For RKE2, the kubeconfig file will have been written to /etc/rancher/rke2/rke2.yaml. Save this file as ~/.kube/config on your local system. You may need to edit the file to include the correct externally routable IP address or host name.

Install Rancher easily with the commands from the Rancher Documentation:

Install cert-manager:

helm repo add jetstack https://charts.jetstack.io
helm repo update
helm install cert-manager jetstack/cert-manager \
 --namespace cert-manager \
 --create-namespace \
 --set crds.enabled=true

Then install Rancher itself:

helm repo add rancher-prime https://charts.rancher.com/server-charts/prime
helm repo update
helm install rancher rancher-prime/rancher \
  --namespace cattle-system \
  --create-namespace \
  --set hostname=<DNS or sslip from above> \
  --set replicas=1 \
  --set bootstrapPassword=<PASSWORD_FOR_RANCHER_ADMIN> \
  --version 2.14.1

Note

If this is intended to be a production system, please use cert-manager to configure a real certificate (such as one from Let’s Encrypt).

Browse to the host name you set up and log in to Rancher with the bootstrapPassword you used. You will be guided through a short setup process.

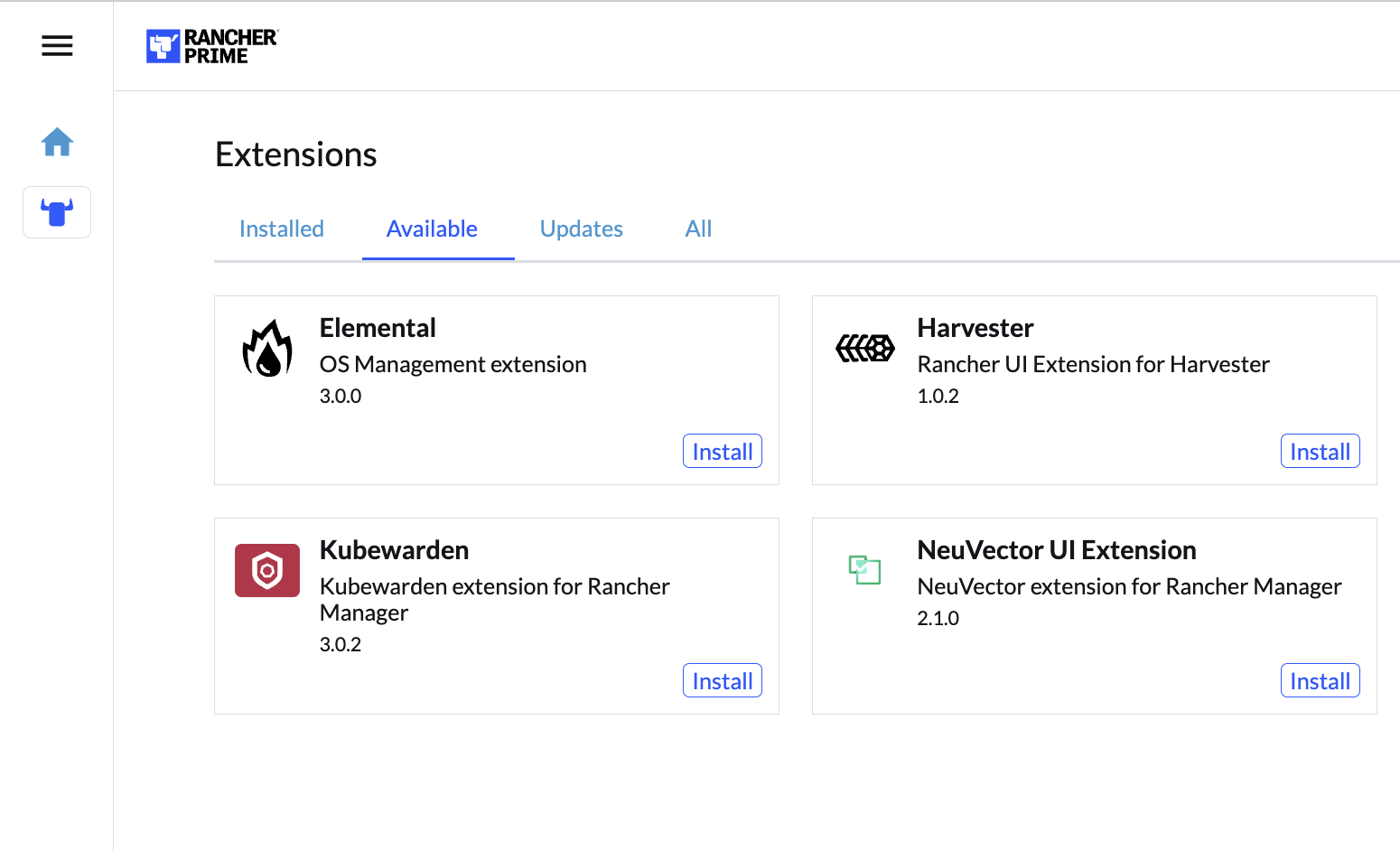

With Rancher installed, you can now install the Elemental operator and required CRD’s. The Helm chart for Elemental is published as an OCI artifact so the installation is a little simpler than other charts. It can be installed from either the same shell you used to install Rancher or in the browser from within Rancher’s shell.

helm install --create-namespace -n cattle-elemental-system \
 elemental-operator-crds \
 oci://registry.suse.com/rancher/elemental-operator-crds-chart \
 --version 1.9.0

helm install -n cattle-elemental-system \
 elemental-operator \
 oci://registry.suse.com/rancher/elemental-operator-chart \
 --version 1.9.0

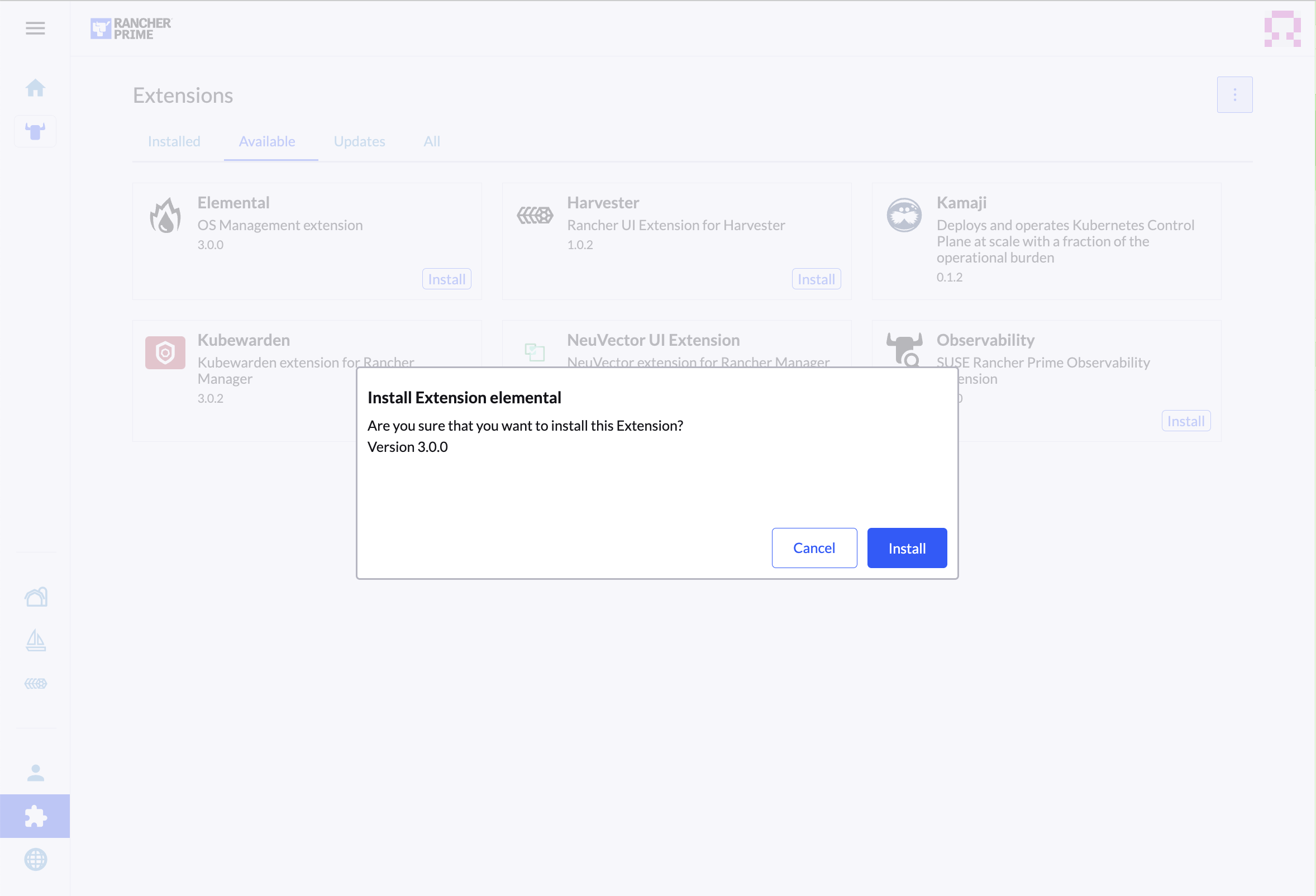

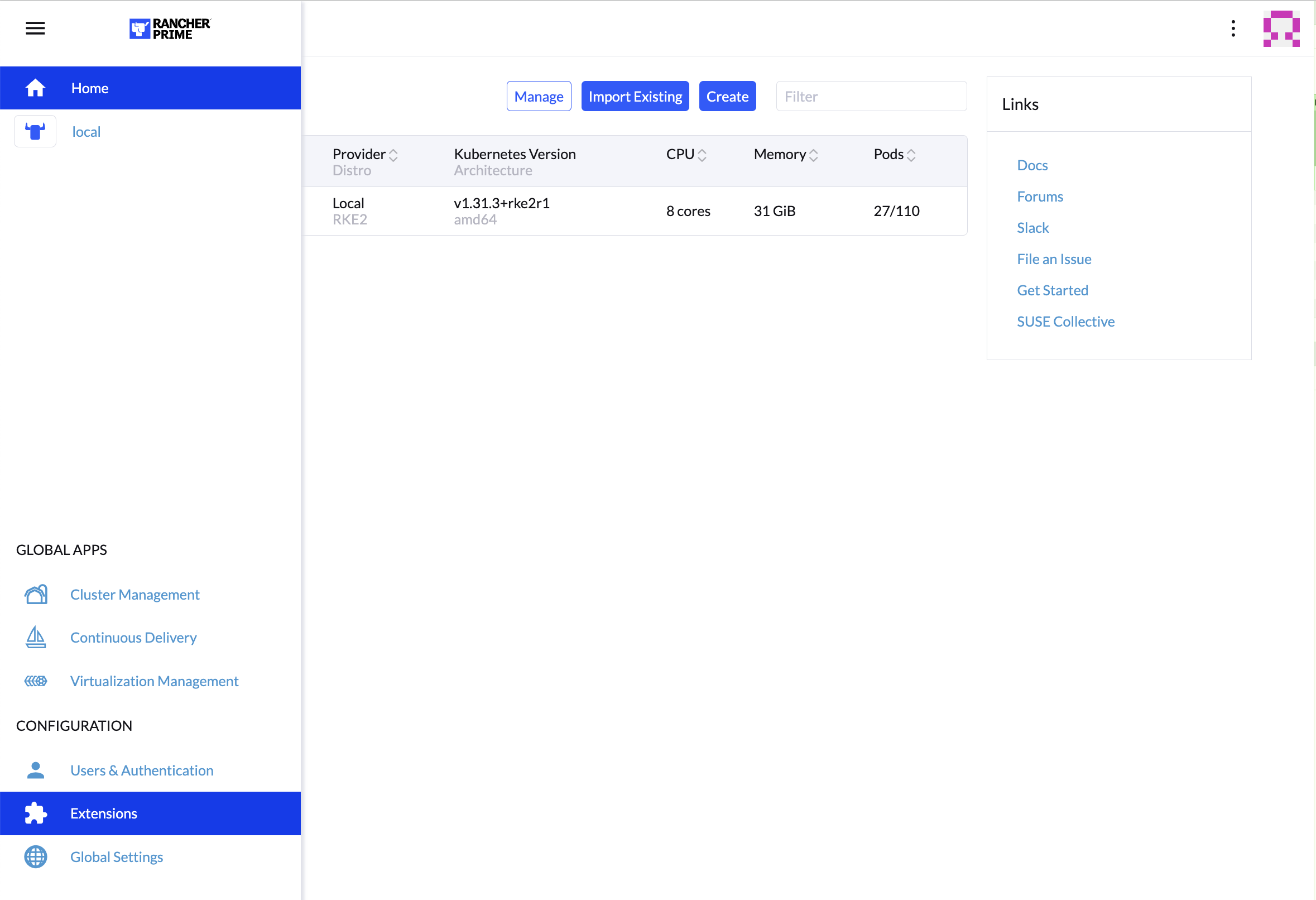

For simplicity, we recommend setting the variable $ELEM to the full path of where you want the configuration directory:

export ELEM=$HOME/elemental
mkdir -p $ELEM

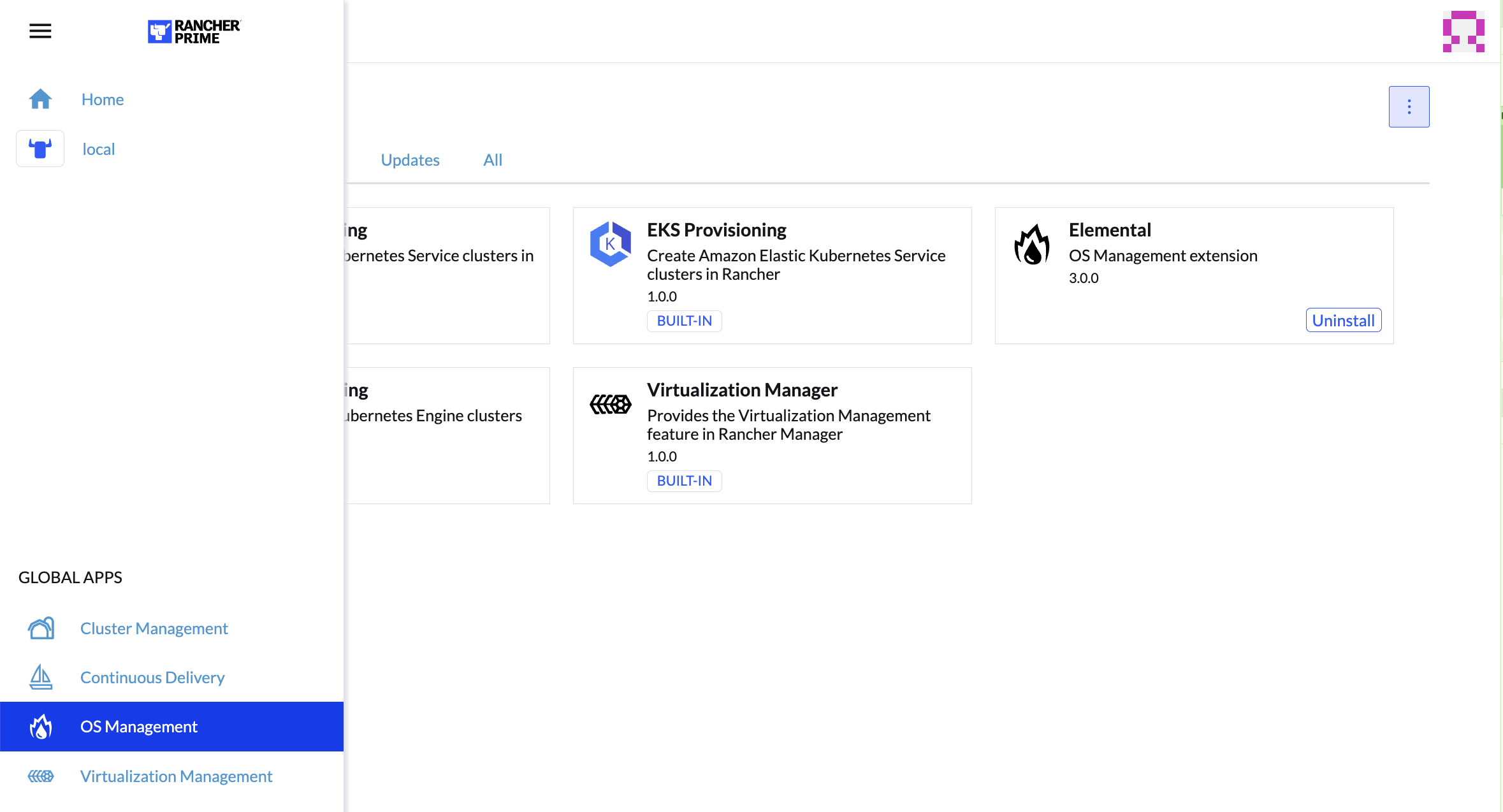

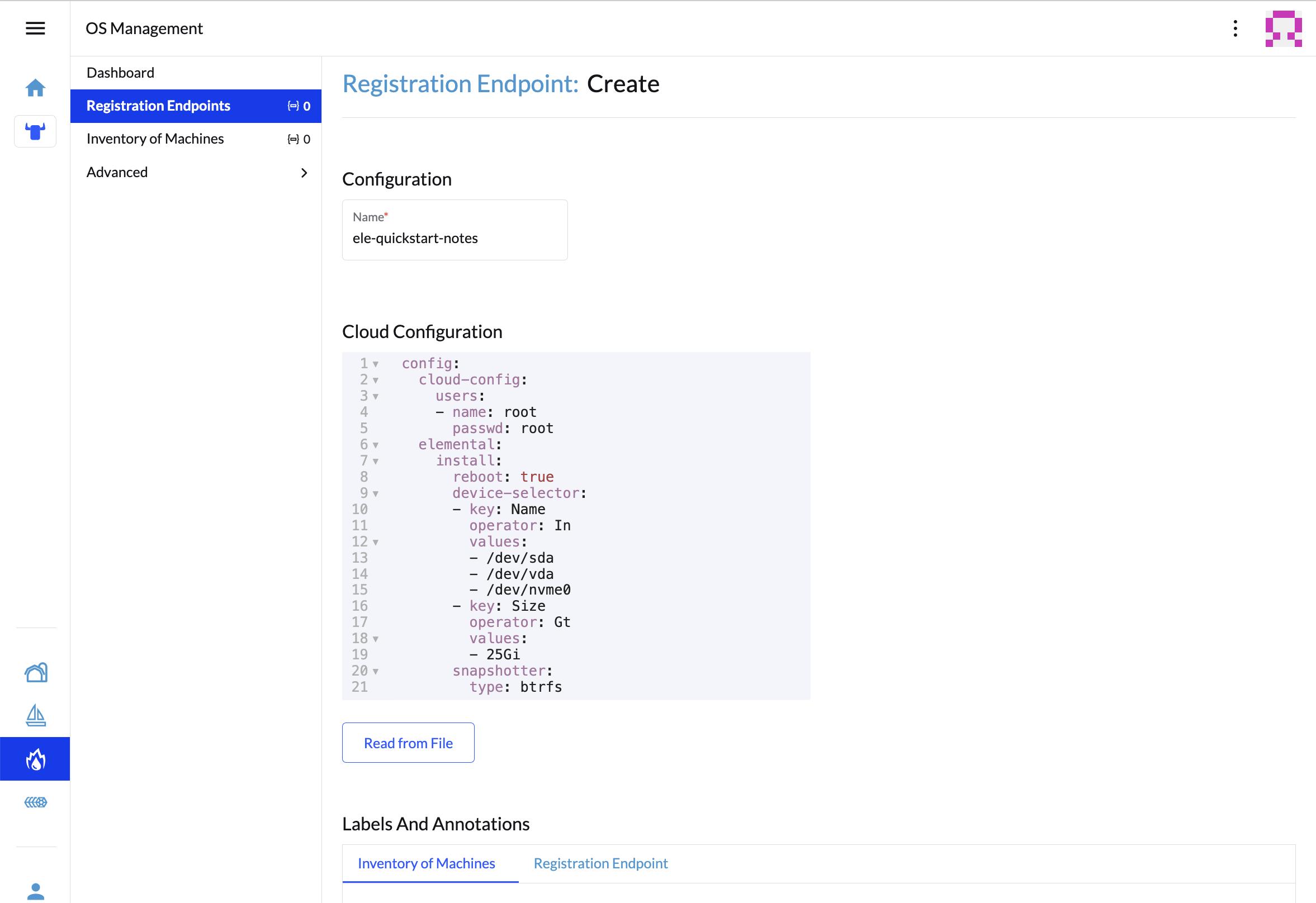

To allow machines to register to Elemental, we need to create a MachineRegistration object in the fleet-default namespace.

Let us create a basic version of this object:

cat << EOF > $ELEM/registration.yaml
apiVersion: elemental.cattle.io/v1beta1
kind: MachineRegistration
metadata:
  name: ele-quickstart-nodes
  namespace: fleet-default
spec:
  machineName: "\${System Information/Manufacturer}-\${System Information/UUID}"

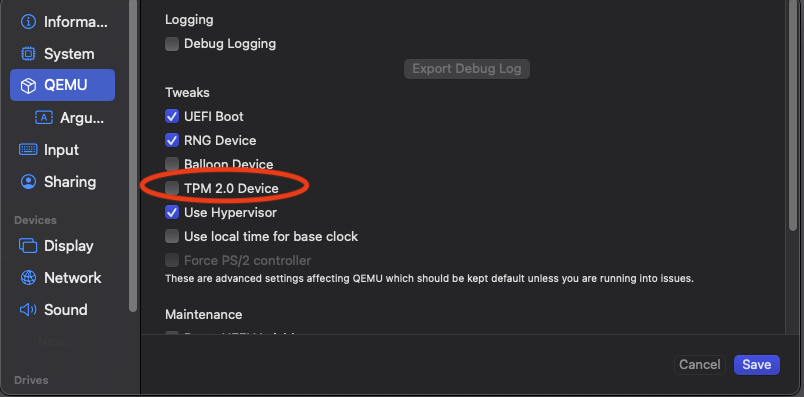

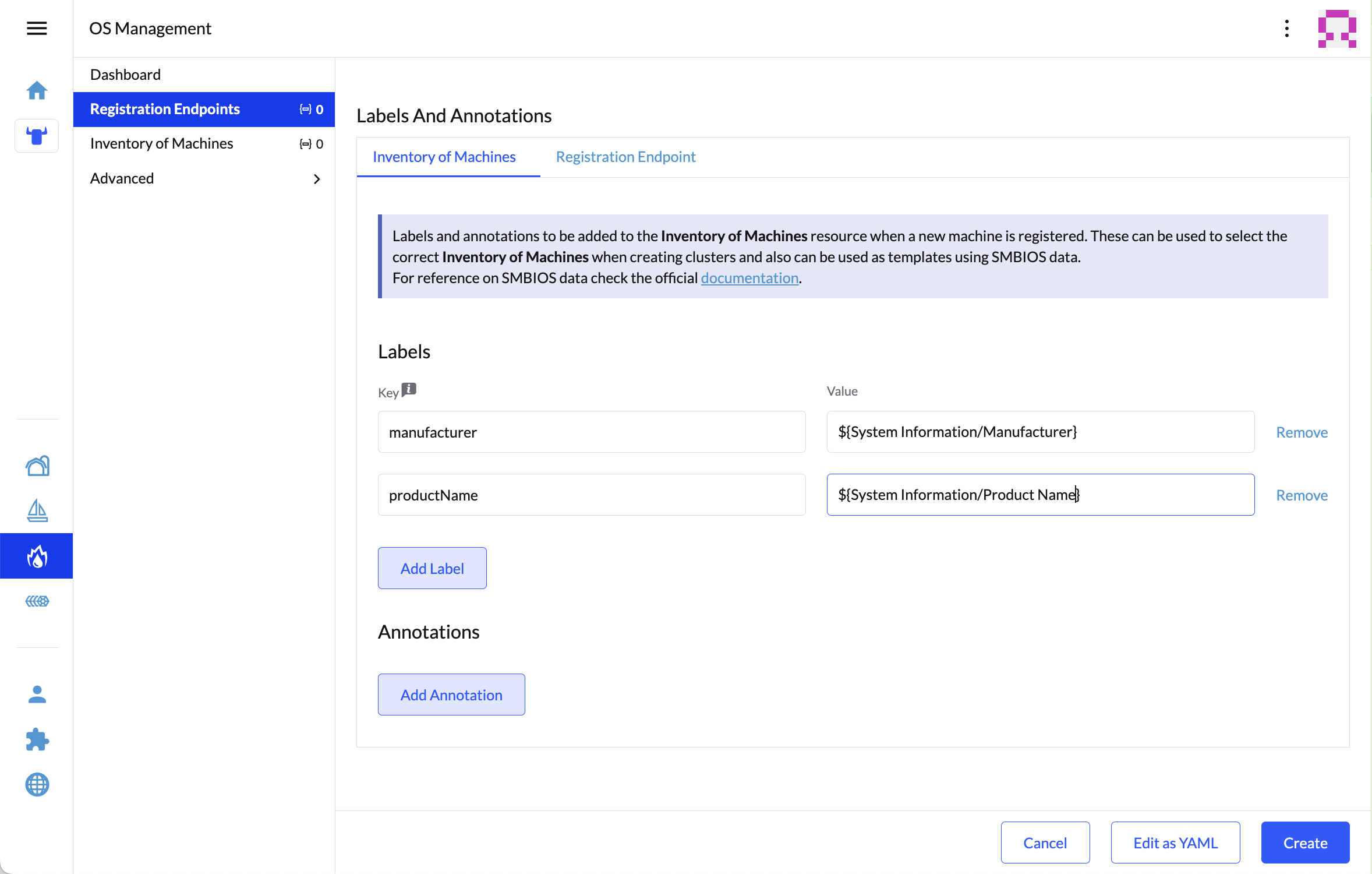

  machineInventoryLabels:
    manufacturer: "\${System Information/Manufacturer}"
    productName: "\${System Information/Product Name}"
EOF

kubectl apply -f $ELEM/registration.yaml

Note

The cat command escapes each $ with a backslash (\) so that Bash does not template them. Remove the backslashes if copying manually.

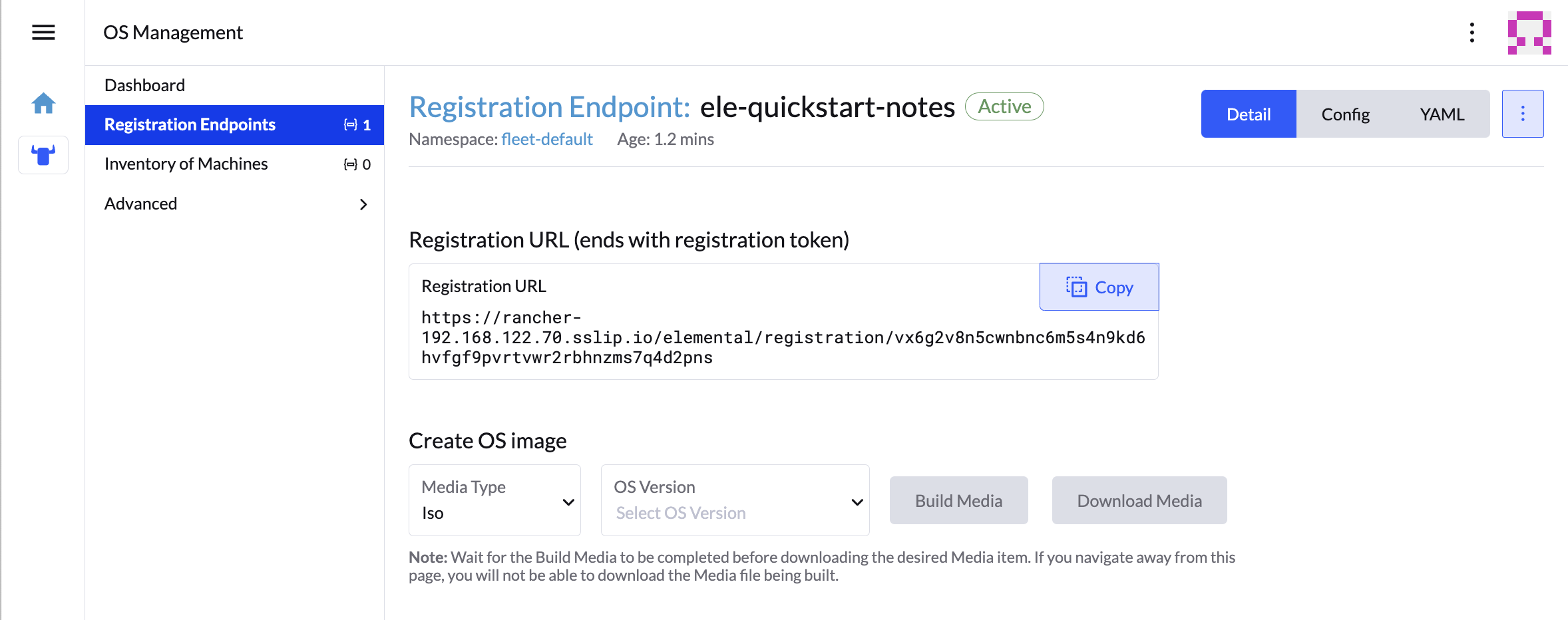

Once the object is created, find and note the endpoint that gets assigned:

REGISURL=$(kubectl get machineregistration ele-quickstart-nodes -n fleet-default -o jsonpath='{.status.registrationURL}')

Alternatively, this can also be done from the UI.

While the current version of Elemental has a way to build its own installation media, in SUSE Edge 3.6 we do this with Kiwi and Edge Image Builder instead, so the resulting system is built with SUSE Linux Micro as the base Operating System.

Tip

For more details on Kiwi, please follow Kiwi Image Builder process (Chapter 26, Building Updated SUSE Linux Micro Images with Kiwi) to build fresh images first and for Edge Image Builder, check out the Edge Image Builder Getting Started Guide (Chapter 2, Standalone clusters with Edge Image Builder) and also the Component Documentation (Chapter 8, Edge Image Builder).

From a Linux system with Podman installed, create the directories and place the base image being built by Kiwi:

mkdir -p $ELEM/eib_quickstart/base-images
cp /path/to/{micro-base-image-iso} $ELEM/eib_quickstart/base-images/
mkdir -p $ELEM/eib_quickstart/elemental

curl $REGISURL -o $ELEM/eib_quickstart/elemental/elemental_config.yaml

cat << EOF > $ELEM/eib_quickstart/eib-config.yaml
apiVersion: 1.3
image:
    imageType: iso
    arch: x86_64
    baseImage: SL-Micro.x86_64-6.2-Base-SelfInstall-GM.install.iso
    outputImageName: elemental-image.iso
operatingSystem:
  time:
    timezone: Europe/London
    ntp:
      forceWait: true
      pools:
        - 2.suse.pool.ntp.org
      servers:
        - 10.0.0.1
        - 10.0.0.2
  isoConfiguration:
    installDevice: /dev/vda
  users:
    - username: root
      encryptedPassword: \$6\$jHugJNNd3HElGsUZ\$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
  packages:
    sccRegistrationCode: XXX
EOF

Note

• The time section is optional but it is highly recommended to be configured to avoid potential issues with certificates and clock skew. The values provided in this example are for illustrative purposes only. Please adjust them to fit your specific requirements.

• The unencoded password is eib.

• The sccRegistrationCode is needed to download and install the necessary RPMs from the official sources (alternatively, the elemental-register and elemental-system-agent RPMs can be manually side-loaded instead)

• The cat command escapes each $ with a backslash (\) so that Bash does not template them. Remove the backslashes if copying manually.

• The installation device will be wiped during the installation.

podman run --privileged --rm -it -v $ELEM/eib_quickstart/:/eib \
 registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 \
 build --definition-file eib-config.yaml

If you are booting a physical device, we need to burn the image to a USB flash drive. This can be done with:

sudo dd if=/eib_quickstart/elemental-image.iso of=/dev/<PATH_TO_DISK_DEVICE> status=progress

Now that we have created the installation media, we can boot our downstream nodes with it.

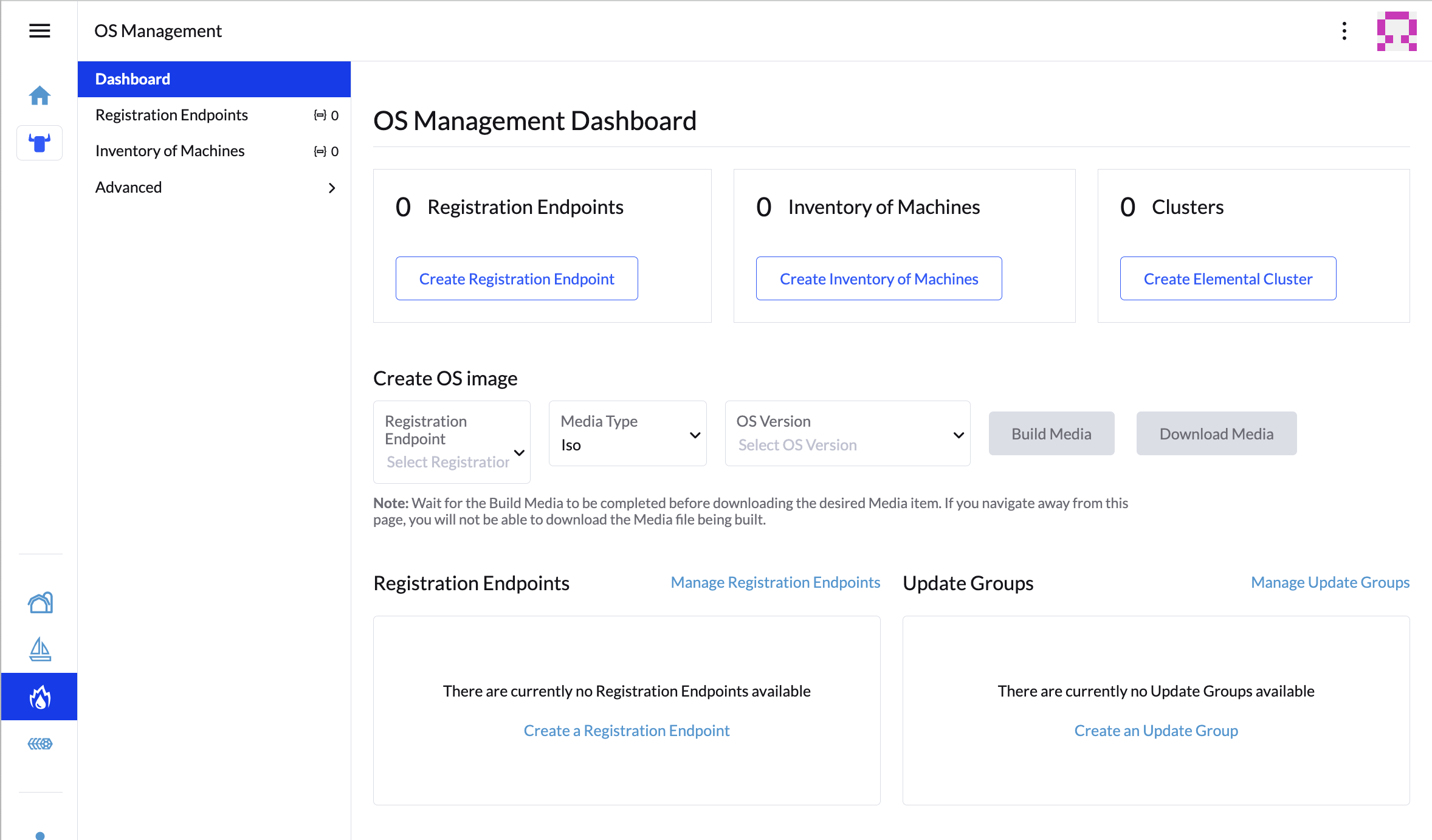

For each of the systems that you want to control with Elemental, add the installation media and boot the device. After installation, it will reboot and register itself.

If you are using the UI extension, you should see your node appear in the "Inventory of Machines."

Note

Do not remove the installation medium until you’ve seen the login prompt; during first-boot files are still accessed on the USB stick.

There are two objects we need to create when provisioning a new cluster using Elemental.

After creating these objects, you should see a new Kubernetes cluster spin up using the new node you just installed with.

SUSE Rancher Elemental supports the ability to perform a "node reset" which can optionally trigger when either a whole cluster is deleted from Rancher, a single node is deleted from a cluster, or a node is manually deleted from the machine inventory. This is useful when you want to reset and clean-up any orphaned resources and want to automatically bring the cleaned node back into the machine inventory so it can be reused. This is not enabled by default, and thus any system that is removed, will not be cleaned up (i.e. data will not be removed, and any Kubernetes cluster resources will continue to operate on the downstream clusters) and it will require manual intervention to wipe data and re-register the machine to Rancher via Elemental.

If you wish for this functionality to be enabled by default, you need to make sure that your MachineRegistration explicitly enables this by adding config.elemental.reset.enabled: true, for example:

config:
  elemental:
    registration:
      auth: tpm
    reset:
      enabled: true

Then, all systems registered with this MachineRegistration will automatically receive the elemental.cattle.io/resettable: 'true' annotation in their configuration. If you wish to do this manually on individual nodes, e.g. because you’ve got an existing MachineInventory that doesn’t have this annotation, or you have already deployed nodes, you can modify the MachineInventory and add the resettable configuration, for example:

apiVersion: elemental.cattle.io/v1beta1
kind: MachineInventory
metadata:
  annotations:
    elemental.cattle.io/os.unmanaged: 'true'
    elemental.cattle.io/resettable: 'true'

In SUSE Edge 3.1, the Elemental Operator puts down a marker on the operating system that will trigger the cleanup process automatically; it will stop all Kubernetes services, remove all persistent data, uninstall all Kubernetes services, cleanup any remaining Kubernetes/Rancher directories, and force a re-registration to Rancher via the original Elemental MachineRegistration configuration. This happens automatically, there is no need for any manual intervention. The script that gets called can be found in /opt/edge/elemental_node_cleanup.sh and is triggered via systemd.path upon the placement of the marker, so its execution is immediate.

Warning

Using the resettable functionality assumes that the desired behavior when removing a node/cluster from Rancher is to wipe data and force a re-registration. Data loss is guaranteed in this situation, so only use this if you’re sure that you want automatic reset to be performed.

Here are some recommended resources to research after using this guide:

As EIB runs within a container, we need to mount a configuration directory from the host, enabling you to specify your desired configuration, and during the build process EIB has access to any required input files and supporting artifacts. This directory must follow a specific structure. Let’s create it, assuming that this directory will exist in your home directory, and called "eib":

export CONFIG_DIR=$HOME/eib
mkdir -p $CONFIG_DIR/base-images

In the previous step we created a "base-images" directory that will host the SUSE Linux Micro 6.2 input image, let’s ensure that the image is copied over to the configuration directory:

cp /path/to/SL-Micro.x86_64-6.2-Base-SelfInstall-GM.install.iso $CONFIG_DIR/base-images/slemicro.iso

Note

During the EIB run, the original base image is not modified; a new and customized version is created with the desired configuration in the root of the EIB config directory.

The configuration directory at this point should look like the following:

└── base-images/
    └── slemicro.iso

The definition file describes the majority of configurable options that the Edge Image Builder supports, a full example of options can be found here, and we would recommend that you take a look at the upstream building images guide for more comprehensive examples than the one we’re going to run through below. Let’s start with a very basic definition file for our OS image:

cat << EOF > $CONFIG_DIR/iso-definition.yaml
apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
EOF

This definition specifies that we are generating an output image for an AMD64/Intel 64 based system. The image that will be used as the base for further modification is an iso image named slemicro.iso, expected to be located at $CONFIG_DIR/base-images/slemicro.iso. It also outlines that after EIB finishes modifying the image, the output image will be named eib-image.iso, and by default will reside in $CONFIG_DIR.

Now our directory structure should look like:

├── iso-definition.yaml
└── base-images/
    └── slemicro.iso

In the following sections we’ll walk through a few examples of common operations:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-Base-RT-SelfInstall.iso
operatingSystem:
  isoConfiguration:
    installDevice: /dev/disk/by-id/ata-QEMU_HARDDISK_111-disk1 # first defined disk

2.3.2 Configuring OS Users #



EIB allows you to preconfigure users with login information, such as passwords or SSH keys, including setting a fixed root password. As part of this example we’re going to fix the root password, and the first step is to use OpenSSL to create a one-way encrypted password:

openssl passwd -6 SecurePassword

This will output something similar to:

$6$G392FCbxVgn[...]Y7zTXnC1

We can then add a section in the definition file called operatingSystem with a users array inside it. The resulting file should look like:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$G392FCbxVgn[...]Y7zTXnC1

Note

It’s also possible to add additional users, create the home directories, set user-id’s, add ssh-key authentication, and modify group information. Please refer to the upstream building images guide for further examples.

2.3.3 Configuring OS time #



The time section is optional but it is highly recommended to be configured to avoid potential issues with certificates and clock skew. EIB will configure chronyd and /etc/localtime depending on the parameters here.

operatingSystem:
  time:
    timezone: Europe/London
    ntp:
      forceWait: true
      pools:
        - 2.suse.pool.ntp.org
      servers:
        - 10.0.0.1
        - 10.0.0.2

• The timezone specifies the timezone in the format of "Region/Locality" (e.g. "Europe/London"). The full list may be found by running timedatectl list-timezones on a Linux system.

• ntp - Defines attributes related to configuring NTP (using chronyd):

• forceWait - Requests that chronyd attempts to synchronize timesources before starting other services, with a 180s timeout.

• pools - Specifies a list of pools that chronyd will use as data sources (using iburst to improve the time taken for initial synchronization).

• servers - Specifies a list of servers that chronyd will use as data sources (using iburst to improve the time taken for initial synchronization).

Note

The values provided in this example are for illustrative purposes only. Please adjust them to fit your specific requirements.

.
├── definition.yaml
└── certificates
    ├── my-ca.pem
    └── my-ca.crt

2.3.5 Adding Operating System Files #



The files placed in the os-files directory in the image configuration directory are automatically copied into the filesystem of the built image. The exact directory directory will be retained when they are copied. For example, if a file exists in a subdirectory named os-files/etc, it is placed in the /etc directory of the built image.

Note

If the os-files directory exists, it cannot be empty.

.
├── definition.yaml
└── os-files
    └── etc
        └── ssh
            └── sshd_config

2.3.6 Configuring RPM packages #



One of the major features of EIB is to provide a mechanism to add additional software packages to the image, so when the installation completes the system is able to leverage the installed packages right away. EIB permits users to specify the following:

• Packages by their name within a list in the image definition

• Network repositories to search for these packages in

• SUSE Customer Center (SCC) credentials to search official SUSE repositories for the listed packages

• Via an $CONFIG_DIR/rpms directory, side-load custom RPM’s that don’t exist in network repositories

• Via the same directory ($CONFIG_DIR/rpms/gpg-keys), GPG-keys to enable validation of third party packages

EIB will then run through a package resolution process at image build time, taking the base image as the input, and attempts to pull and install all supplied packages, either specified via the list or provided locally. EIB downloads all of the packages, including any dependencies into a repository that exists within the output image and instructs the system to install these during the first boot process. Doing this process during the image build guarantees that the packages will successfully install during first-boot on the desired platform, e.g. the node at the edge. This is also advantageous in environments where you want to bake the additional packages into the image rather than pull them over the network when in operation, e.g. for air-gapped or restricted network environments.

As a simple example to demonstrate this, we are going to install the nvidia-container-toolkit RPM package found in the third party vendor-supported NVIDIA repository:

  packages:
    packageList:
      - nvidia-container-toolkit
    additionalRepos:
      - url: https://nvidia.github.io/libnvidia-container/stable/rpm/x86_64

The resulting definition file looks like the following:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$G392FCbxVgn[...]Y7zTXnC1
  packages:
    packageList:
      - nvidia-container-toolkit
    additionalRepos:
      - url: https://nvidia.github.io/libnvidia-container/stable/rpm/x86_64

The above is a simple example, but for completeness, download the NVIDIA package signing key before running the image generation:

$ mkdir -p $CONFIG_DIR/rpms/gpg-keys
$ curl -fsSL https://nvidia.github.io/libnvidia-container/gpgkey > $CONFIG_DIR/rpms/gpg-keys/nvidia.gpg

Warning

Adding in additional RPM’s via this method is meant for the addition of supported third party components or user-supplied (and maintained) packages; this mechanism should not be used to add packages that would not usually be supported on SUSE Linux Micro. If this mechanism is used to add components from openSUSE repositories (which are not supported), including from newer releases or service packs, you may end up with an unsupported configuration, especially when dependency resolution results in core parts of the operating system being replaced, even though the resulting system may appear to function as expected. If you’re unsure, contact your SUSE representative for assistance in determining the supportability of your desired configuration.

Note

A more comprehensive guide with additional examples can be found in the upstream installing packages guide.

2.3.7 Configuring Kubernetes cluster and user workloads #



Another feature of EIB is the ability to use it to automate the deployment of both single-node and multi-node highly-available Kubernetes clusters that "bootstrap in place" (i.e. don’t require any form of centralized management infrastructure to coordinate). The primary driver behind this approach is for air-gapped deployments, or network restricted environments, but it also serves as a way of quickly bootstrapping standalone clusters, even if full and unrestricted network access is available.

This method enables not only the deployment of the customized operating system, but also the ability to specify Kubernetes configuration, any additional layered components via Helm charts, and any user workloads via supplied Kubernetes manifests. However, the design principle behind using this method is that we default to assuming that the user is wanting to air-gap. Therefore, any items specified in the image definition will be pulled into the image, which includes user-supplied workloads. EIB ensures that any discovered images that are required by definitions are copied locally and are served by the embedded image registry in the resulting deployed system.

In this next example, we’re going to take our existing image definition and will specify a Kubernetes configuration (in this example it doesn’t list the systems and their roles, so we default to assuming single-node), which will instruct EIB to provision a single-node RKE2 Kubernetes cluster. To show the automation of both the deployment of both user-supplied workloads (via manifest) and layered components (via Helm), we are going to install KubeVirt via the SUSE Edge Helm chart, as well as NGINX via a Kubernetes manifest. The additional configuration we need to append to the existing image definition is as follows:

kubernetes:
  version: v1.35.3+rke2r3
  manifests:
    urls:
      - https://k8s.io/examples/application/nginx-app.yaml
  helm:
    charts:
      - name: kubevirt
        version: 306.0.2+up0.7.0
        repositoryName: suse-edge
    repositories:
      - name: suse-edge
        url: oci://registry.suse.com/edge/charts

The resulting full definition file should now look like:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$G392FCbxVgn[...]Y7zTXnC1
  packages:
    packageList:
      - nvidia-container-toolkit
    additionalRepos:
      - url: https://nvidia.github.io/libnvidia-container/stable/rpm/x86_64
kubernetes:
  version: v1.35.3+k3s1
  manifests:
    urls:
      - https://k8s.io/examples/application/nginx-app.yaml
  helm:
    charts:
      - name: kubevirt
        version: 306.0.2+up0.7.0
        repositoryName: suse-edge
    repositories:
      - name: suse-edge
        url: oci://registry.suse.com/edge/charts

Note

Further examples of options such as multi-node deployments, custom networking, and Helm chart options/values can be found in the upstream documentation.

2.3.8 Configuring the network #



In the last example in this quickstart, let’s configure the network that will be brought up when a system is provisioned with the image generated by EIB. It’s important to understand that unless a network configuration is supplied, the default model is that DHCP will be used on all interfaces discovered at boot time. However, this is not always a desirable configuration, especially if DHCP is not available and you need to provide static configurations, or you need to set up more complex networking constructs, e.g. bonds, LACP, and VLAN’s, or need to override certain parameters, e.g. hostnames, DNS servers, and routes.

EIB provides the ability to provide either per-node configurations (where the system in question is uniquely identified by its MAC address), or an override for supplying an identical configuration to each machine, which is more useful when the system MAC addresses aren’t known. An additional tool is used by EIB called Network Manager Configurator, or nmc for short, which is a tool built by the SUSE Edge team to allow custom networking configurations to be applied based on the nmstate.io declarative network schema, and at boot time will identify the node it’s booting on and will apply the desired network configuration prior to any services coming up.

We’ll now apply a static network configuration for a system with a single interface by describing the desired network state in a node-specific file (based on the desired hostname) in the required network directory:

mkdir $CONFIG_DIR/network

cat << EOF > $CONFIG_DIR/network/host1.local.yaml
routes:
  config:
  - destination: 0.0.0.0/0
    metric: 100
    next-hop-address: 192.168.122.1
    next-hop-interface: eth0
    table-id: 254
  - destination: 192.168.122.0/24
    metric: 100
    next-hop-address: 192.168.122.1
    next-hop-interface: eth0
    table-id: 254
dns-resolver:
  config:
    server:
    - 192.168.122.1
    - 8.8.8.8
interfaces:
- name: eth0
  type: ethernet
  state: up
  mac-address: 34:8A:B1:4B:16:E7
  ipv4:
    address:
    - ip: 192.168.122.50
      prefix-length: 24
    dhcp: false
    enabled: true
  ipv6:
    enabled: false
EOF

Warning

The above example is set up for the default 192.168.122.0/24 subnet assuming that testing is being executed on a virtual machine, please adapt to suit your environment, not forgetting the MAC address. As the same image can be used to provision multiple nodes, networking configured by EIB (via nmc) is dependent on it being able to uniquely identify the node by its MAC address, and hence during boot nmc will apply the correct networking configuration to each machine. This means that you’ll need to know the MAC addresses of the systems you want to install onto. Alternatively, the default behavior is to rely on DHCP, but you can utilize the configure-network.sh hook to apply a common configuration to all nodes - see the networking guide (Chapter 9, Edge Networking) for further details.

The resulting file structure should look like:

├── iso-definition.yaml
├── base-images/
│   └── slemicro.iso
└── network/
    └── host1.local.yaml

The network configuration we just created will be parsed and the necessary NetworkManager connection files will be automatically generated and inserted into the new installation image that EIB will create. These files will be applied during the provisioning of the host, resulting in a complete network configuration.

Note

Please refer to the Edge Networking component (Chapter 9, Edge Networking) for a more comprehensive explanation of the above configuration and examples of this feature.

Now that we’ve got a base image and an image definition for EIB to consume, let’s go ahead and build the image. For this, we simply use podman to call the EIB container with the "build" command, specifying the definition file:

podman run --rm -it --privileged -v $CONFIG_DIR:/eib \
registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 \
build --definition-file iso-definition.yaml

The output of the command should be similar to:

Setting up Podman API listener...
Downloading file: dl-manifest-1.yaml 100% (498/498 B, 9.5 MB/s)
Pulling selected Helm charts... 100% (1/1, 43 it/min)
Generating image customization components...
Identifier ................... [SUCCESS]
Custom Files ................. [SKIPPED]
Time ......................... [SKIPPED]
Network ...................... [SUCCESS]
Groups ....................... [SKIPPED]
Users ........................ [SUCCESS]
Proxy ........................ [SKIPPED]
Resolving package dependencies...
Rpm .......................... [SUCCESS]
Os Files ..................... [SKIPPED]
Systemd ...................... [SKIPPED]
Fips ......................... [SKIPPED]
Elemental .................... [SKIPPED]
Suma ......................... [SKIPPED]
Populating Embedded Artifact Registry... 100% (3/3, 10 it/min)
Embedded Artifact Registry ... [SUCCESS]
Keymap ....................... [SUCCESS]
Configuring Kubernetes component...
The Kubernetes CNI is not explicitly set, defaulting to 'cilium'.
Downloading file: rke2_installer.sh
Downloading file: rke2-images-core.linux-amd64.tar.zst 100% (657/657 MB, 48 MB/s)
Downloading file: rke2-images-cilium.linux-amd64.tar.zst 100% (368/368 MB, 48 MB/s)
Downloading file: rke2.linux-amd64.tar.gz 100% (35/35 MB, 50 MB/s)
Downloading file: sha256sum-amd64.txt 100% (4.3/4.3 kB, 6.2 MB/s)
Kubernetes ................... [SUCCESS]
Certificates ................. [SKIPPED]
Cleanup ...................... [SKIPPED]
Building ISO image...
Kernel Params ................ [SKIPPED]
Build complete, the image can be found at: eib-image.iso

The built ISO image is stored at $CONFIG_DIR/eib-image.iso:

├── iso-definition.yaml
├── eib-image.iso
├── _build
│   └── cache/
│       └── ...
│   └── build-<timestamp>/
│       └── ...
├── base-images/
│   └── slemicro.iso
└── network/
    └── host1.local.yaml

Each build creates a time-stamped folder in $CONFIG_DIR/_build/ that includes the logs of the build, the artifacts used during the build, and the combustion and artefacts directories which contain all the scripts and artifacts that are added to the CRB image.

The contents of this directory should look like:

├── build-<timestamp>/
│   │── combustion/
│   │   ├── 05-configure-network.sh
│   │   ├── 10-rpm-install.sh
│   │   ├── 12-keymap-setup.sh
│   │   ├── 13b-add-users.sh
│   │   ├── 20-k8s-install.sh
│   │   ├── 26-embedded-registry.sh
│   │   ├── 48-message.sh
│   │   ├── network/
│   │   │   ├── host1.local/
│   │   │   │   └── eth0.nmconnection
│   │   │   └── host_config.yaml
│   │   ├── nmc
│   │   └── script
│   │── artefacts/
│   │   │── registry/
│   │   │   ├── hauler
│   │   │   ├── nginx:<version>-registry.tar.zst
│   │   │   ├── rancher_kubectl:<version>-registry.tar.zst
│   │   │   └── registry.suse.com_suse_sles_15.6_virt-operator:<version>-registry.tar.zst
│   │   │── rpms/
│   │   │   └── rpm-repo
│   │   │       ├── addrepo0
│   │   │       │   ├── nvidia-container-toolkit-<version>.rpm
│   │   │       │   ├── nvidia-container-toolkit-base-<version>.rpm
│   │   │       │   ├── libnvidia-container1-<version>.rpm
│   │   │       │   └── libnvidia-container-tools-<version>.rpm
│   │   │       ├── repodata
│   │   │       │   ├── ...
│   │   │       └── zypper-success
│   │   └── kubernetes/
│   │       ├── rke2_installer.sh
│   │       ├── registries.yaml
│   │       ├── server.yaml
│   │       ├── images/
│   │       │   ├── rke2-images-cilium.linux-amd64.tar.zst
│   │       │   └── rke2-images-core.linux-amd64.tar.zst
│   │       ├── install/
│   │       │   ├── rke2.linux-amd64.tar.gz
│   │       │   └── sha256sum-amd64.txt
│   │       └── manifests/
│   │           ├── dl-manifest-1.yaml
│   │           └── kubevirt.yaml
│   ├── createrepo.log
│   ├── eib-build.log
│   ├── embedded-registry.log
│   ├── helm
│   │   └── kubevirt
│   │       └── kubevirt-0.4.0.tgz
│   ├── helm-pull.log
│   ├── helm-template.log
│   ├── iso-build.log
│   ├── iso-build.sh
│   ├── iso-extract
│   │   └── ...
│   ├── iso-extract.log
│   ├── iso-extract.sh
│   ├── modify-raw-image.sh
│   ├── network-config.log
│   ├── podman-image-build.log
│   ├── podman-system-service.log
│   ├── prepare-resolver-base-tarball-image.log
│   ├── prepare-resolver-base-tarball-image.sh
│   ├── raw-build.log
│   ├── raw-extract
│   │   └── ...
│   └── resolver-image-build
│       └──...
└── cache
    └── ...

If the build fails, eib-build.log is the first log that contains information. From there, it will direct you to the component that failed for debugging.

At this point, you should have a ready-to-use image that will:

If the image build process fails, refer to the upstream debugging guide.

For instructions on how to test the newly built CRB image, refer to the upstream image testing guide.

If you already have an instance of SUSE Multi-Linux Manager 5.0.6 running, you can skip this step.

You can run SUSE Multi-Linux Manager Server on a dedicated physical server, as a virtual machine on your own hardware, or in the cloud. Pre-configured virtual machine images for SUSE Multi-Linux Server are provided for supported public clouds.

In this quick start we’re using the "qcow2" image SUSE-Manager-Server.x86_64-5.0.4-Qcow-5.0-2025-04.qcow2 for AMD64/Intel 64 that you can find at https://www.suse.com/download/suse-manager/ or in the SUSE Customer Center. This image will work as a virtual machine on hypervisors like KVM. Please always check for the newest version of the image and use it for new installations.

You can also install SUSE Multi-Linux Manager Server on any of the other supported hardware architectures. In that case pick the image that matches your hardware architecture.

Once you have downloaded the image, create a virtual machine that meets at least the following minimal hardware specifications:

With the qcow2 image, there is no need to install the operating system. You can directly attach the image as your root partition.

You need to set up the network so that your edge nodes can later access SUSE Multi-Linux Manager Server with a hostname that contains the fully qualified domain name ("FQDN")!

When you boot SUSE Multi-Linux Manager for the first time you need to perform some initial configuration:

The next steps need to be done as the "root" user:

For the next step you need the registration code for the SUSE Multi-Linux Manager Extension that you can find in the SUSE Customer Center. The same code can be used for both registering SUSE Linux Micro and SUSE Multi-Linux Manager:

Register SUSE Linux Micro:

transactional-update register -r <REGCODE> -e <your_email>

Register SUSE Multi-Linux Manager:

transactional-update register -p SUSE-Manager-Server/5.0/x86_64 -r <REGCODE>

The product string depends on your hardware architecture! For example, if you are using SUSE Multi-Linux Manager on a 64-bit Arm system, the string is "SUSE-Manager-Server/5.0/aarch64".

Reboot

Update the system:

transactional-update

Unless there were no changes, reboot to apply the updates.

SUSE Multi-Linux Manager is provided via a container that is managed by Podman. The mgradm command handles the setup and configuration for you.

Warning

It is very important that your SUSE Multi-Linux Manager Server has the hostname configured with a fully qualified domain name ("FQDN") that the edge nodes you want to manage can properly resolve in your network!

Before you install and configure the SUSE Multi-Linux Manager Server container, you need to prepare the additional block device that you have previously added. For that, you need to know the name the virtual machine has given to the device. For example, if the block device is /dev/vdb, you can configure it to be used for SUSE Multi-Linux Manager using the following command:

mgr-storage-server /dev/vdb

Deploy SUSE Multi-Linux Manager:

mgradm install podman <FQDN>

Provide the password for the CA certificate. This password should be different from your login passwords. You usually don’t need to enter it later, but you should note it down.

Provide the password for the "admin" user. This is the initial user for logging into SUSE Multi-Linux Manager. You can create additional users with full or restricted rights later.

Once the deployment has finished, you can log into the SUSE Multi-Linux Manager web UI using the host name you provided earlier. The initial user is "admin". Use the password you provided in the previous step.

For the next step you need your Organization Credentials that you can find on the 2nd sub-tab of the "Users" tab of your organization in SUSE Customer Center. With those credentials, SUSE Multi-Linux Manager can synchronize all the products that you have subscriptions for.

Select Admin > Setup Wizard.

On the Organization Credentials tab create a new credential with your Username and Password that you found in the SUSE Customer Center.

Go to the next tab SUSE Products. You need to wait until the first data synchronization with SUSE Customer Center has finished.

Once the list is populated, you use the filter to only show "Micro 6.2". Check the box for SUSE Linux Micro 6.2 for the hardware architecture your edge nodes will run on (x86_64 or aarch64).

Click Add Products. This will add the main package repository ("channel") for SUSE Linux Micro and automatically add the channel for the SUSE Manager client tools as a sub-channel.

Depending on your Internet connection, the first synchronization will take a while. You can already start with the next steps:

Under Systems > System Groups, create at least one group that your systems will automatically join when they are onboarded. Groups are an important way of categorizing systems, so you can apply configuration or actions to a whole set of systems at once. They are conceptually similar to labels in Kubernetes.

Click + Create Group

Provide a short name, e.g., "Edge Nodes", and long description.

Under Systems > Activation Keys, create at least one activation key. Activation keys can be thought of as a configuration profile that is automatically applied to systems when they are onboarded to SUSE Multi-Linux Manager. If you want certain edge nodes to be added to different groups or use different configuration, you can create separate activation keys for them and use them later in Edge Image Builder to create customized installation media.

A typical advanced use case for activation keys would be to assign your test clusters to the software channels with the latest updates and your production clusters to software channels that only get those latest updates once you’ve tested them in the test cluster.

Click + Create Key

Choose a short description, e.g., "Edge Nodes". Provide a unique name that identifies the key, e.g., "edge-x86_64" for your edge nodes with AMD64/Intel 64 hardware architecture. A number prefix is automatically added to the key. For the default organization, the number is always "1". If you create additional organizations in SUSE Multi-Linux Manager and create keys for them, that number may differ.

If you haven’t created any cloned software channels, you can keep the setting for the Base Channel to "SUSE Manager Default". This will automatically assign the correct SUSE update repository for your edge nodes.

As "Child Channel", select the "include recommended" slider for the hardware architecture your activation key is used for. This will add the "SUSE-Manager-Tools-For-SL-Micro-6.2" channel.

On the "Groups" tab, add the group you’ve created before. All nodes that are onboarded using this activation key will automatically be added to that group.

To use Edge Image Builder, you only need an environment where you can start a Linux-based container with podman.

For a minimal lab setup, we can actually use the same virtual machine SUSE Multi-Linux Manager Server is running on. Please make sure that you have enough disk space in the virtual machine! This is not a recommended setup for production use. See Section 9.5.1, “Prerequisites” for host operating systems we have tested Edge Image Builder with.

Log into your SUSE Multi-Linux Manager Server host as root.

Pull the Edge Image Builder container:

podman pull registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1

Create the directory /opt/eib and a sub-directory base-images:

mkdir -p /opt/eib/base-images

In this quickstart we’re using the "self-install" flavor of the SUSE Linux Micro image. That image can later be written to a physical USB thumb drive that you can use to install on physical servers. If your server has the option of remote attachment of installation ISOs via a BMC (Baseboard Management Controller), you can also use that approach. Finally that image can also be used with most virtualization tools.

If you either want to preload the image directly to a physical node or directly start it from a VM, you can also use the "raw" image flavor.

You can find those images in the SUSE Customer Center or on https://www.suse.com/download/sle-micro/

Download or copy the image SL-Micro.x86_64-6.2-Default-SelfInstall-GM.install.iso to the base-images directory and name it "slemicro.iso".

Building AArch64 images on an Arm-based build host is a technology preview in SUSE Edge 3.6. It will most likely work, but isn’t supported yet. If you want to try it out, you need to be running Podman on a 64-bit Arm machine, and you need to replace "x86_64" in all the examples and code snippets with "aarch64".

In /opt/eib, create a file called iso-definition.yaml. This is your build definition for Edge Image Builder.

Here is a simple example that installs SL Micro 6.2, sets a root password, an additional user and the keymap, starts the Cockpit graphical UI and registers your node to SUSE Multi-Linux Manager:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
  - username: root
    createHomeDir: true
    encryptedPassword: $6$aaBTHyqDRUMY1HAp$pmBY7.qLtoVlCGj32XR/Ogei4cngc3f4OX7fwBD/gw7HWyuNBOKYbBWnJ4pvrYwH2WUtJLKMbinVtBhMDHQIY0
  - username: admin
    createHomeDir: true
    encryptedPassword: $6$8EGZXU1iFcLiHHxk$Hs3nVtzO.yZhApT.YBHaNvLRZvXG3Iv/km92BtiNiGXhSSUG0ZbNHxlm7c//ROFj3W9M5xIkB.RLQpPKOFxP91
  keymap: de
  systemd:
    enable:
      - cockpit.socket
  packages:
    noGPGCheck: true
  suma:
    host: ${fully qualified hostname of your SUSE Multi-Linux Manager Server}
    activationKey: 1-edge-x86_64

Edge Image Builder can also configure the network, automatically install Kubernetes on the node, and even deploy applications via Helm charts. See Chapter 2, Standalone clusters with Edge Image Builder for more comprehensive examples.

For baseImage, specify the actual name of the ISO in the base-images directory that you want to use.

In this example, the root password would be "root". See Section 2.3.2, “Configuring OS Users” for creating password hashes for the secure password you want to use.

As Cockpit forbids connection as root user, an additional user is needed. In this example that user is "admin" with password "admin".

Set the keymap to the actual keyboard layout you want the system to have after installation.

Note

We use the option noGPGCheck: true because we aren’t going to provide a GPG key to check RPM packages. A comprehensive guide with a more secure setup that we recommend for production use can be found in the upstream installing packages guide.

As mentioned several times, your SUSE Multi-Linux Manager host requires a fully qualified hostname that can be resolved in the network your edge nodes will boot into.

The value for activationKey needs to match the key you created in SUSE Multi-Linux Manager.

To build an installation image that automatically registers your edge nodes to SUSE Multi-Linux Manager after installation, you also need to prepare two artifacts:

curl -O http://${HOSTNAME_OF_SUSE_MANAGER}/pub/repositories/slmicro/6/1/bootstrap/x86_64/venv-salt-minion-3006.0-8.1.x86_64.rpm

In /opt/eib, create a subdirectory certificates

Download the CA certificate from SUSE Multi-Linux Manager into that directory:

curl -O http://${HOSTNAME_OF_SUSE_MANAGER}/pub/RHN-ORG-TRUSTED-SSL-CERT

Warning

You have to rename the certificate to RHN-ORG-TRUSTED-SSL-CERT.crt. Edge Image Builder will then make sure that the certificate is installed and activated on the edge node during installation.

Now you can run Edge Image Builder:

cd /opt/eib
podman run --rm -it --privileged -v /opt/eib:/eib \
registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 \
build --definition-file iso-definition.yaml

If you have used a different name for your YAML definition file or want to use a different version of Edge Image Builder, you need to adapt the command accordingly.

After the build is finished, you’ll find the installation ISO in the /opt/eib directory as eib-image.iso.

That image can now be used to deploy nodes that will try to register with SUSE Multi-Linux Manager.

After the node has fully installed, you will see its key listed as pending in the Salt/Keys section of SUSE Multi-Linux Manager. Once you have accepted the key, the node will automatically be onboarded to SUSE Multi-Liux Manager and show up in the Systems list after that process is finished. It will have the system group(s) assigned that you provided in the activation key.

You should then schedule a reboot before applying any additional configuration.

Note that accepting the key can be fully automated using whitelists as described here.

Rancher provides several core functionalities to the SUSE Edge stack:

SUSE Edge is using Chapter 8, Edge Image Builder in order to customize base SUSE Linux Micro OS images. Follow Section 25.6, “Rancher Installation” for an air-gapped installation of Rancher on top of Kubernetes clusters provisioned by EIB.

All of the SUSE Edge 3.6 components, including dashboard extensions, are distributed as OCI artifacts. To install SUSE Edge Extensions you can use Rancher Dashboard UI, Helm or Fleet:

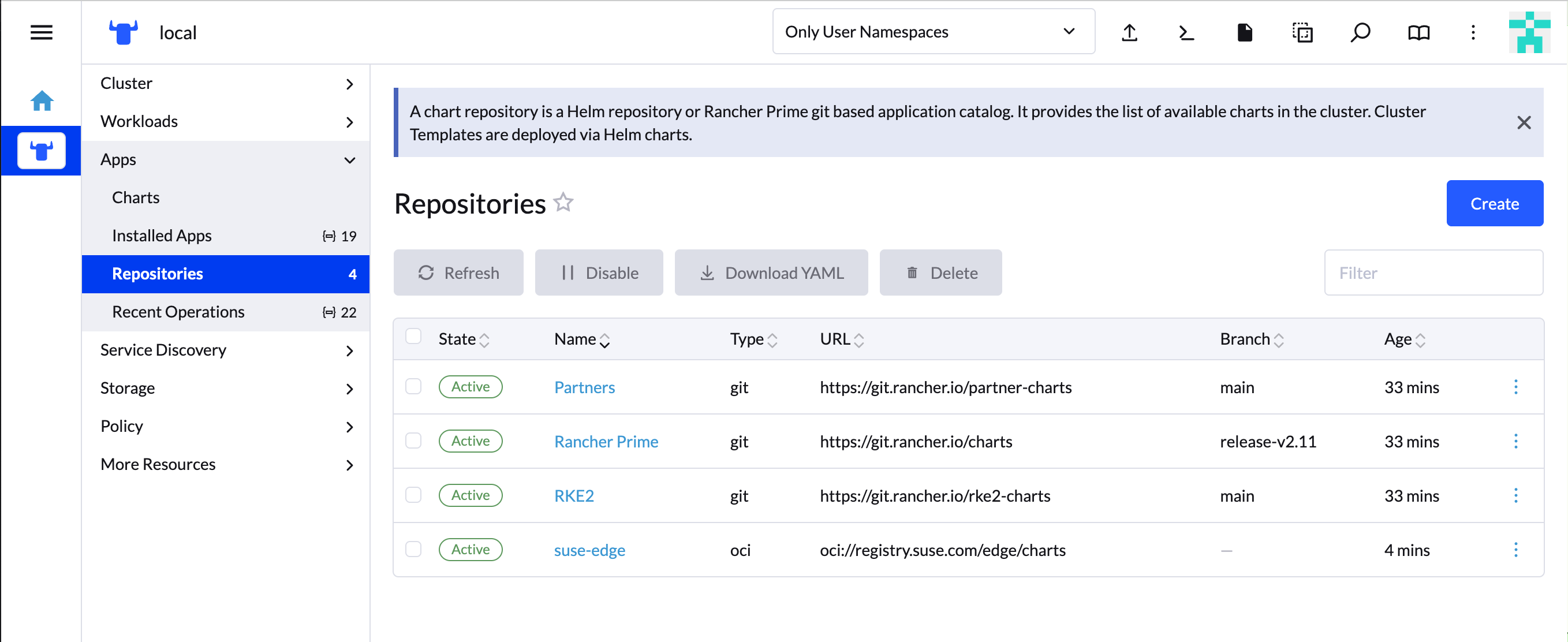

5.1.2 Installing with Helm #



# KubeVirt extension
helm install kubevirt-dashboard-extension oci://registry.suse.com/edge/charts/kubevirt-dashboard-extension --version 306.0.4+up1.3.3 --namespace cattle-ui-plugin-system

Note

The extensions need to be installed in cattle-ui-plugin-system namespace.

Note

After an extension is installed, Rancher Dashboard UI needs to be reloaded.

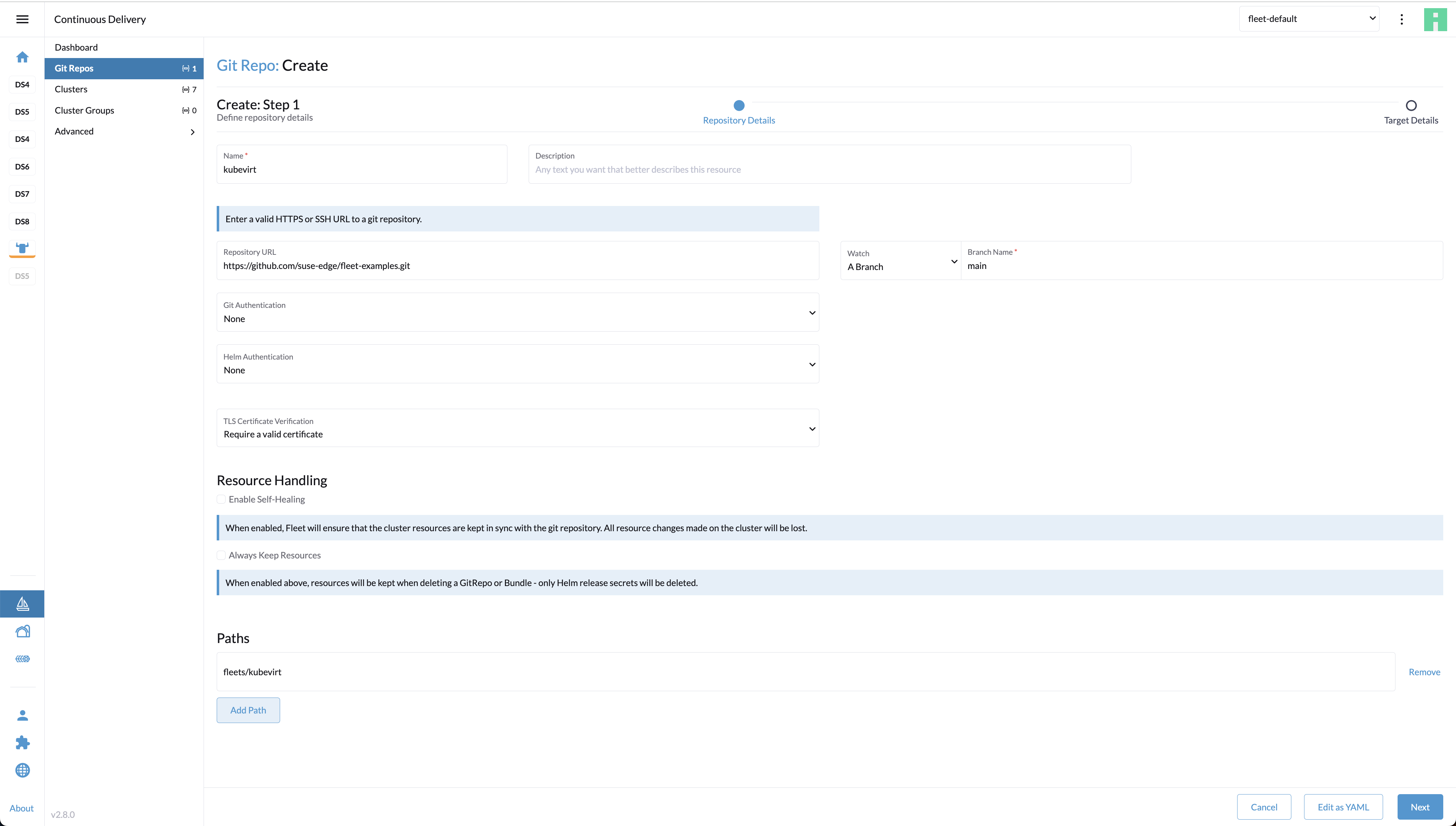

5.1.3 Installing with Fleet #



Installing Dashboard Extensions with Fleet requires defining a gitRepo resource which points to a Git repository with custom fleet.yaml bundle configuration file(s).

# KubeVirt extension fleet.yaml
defaultNamespace: cattle-ui-plugin-system
helm:
  releaseName: kubevirt-dashboard-extension
  chart: oci://registry.suse.com/edge/charts/kubevirt-dashboard-extension
  version: "306.0.4+up1.3.3"

Note

The releaseName property is required and needs to match the extension name to get the extension correctly installed.

cat <<- EOF | kubectl apply -f -
apiVersion: fleet.cattle.io/v1alpha1
metadata:
  name: edge-dashboard-extensions
  namespace: fleet-local
spec:
  repo: https://github.com/suse-edge/fleet-examples.git
  branch: main
  paths:
  - fleets/kubevirt-dashboard-extension/
EOF

For more information, see Chapter 6, Fleet and the fleet-examples repository.

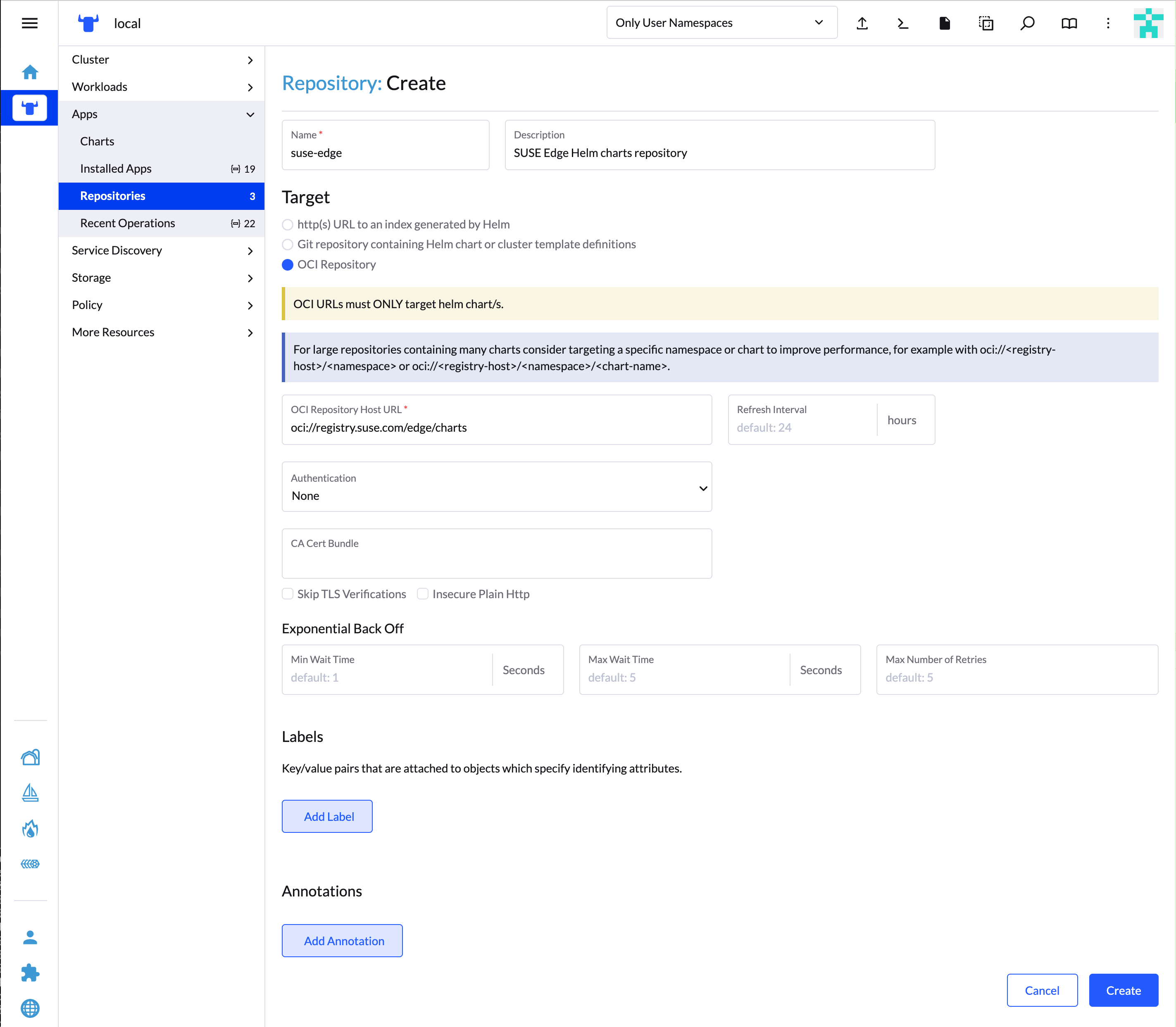

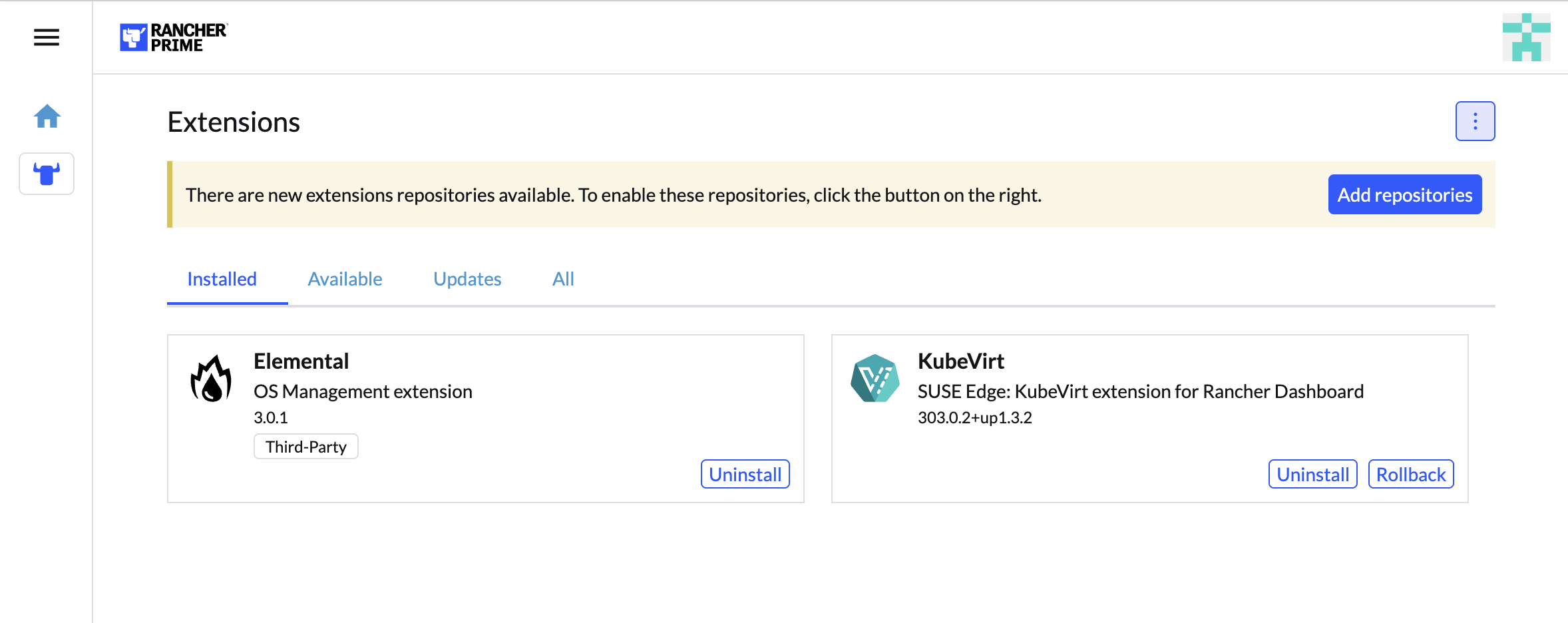

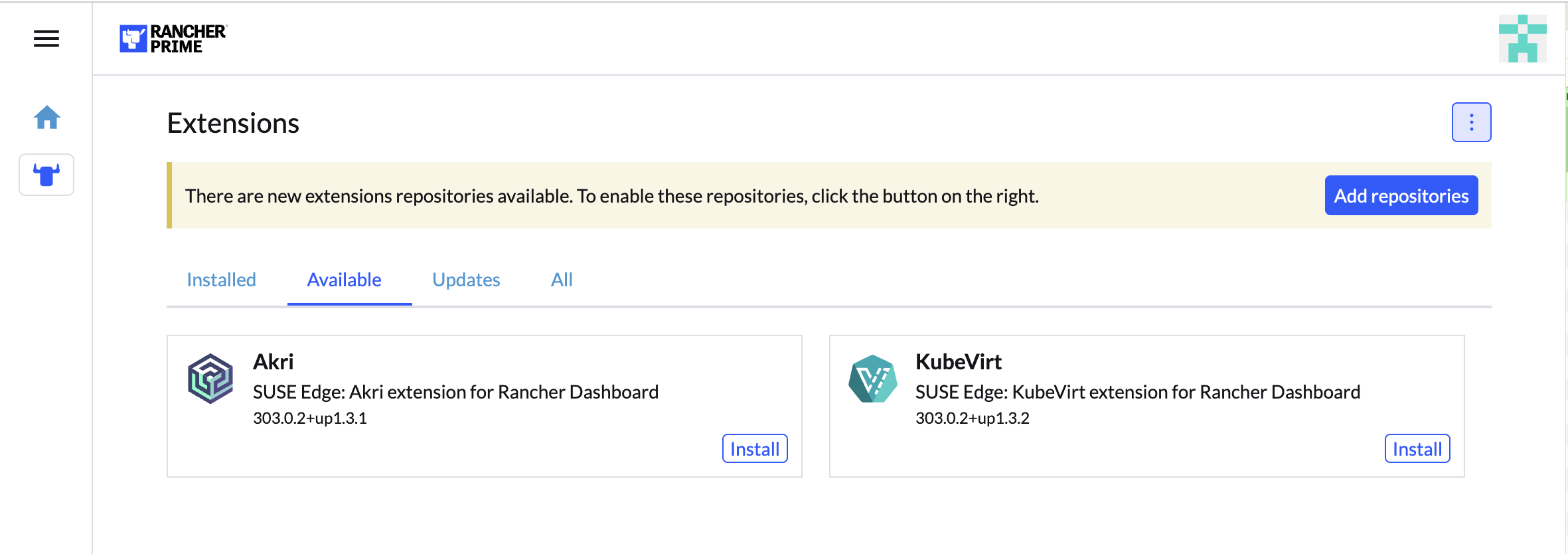

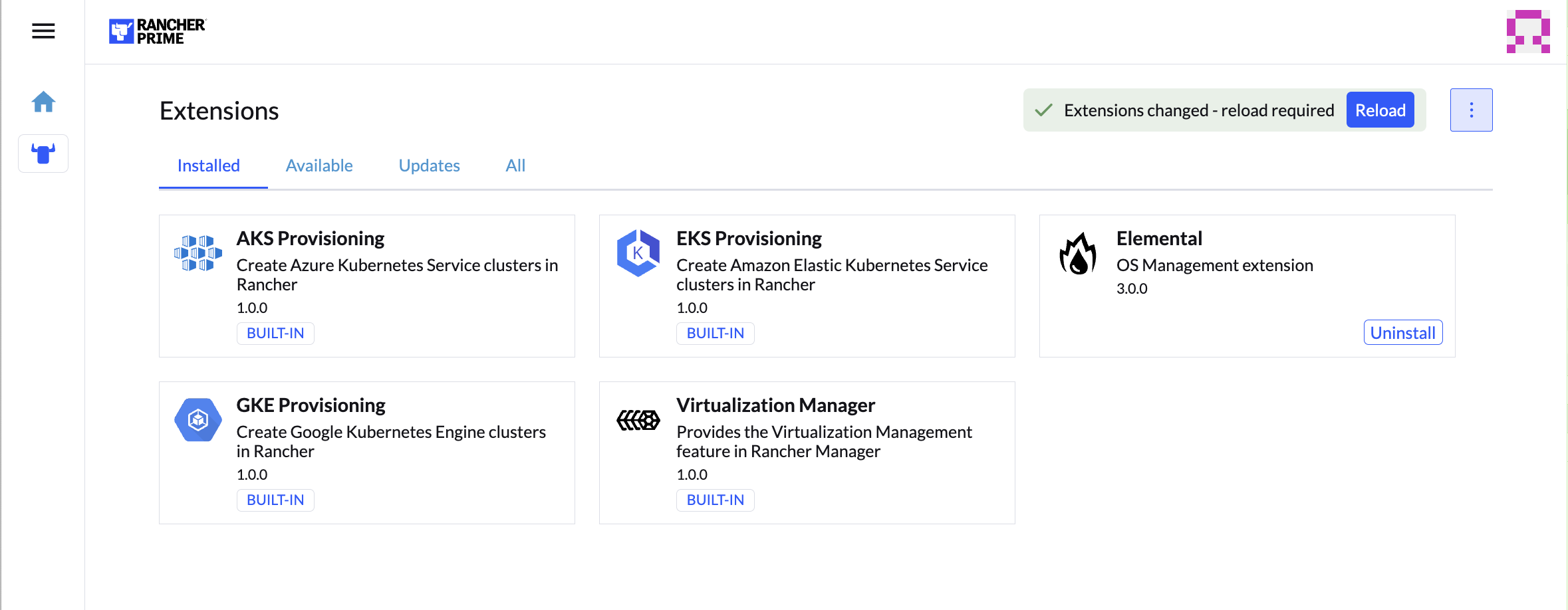

Once the Extensions are installed they are listed in Extensions section under Installed tabs. Since they are not installed via Apps/Marketplace, they are marked with Third-Party label.

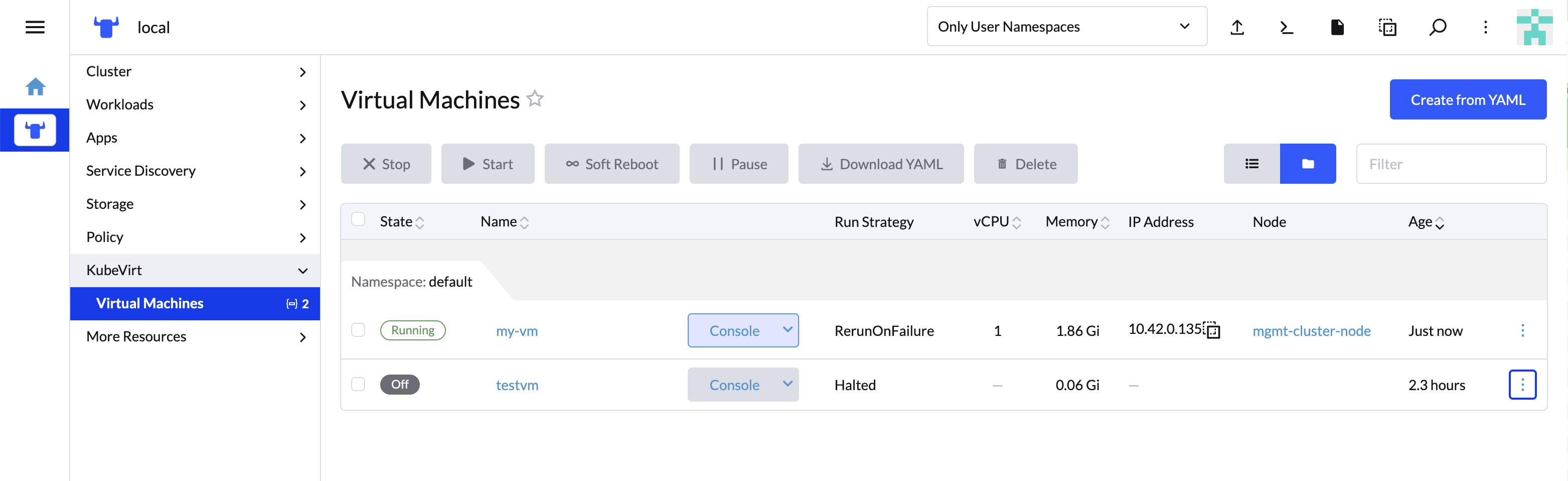

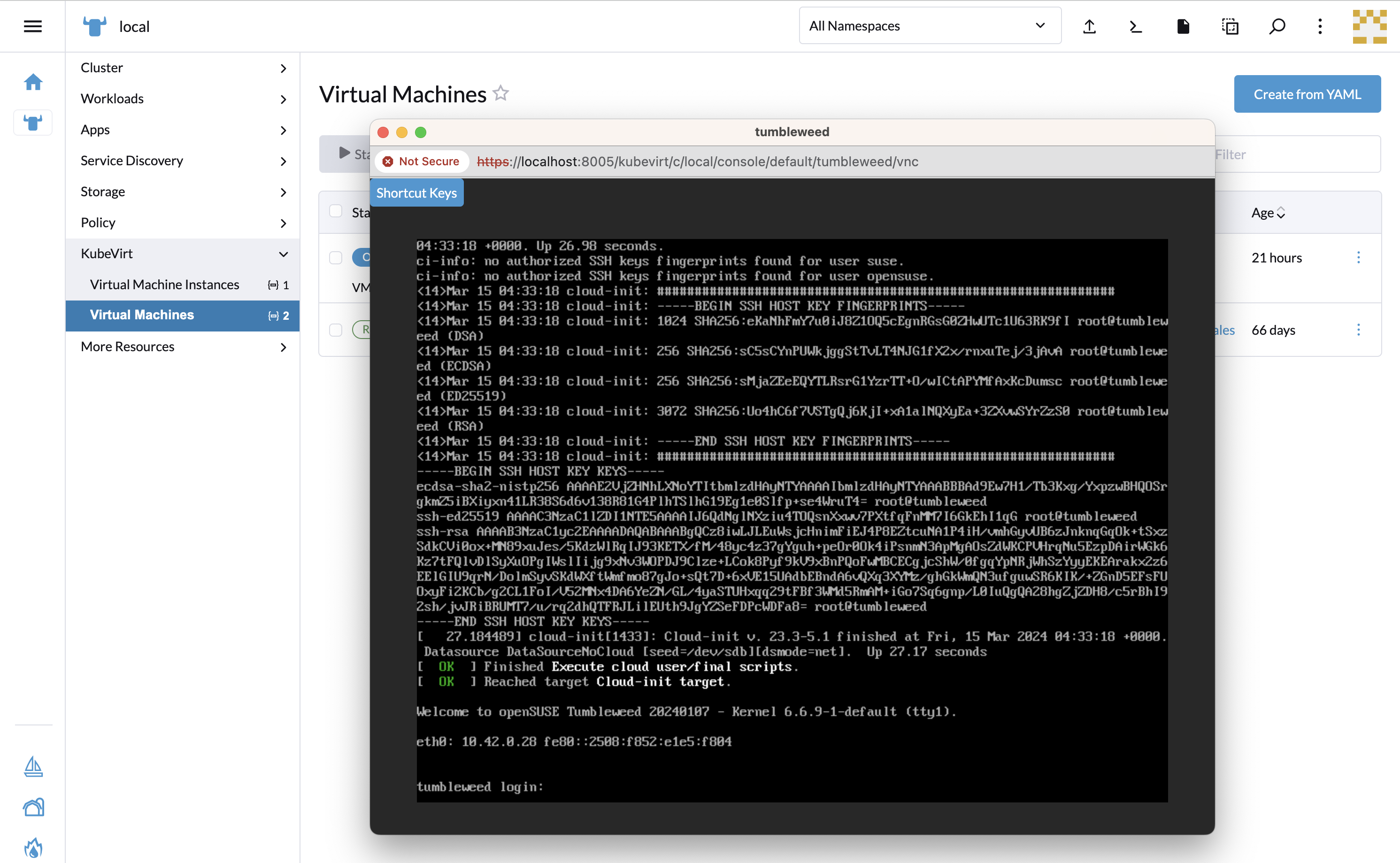

KubeVirt Extension provides basic virtual machine management for Rancher dashboard UI. Its capabilities are described in Section 17.7.2, “Using KubeVirt Rancher Dashboard Extension”.

Fleet comes built-in to Rancher, but it can be also installed as a standalone application on any Kubernetes cluster using Helm.

Rancher uses Fleet to deploy applications across managed clusters. Continuous delivery with Fleet introduces GitOps at scale, designed to manage applications running on large numbers of clusters.

Fleet shines as an integrated part of Rancher. Clusters managed with Rancher automatically get the Fleet agent deployed as part of the installation/import process and the cluster is immediately available to be managed by Fleet.

Fleet comes preinstalled in Rancher and is managed by the Continuous Delivery option in the Rancher UI.

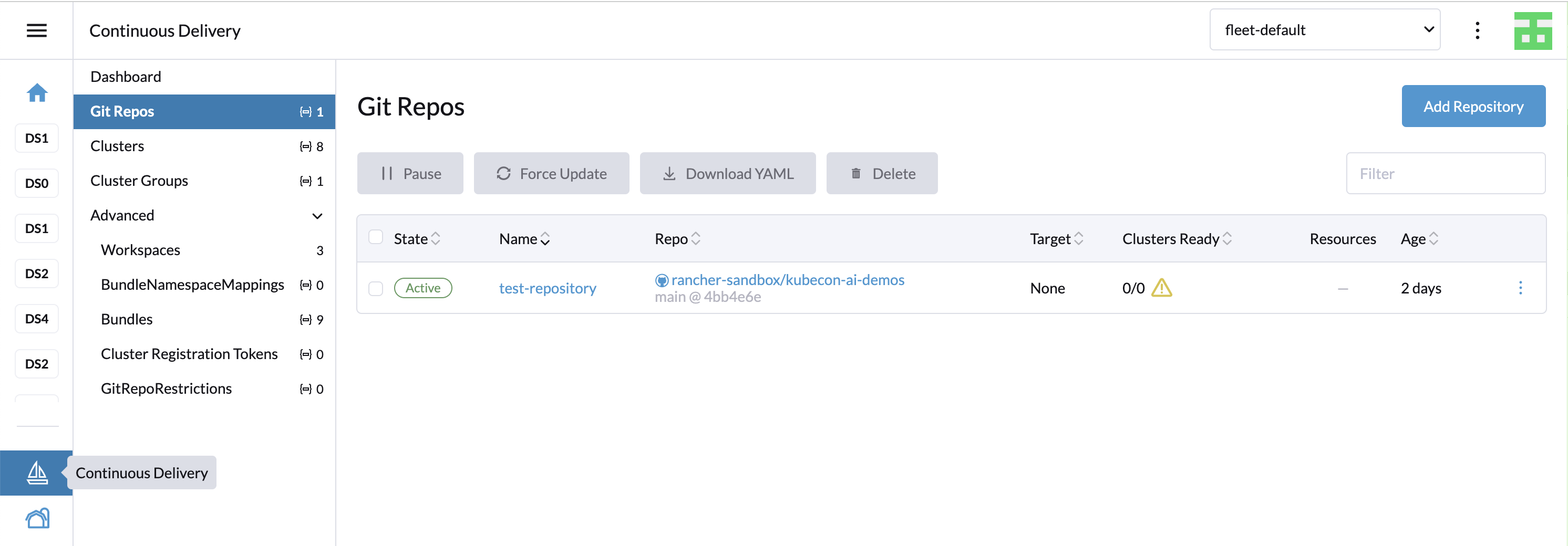

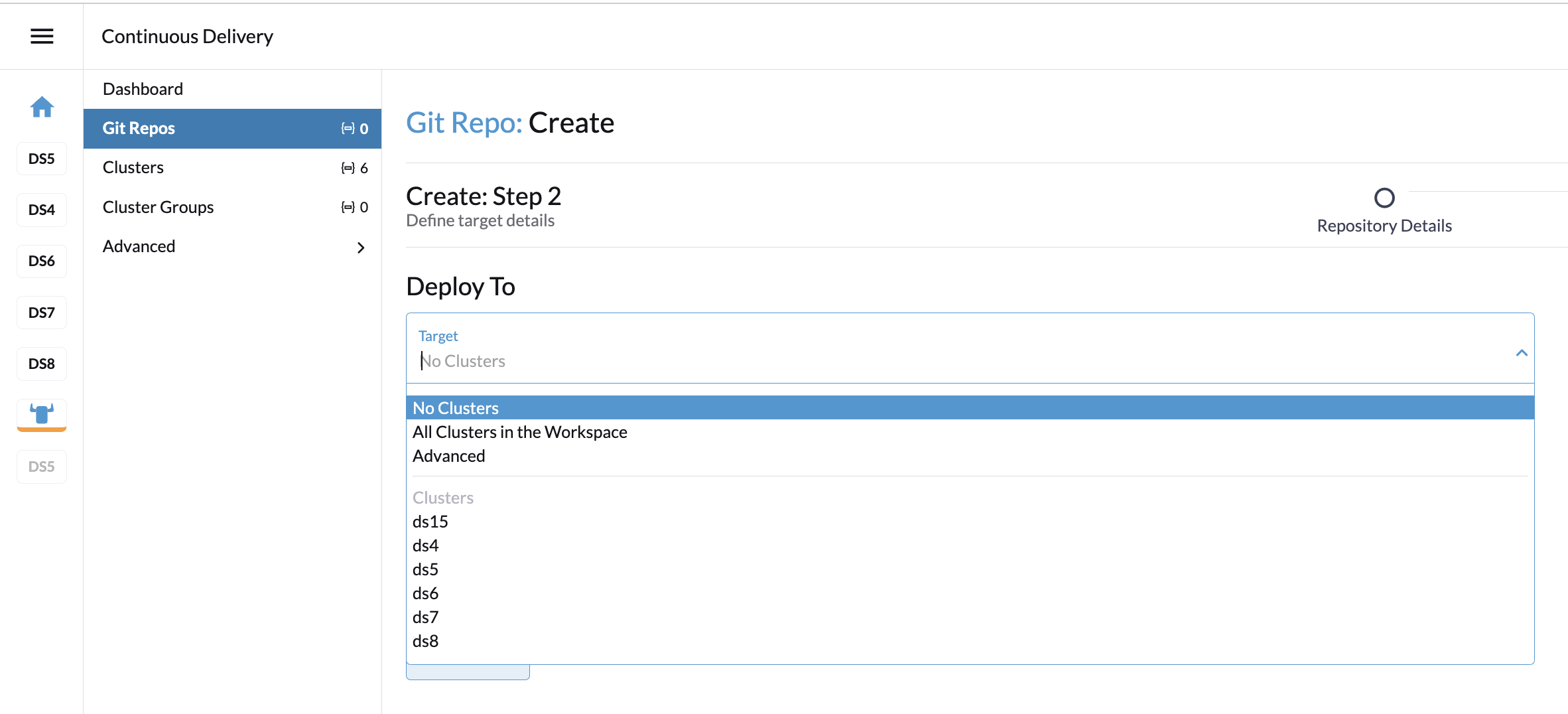

Continuous Delivery section consists of following items:

The "Advanced" navigation section provides overviews of lower-level Fleet resources. A bundle is an internal resource used for the orchestration of resources from Git. When a Git repo is scanned, it produces one or more bundles.

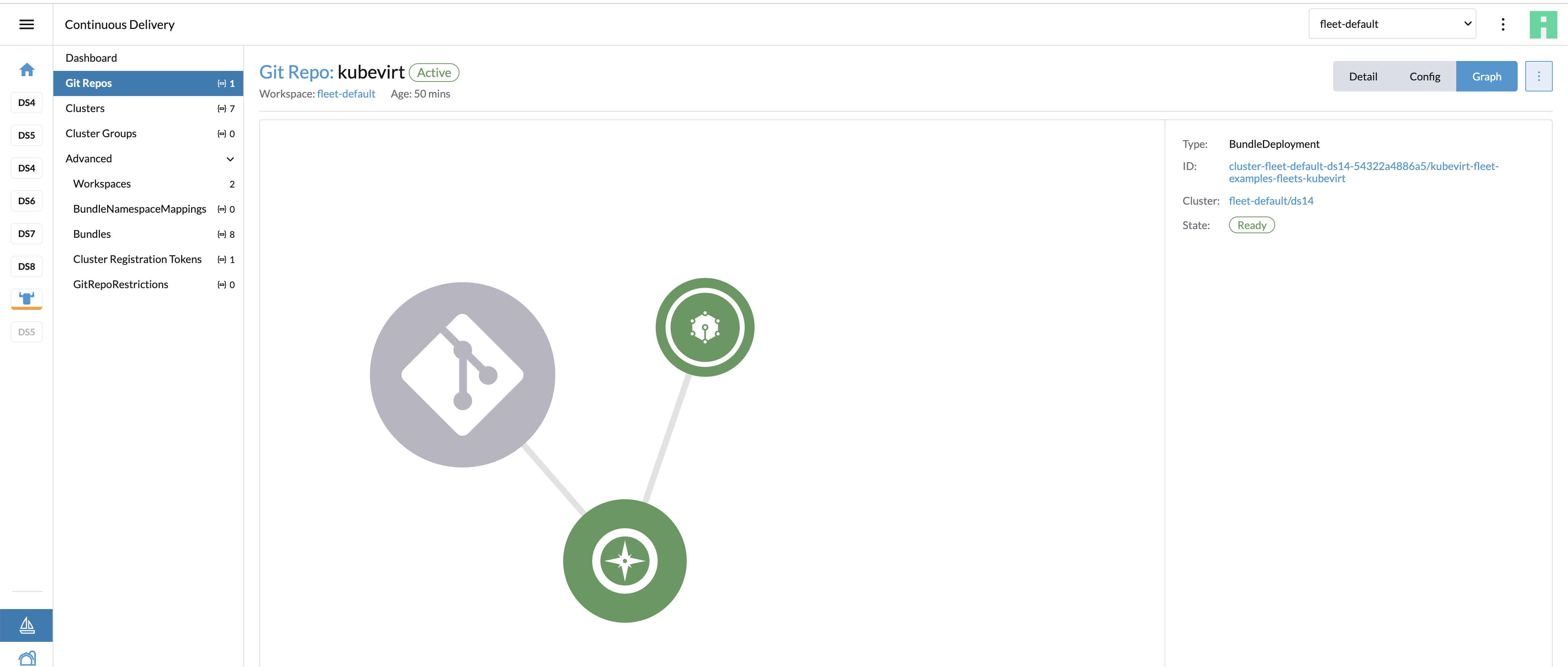

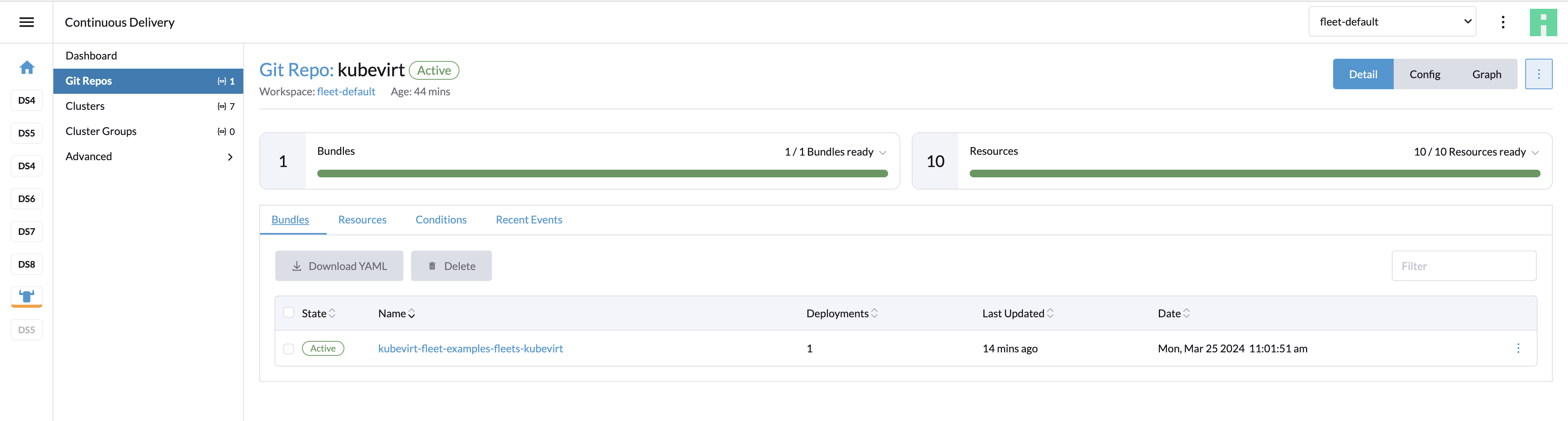

To find bundles relevant to a specific repository, go to the Git repo detail page and click the Bundles tab.

For each cluster, the bundle is applied to a BundleDeployment resource that is created. To view BundleDeployment details, click the Graph button in the upper right of the Git repo detail page. A graph of Repo > Bundles > BundleDeployments is loaded. Click the BundleDeployment in the graph to see its details and click the Id to view the BundleDeployment YAML.

For additional information on Fleet troubleshooting tips, refer here.

The Edge team maintains a repository with examples of installing Edge projects with Fleet.

The Fleet project includes a fleet-examples repository that covers all use cases for Git repository structure.

We use SUSE Linux Micro as the base operating system for our platform stack. This provides us with a secure, stable and minimal base for building upon.

SUSE Linux Micro is unique in its use of file system (Btrfs) snapshots to allow for easy rollbacks in case something goes wrong with an upgrade. This allows for secure remote upgrades for the entire platform even without physical access in case of issues.

SUSE Edge uses EIB for the simplified and quick configuration of customized SUSE Linux Micro images for a variety of scenarios. These scenarios include the bootstrapping of virtual and bare-metal machines with:

Comprehensive documentation for the usage and testing of Edge Image Builder can be found here.

Additionally, see Chapter 2, Standalone clusters with Edge Image Builder covering a basic deployment scenario.

Once you are familiar with this tool, please find some more useful information on our EIB Tips and Tricks section (Part IV, “Tips and Tricks”) page.

NetworkManager is a tool that manages the primary network connection and other connection interfaces.

NetworkManager stores network configurations as connection files that contain the desired state. These connections are stored as files in the /etc/NetworkManager/system-connections/ directory.

Details about NetworkManager can be found in the SUSE Linux Micro documentation.

nmstate is a widely adopted library (with an accompanying CLI tool) which offers a declarative API for network configurations via a predefined schema.

Details about nmstate can be found in the upstream documentation.

The network customization options available in SUSE Edge are achieved via a CLI tool called NetworkManager Configurator or nmc for short. It is leveraging the functionality provided by the nmstate library and, as such, it is fully capable of configuring static IP addresses, DNS servers, VLANs, bonding, bridges, etc. This tool allows us to generate network configurations from predefined desired states and to apply those across many different nodes in an automated fashion.

Details about the NetworkManager Configurator (nmc) can be found in the upstream repository.

SUSE Edge utilizes nmc for the network customizations in the various different provisioning models: * Declarative static configurations in the Image Based Provisioning scenarios (Chapter 2, Standalone clusters with Edge Image Builder)

Edge Image Builder (EIB) is a tool which enables configuring multiple hosts with a single OS image. In this section we’ll show how you can use a declarative approach to describe the desired network states, how those are converted to the respective NetworkManager connections, and are then applied during the provisioning process.

podman pull registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1

export CONFIG_DIR=$HOME/eib
mkdir -p $CONFIG_DIR/base-images

mv /path/to/downloads/SL-Micro.x86_64-6.2-Base-GM.raw $CONFIG_DIR/base-images/

└── base-images/
    └── SL-Micro.x86_64-6.2-Base-GM.raw

cat << EOF > $CONFIG_DIR/definition.yaml
apiVersion: 1.3
image:
  arch: x86_64
  imageType: raw
  baseImage: SL-Micro.x86_64-6.2-Base-GM.raw
  outputImageName: modified-image.raw
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$jHugJNNd3HElGsUZ$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
EOF

├── definition.yaml
└── base-images/
    └── SL-Micro.x86_64-6.2-Base-GM.raw

9.5.5 Defining the network configurations #



The desired network configurations are not part of the image definition file that we just created. We’ll now populate those under the special network/ directory. Let’s create it:

mkdir -p $CONFIG_DIR/network

As previously mentioned, the NetworkManager Configurator (nmc) tool expects an input in the form of predefined schema. You can find how to set up a wide variety of different networking options in the upstream NMState examples documentation.

This guide will explain how to configure the networking on three different nodes:

• A node which uses two Ethernet interfaces

• A node which uses network bonding

• A node which uses a network bridge

Warning

Using completely different network setups is not recommended in production builds, especially if configuring Kubernetes clusters. Networking configurations should generally be homogeneous amongst nodes or at least amongst roles within a given cluster. This guide is including various different options only to serve as an example reference.

Note

The following assumes a default libvirt network with an IP address range 192.168.122.1/24. Adjust accordingly if this differs in your environment.

Let’s create the desired states for the first node which we will call node1.suse.com:

cat << EOF > $CONFIG_DIR/network/node1.suse.com.yaml
routes:
  config:
    - destination: 0.0.0.0/0
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: eth0
      table-id: 254
    - destination: 192.168.122.0/24
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: eth0
      table-id: 254
dns-resolver:
  config:
    server:
      - 192.168.122.1
      - 8.8.8.8
interfaces:
  - name: eth0
    type: ethernet
    state: up
    mac-address: 34:8A:B1:4B:16:E1
    ipv4:
      address:
        - ip: 192.168.122.50
          prefix-length: 24
      dhcp: false
      enabled: true
    ipv6:
      enabled: false
  - name: eth3
    type: ethernet
    state: down
    mac-address: 34:8A:B1:4B:16:E2
    ipv4:
      address:
        - ip: 192.168.122.55
          prefix-length: 24
      dhcp: false
      enabled: true
    ipv6:
      enabled: false
EOF

In this example we define a desired state of two Ethernet interfaces (eth0 and eth3), their requested IP addresses, routing, and DNS resolution.

Warning

You must ensure that the MAC addresses of all Ethernet interfaces are listed. Those are used during the provisioning process as the identifiers of the nodes and serve to determine which configurations should be applied. This is how we are able to configure multiple nodes using a single ISO or RAW image.

Next up is the second node which we will call node2.suse.com and which will use network bonding:

cat << EOF > $CONFIG_DIR/network/node2.suse.com.yaml
routes:
  config:
    - destination: 0.0.0.0/0
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: bond99
      table-id: 254
    - destination: 192.168.122.0/24
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: bond99
      table-id: 254
dns-resolver:
  config:
    server:
      - 192.168.122.1
      - 8.8.8.8
interfaces:
  - name: bond99
    type: bond
    state: up
    ipv4:
      address:
        - ip: 192.168.122.60
          prefix-length: 24
      enabled: true
    link-aggregation:
      mode: balance-rr
      options:
        miimon: '140'
      port:
        - eth0
        - eth1
  - name: eth0
    type: ethernet
    state: up
    mac-address: 34:8A:B1:4B:16:E3
    ipv4:
      enabled: false
    ipv6:
      enabled: false
  - name: eth1
    type: ethernet
    state: up
    mac-address: 34:8A:B1:4B:16:E4
    ipv4:
      enabled: false
    ipv6:
      enabled: false
EOF

In this example we define a desired state of two Ethernet interfaces (eth0 and eth1) which are not enabling IP addressing, as well as a bond with a round-robin policy and its respective address which is going to be used to forward the network traffic.

Lastly, we’ll create the third and final desired state file which will be utilizing a network bridge and which we’ll call node3.suse.com:

cat << EOF > $CONFIG_DIR/network/node3.suse.com.yaml
routes:
  config:
    - destination: 0.0.0.0/0
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: linux-br0
      table-id: 254
    - destination: 192.168.122.0/24
      metric: 100
      next-hop-address: 192.168.122.1
      next-hop-interface: linux-br0
      table-id: 254
dns-resolver:
  config:
    server:
      - 192.168.122.1
      - 8.8.8.8
interfaces:
  - name: eth0
    type: ethernet
    state: up
    mac-address: 34:8A:B1:4B:16:E5
    ipv4:
      enabled: false
    ipv6:
      enabled: false
  - name: linux-br0
    type: linux-bridge
    state: up
    ipv4:
      address:
        - ip: 192.168.122.70
          prefix-length: 24
      dhcp: false
      enabled: true
    bridge:
      options:
        group-forward-mask: 0
        mac-ageing-time: 300
        multicast-snooping: true
        stp:
          enabled: true
          forward-delay: 15
          hello-time: 2
          max-age: 20
          priority: 32768
      port:
        - name: eth0
          stp-hairpin-mode: false
          stp-path-cost: 100
          stp-priority: 32
EOF

The configuration directory at this point should look like the following:

├── definition.yaml
├── network/
│   │── node1.suse.com.yaml
│   │── node2.suse.com.yaml
│   └── node3.suse.com.yaml
└── base-images/
    └── SL-Micro.x86_64-6.2-Base-GM.raw

Note

The names of the files under the network/ directory are intentional. They correspond to the hostnames which will be set during the provisioning process.

podman run --rm -it -v $CONFIG_DIR:/eib registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 build --definition-file definition.yaml

Generating image customization components...
Identifier ................... [SUCCESS]
Custom Files ................. [SKIPPED]
Time ......................... [SKIPPED]
Network ...................... [SUCCESS]
Groups ....................... [SKIPPED]
Users ........................ [SUCCESS]
Proxy ........................ [SKIPPED]
Rpm .......................... [SKIPPED]
Systemd ...................... [SKIPPED]
Elemental .................... [SKIPPED]
Suma ......................... [SKIPPED]
Embedded Artifact Registry ... [SKIPPED]
Keymap ....................... [SUCCESS]
Kubernetes ................... [SKIPPED]
Certificates ................. [SKIPPED]
Building RAW image...
Kernel Params ................ [SKIPPED]
Image build complete!

mkdir edge-nodes && cd edge-nodes
for i in {1..4}; do cp $CONFIG_DIR/modified-image.raw node$i.raw; done

virt-install --name node1 --ram 10000 --vcpus 6 --disk path=node1.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default,mac=34:8A:B1:4B:16:E1 --network default,mac=34:8A:B1:4B:16:E2 --virt-type kvm --import

Starting install...
Creating domain...

Running text console command: virsh --connect qemu:///system console node1
Connected to domain 'node1'
Escape character is ^] (Ctrl + ])


Welcome to SUSE Linux Micro 6.0 (x86_64) - Kernel 6.4.0-18-default (tty1).

SSH host key: SHA256:XN/R5Tw43reG+QsOw480LxCnhkc/1uqMdwlI6KUBY70 (RSA)
SSH host key: SHA256:/96yGrPGKlhn04f1rb9cXv/2WJt4TtrIN5yEcN66r3s (DSA)
SSH host key: SHA256:Dy/YjBQ7LwjZGaaVcMhTWZNSOstxXBsPsvgJTJq5t00 (ECDSA)
SSH host key: SHA256:TNGqY1LRddpxD/jn/8dkT/9YmVl9hiwulqmayP+wOWQ (ED25519)
eth0: 192.168.122.50
eth1:


Configured with the Edge Image Builder
Activate the web console with: systemctl enable --now cockpit.socket

node1 login:

node1:~ # hostnamectl
 Static hostname: node1.suse.com
 ...

node1:~ # ip r
default via 192.168.122.1 dev eth0 proto static metric 100
192.168.122.0/24 dev eth0 proto static scope link metric 100
192.168.122.0/24 dev eth0 proto kernel scope link src 192.168.122.50 metric 100

node1:~ # ping google.com
PING google.com (142.250.72.78) 56(84) bytes of data.
64 bytes from den16s09-in-f14.1e100.net (142.250.72.78): icmp_seq=1 ttl=56 time=13.2 ms
64 bytes from den16s09-in-f14.1e100.net (142.250.72.78): icmp_seq=2 ttl=56 time=13.4 ms
^C
--- google.com ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 13.248/13.304/13.361/0.056 ms

node1:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e1 brd ff:ff:ff:ff:ff:ff
    altname enp0s2
    altname ens2
    inet 192.168.122.50/24 brd 192.168.122.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
3: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e2 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3

node1:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME  UUID                                  TYPE      DEVICE  FILENAME
eth0  dfd202f5-562f-5f07-8f2a-a7717756fb70  ethernet  eth0    /etc/NetworkManager/system-connections/eth0.nmconnection
eth1  7e211aea-3d14-59cf-a4fa-be91dac5dbba  ethernet  --      /etc/NetworkManager/system-connections/eth1.nmconnection

node1:~ # journalctl -u combustion | grep nmc
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc::apply_conf] Identified host: node1.suse.com
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc::apply_conf] Set hostname: node1.suse.com
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc::apply_conf] Processing interface 'eth0'...
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc::apply_conf] Processing interface 'eth3'...
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc::apply_conf] Using interface name 'eth1' instead of the preconfigured 'eth3'
Apr 23 09:20:19 localhost.localdomain combustion[1360]: [2024-04-23T09:20:19Z INFO  nmc] Successfully applied config

virt-install --name node2 --ram 10000 --vcpus 6 --disk path=node2.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default,mac=34:8A:B1:4B:16:E3 --network default,mac=34:8A:B1:4B:16:E4 --virt-type kvm --import

node2:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,SLAVE,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master bond99 state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e3 brd ff:ff:ff:ff:ff:ff
    altname enp0s2
    altname ens2
3: eth1: <BROADCAST,MULTICAST,SLAVE,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master bond99 state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e3 brd ff:ff:ff:ff:ff:ff permaddr 34:8a:b1:4b:16:e4
    altname enp0s3
    altname ens3
4: bond99: <BROADCAST,MULTICAST,MASTER,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e3 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.60/24 brd 192.168.122.255 scope global noprefixroute bond99
       valid_lft forever preferred_lft forever

node2:~ # ip r
default via 192.168.122.1 dev bond99 proto static metric 100
192.168.122.0/24 dev bond99 proto static scope link metric 100
192.168.122.0/24 dev bond99 proto kernel scope link src 192.168.122.60 metric 300

node2:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME    UUID                                  TYPE      DEVICE  FILENAME
bond99  4a920503-4862-5505-80fd-4738d07f44c6  bond      bond99  /etc/NetworkManager/system-connections/bond99.nmconnection
eth0    dfd202f5-562f-5f07-8f2a-a7717756fb70  ethernet  eth0    /etc/NetworkManager/system-connections/eth0.nmconnection
eth1    0523c0a1-5f5e-5603-bcf2-68155d5d322e  ethernet  eth1    /etc/NetworkManager/system-connections/eth1.nmconnection

virt-install --name node3 --ram 10000 --vcpus 6 --disk path=node3.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default,mac=34:8A:B1:4B:16:E5 --virt-type kvm --import

node3:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast master linux-br0 state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e5 brd ff:ff:ff:ff:ff:ff
    altname enp0s2
    altname ens2
3: linux-br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 34:8a:b1:4b:16:e5 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.70/24 brd 192.168.122.255 scope global noprefixroute linux-br0
       valid_lft forever preferred_lft forever

node3:~ # ip r
default via 192.168.122.1 dev linux-br0 proto static metric 100
192.168.122.0/24 dev linux-br0 proto static scope link metric 100
192.168.122.0/24 dev linux-br0 proto kernel scope link src 192.168.122.70 metric 425

node3:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME       UUID                                  TYPE      DEVICE     FILENAME
linux-br0  1f8f1469-ed20-5f2c-bacb-a6767bee9bc0  bridge    linux-br0  /etc/NetworkManager/system-connections/linux-br0.nmconnection
eth0       dfd202f5-562f-5f07-8f2a-a7717756fb70  ethernet  eth0       /etc/NetworkManager/system-connections/eth0.nmconnection

virt-install --name node4 --ram 10000 --vcpus 6 --disk path=node4.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default --virt-type kvm --import

localhost:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:56:63:71 brd ff:ff:ff:ff:ff:ff
    altname enp0s2
    altname ens2
    inet 192.168.122.86/24 brd 192.168.122.255 scope global dynamic noprefixroute eth0
       valid_lft 3542sec preferred_lft 3542sec
    inet6 fe80::5054:ff:fe56:6371/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

localhost:~ # journalctl -u combustion | grep nmc
Apr 23 12:15:45 localhost.localdomain combustion[1357]: [2024-04-23T12:15:45Z ERROR nmc] Applying config failed: None of the preconfigured hosts match local NICs

localhost:~ # journalctl | grep eth0
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7801] manager: (eth0): new Ethernet device (/org/freedesktop/NetworkManager/Devices/2)
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7802] device (eth0): state change: unmanaged -> unavailable (reason 'managed', sys-iface-state: 'external')
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7929] device (eth0): carrier: link connected
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7931] device (eth0): state change: unavailable -> disconnected (reason 'carrier-changed', sys-iface-state: 'managed')
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7944] device (eth0): Activation: starting connection 'Wired Connection' (300ed658-08d4-4281-9f8c-d1b8882d29b9)
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7945] device (eth0): state change: disconnected -> prepare (reason 'none', sys-iface-state: 'managed')
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7947] device (eth0): state change: prepare -> config (reason 'none', sys-iface-state: 'managed')
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7953] device (eth0): state change: config -> ip-config (reason 'none', sys-iface-state: 'managed')
Apr 23 12:15:29 localhost.localdomain NetworkManager[704]: <info>  [1713874529.7964] dhcp4 (eth0): activation: beginning transaction (timeout in 90 seconds)
Apr 23 12:15:33 localhost.localdomain NetworkManager[704]: <info>  [1713874533.1272] dhcp4 (eth0): state changed new lease, address=192.168.122.86

localhost:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME              UUID                                  TYPE      DEVICE  FILENAME
Wired Connection  300ed658-08d4-4281-9f8c-d1b8882d29b9  ethernet  eth0    /var/run/NetworkManager/system-connections/default_connection.nmconnection

mkdir -p $CONFIG_DIR/network

cat <<- EOF > $CONFIG_DIR/network/_all.yaml
interfaces:
- name: eth0
  type: ethernet
  state: up
  ipv4:
    dhcp: true
    enabled: true
  ipv6:
    enabled: false
- name: eth1
  type: ethernet
  state: up
  ipv4:
    address:
    - ip: 10.0.0.1
      prefix-length: 24
    enabled: true
    dhcp: false
  ipv6:
    enabled: false
EOF

podman run --rm -it -v $CONFIG_DIR:/eib registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 build --definition-file definition.yaml

virt-install --name node1 --ram 10000 --vcpus 6 --disk path=$CONFIG_DIR/modified-image.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default --network default --virt-type kvm --import

localhost:~ # ip r
default via 192.168.122.1 dev eth0 proto dhcp src 192.168.122.100 metric 100
10.0.0.0/24 dev eth1 proto kernel scope link src 10.0.0.1 metric 101
192.168.122.0/24 dev eth0 proto kernel scope link src 192.168.122.100 metric 100

localhost:~ # ping google.com
PING google.com (142.250.72.46) 56(84) bytes of data.
64 bytes from den16s08-in-f14.1e100.net (142.250.72.46): icmp_seq=1 ttl=56 time=14.3 ms
64 bytes from den16s08-in-f14.1e100.net (142.250.72.46): icmp_seq=2 ttl=56 time=14.2 ms
^C
--- google.com ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 14.196/14.260/14.324/0.064 ms

localhost:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:26:44:7a brd ff:ff:ff:ff:ff:ff
    altname enp1s0
    inet 192.168.122.100/24 brd 192.168.122.255 scope global dynamic noprefixroute eth0
       valid_lft 3505sec preferred_lft 3505sec
3: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:ec:57:9e brd ff:ff:ff:ff:ff:ff
    altname enp7s0
    inet 10.0.0.1/24 brd 10.0.0.255 scope global noprefixroute eth1
       valid_lft forever preferred_lft forever

localhost:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME  UUID                                  TYPE      DEVICE  FILENAME
eth0  dfd202f5-562f-5f07-8f2a-a7717756fb70  ethernet  eth0    /etc/NetworkManager/system-connections/eth0.nmconnection
eth1  0523c0a1-5f5e-5603-bcf2-68155d5d322e  ethernet  eth1    /etc/NetworkManager/system-connections/eth1.nmconnection

localhost:~ # cat /etc/NetworkManager/system-connections/eth0.nmconnection
[connection]
autoconnect=true
autoconnect-slaves=-1
id=eth0
interface-name=eth0
type=802-3-ethernet
uuid=dfd202f5-562f-5f07-8f2a-a7717756fb70

[ipv4]
dhcp-client-id=mac
dhcp-send-hostname=true
dhcp-timeout=2147483647
ignore-auto-dns=false
ignore-auto-routes=false
method=auto
never-default=false

[ipv6]
addr-gen-mode=0
dhcp-timeout=2147483647
method=disabled

localhost:~ # cat /etc/NetworkManager/system-connections/eth1.nmconnection
[connection]
autoconnect=true
autoconnect-slaves=-1
id=eth1
interface-name=eth1
type=802-3-ethernet
uuid=0523c0a1-5f5e-5603-bcf2-68155d5d322e

[ipv4]
address0=10.0.0.1/24
dhcp-timeout=2147483647
method=manual

[ipv6]
addr-gen-mode=0
dhcp-timeout=2147483647
method=disabled

9.5.9 Custom network configurations #



We have already covered the default network configuration for Edge Image Builder which relies on the NetworkManager Configurator. However, there is also the option to modify it via a custom script. Whilst this option is very flexible and is also not MAC address dependant, its limitation stems from the fact that using it is much less convenient when bootstrapping multiple nodes with a single image.

Note

It is recommended to use the default network configuration via files describing the desired network states under the /network directory. Only opt for custom scripting when that behaviour is not applicable to your use case.

We will build and provision an edge node using different configuration structure. Follow all steps starting from Section 9.5.3, “Creating the image configuration directory” up until Section 9.5.5, “Defining the network configurations”.

In this example, we will create a custom script which applies static configuration for the eth0 interface on all provisioned nodes, as well as removing and disabling the automatically created wired connections by NetworkManager. This is beneficial in situations where you want to make sure that every node in your cluster has an identical networking configuration, and as such you do not need to be concerned with the MAC address of each node prior to image creation.

Let’s start by storing the connection file in the /custom/files directory:

mkdir -p $CONFIG_DIR/custom/files

cat << EOF > $CONFIG_DIR/custom/files/eth0.nmconnection
[connection]
autoconnect=true
autoconnect-slaves=-1
autoconnect-retries=1
id=eth0
interface-name=eth0
type=802-3-ethernet
uuid=dfd202f5-562f-5f07-8f2a-a7717756fb70
wait-device-timeout=60000

[ipv4]
dhcp-timeout=2147483647
method=auto

[ipv6]
addr-gen-mode=eui64
dhcp-timeout=2147483647
method=disabled
EOF

Now that the static configuration is created, we will also create our custom network script:

mkdir -p $CONFIG_DIR/network

cat << EOF > $CONFIG_DIR/network/configure-network.sh
#!/bin/bash
set -eux

# Remove and disable wired connections
mkdir -p /etc/NetworkManager/conf.d/
printf "[main]\nno-auto-default=*\n" > /etc/NetworkManager/conf.d/no-auto-default.conf
rm -f /var/run/NetworkManager/system-connections/* || true

# Copy pre-configured network configuration files into NetworkManager
mkdir -p /etc/NetworkManager/system-connections/
cp eth0.nmconnection /etc/NetworkManager/system-connections/
chmod 600 /etc/NetworkManager/system-connections/*.nmconnection
EOF

chmod a+x $CONFIG_DIR/network/configure-network.sh

Note

The nmc binary will still be included by default, so it can also be used in the configure-network.sh script if necessary.

Warning

The custom script must always be provided under /network/configure-network.sh in the configuration directory. If present, all other files will be ignored. It is NOT possible to configure a network by working with both static configurations in YAML format and a custom script simultaneously.

The configuration directory at this point should look like the following:

├── definition.yaml
├── custom/
│   └── files/
│       └── eth0.nmconnection
├── network/
│   └── configure-network.sh
└── base-images/
    └── SL-Micro.x86_64-6.2-Base-GM.raw

Let’s build the image:

podman run --rm -it -v $CONFIG_DIR:/eib registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 build --definition-file definition.yaml

Once the image is successfully built, let’s create a virtual machine using it:

virt-install --name node1 --ram 10000 --vcpus 6 --disk path=$CONFIG_DIR/modified-image.raw,format=raw --osinfo detect=on,name=sle-unknown --graphics none --console pty,target_type=serial --network default --virt-type kvm --import

The provisioning process might take a few minutes. Once it’s finished, log in to the system with the provided credentials.

Verify that the routing is properly configured:

localhost:~ # ip r
default via 192.168.122.1 dev eth0 proto dhcp src 192.168.122.185 metric 100
192.168.122.0/24 dev eth0 proto kernel scope link src 192.168.122.185 metric 100

Verify that Internet connection is available:

localhost:~ # ping google.com
PING google.com (142.250.72.78) 56(84) bytes of data.
64 bytes from den16s09-in-f14.1e100.net (142.250.72.78): icmp_seq=1 ttl=56 time=13.6 ms
64 bytes from den16s09-in-f14.1e100.net (142.250.72.78): icmp_seq=2 ttl=56 time=13.6 ms
^C
--- google.com ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 13.592/13.599/13.606/0.007 ms

Verify that an Ethernet interface is statically configured using our connection file and is active:

localhost:~ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:31:d0:1b brd ff:ff:ff:ff:ff:ff
    altname enp0s2
    altname ens2
    inet 192.168.122.185/24 brd 192.168.122.255 scope global dynamic noprefixroute eth0

localhost:~ # nmcli -f NAME,UUID,TYPE,DEVICE,FILENAME con show
NAME  UUID                                  TYPE      DEVICE  FILENAME
eth0  dfd202f5-562f-5f07-8f2a-a7717756fb70  ethernet  eth0    /etc/NetworkManager/system-connections/eth0.nmconnection

localhost:~ # cat  /etc/NetworkManager/system-connections/eth0.nmconnection
[connection]
autoconnect=true
autoconnect-slaves=-1
autoconnect-retries=1
id=eth0
interface-name=eth0
type=802-3-ethernet
uuid=dfd202f5-562f-5f07-8f2a-a7717756fb70
wait-device-timeout=60000

[ipv4]
dhcp-timeout=2147483647
method=auto

[ipv6]
addr-gen-mode=eui64
dhcp-timeout=2147483647
method=disabled

We use portions of Elemental for managing remote devices where Metal³ is not an option (for example, there is no BMC, or the device is behind a NAT gateway). This tooling allows for an operator to bootstrap their devices in a lab before knowing when or where they will be shipped to. Namely, we leverage the elemental-register and elemental-system-agent components to enable the onboarding of SUSE Linux Micro hosts to Rancher for "phone home" network provisioning use-cases. When using Edge Image Builder (EIB) to create deployment images, the automatic registration through Rancher via Elemental can be achieved by specifying the registration configuration in the configuration directory for EIB.

Note

In SUSE Edge 3.6 we do not leverage the operating system management aspects of Elemental, and therefore it’s not possible to manage your operating system patching via Rancher. Instead of using the Elemental tools to build deployment images, SUSE Edge uses the Edge Image Builder tooling, which consumes the registration configuration.

K3s can be used as the Kubernetes distribution backing the SUSE Edge stack. It is meant to be installed on a SUSE Linux Micro operating system.

Using K3s as the SUSE Edge stack Kubernetes distribution is only recommended when etcd as a backend does not fit your constraints. If etcd as a backend is possible, it is better to use RKE2 (Chapter 12, RKE2).

K3s is a fully compliant and lightweight Kubernetes distribution focused on Edge, IoT, ARM - optimized for ease of use and resource constrained environments.

RKE2 combines the best of both worlds from the 1.x version of RKE (hereafter referred to as RKE1) and K3s.

From K3s, it inherits the usability, ease of operation and deployment model.

From RKE1, it inherits close alignment with upstream Kubernetes. In places, K3s has diverged from upstream Kubernetes in order to optimize for edge deployments, but RKE1 and RKE2 can stay closely aligned with upstream.

RKE2 is a fundamental piece of the SUSE Edge stack. It sits on top of SUSE Linux Micro (Chapter 7, SUSE Linux Micro), providing a standard Kubernetes interface required to deploy Edge workloads.

If you are following this guide, it assumes that you have the following already available:

SUSE Storage utilizes Kubernetes resources called StorageClass in order to automatically provision PersistentVolume objects for pods. Think of StorageClass as a way for administrators to describe the classes or profiles of storage they offer.

Let’s create a StorageClass with some default options:

kubectl apply -f - <<EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: longhorn-example
provisioner: driver.longhorn.io
allowVolumeExpansion: true
parameters:
  numberOfReplicas: "3"
  staleReplicaTimeout: "2880" # 48 hours in minutes
  fromBackup: ""
  fsType: "ext4"
EOF

Now that we have our StorageClass in place, we need a PersistentVolumeClaim referencing it. A PersistentVolumeClaim (PVC) is a request for storage by a user. PVCs consume PersistentVolume resources. Claims can request specific sizes and access modes (e.g., they can be mounted once read/write or many times read-only).

Let’s create a PersistentVolumeClaim:

kubectl apply -f - <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: longhorn-volv-pvc
  namespace: longhorn-system
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: longhorn-example
  resources:
    requests:
      storage: 2Gi
EOF

That’s it! Once we have the PersistentVolumeClaim created, we can proceed with attaching it to a Pod. When the Pod is deployed, Kubernetes creates the Longhorn volume and binds it to the Pod if storage is available.

kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
  name: volume-test
  namespace: longhorn-system
spec:
  containers:
  - name: volume-test
    image: nginx:stable-alpine
    imagePullPolicy: IfNotPresent
    volumeMounts:
    - name: volv
      mountPath: /data
    ports:
    - containerPort: 80
  volumes:
  - name: volv
    persistentVolumeClaim:
      claimName: longhorn-volv-pvc
EOF

Tip

The concept of storage in Kubernetes is a complex, but important topic. We briefly mentioned some of the most common Kubernetes resources, however, we suggest to familiarize yourself with the terminology documentation that Longhorn offers.

In this example, the result should look something like this:

localhost:~ # kubectl get storageclass
NAME                 PROVISIONER          RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
longhorn (default)   driver.longhorn.io   Delete          Immediate           true                   12m
longhorn-example     driver.longhorn.io   Delete          Immediate           true                   24s

localhost:~ # kubectl get pvc -n longhorn-system
NAME                STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS       AGE
longhorn-volv-pvc   Bound    pvc-f663a92e-ac32-49ae-b8e5-8a6cc29a7d1e   2Gi        RWO            longhorn-example   54s

localhost:~ # kubectl get pods -n longhorn-system
NAME                                                READY   STATUS    RESTARTS      AGE
csi-attacher-5c4bfdcf59-qmjtz                       1/1     Running   0             14m
csi-attacher-5c4bfdcf59-s7n65                       1/1     Running   0             14m
csi-attacher-5c4bfdcf59-w9xgs                       1/1     Running   0             14m
csi-provisioner-667796df57-fmz2d                    1/1     Running   0             14m
csi-provisioner-667796df57-p7rjr                    1/1     Running   0             14m
csi-provisioner-667796df57-w9fdq                    1/1     Running   0             14m
csi-resizer-694f8f5f64-2rb8v                        1/1     Running   0             14m
csi-resizer-694f8f5f64-z9v9x                        1/1     Running   0             14m
csi-resizer-694f8f5f64-zlncz                        1/1     Running   0             14m
csi-snapshotter-959b69d4b-5dpvj                     1/1     Running   0             14m
csi-snapshotter-959b69d4b-lwwkv                     1/1     Running   0             14m
csi-snapshotter-959b69d4b-tzhwc                     1/1     Running   0             14m
engine-image-ei-5cefaf2b-hvdv5                      1/1     Running   0             14m
instance-manager-0ee452a2e9583753e35ad00602250c5b   1/1     Running   0             14m
longhorn-csi-plugin-gd2jx                           3/3     Running   0             14m
longhorn-driver-deployer-9f4fc86-j6h2b              1/1     Running   0             15m
longhorn-manager-z4lnl                              1/1     Running   0             15m
longhorn-ui-5f4b7bbf69-bln7h                        1/1     Running   3 (14m ago)   15m
longhorn-ui-5f4b7bbf69-lh97n                        1/1     Running   3 (14m ago)   15m
volume-test                                         1/1     Running   0             26s

If you installed SUSE Storage with kubectl or Helm, you need to set up an Ingress controller to allow external traffic into the cluster. Authentication is not enabled by default. If the Rancher catalog app was used, Rancher automatically created an Ingress controller with access control (the rancher-proxy).

SUSE Edge is using Chapter 8, Edge Image Builder in order to customize base SUSE Linux Micro OS images. We are going to demonstrate how to do so for provisioning an RKE2 cluster with SUSE Storage on top of it.

Let’s create the definition file:

export CONFIG_DIR=$HOME/eib
mkdir -p $CONFIG_DIR

cat << EOF > $CONFIG_DIR/iso-definition.yaml
apiVersion: 1.3
image:
  imageType: iso
  baseImage: SL-Micro.x86_64-6.2-Base-SelfInstall-GM.install.iso
  arch: x86_64
  outputImageName: eib-image.iso
kubernetes:
  version: v1.35.3+rke2r3
  helm:
    charts:
      - name: suse-storage
        releaseName: longhorn
        version: 1.11.1
        repositoryName: rancher-application-collection
        targetNamespace: longhorn-system
        createNamespace: true
        installationNamespace: kube-system
    repositories:
      - name: rancher-application-collection
        url: oci://dp.apps.rancher.io/charts
        authentication:
          username: $APPS.RANCHER.IO_USERNAME
          password: $APPS.RANCHER.IO_ACCESS_TOKEN
embeddedArtifactRegistry:
  registries:
    - uri: dp.apps.rancher.io
      authentication:
        username: $APPS.RANCHER.IO_USERNAME
        password: $APPS.RANCHER.IO_ACCESS_TOKEN
  images:
    - name: dp.apps.rancher.io/containers/kubernetes-csi-external-attacher:4.11.0-11.1
    - name: dp.apps.rancher.io/containers/kubernetes-csi-external-provisioner:5.3.0-11.1
    - name: dp.apps.rancher.io/containers/kubernetes-csi-external-resizer:2.1.0-4.1
    - name: dp.apps.rancher.io/containers/kubernetes-csi-external-snapshotter:8.5.0-11.1
    - name: dp.apps.rancher.io/containers/kubernetes-csi-livenessprobe:2.18.0-11.1
    - name: dp.apps.rancher.io/containers/kubernetes-csi-node-driver-registrar:2.16.0-11.1
    - name: dp.apps.rancher.io/containers/longhorn-backing-image-manager:1.11.1-1.2
    - name: dp.apps.rancher.io/containers/longhorn-engine:1.11.1-1.1
    - name: dp.apps.rancher.io/containers/longhorn-instance-manager:1.11.1-1.1
    - name: dp.apps.rancher.io/containers/longhorn-manager:1.11.1-1.2
    - name: dp.apps.rancher.io/containers/longhorn-share-manager:1.11.1-1.1
    - name: dp.apps.rancher.io/containers/longhorn-ui:1.11.1-1.2
    - name: dp.apps.rancher.io/containers/rancher-support-bundle-kit:0.0.81-7.3
operatingSystem:
  packages:
    sccRegistrationCode: <reg-code>
    packageList:
      - open-iscsi
  users:
  - username: root
    encryptedPassword: \$6\$jHugJNNd3HElGsUZ\$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
EOF

Note

Customizing any of the Helm chart values is possible via a separate file provided under helm.charts[].valuesFile. Refer to the upstream documentation for details.

Let’s build the image:

podman run --rm --privileged -it -v $CONFIG_DIR:/eib registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 build --definition-file $CONFIG_DIR/iso-definition.yaml

After the image is built, you can use it to install your OS on a physical or virtual host. Once the provisioning is complete, you are able to log in to the system using the root:eib credentials pair.

Ensure that SUSE Storage has been successfully deployed:

localhost:~ # /var/lib/rancher/rke2/bin/kubectl --kubeconfig /etc/rancher/rke2/rke2.yaml -n longhorn-system get pods
NAME                                                READY   STATUS    RESTARTS        AGE
csi-attacher-5c4bfdcf59-qmjtz                       1/1     Running   0               103s
csi-attacher-5c4bfdcf59-s7n65                       1/1     Running   0               103s
csi-attacher-5c4bfdcf59-w9xgs                       1/1     Running   0               103s
csi-provisioner-667796df57-fmz2d                    1/1     Running   0               103s
csi-provisioner-667796df57-p7rjr                    1/1     Running   0               103s
csi-provisioner-667796df57-w9fdq                    1/1     Running   0               103s
csi-resizer-694f8f5f64-2rb8v                        1/1     Running   0               103s
csi-resizer-694f8f5f64-z9v9x                        1/1     Running   0               103s
csi-resizer-694f8f5f64-zlncz                        1/1     Running   0               103s
csi-snapshotter-959b69d4b-5dpvj                     1/1     Running   0               103s
csi-snapshotter-959b69d4b-lwwkv                     1/1     Running   0               103s
csi-snapshotter-959b69d4b-tzhwc                     1/1     Running   0               103s
engine-image-ei-5cefaf2b-hvdv5                      1/1     Running   0               109s
instance-manager-0ee452a2e9583753e35ad00602250c5b   1/1     Running   0               109s
longhorn-csi-plugin-gd2jx                           3/3     Running   0               103s
longhorn-driver-deployer-9f4fc86-j6h2b              1/1     Running   0               2m28s
longhorn-manager-z4lnl                              1/1     Running   0               2m28s
longhorn-ui-5f4b7bbf69-bln7h                        1/1     Running   3 (2m7s ago)    2m28s
longhorn-ui-5f4b7bbf69-lh97n                        1/1     Running   3 (2m10s ago)   2m28s

Note

This installation will not work for completely air-gapped environments. In those cases, please refer to Section 25.8, “SUSE Storage Installation”.

SUSE Edge provides a leaner configuration of SUSE Security as a starting point for edge deployments.

SUSE Edge is using Chapter 8, Edge Image Builder in order to customize base SUSE Linux Micro OS images. Follow Section 25.7, “SUSE Security Installation” for an air-gapped installation of SUSE Security on top of Kubernetes clusters provisioned by EIB.

SUSE Edge uses MetalLB in three key ways:

Note

In order to be able to expose the API, the Endpoint Copier Operator (Chapter 16, Endpoint Copier Operator) is used to keep in sync the K8s API endpoints from the kubernetes service to a kubernetes-vip LoadBalancer service.

Installation of MetalLB in L2 mode is described in Chapter 21, MetalLB on K3s (using Layer 2 Mode) and for L3 mode in Chapter 22, MetalLB on K3s (using Layer 3 Mode).

A guide on installing MetalLB in front of the kube-api-server to achieve high-availability topology can be found in Chapter 24, MetalLB in front of the Kubernetes API server.

At SUSE Edge, the Endpoint Copier Operator plays a crucial role in achieving High Availability (HA) setup for K3s/RKE2 clusters. This is accomplished by creating a kubernetes-vip service of type LoadBalancer, ensuring its Endpoint remains in constant synchronization with the kubernetes Endpoint. MetalLB (Chapter 15, MetalLB) is leveraged to manage the kubernetes-vip service, as the exposed IP address is used from other nodes to join the cluster.

Comprehensive documentation for using the Endpoint Copier Operator can be found here.

Additionally, refer to our guide (Chapter 21, MetalLB on K3s (using Layer 2 Mode)) on achieving a K3s/RKE2 HA setup using the Endpoint Copier Operator and MetalLB.

Presently, the Endpoint Copier Operator is limited to working with only one Service/Endpoint. Enhancements to support multiple Services/Endpoints are planned for the future.

KubeVirt allows for managing Virtual Machines with Kubernetes alongside the rest of your containerized workloads. It does this by running the user space portion of the Linux virtualization stack in a container. This minimizes the requirements on the host system, allowing for easier setup and management.

If you are following this guide, we assume you have the following already available:

This guide will not walk you through the deployment of Kubernetes, but it assumes that you have either installed the SUSE Edge-appropriate version of K3s or RKE2 and that you have your kubeconfig configured accordingly so that standard kubectl commands can be executed as the superuser. We assume your node forms a single-node cluster, although there are no significant differences expected for multi-node deployments.

SUSE Edge Virtualization is deployed via three separate Helm charts, specifically:

Each of these Helm charts is versioned according to the SUSE Edge release you are currently using. For production/supported usage, employ the artifacts that can be found in the SUSE Registry.

First, ensure that your kubectl access is working:

$ kubectl get nodes

This should show something similar to the following:

NAME                   STATUS   ROLES                       AGE     VERSION
node1.edge.rdo.wales   Ready    control-plane,etcd,master   4h20m   v1.30.5+rke2r1
node2.edge.rdo.wales   Ready    control-plane,etcd,master   4h15m   v1.30.5+rke2r1
node3.edge.rdo.wales   Ready    control-plane,etcd,master   4h15m   v1.30.5+rke2r1

Now you can proceed to install the KubeVirt and Containerized Data Importer (CDI) Helm charts:

$ helm install kubevirt oci://registry.suse.com/edge/charts/kubevirt --namespace kubevirt-system --create-namespace
$ helm install cdi oci://registry.suse.com/edge/charts/cdi --namespace cdi-system --create-namespace

In a few minutes, you should have all KubeVirt and CDI components deployed. You can validate this by checking all the deployed resources in the kubevirt-system and cdi-system namespace.

Verify KubeVirt resources:

$ kubectl get all -n kubevirt-system

This should show something similar to the following:

NAME                                   READY   STATUS    RESTARTS      AGE
pod/virt-operator-5fbcf48d58-p7xpm     1/1     Running   0             2m24s
pod/virt-operator-5fbcf48d58-wnf6s     1/1     Running   0             2m24s
pod/virt-handler-t594x                 1/1     Running   0             93s
pod/virt-controller-5f84c69884-cwjvd   1/1     Running   1 (64s ago)   93s
pod/virt-controller-5f84c69884-xxw6q   1/1     Running   1 (64s ago)   93s
pod/virt-api-7dfc54cf95-v8kcl          1/1     Running   1 (59s ago)   118s

NAME                                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
service/kubevirt-prometheus-metrics   ClusterIP   None            <none>        443/TCP   2m1s
service/virt-api                      ClusterIP   10.43.56.140    <none>        443/TCP   2m1s
service/kubevirt-operator-webhook     ClusterIP   10.43.201.121   <none>        443/TCP   2m1s
service/virt-exportproxy              ClusterIP   10.43.83.23     <none>        443/TCP   2m1s

NAME                          DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
daemonset.apps/virt-handler   1         1         1       1            1           kubernetes.io/os=linux   93s

NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/virt-operator     2/2     2            2           2m24s
deployment.apps/virt-controller   2/2     2            2           93s
deployment.apps/virt-api          1/1     1            1           118s

NAME                                         DESIRED   CURRENT   READY   AGE
replicaset.apps/virt-operator-5fbcf48d58     2         2         2       2m24s
replicaset.apps/virt-controller-5f84c69884   2         2         2       93s
replicaset.apps/virt-api-7dfc54cf95          1         1         1       118s

NAME                            AGE     PHASE
kubevirt.kubevirt.io/kubevirt   2m24s   Deployed

Verify CDI resources:

$ kubectl get all -n cdi-system

This should show something similar to the following:

NAME                                   READY   STATUS    RESTARTS   AGE
pod/cdi-operator-55c74f4b86-692xb      1/1     Running   0          2m24s
pod/cdi-apiserver-db465b888-62lvr      1/1     Running   0          2m21s
pod/cdi-deployment-56c7d74995-mgkfn    1/1     Running   0          2m21s
pod/cdi-uploadproxy-7d7b94b968-6kxc2   1/1     Running   0          2m22s

NAME                             TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/cdi-uploadproxy          ClusterIP   10.43.117.7    <none>        443/TCP    2m22s
service/cdi-api                  ClusterIP   10.43.20.101   <none>        443/TCP    2m22s
service/cdi-prometheus-metrics   ClusterIP   10.43.39.153   <none>        8080/TCP   2m21s

NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/cdi-operator      1/1     1            1           2m24s
deployment.apps/cdi-apiserver     1/1     1            1           2m22s
deployment.apps/cdi-deployment    1/1     1            1           2m21s
deployment.apps/cdi-uploadproxy   1/1     1            1           2m22s

NAME                                         DESIRED   CURRENT   READY   AGE
replicaset.apps/cdi-operator-55c74f4b86      1         1         1       2m24s
replicaset.apps/cdi-apiserver-db465b888      1         1         1       2m21s
replicaset.apps/cdi-deployment-56c7d74995    1         1         1       2m21s
replicaset.apps/cdi-uploadproxy-7d7b94b968   1         1         1       2m22s

To verify that the VirtualMachine custom resource definitions (CRDs) are deployed, you can validate with:

$ kubectl explain virtualmachine

This should print out the definition of the VirtualMachine object, which should print as follows:

GROUP:      kubevirt.io
KIND:       VirtualMachine
VERSION:    v1

DESCRIPTION:
    VirtualMachine handles the VirtualMachines that are not running or are in a
    stopped state The VirtualMachine contains the template to create the
    VirtualMachineInstance. It also mirrors the running state of the created
    VirtualMachineInstance in its status.
(snip)

Now that KubeVirt and CDI are deployed, let us define a simple virtual machine based on openSUSE Tumbleweed. This virtual machine has the most simple of configurations, using standard "pod networking" for a networking configuration identical to any other pod. It also employs non-persistent storage, ensuring the storage is ephemeral, just like in any container that does not have a PVC.

$ cat <<EOF > user-data.yaml
#cloud-config
disable_root: false
ssh_pwauth: True
users:
  - default
  - name: suse
    groups: sudo
    shell: /bin/bash
    sudo:  ALL=(ALL) NOPASSWD:ALL
    lock_passwd: False
    plain_text_passwd: 'suse'
EOF
$ kubectl apply -f - <<EOF
apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: tumbleweed
  namespace: default
spec:
  runStrategy: Always
  template:
    spec:
      domain:
        devices: {}
        machine:
          type: q35
        memory:
          guest: 2Gi
        resources: {}
      volumes:
      - containerDisk:
          image: quay.io/containerdisks/opensuse-tumbleweed:1.0.0
        name: tumbleweed-containerdisk-0
      - cloudInitNoCloud:
          userDataBase64: $(cat user-data.yaml | base64 -w 0)
        name: cloudinitdisk
EOF

This should print that a VirtualMachine was created:

virtualmachine.kubevirt.io/tumbleweed created

This VirtualMachine definition is minimal, specifying little about the configuration. It simply outlines that it is a machine type "q35" with 2 GB of memory that uses a disk image based on an ephemeral containerDisk (that is, a disk image that is stored in a container image from a remote image repository), and specifies a base64 encoded cloudInit disk, which we only use for user creation and password enforcement at boot time (use base64 -d to decode it).

This machine takes a few minutes to boot as it needs to download the openSUSE Tumbleweed disk image, but once it has done so, you can view further details about the virtual machine by checking the virtual machine information:

$ kubectl get vmi

This should print the node that the virtual machine was started on, and the IP address of the virtual machine. Remember, since it uses pod networking, the reported IP address will be just like any other pod, and routable as such:

NAME         AGE     PHASE     IP           NODENAME               READY
tumbleweed   4m24s   Running   10.42.2.98   node3.edge.rdo.wales   True

When running these commands on the Kubernetes cluster nodes themselves, with a CNI that routes traffic directly to pods (for example, Cilium), you should be able to ssh directly to the machine itself. Substitute the following IP address with the one that was assigned to your virtual machine:

$ ssh suse@10.42.2.98
(password is "suse")

Once you are in this virtual machine, you can play around, but remember that it is limited in terms of resources, and only has 1 GB disk space. When you are finished, Ctrl-D or exit to disconnect from the SSH session.

The virtual machine process is still wrapped in a standard Kubernetes pod. The VirtualMachine CRD is a representation of the desired virtual machine, but the process in which the virtual machine is actually started is via the virt-launcher pod, a standard Kubernetes pod, just like any other application. For every virtual machine started, you can see there is a virt-launcher pod:

$ kubectl get pods

This should then show the one virt-launcher pod for the Tumbleweed machine that we have defined:

NAME                             READY   STATUS    RESTARTS   AGE
virt-launcher-tumbleweed-8gcn4   3/3     Running   0          10m

If we take a look into this virt-launcher pod, you see it is executing libvirt and qemu-kvm processes. We can enter the pod itself and have a look under the covers, noting that you need to adapt the following command for your pod name:

$ kubectl exec -it virt-launcher-tumbleweed-8gcn4 -- bash

Once you are in the pod, try running virsh commands along with looking at the processes. You will see the qemu-system-x86_64 binary running, along with certain processes for monitoring the virtual machine. You will also see the location of the disk image and how the networking is plugged (as a tap device):

qemu@tumbleweed:/> ps ax
  PID TTY      STAT   TIME COMMAND
    1 ?        Ssl    0:00 /usr/bin/virt-launcher-monitor --qemu-timeout 269s --name tumbleweed --uid b9655c11-38f7-4fa8-8f5d-bfe987dab42c --namespace default --kubevirt-share-dir /var/run/kubevirt --ephemeral-disk-dir /var/run/kubevirt-ephemeral-disks --container-disk-dir /var/run/kube
   12 ?        Sl     0:01 /usr/bin/virt-launcher --qemu-timeout 269s --name tumbleweed --uid b9655c11-38f7-4fa8-8f5d-bfe987dab42c --namespace default --kubevirt-share-dir /var/run/kubevirt --ephemeral-disk-dir /var/run/kubevirt-ephemeral-disks --container-disk-dir /var/run/kubevirt/con
   24 ?        Sl     0:00 /usr/sbin/virtlogd -f /etc/libvirt/virtlogd.conf
   25 ?        Sl     0:01 /usr/sbin/virtqemud -f /var/run/libvirt/virtqemud.conf
   83 ?        Sl     0:31 /usr/bin/qemu-system-x86_64 -name guest=default_tumbleweed,debug-threads=on -S -object {"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/run/kubevirt-private/libvirt/qemu/lib/domain-1-default_tumbleweed/master-key.aes"} -machine pc-q35-7.1,usb
  286 pts/0    Ss     0:00 bash
  320 pts/0    R+     0:00 ps ax

qemu@tumbleweed:/> virsh list --all
 Id   Name                 State
------------------------------------
 1    default_tumbleweed   running

qemu@tumbleweed:/> virsh domblklist 1
 Target   Source
---------------------------------------------------------------------------------------------
 sda      /var/run/kubevirt-ephemeral-disks/disk-data/tumbleweed-containerdisk-0/disk.qcow2
 sdb      /var/run/kubevirt-ephemeral-disks/cloud-init-data/default/tumbleweed/noCloud.iso

qemu@tumbleweed:/> virsh domiflist 1
 Interface   Type       Source   Model                     MAC
------------------------------------------------------------------------------
 tap0        ethernet   -        virtio-non-transitional   e6:e9:1a:05:c0:92

qemu@tumbleweed:/> exit
exit

Finally, let us delete this virtual machine to clean up:

$ kubectl delete vm/tumbleweed
virtualmachine.kubevirt.io "tumbleweed" deleted

Along with the standard Kubernetes CLI tooling, that is, kubectl, KubeVirt comes with an accompanying CLI utility that allows you to interface with your cluster in a way that bridges some gaps between the virtualization world and the world that Kubernetes was designed for. For example, the virtctl tool provides the capability of managing the lifecycle of virtual machines (starting, stopping, restarting, etc.), providing access to the virtual consoles, uploading virtual machine images, as well as interfacing with Kubernetes constructs such as services, without using the API or CRDs directly.

Let us download the latest stable version of the virtctl tool:

$ export VERSION=v0.7.0
$ wget https://github.com/kubevirt/kubevirt/releases/download/$VERSION/virtctl-$VERSION-linux-amd64

If you are using a different architecture or a non-Linux machine, you can find other releases here. You need to make this executable before proceeding, and it may be useful to move it to a location within your $PATH:

$ mv virtctl-$VERSION-linux-amd64 /usr/local/bin/virtctl
$ chmod a+x /usr/local/bin/virtctl

You can then use the virtctl command-line tool to create virtual machines. Let us replicate our previous virtual machine, noting that we are piping the output directly into kubectl apply:

$ cat <<EOF >  user-data.yaml
#cloud-config
disable_root: false
ssh_pwauth: True
users:
  - default
  - name: suse
    groups: sudo
    shell: /bin/bash
    sudo:  ALL=(ALL) NOPASSWD:ALL
    lock_passwd: False
    plain_text_passwd: 'suse'
EOF
$ alias virtctl=echo
$ virtctl create vm --name virtctl-example --memory=1Gi \
    --volume-containerdisk=src:quay.io/containerdisks/opensuse-tumbleweed:1.0.0 \
    --cloud-init-user-data "$(cat user-data.yaml | base64 -w 0)"

This should then show the virtual machine running (it should start a lot quicker this time given that the container image will be cached):

$ kubectl get vmi
NAME              AGE   PHASE     IP           NODENAME               READY
virtctl-example   52s   Running   10.42.2.29   node3.edge.rdo.wales   True

Now we can use virtctl to connect directly to the virtual machine:

$ virtctl ssh suse@virtctl-example
(password is "suse" - Ctrl-D to exit)

There are plenty of other commands that can be used by virtctl. For example, virtctl console can give you access to the serial console if networking is not working, and you can use virtctl guestosinfo to get comprehensive OS information, subject to the guest having the qemu-guest-agent installed and running.

Finally, let us pause and resume the virtual machine:

$ virtctl pause vm virtctl-example
VMI virtctl-example was scheduled to pause

You find that the VirtualMachine object shows as Paused and the VirtualMachineInstance object shows as Running but READY=False:

$ kubectl get vm
NAME              AGE     STATUS   READY
virtctl-example   8m14s   Paused   False

$ kubectl get vmi
NAME              AGE     PHASE     IP           NODENAME               READY
virtctl-example   8m15s   Running   10.42.2.29   node3.edge.rdo.wales   False

You also find that you can no longer connect to the virtual machine:

$ virtctl ssh suse@virtctl-example
can't access VMI virtctl-example: Operation cannot be fulfilled on virtualmachineinstance.kubevirt.io "virtctl-example": VMI is paused

Let us resume the virtual machine and try again:

$ virtctl unpause vm virtctl-example
VMI virtctl-example was scheduled to unpause

Now we should be able to re-establish a connection:

$ virtctl ssh suse@virtctl-example
suse@vmi/virtctl-example.default's password:
suse@virtctl-example:~> exit
logout

Finally, let us remove the virtual machine:

$ kubectl delete vm/virtctl-example
virtualmachine.kubevirt.io "virtctl-example" deleted

In this section, we show how you can expose virtual machines as standard Kubernetes services and make them available via the Kubernetes ingress service, for example, Traefik with RKE2 or Traefik with K3s. This document assumes that these components are already configured appropriately and that you have an appropriate DNS pointer, for example, via a wild card, to point at your Kubernetes server nodes or your ingress virtual IP for proper ingress resolution.

In the example environment, another openSUSE Tumbleweed virtual machine is deployed, cloud-init is used to install NGINX as a simple Web server at boot time, and a simple message is configured to be returned to verify that it works as expected when a call is made. To see how this is done, simply base64 -d the cloud-init section in the output below.

Let us create this virtual machine now:

$ cat <<EOF > user-data.yaml
#cloud-config
disable_root: false
ssh_pwauth: True
users:
  - default
  - name: suse
    groups: sudo
    shell: /bin/bash
    sudo:  ALL=(ALL) NOPASSWD:ALL
    lock_passwd: False
    plain_text_passwd: 'suse'
EOF
$ kubectl apply -f - <<EOF
apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: ingress-example
  namespace: default
spec:
  runStrategy: Always
  template:
    metadata:
      labels:
        app: nginx
    spec:
      domain:
        devices: {}
        machine:
          type: q35
        memory:
          guest: 2Gi
        resources: {}
      volumes:
      - containerDisk:
          image: quay.io/containerdisks/opensuse-tumbleweed:1.0.0
        name: tumbleweed-containerdisk-0
      - cloudInitNoCloud:
          userDataBase64: $(cat user-data.yaml | base64 -w 0)
        name: cloudinitdisk
EOF

When this virtual machine has successfully started, we can use the virtctl command to expose the VirtualMachineInstance with an external port of 8080 and a target port of 80 (where NGINX listens by default). We use the virtctl command here as it understands the mapping between the virtual machine object and the pod. This creates a new service for us:

$ virtctl expose vmi ingress-example --port=8080 --target-port=80 --name=ingress-example
Service ingress-example successfully exposed for vmi ingress-example

We will then have an appropriate service automatically created:

$ kubectl get svc/ingress-example
NAME              TYPE           CLUSTER-IP      EXTERNAL-IP       PORT(S)                         AGE
ingress-example   ClusterIP      10.43.217.19    <none>            8080/TCP                        9s

Next, if you then use kubectl create ingress, we can create an ingress object that points to this service. Adapt the URL (known as the "host" in the ingress object) here to match your DNS configuration and ensure that you point it to port 8080:

$ kubectl create ingress ingress-example --rule=ingress-example.suse.local/=ingress-example:8080

With DNS being configured correctly, you should be able to curl the URL immediately:

$ curl ingress-example.suse.local
It works!

Let us clean up by removing this virtual machine and its service and ingress resources:

$ kubectl delete vm/ingress-example svc/ingress-example ingress/ingress-example
virtualmachine.kubevirt.io "ingress-example" deleted
service "ingress-example" deleted
ingress.networking.k8s.io "ingress-example" deleted

SUSE Edge Virtualization provides a UI extension for Rancher Manager, enabling basic virtual machine management using the Rancher dashboard UI.

17.7.2 Using KubeVirt Rancher Dashboard Extension #



The extension introduces a new KubeVirt section to the Cluster Explorer. This section is added to any managed cluster which has KubeVirt installed.

The extension allows you to directly interact with KubeVirt Virtual Machine resources to manage Virtual Machines lifecycle.

17.7.2.1 Creating a virtual machine #



1. Navigate to Cluster Explorer clicking KubeVirt-enabled managed cluster in the left navigation.

2. Navigate to KubeVirt > Virtual Machines page and click Create from YAML in the upper right of the screen.

3. Fill in or paste a virtual machine definition and press Create. Use virtual machine definition from Deploying Virtual Machines section as an inspiration.

17.7.2.2 Virtual Machine Actions #



You can use the action menu accessed from the ⋮ drop-down list to the right of each virtual machine to perform start, stop, pause or soft reboot actions. Alternatively you can also use group actions at the top of the list by selecting virtual machines to perform the action on.

Performing the actions may have an effect on Virtual Machine Run Strategy. See the table in KubeVirt documentation for more details.

17.7.2.3 Accessing virtual machine console #



The "Virtual machines" list provides a Console drop-down list that allows to connect to the machine using VNC or Serial Console. This action is only available to running machines.

In some cases, it takes a short while before the console is accessible on a freshly started virtual machine.

SUSE Edge is using Chapter 8, Edge Image Builder in order to customize base SUSE Linux Micro OS images. Follow Section 25.9, “KubeVirt and CDI Installation” for an air-gapped installation of both KubeVirt and CDI on top of Kubernetes clusters provisioned by EIB.

SUSE Edge uses SUC to facilitate various "Day 2" operations related to OS and Kubernetes version upgrades on management and downstream clusters.

"Day 2" operations are defined through SUC Plans. Based on these plans, SUC deploys workloads on each node to execute the respective "Day 2" operation.

SUC is also used within the Chapter 19, Upgrade Controller. To learn more about the key differences between SUC and the Upgrade Controller, see Section 19.2, “Upgrade Controller vs System Upgrade Controller”.

Important

Starting with Rancher v2.10.0, the System Upgrade Controller is installed automatically.

Follow the steps below only if your environment is not managed by Rancher, or if your Rancher version is lesser than v2.10.0.

We recommend that you install SUC through Fleet (Chapter 6, Fleet) located in the suse-edge/fleet-examples repository.

Note

The resources offered by the suse-edge/fleet-examples repository must always be used from a valid fleet-examples release. To determine which release you need to use, refer to the Release Notes (Section 41.1, “Abstract”).

If you are unable to use Fleet for the installation of SUC, you can install it through Rancher’s Helm chart repository, or incorporate the Rancher’s Helm chart in your own third-party GitOps workflow.

This section covers:

18.2.1 System Upgrade Controller Fleet installation #



Using Fleet, there are two possible resources that can be used to deploy SUC:

• GitRepo resource - for use cases where an external/local Git server is available. For installation instructions, see System Upgrade Controller installation - GitRepo (Section 18.2.1.1, “System Upgrade Controller installation - GitRepo”).

• Bundle resource - for air-gapped use cases that do not support a local Git server option. For installation instructions, see System Upgrade Controller installation - Bundle (Section 18.2.1.2, “System Upgrade Controller installation - Bundle”).

18.2.1.1 System Upgrade Controller installation - GitRepo #



Note

This process can also be done through the Rancher UI, if such is available. For more information, see Accessing Fleet in the Rancher UI.

In your management cluster:

1. Determine on which clusters you want to deploy SUC. This is done by deploying a SUC GitRepo resource in the correct Fleet workspace on your management cluster. By default, Fleet has two workspaces:

   • fleet-local - for resources that need to be deployed on the management cluster.

   • fleet-default - for resources that need to be deployed on downstream clusters.

     For more information on Fleet workspaces, see the upstream documentation.

2. Deploy the GitRepo resource:

   • To deploy SUC on your management cluster:

     kubectl apply -n fleet-local -f - <<EOF
     apiVersion: fleet.cattle.io/v1alpha1
     kind: GitRepo
     metadata:
       name: system-upgrade-controller
     spec:
       revision: release-3.6.0
       paths:
       - fleets/day2/system-upgrade-controller
       repo: https://github.com/suse-edge/fleet-examples.git
     EOF

   • To deploy SUC on your downstream clusters:



     Note

     Before deploying the resource below, you must provide a valid targets configuration, so that Fleet knows on which downstream clusters to deploy your resource. For information on how to map to downstream clusters, see Mapping to Downstream Clusters.

     kubectl apply -n fleet-default -f - <<EOF
     apiVersion: fleet.cattle.io/v1alpha1
     kind: GitRepo
     metadata:
       name: system-upgrade-controller
     spec:
       revision: release-3.6.0
       paths:
       - fleets/day2/system-upgrade-controller
       repo: https://github.com/suse-edge/fleet-examples.git
       targets:
       - clusterSelector: CHANGEME
       # Example matching all clusters:
       # targets:
       # - clusterSelector: {}
     EOF

3. Validate that the GitRepo resource is deployed:

   # Namespace will vary based on where you want to deploy SUC
   kubectl get gitrepo system-upgrade-controller -n <fleet-local/fleet-default>

   NAME                        REPO                                              COMMIT          BUNDLEDEPLOYMENTS-READY   STATUS
   system-upgrade-controller   https://github.com/suse-edge/fleet-examples.git   release-3.6.0   1/1

4. Validate the System Upgrade Controller deployment:

   kubectl get deployment system-upgrade-controller -n cattle-system
   NAME                        READY   UP-TO-DATE   AVAILABLE   AGE
   system-upgrade-controller   1/1     1            1           2m20s

18.2.1.2 System Upgrade Controller installation - Bundle #



This section illustrates how to build and deploy a Bundle resource from a standard Fleet configuration using the fleet-cli.

1. On a machine with network access download the fleet-cli:



   Note

   Make sure that the version of the fleet-cli you download matches the version of Fleet that has been deployed on your cluster.

   • For Mac users there is a fleet-cli Homebrew Formulae.

   • For Linux and Windows users the binaries are present as assets to each Fleet release.

     • Linux AMD:

       curl -L -o fleet-cli https://github.com/rancher/fleet/releases/download/vv0.15.1/fleet-linux-amd64

     • Linux ARM:

       curl -L -o fleet-cli https://github.com/rancher/fleet/releases/download/vv0.15.1/fleet-linux-arm64

2. Make fleet-cli executable:

   chmod +x fleet-cli

3. Clone the suse-edge/fleet-examples release that you wish to use:

   git clone -b release-3.6.0 https://github.com/suse-edge/fleet-examples.git

4. Navigate to the SUC fleet, located in the fleet-examples repo:

   cd fleet-examples/fleets/day2/system-upgrade-controller

5. Determine on which clusters you want to deploy SUC. This is done by deploying the SUC Bundle in the correct Fleet workspace inside your management cluster. By default, Fleet has two workspaces:

   • fleet-local - for resources that need to be deployed on the management cluster.

   • fleet-default - for resources that need to be deployed on downstream clusters.

     For more information on Fleet workspaces, see the upstream documentation.

6. If you intend to deploy SUC only on downstream clusters, create a targets.yaml file that matches the specific clusters:

   cat > targets.yaml <<EOF
   targets:
   - clusterSelector: CHANGEME
   EOF

   For information on how to map to downstream clusters, see Mapping to Downstream Clusters

7. Proceed to building the Bundle:



   Note

   Make sure you did not download the fleet-cli in the fleet-examples/fleets/day2/system-upgrade-controller directory, otherwise it will be packaged with the Bundle, which is not advised.

   • To deploy SUC on your management cluster, execute:

     fleet-cli apply --compress -n fleet-local -o - system-upgrade-controller . > system-upgrade-controller-bundle.yaml

   • To deploy SUC on your downstream clusters, execute:

     fleet-cli apply --compress --targets-file=targets.yaml -n fleet-default -o - system-upgrade-controller . > system-upgrade-controller-bundle.yaml

     For more information about this process, see Convert a Helm Chart into a Bundle.

     For more information about the fleet-cli apply command, see fleet apply.

8. Transfer the system-upgrade-controller-bundle.yaml bundle to your management cluster machine:

   scp system-upgrade-controller-bundle.yaml <machine-address>:<filesystem-path>

9. On your management cluster, deploy the system-upgrade-controller-bundle.yaml Bundle:

   kubectl apply -f system-upgrade-controller-bundle.yaml

10. On your management cluster, validate that the Bundle is deployed:

    # Namespace will vary based on where you want to deploy SUC
    kubectl get bundle system-upgrade-controller -n <fleet-local/fleet-default>

    NAME                        BUNDLEDEPLOYMENTS-READY   STATUS
    system-upgrade-controller   1/1

11. Based on the Fleet workspace that you deployed your Bundle to, navigate to the cluster and validate the SUC deployment:



    Note

    SUC is always deployed in the cattle-system namespace.

    kubectl get deployment system-upgrade-controller -n cattle-system
    NAME                        READY   UP-TO-DATE   AVAILABLE   AGE
    system-upgrade-controller   1/1     1            1           111s

SUC Plans can be viewed in the following ways:

Important

Pods deployed for SUC Plans are kept alive 15 minutes after a successful execution. After that they are removed by the corresponding Job that created them. To have access to the Pod’s logs after this time period, you should enable logging for your cluster. For information on how to do this in Rancher, see Rancher Integration with Logging Services.

18.3.2 Monitoring System Upgrade Controller Plans - Manual #



Note

The below steps assume that kubectl has been configured to connect to the cluster where the SUC Plans have been deployed to.

1. List deployed SUC Plans:

   kubectl get plans -n cattle-system

2. Get Pod for SUC Plan:

   kubectl get pods -l upgrade.cattle.io/plan=<plan_name> -n cattle-system



   Note

   There may be both Completed and Unknown Pods for a specific SUC Plan. This is expected and happens due to the nature of some of the upgrades.

3. Get logs for the Pod:

   kubectl logs <pod_name> -n cattle-system

The Upgrade Controller is essential in automating the (formerly manual) "Day 2" operations required to upgrade management clusters from one SUSE Edge release version to the next.

To achieve this automation, the Upgrade Controller utilizes tools such as the System Upgrade Controller (Chapter 18, System Upgrade Controller) and the Helm Controller.

For further details on how the Upgrade Controller works, see Section 19.5, “How does the Upgrade Controller work?”.

For known limitations that the Upgrade Controller has, see Section 19.8, “Known Limitations”.

For information on the difference between the Upgrade Controller and the System Upgrade Controller, see Section 19.2, “Upgrade Controller vs System Upgrade Controller”.

The System Upgrade Controller (SUC) (Chapter 18, System Upgrade Controller) is a general-purpose tool that propagates upgrade instructions to specific Kubernetes nodes.

While it supports some "Day 2" operations for the SUSE Edge platform, it does not cover all of them. Moreover, even for supported operations, users have to manually configure, maintain, and deploy multiple SUC Plans — an error-prone process that can lead to unexpected issues.

This led to the need for a tool that automates and abstracts the complexity of managing various "Day 2" operations for the SUSE Edge platform. Thus, the Upgrade Controller was developed. It simplifies the upgrade process by introducing a single user-facing resource that drives the upgrade. Users only need to manage this resource, while the Upgrade Controller takes care of the rest.

As an alternative to the manual installation described above, it is possible to install the upgrade controller as part of the initial deployment orchestrated by Edge Image Builder (Chapter 8, Edge Image Builder).

In this case it is necessary to add the following helm chart configuration to the EIB configuration file:

kubernetes:
  helm:
    charts:
      - name: cert-manager
        repositoryName: jetstack
        version: {version-cert-manager}
        targetNamespace: cert-manager
        valuesFile: certmanager-values.yaml
        createNamespace: true
        installationNamespace: kube-system
      - name: upgrade-controller
        version: {version-upgrade-controller-chart}
        repositoryName: suse-edge-charts
        targetNamespace: upgrade-controller-system
        createNamespace: true
        installationNamespace: kube-system

In order to perform an Edge release upgrade, the Upgrade Controller introduces two new Kubernetes custom resources:

The Upgrade Controller proceeds to create a ReleaseManifest resource that holds the component data for the Edge release version specified by the user under the releaseVersion property in the UpgradePlan resource.

Using the component data from the ReleaseManifest, the Upgrade Controller proceeds to upgrade the Edge release components in the following order:

Note

During the upgrade process, the Upgrade Controller continually outputs upgrade information to the created UpgradePlan. For more information on how to track the upgrade process, see Tracking the upgrade process (Section 19.7, “Tracking the upgrade process”).

19.5.1 Operating System upgrade #



To upgrade the operating system, the Upgrade Controller creates SUC (Chapter 18, System Upgrade Controller) Plans that have the following naming template:

• For SUC Plans related to control plane node OS upgrades - control-plane-<os-name>-<os-version>-<suffix>.

• For SUC Plans related to worker node OS upgrades - workers-<os-name>-<os-version>-<suffix>.

Based on these plans, SUC proceeds to create workloads on each node of the cluster that perform the actual OS upgrade.

Depending on the ReleaseManifest, the OS upgrade may include:

• Package only updates - for use-cases where the OS version does not change between Edge releases.

• Full OS migration - for use-cases where the OS version changes between Edge releases.

The upgrade is executed one node at a time starting with the control plane nodes first. Only if the control-plane node upgrade finishes will the worker nodes begin to be upgraded.

Note

The Upgrade Controller configures the OS SUC Plans to do perform a drain of the cluster nodes if the cluster has more than one node of the specified type.

For clusters where the control plane nodes are greater than one and there is only one worker node, a drain will be performed only for the control plane nodes and vice versa.

For information on how to disable node drains altogether, see the UpgradePlan (Section 19.6.1, “UpgradePlan”) section.

19.5.2 Kubernetes upgrade #



To upgrade the Kubernetes distribution of a cluster, the Upgrade Controller creates SUC (Chapter 18, System Upgrade Controller) Plans that have the following naming template:

• For SUC Plans related to control plane node Kubernetes upgrades - control-plane-<k8s-version>-<suffix>.

• For SUC Plans related to worker node Kubernetes upgrades - workers-<k8s-version>-<suffix>.

Based on these plans, SUC proceeds to create workloads on each node of the cluster that perform the actual Kubernetes upgrade.

The Kubernetes upgrade will happen one node at a time starting with the control plane nodes first. Only if the control plane node upgrade finishes will the worker nodes begin to be upgraded.

Note

The Upgrade Controller configures the Kubernetes SUC Plans to perform a drain of the cluster nodes if the cluster has more than one node of the specified type.

For clusters where the control plane nodes are greater than one and there is only one worker node, a drain will be performed only for the control plane nodes and vice versa.

For information on how to disable node drains altogether, see Section 19.6.1, “UpgradePlan”.

Extensions to the Kubernetes API introduced by the Upgrade Controller.

19.6.2 ReleaseManifest #



The Upgrade Controller introduces a new Kubernetes custom resource called a ReleaseManifest.

The ReleaseManifest resource is created by the Upgrade Controller and holds component data for one specific Edge release version. This means that each Edge release version upgrade will be represented by a different ReleaseManifest resource.

Warning

The Release Manifest should always be created by the Upgrade Controller.

It is not advisable to manually create or edit the ReleaseManifest resources. Users that decide to do so should do this at their own risk.

Component data that the Release Manifest ships include, but is not limited to:

• Operating System data - version, supported architectures, additional upgrade data, etc.

• Kubernetes distribution data - RKE2/K3s supported versions

• Additional components data - SUSE Helm chart data (location, version, name, etc.)

For an example of how a Release Manifest can look, refer to the upstream documentation. Please note that this is just an example and it is not intended to be created as a valid ReleaseManifest resource.

This section serves as means to track and debug the upgrade process that the Upgrade Controller initiates once the user creates an UpgradePlan resource.

kubectl get upgradeplan <upgradeplan_name> -n upgrade-controller-system -o yaml

apiVersion: lifecycle.suse.com/v1alpha1
kind: UpgradePlan
metadata:
  name: upgrade-plan-mgmt
  namespace: upgrade-controller-system
spec:
  releaseVersion: 3.6
status:
  conditions:
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Control plane nodes are being upgraded
    reason: InProgress
    status: "False"
    type: OSUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Kubernetes upgrade is not yet started
    reason: Pending
    status: Unknown
    type: KubernetesUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Rancher upgrade is not yet started
    reason: Pending
    status: Unknown
    type: RancherUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Longhorn upgrade is not yet started
    reason: Pending
    status: Unknown
    type: LonghornUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: MetalLB upgrade is not yet started
    reason: Pending
    status: Unknown
    type: MetalLBUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: CDI upgrade is not yet started
    reason: Pending
    status: Unknown
    type: CDIUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: KubeVirt upgrade is not yet started
    reason: Pending
    status: Unknown
    type: KubeVirtUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: NeuVector upgrade is not yet started
    reason: Pending
    status: Unknown
    type: NeuVectorUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: EndpointCopierOperator upgrade is not yet started
    reason: Pending
    status: Unknown
    type: EndpointCopierOperatorUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Elemental upgrade is not yet started
    reason: Pending
    status: Unknown
    type: ElementalUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: SRIOV upgrade is not yet started
    reason: Pending
    status: Unknown
    type: SRIOVUpgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: Metal3 upgrade is not yet started
    reason: Pending
    status: Unknown
    type: Metal3Upgraded
  - lastTransitionTime: "2024-10-01T06:26:27Z"
    message: RancherTurtles upgrade is not yet started
    reason: Pending
    status: Unknown
    type: RancherTurtlesUpgraded
  observedGeneration: 1
  sucNameSuffix: 90315a2b6d

apiVersion: lifecycle.suse.com/v1alpha1
kind: UpgradePlan
metadata:
  name: upgrade-plan-mgmt
  namespace: upgrade-controller-system
spec:
  releaseVersion: 3.6
status:
  conditions:
  - lastTransitionTime: "2024-10-01T06:26:48Z"
    message: All cluster nodes are upgraded
    reason: Succeeded
    status: "True"
    type: OSUpgraded
  - lastTransitionTime: "2024-10-01T06:26:59Z"
    message: All cluster nodes are upgraded
    reason: Succeeded
    status: "True"
    type: KubernetesUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Chart rancher upgrade succeeded
    reason: Succeeded
    status: "True"
    type: RancherUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Chart longhorn is not installed
    reason: Skipped
    status: "False"
    type: LonghornUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Specified version of chart metallb is already installed
    reason: Skipped
    status: "False"
    type: MetalLBUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Chart cdi is not installed
    reason: Skipped
    status: "False"
    type: CDIUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Chart kubevirt is not installed
    reason: Skipped
    status: "False"
    type: KubeVirtUpgraded
  - lastTransitionTime: "2024-10-01T06:27:13Z"
    message: Chart neuvector-crd is not installed
    reason: Skipped
    status: "False"
    type: NeuVectorUpgraded
  - lastTransitionTime: "2024-10-01T06:27:14Z"
    message: Specified version of chart endpoint-copier-operator is already installed
    reason: Skipped
    status: "False"
    type: EndpointCopierOperatorUpgraded
  - lastTransitionTime: "2024-10-01T06:27:14Z"
    message: Chart elemental-operator upgrade succeeded
    reason: Succeeded
    status: "True"
    type: ElementalUpgraded
  - lastTransitionTime: "2024-10-01T06:27:15Z"
    message: Chart sriov-crd is not installed
    reason: Skipped
    status: "False"
    type: SRIOVUpgraded
  - lastTransitionTime: "2024-10-01T06:27:19Z"
    message: Chart metal3 is not installed
    reason: Skipped
    status: "False"
    type: Metal3Upgraded
  - lastTransitionTime: "2024-10-01T06:27:27Z"
    message: Chart rancher-turtles is not installed
    reason: Skipped
    status: "False"
    type: RancherTurtlesUpgraded
  lastSuccessfulReleaseVersion: 3.6
  observedGeneration: 1
  sucNameSuffix: 90315a2b6d

19.7.2 Helm Controller #



This section covers how to track resources created by the helm-controller.

Note

The below steps assume that kubectl has been configured to connect to the cluster where the Upgrade Controller has been deployed to.

1. Locate the HelmChart resource for the specific component:

   kubectl get helmcharts -n kube-system

2. Using the name of the HelmChart resource, locate the upgrade Pod that was created by the helm-controller:

   kubectl get pods -l helmcharts.helm.cattle.io/chart=<helmchart_name> -n kube-system

   # Example for Rancher
   kubectl get pods -l helmcharts.helm.cattle.io/chart=rancher -n kube-system
   NAME                         READY   STATUS      RESTARTS   AGE
   helm-install-rancher-tv9wn   0/1     Completed   0          16m

3. View the logs of the component specific pod:

   kubectl logs <pod_name> -n kube-system

MetalLB is a compelling choice for load balancing in bare-metal Kubernetes clusters for several reasons:

In layer 2 mode, one node assumes the responsibility of advertising a service to the local network. From the network’s perspective, it simply looks like that machine has multiple IP addresses assigned to its network interface.

The major advantage of the layer 2 mode is its universality: it works on any Ethernet network, with no special hardware required, not even fancy routers.

In this quick start, L2 mode will be used. This means we do not need any special network equipment but three free IPs within the network range.

We will be using the MetalLB Helm chart published as part of the SUSE Edge solution:

helm install \
  metallb oci://registry.suse.com/edge/charts/metallb \
  --namespace metallb-system \
  --create-namespace

while ! kubectl wait --for condition=ready -n metallb-system $(kubectl get\
 pods -n metallb-system -l app.kubernetes.io/component=controller -o name)\
 --timeout=10s; do
 sleep 2
done

At this point, the installation is completed. Now it is time to configure using our example values:

cat <<-EOF | kubectl apply -f -
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: ip-pool
  namespace: metallb-system
spec:
  addresses:
  - 192.168.122.10/32
  - 192.168.122.11/32
  - 192.168.122.12/32
EOF

cat <<-EOF | kubectl apply -f -
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: ip-pool-l2-adv
  namespace: metallb-system
spec:
  ipAddressPools:
  - ip-pool
EOF

Now, it is ready to be used. You can customize many things for L2 mode, such as:

And a lot more for BGP.

# Before deploying MetalLB
kubectl get svc -n kube-system traefik
NAME      TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                      AGE
traefik   LoadBalancer   10.43.44.113   <pending>     80:31093/TCP,443:32095/TCP   28s
# After deploying MetalLB
kubectl get svc -n kube-system traefik
NAME      TYPE           CLUSTER-IP     EXTERNAL-IP      PORT(S)                      AGE
traefik   LoadBalancer   10.43.44.113   192.168.122.10   80:31093/TCP,443:32095/TCP   3m10s

Let us create an example deployment:

cat <<- EOF | kubectl apply -f -
---
apiVersion: v1
kind: Namespace
metadata:
  name: hello-kubernetes
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: hello-kubernetes
  namespace: hello-kubernetes
  labels:
    app.kubernetes.io/name: hello-kubernetes
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-kubernetes
  namespace: hello-kubernetes
  labels:
    app.kubernetes.io/name: hello-kubernetes
spec:
  replicas: 2
  selector:
    matchLabels:
      app.kubernetes.io/name: hello-kubernetes
  template:
    metadata:
      labels:
        app.kubernetes.io/name: hello-kubernetes
    spec:
      serviceAccountName: hello-kubernetes
      containers:
        - name: hello-kubernetes
          image: "paulbouwer/hello-kubernetes:1.10"
          imagePullPolicy: IfNotPresent
          ports:
            - name: http
              containerPort: 8080
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /
              port: http
          readinessProbe:
            httpGet:
              path: /
              port: http
          env:
          - name: HANDLER_PATH_PREFIX
            value: ""
          - name: RENDER_PATH_PREFIX
            value: ""
          - name: KUBERNETES_NAMESPACE
            valueFrom:
              fieldRef:
                fieldPath: metadata.namespace
          - name: KUBERNETES_POD_NAME
            valueFrom:
              fieldRef:
                fieldPath: metadata.name
          - name: KUBERNETES_NODE_NAME
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
          - name: CONTAINER_IMAGE
            value: "paulbouwer/hello-kubernetes:1.10"
EOF

And finally, the service:

cat <<- EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: hello-kubernetes
  namespace: hello-kubernetes
  labels:
    app.kubernetes.io/name: hello-kubernetes
spec:
  type: LoadBalancer
  ports:
    - port: 80
      targetPort: http
      protocol: TCP
      name: http
  selector:
    app.kubernetes.io/name: hello-kubernetes
EOF

Let us see it in action:

kubectl get svc -n hello-kubernetes
NAME               TYPE           CLUSTER-IP     EXTERNAL-IP      PORT(S)        AGE
hello-kubernetes   LoadBalancer   10.43.127.75   192.168.122.11   80:31461/TCP   8s

curl http://192.168.122.11
<!DOCTYPE html>
<html>
<head>
    <title>Hello Kubernetes!</title>
    <link rel="stylesheet" type="text/css" href="/css/main.css">
    <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Ubuntu:300" >
</head>
<body>

  <div class="main">
    <img src="/images/kubernetes.png"/>
    <div class="content">
      <div id="message">
  Hello world!
</div>
<div id="info">
  <table>
    <tr>
      <th>namespace:</th>
      <td>hello-kubernetes</td>
    </tr>
    <tr>
      <th>pod:</th>
      <td>hello-kubernetes-7c8575c848-2c6ps</td>
    </tr>
    <tr>
      <th>node:</th>
      <td>allinone (Linux 5.14.21-150400.24.46-default)</td>
    </tr>
  </table>
</div>
<div id="footer">
  paulbouwer/hello-kubernetes:1.10 (linux/amd64)
</div>
    </div>
  </div>

</body>
</html>

IP=$(kubectl get svc -n kube-system traefik -o jsonpath="{.status.loadBalancer.ingress[0].ip}")
cat <<- EOF | kubectl apply -f -
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: hello-kubernetes-ingress
  namespace: hello-kubernetes
spec:
  rules:
  - host: hellok3s.${IP}.sslip.io
    http:
      paths:
        - path: "/"
          pathType: Prefix
          backend:
            service:
              name: hello-kubernetes
              port:
                name: http
EOF

curl http://hellok3s.${IP}.sslip.io
<!DOCTYPE html>
<html>
<head>
    <title>Hello Kubernetes!</title>
    <link rel="stylesheet" type="text/css" href="/css/main.css">
    <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Ubuntu:300" >
</head>
<body>

  <div class="main">
    <img src="/images/kubernetes.png"/>
    <div class="content">
      <div id="message">
  Hello world!
</div>
<div id="info">
  <table>
    <tr>
      <th>namespace:</th>
      <td>hello-kubernetes</td>
    </tr>
    <tr>
      <th>pod:</th>
      <td>hello-kubernetes-7c8575c848-fvqm2</td>
    </tr>
    <tr>
      <th>node:</th>
      <td>allinone (Linux 5.14.21-150400.24.46-default)</td>
    </tr>
  </table>
</div>
<div id="footer">
  paulbouwer/hello-kubernetes:1.10 (linux/amd64)
</div>
    </div>
  </div>

</body>
</html>

% arping hellok3s.${IP}.sslip.io

ARPING 192.168.64.210
60 bytes from 92:12:36:00:d3:58 (192.168.64.210): index=0 time=1.169 msec
60 bytes from 92:12:36:00:d3:58 (192.168.64.210): index=1 time=2.992 msec
60 bytes from 92:12:36:00:d3:58 (192.168.64.210): index=2 time=2.884 msec

MetalLB is a compelling choice for load balancing in bare-metal Kubernetes clusters for several reasons:

In layer 2 mode, one node assumes the responsibility of advertising a service to the local network. From the network’s perspective, it simply looks like that machine has multiple IP addresses assigned to its network interface.

The major advantage of the layer 2 mode is its universality: it works on any Ethernet network, with no special hardware required, not even fancy routers.

In this quick start, L3 mode is used. This means that we need to have neighboring router(s) with BGP capabilities within the network range.

Out of the box BGP advertises a Service IP address to all the peers that are configured. These peers, which are usually routers, will receive a route for each Service IP address with a 32 bit network mask. In this examlple we will use an FRR based router and is on the same network as our cluster. We will then use MetalLB’s BGP capability to advertise a service to that FRR based router.

We will be using the MetalLB Helm chart published as part of the SUSE Edge solution:

helm install \
  metallb oci://registry.suse.com/edge/charts/metallb \
  --namespace metallb-system \
  --create-namespace

while ! kubectl wait --for condition=ready -n metallb-system $(kubectl get\
 pods -n metallb-system -l app.kubernetes.io/component=controller -o name)\
 --timeout=10s; do
 sleep 2
done

Note

FRR-K8s is currently a Technology Preview feature. Community documentation of FRR-K8s is here.

In this quick start, FRR-K8s mode is used.

Out of the box MetalLB BGP advertises a Service IP address to all the BGP peers that are configured. These peers, which are usually routers, will receive a route for each Service IP address with a 32 bit network mask. When using FRR-K8s with the FRRConfiguration CR, it is also possible to receive routes from external routers. These external routes will show up in each node’s routing table. There are multiple benefits from this, but the main one is that it eliminates the need to manually update Linux routing tables on nodes when the external network changes, specifically in cases where it is desirable to avoid sending traffic through the default gateway.

We will be using the MetalLB Helm chart published as part of the SUSE Edge solution. Note that the FRR-K8s is a sub-chart of MetalLB, and to enable it, set frrk8s.enabled to true. FRR-K8s also requires some elevated privileges on the namespace.

kubectl create namespace metallb-system
kubectl label namespace metallb-system pod-security.kubernetes.io/enforce=privileged
kubectl label namespace metallb-system pod-security.kubernetes.io/audit=privileged
kubectl label namespace metallb-system pod-security.kubernetes.io/warn=privileged
helm install metallb \
  oci://registry.suse.com/edge/charts/metallb \
  --namespace metallb-system \
  --set frrk8s.enabled=true --set frrk8s.external=false


while ! kubectl wait --for condition=ready -n metallb-system $(kubectl get\
 pods -n metallb-system -l app.kubernetes.io/component=controller -o name)\
 --timeout=10s; do
 sleep 2
done

Verify that you have 4 pods in the metallb-system namespace and that they are all running without a problem:

k get pods -n metallb-system
NAME                                                      READY   STATUS    RESTARTS     AGE
metallb-controller-7fbfd8977d-m2q9t                       1/1     Running   0            46s
metallb-metallb-frr-k8s-9w7wl                             6/6     Running   0            46s
metallb-metallb-frr-k8s-webhook-server-5d9d67ffd6-8jqnc   1/1     Running   1 (6s ago)   46s
metallb-speaker-qx8bl                                     1/1     Running   0            46s

At this point, the installation of MetalLB and FRR-K8s is complete.

With FRR-K8s these are all the settings needed. Any route that your external BGP router is receiving will be shared with your cluster and all the nodes will have their routing tables updated.

The setup can be tested with what is described in Chapter 22, MetalLB on K3s (using Layer 3 Mode). In order to combine these setups there are some requirements:

With both these setups in place the following can be observed:

Note

In standard configurations of FRR Routing routes are shared with the next-hop set to the IP Address of the FRR Router. To achieve a next-hop without the FRR Router IP Address, one can add a line "neighbor BGPPG next-hop-unchanged" and a line "neighbor BGPPG as-override" to the /etc/frr/frr.conf file on the FRR Router. With this in place, the nodes on the FRR-K8s cluster will get a direct route to the service.

Note

If you do not want to use a fresh cluster but want to use an existing one, skip this step and proceed to the next one.

First, a free IP in the network must be reserved that will be used later for ExternalIP of the managed Service.

SSH to the first host and install the wanted distribution in cluster mode.

For RKE2:

# As a root user, create the /etc/rancher/rke2/config.yaml config file with the following content:

mkdir -p /etc/rancher/rke2/
cat <<EOF > /etc/rancher/rke2/config.yaml
# An example of the config.yaml file for a server node:
write-kubeconfig-mode: "0644"
ingress-controller: traefik
tls-san:
  - "${VIP_SERVICE_IP}"
  - "https://${VIP_SERVICE_IP}.sslip.io"
EOF

# Install RKE2
curl -sfL https://get.rke2.io | INSTALL_RKE2_EXEC="server" sh -

# Enable and start the RKE2 service with the configuration specified in the config.yaml file
systemctl enable rke2-server.service
systemctl start rke2-server.service

# Fetch the cluster token to be used later:
RKE2_TOKEN=$(tr -d '\n' < /var/lib/rancher/rke2/server/node-token)

For K3s:

# Export the free IP mentioned above
export VIP_SERVICE_IP=<ip>
export INSTALL_K3S_SKIP_START=false

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="server --cluster-init \
 --disable=servicelb --write-kubeconfig-mode=644 --tls-san=${VIP_SERVICE_IP} \
 --tls-san=https://${VIP_SERVICE_IP}.sslip.io" K3S_TOKEN=foobar sh -

Note

Make sure that --disable=servicelb flag is provided in the k3s server command.

Important

From now on, the commands should be run on the local machine.

To access the API server from outside, the IP of the RKE2/K3s VM will be used.

# Replace <node-ip> with the actual IP of the machine
export NODE_IP=<node-ip>
export KUBE_DISTRIBUTION=<k3s/rke2>

scp ${NODE_IP}:/etc/rancher/${KUBE_DISTRIBUTION}/${KUBE_DISTRIBUTION}.yaml ~/.kube/config && sed \
 -i '' "s/127.0.0.1/${NODE_IP}/g" ~/.kube/config && chmod 600 ~/.kube/config

Note

This step is valid only if you intend to use an existing RKE2/K3s cluster.

To use an existing cluster the tls-san flags should be modified. Additionally, the servicelb LB should be disabled for K3s.

To change the flags for RKE2 or K3s servers, you need to modify either the /etc/systemd/system/rke2.service or /etc/systemd/system/k3s.service file on all the VMs in the cluster, depending on the distribution.

The flags should be inserted in the ExecStart. For example:

For RKE2:

# Replace the <vip-service-ip> with the actual ip
ExecStart=/usr/local/bin/rke2 \
    server \
        '--write-kubeconfig-mode=644' \
        '--tls-san=<vip-service-ip>' \
        '--tls-san=https://<vip-service-ip>.sslip.io' \

For K3s:

# Replace the <vip-service-ip> with the actual ip
ExecStart=/usr/local/bin/k3s \
    server \
        '--cluster-init' \
        '--write-kubeconfig-mode=644' \
        '--disable=servicelb' \
        '--tls-san=<vip-service-ip>' \
        '--tls-san=https://<vip-service-ip>.sslip.io' \

Then the following commands should be executed to load the new configurations:

systemctl daemon-reload
systemctl restart ${KUBE_DISTRIBUTION}

To deploy MetalLB, the MetalLB on K3s (Chapter 21, MetalLB on K3s (using Layer 2 Mode)) guide can be used.

NOTE: Ensure that the VIP_SERVICE_IP IP address does not overlap with the existing IPAddressPools in the cluster.

Create a separate IpAddressPool and L2Advertisement that will be used only for the managed Service.

NOTE: The IPAddressPool below will be assigned to a Service of type LoadBalancer in the default Namespace. If multiple LoadBalancer services exist there, additional ServiceSelectors may be configured to match this VIP service explicitly.

# Export the VIP_SERVICE_IP on the local machine
# Replace with the actual IP
export VIP_SERVICE_IP=<ip>

cat <<-EOF | kubectl apply -f -
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: kubernetes-vip-ip-pool
  namespace: metallb-system
spec:
  addresses:
  - ${VIP_SERVICE_IP}/32
  serviceAllocation:
    priority: 100
    namespaces:
      - default
EOF

cat <<-EOF | kubectl apply -f -
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: kubernetes-vip-l2-adv
  namespace: metallb-system
spec:
  ipAddressPools:
  - kubernetes-vip-ip-pool
EOF

helm install \
endpoint-copier-operator oci://registry.suse.com/edge/charts/endpoint-copier-operator \
--namespace endpoint-copier-operator \
--create-namespace

The command above will deploy the endpoint-copier-operator operator Deployment with two replicas. One will be the leader and the other will take over the leader role if needed.

Now, the kubernetes-vip Service should be deployed, which will be reconciled by the operator and an EndpointSlices with the configured ports and IP will be created.

For RKE2:

cat <<-EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: kubernetes-vip
  namespace: default
spec:
  ports:
  - name: rke2-api
    port: 9345
    protocol: TCP
    targetPort: 9345
  - name: k8s-api
    port: 6443
    protocol: TCP
    targetPort: 6443
  type: LoadBalancer
EOF

For K3s:

cat <<-EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: kubernetes-vip
  namespace: default
spec:
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - name: https
    port: 6443
    protocol: TCP
    targetPort: 6443
  sessionAffinity: None
  type: LoadBalancer
EOF

Verify that the kubernetes-vip Service has the correct IP address:

kubectl get service kubernetes-vip -n default \
 -o=jsonpath='{.status.loadBalancer.ingress[0].ip}'

Ensure that the kubernetes-vip-* and kubernetes EndpointSlices resources in the default namespace point to the same IPs.

kubectl get endpointslices | grep kubernetes

If everything is correct, the last thing left is to use the VIP_SERVICE_IP in our Kubeconfig.

sed -i '' "s/${NODE_IP}/${VIP_SERVICE_IP}/g" ~/.kube/config

From now on, all the kubectl will go through the kubernetes-vip service.

To monitor the entire process, two more terminal tabs can be opened.

First terminal:

watch kubectl get nodes

Second terminal:

watch kubectl get endpointslices

Now execute the commands below on the second and third nodes.

For RKE2:

# As a root user, create the /etc/rancher/rke2/config.yaml config file with the following content:

mkdir -p /etc/rancher/rke2/
cat <<EOF > /etc/rancher/rke2/config.yaml
# An example of the config.yaml file for an additional server node:
server: https://${VIP_SERVICE_IP}:9345
write-kubeconfig-mode: "0644"
ingress-controller: traefik
tls-san:
  - "${VIP_SERVICE_IP}"
  - "https://${VIP_SERVICE_IP}.sslip.io"
# The one from above
token: ${RKE2_TOKEN}
EOF

# Install RKE2
curl -sfL https://get.rke2.io | INSTALL_RKE2_TYPE="server" sh -

# Enable the RKE2 service with the configuration specified in the config.yaml file

systemctl enable --now rke2-server.service

# Fetch the cluster token to be used later:
RKE2_TOKEN=$(tr -d '\n' < /var/lib/rancher/rke2/server/node-token)

For K3s:

# Export the VIP_SERVICE_IP in the VM
# Replace with the actual IP
export VIP_SERVICE_IP=<ip>
export INSTALL_K3S_SKIP_START=false

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="server \
 --server https://${VIP_SERVICE_IP}:6443 --disable=servicelb \
 --write-kubeconfig-mode=644" K3S_TOKEN=foobar sh -

This guide will show how to deploy several of the SUSE Edge components completely air-gapped on SUSE Linux Micro 6.2 utilizing Edge Image Builder(EIB) (Chapter 8, Edge Image Builder). With this, you’ll be able to boot into a customized, ready to boot (CRB) image created by EIB and have the specified components deployed on either a RKE2 or K3s cluster without an Internet connection or any manual steps. This configuration is highly desirable for customers that want to pre-bake all artifacts required for deployment into their OS image, so they are immediately available on boot.

We will cover an air-gapped installation of:

Warning

EIB will parse and pre-download all images referenced in the provided Helm charts and Kubernetes manifests. However, some of those may be attempting to pull container images and create Kubernetes resources based on those at runtime. In these cases we have to manually specify the necessary images in the definition file if we want to set up a completely air-gapped environment.

If you’re following this guide, it’s assumed that you are already familiar with EIB (Chapter 8, Edge Image Builder). If not, please follow the quick start guide (Chapter 2, Standalone clusters with Edge Image Builder) to better understand the concepts shown in practice below.

Note

To demo the air-gapped deployment, this guide will be done using a simulated air-gapped libvirt network and the following configuration will be tailored to that. For your own deployments, you may have to modify the host1.local.yaml configuration that will be introduced in the next step.

If you would like to use the same libvirt network configuration, follow along. If not, skip to Section 25.4, “Base Directory Configuration”.

Let’s create an isolated network configuration with an IP address range 192.168.100.2/24 for DHCP:

cat << EOF > isolatednetwork.xml
<network>
  <name>isolatednetwork</name>
  <bridge name='virbr1' stp='on' delay='0'/>
  <ip address='192.168.100.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.100.2' end='192.168.100.254'/>
    </dhcp>
  </ip>
</network>
EOF

Now, the only thing left is to create the network and start it:

virsh net-define isolatednetwork.xml
virsh net-start isolatednetwork

The base directory configuration is the same across all different components, so we will set it up here.

We will first create the necessary subdirectories:

export CONFIG_DIR=$HOME/config
mkdir -p $CONFIG_DIR/base-images
mkdir -p $CONFIG_DIR/network
mkdir -p $CONFIG_DIR/kubernetes/helm/values

Make sure to add whichever base image you plan to use into the base-images directory. This guide will focus on the Self Install ISO found here.

Let’s copy the downloaded image:

cp SL-Micro.x86_64-6.2-Base-SelfInstall-GM.install.iso $CONFIG_DIR/base-images/slemicro.iso

Note

EIB is never going to modify the base image input.

Let’s create a file containing the desired network configuration:

cat << EOF > $CONFIG_DIR/network/host1.local.yaml
routes:
  config:
  - destination: 0.0.0.0/0
    metric: 100
    next-hop-address: 192.168.100.1
    next-hop-interface: eth0
    table-id: 254
  - destination: 192.168.100.0/24
    metric: 100
    next-hop-address: 192.168.122.1
    next-hop-interface: eth0
    table-id: 254
dns-resolver:
  config:
    server:
    - 192.168.100.1
    - 8.8.8.8
interfaces:
- name: eth0
  type: ethernet
  state: up
  mac-address: 34:8A:B1:4B:16:E7
  ipv4:
    address:
    - ip: 192.168.100.50
      prefix-length: 24
    dhcp: false
    enabled: true
  ipv6:
    enabled: false
EOF

This configuration ensures the following are present on the provisioned systems (using the specified MAC address):

The resulting file structure should now look like:

├── kubernetes/
│   └── helm/
│       └── values/
├── base-images/
│   └── slemicro.iso
└── network/
    └── host1.local.yaml

Edge Image Builder is using definition files to modify the SUSE Linux Micro images. These files contain the majority of configurable options. Many of these options will be repeated across the different component sections, so we will list and explain those here.

Tip

Full list of customization options in the definition file can be found in the upstream documentation

We will take a look at the following fields which will be present in all definition files:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$jHugJNNd3HElGsUZ$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
kubernetes:
  version: v1.35.3+rke2r3
embeddedArtifactRegistry:
  images:
    - ...

The image section is required, and it specifies the input image, its architecture and type, as well as what the output image will be called.

The operatingSystem section is optional, and contains configuration to enable login on the provisioned systems with the root/eib username/password.

The kubernetes section is optional, and it defines the Kubernetes type and version. We are going to use the RKE2 distribution. Use kubernetes.version: v1.35.3+k3s1 if K3s is desired instead. Unless explicitly configured via the kubernetes.nodes field, all clusters we bootstrap in this guide will be single-node ones.

The embeddedArtifactRegistry section will include all images which are only referenced and pulled at runtime for the specific component.

Note

The Rancher (Chapter 4, Rancher) deployment that will be demonstrated will be highly slimmed down for demonstration purposes. For your actual deployments, additional artifacts may be necessary depending on your configuration.

The Rancher 2.14.1 release assets contain a rancher-images.txt file which lists all the images required for an air-gapped installation.

There are over 600 container images in total which means that the resulting CRB image would be roughly 30GB. For our Rancher installation, we will strip down that list to the smallest working configuration. From there, you can add back any images you may need for your deployments.

We will create the definition file and include the stripped down image list:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$jHugJNNd3HElGsUZ$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
kubernetes:
  version: v1.35.3+rke2r3
  manifests:
    urls:
    - https://github.com/cert-manager/cert-manager/releases/download/v1.15.3/cert-manager.crds.yaml
  helm:
    charts:
      - name: rancher
        version: 2.14.1
        repositoryName: rancher-prime
        valuesFile: rancher-values.yaml
        targetNamespace: cattle-system
        createNamespace: true
        installationNamespace: kube-system
      - name: cert-manager
        installationNamespace: kube-system
        createNamespace: true
        repositoryName: jetstack
        targetNamespace: cert-manager
        version: 1.20.1
    repositories:
      - name: jetstack
        url: https://charts.jetstack.io
      - name: rancher-prime
        url: https://charts.rancher.com/server-charts/prime
embeddedArtifactRegistry:
  images:
    - name: registry.rancher.com/rancher/backup-restore-operator:v10.0.2
    - name: registry.rancher.com/rancher/compliance-operator:v1.4.1
    - name: registry.rancher.com/rancher/fleet-agent:v0.15.1
    - name: registry.rancher.com/rancher/fleet:v0.15.1
    - name: registry.rancher.com/rancher/hardened-addon-resizer:1.8.23-build20260206
    - name: registry.rancher.com/rancher/hardened-calico:v3.31.4-build20260327
    - name: registry.rancher.com/rancher/hardened-cluster-autoscaler:v1.10.3-build20260206
    - name: registry.rancher.com/rancher/hardened-cni-plugins:v1.9.0-build20260309
    - name: registry.rancher.com/rancher/hardened-coredns:v1.14.2-build20260310
    - name: registry.rancher.com/rancher/hardened-dns-node-cache:1.26.7-build20260310
    - name: registry.rancher.com/rancher/hardened-etcd:v3.6.7-k3s1-build20260227
    - name: registry.rancher.com/rancher/hardened-flannel:v0.28.2-build20260327
    - name: registry.rancher.com/rancher/hardened-k8s-metrics-server:v0.8.1-build20260206
    - name: registry.rancher.com/rancher/hardened-kubernetes:v1.35.3-rke2r3-build20260407
    - name: registry.rancher.com/rancher/hardened-multus-cni:v4.2.4-build20260310
    - name: registry.rancher.com/rancher/hardened-multus-dynamic-networks-controller:v0.3.7-build20260310
    - name: registry.rancher.com/rancher/hardened-multus-thick:v4.2.4-build20260310
    - name: registry.rancher.com/rancher/hardened-traefik:v3.6.10-build20260309
    - name: registry.rancher.com/rancher/hardened-whereabouts:v0.9.3-build20260310
    - name: registry.rancher.com/rancher/k3s-upgrade:v1.35.3-k3s1
    - name: registry.rancher.com/rancher/klipper-helm:v0.9.14-build20260309
    - name: registry.rancher.com/rancher/klipper-lb:v0.4.15
    - name: registry.rancher.com/rancher/kubectl:v1.35.2
    - name: registry.rancher.com/rancher/kuberlr-kubectl:v7.0.3
    - name: registry.rancher.com/rancher/local-path-provisioner:v0.0.35
    - name: registry.rancher.com/rancher/machine:v0.15.0-rancher142
    - name: registry.rancher.com/rancher/mirrored-cluster-api-controller:v1.12.2
    - name: registry.rancher.com/rancher/nginx-ingress-controller:v1.14.5-hardened1
    - name: registry.rancher.com/rancher/prom-prometheus:v3.8.1
    - name: registry.rancher.com/rancher/prometheus-federator:v6.0.0
    - name: registry.rancher.com/rancher/pushprox:v0.1.10
    - name: registry.rancher.com/rancher/rancher-agent:v2.14.1
    - name: registry.rancher.com/rancher/rancher-csp-adapter:v9.0.0
    - name: registry.rancher.com/rancher/rancher-webhook:v0.10.4
    - name: registry.rancher.com/rancher/rancher:v2.14.1
    - name: registry.rancher.com/rancher/remotedialer-proxy:v0.7.2
    - name: registry.rancher.com/rancher/rke2-cloud-provider:v1.35.1-0.20260211145923-50fa2d70c239-build20260211
    - name: registry.rancher.com/rancher/rke2-runtime:v1.35.3-rke2r3
    - name: registry.rancher.com/rancher/rke2-upgrade:v1.35.3-rke2r3
    - name: registry.rancher.com/rancher/scc-operator:v0.4.0
    - name: registry.rancher.com/rancher/security-scan:v0.9.1
    - name: registry.rancher.com/rancher/shell:v0.1.24
    - name: registry.rancher.com/rancher/supportability-review-app-frontend:v0.19.0
    - name: registry.rancher.com/rancher/supportability-review-internal:latest
    - name: registry.rancher.com/rancher/supportability-review-operator:v0.19.0
    - name: registry.rancher.com/rancher/supportability-review:latest
    - name: registry.rancher.com/rancher/system-agent-installer-k3s:v1.35.3-k3s1
    - name: registry.rancher.com/rancher/system-agent-installer-rke2:v1.35.3-rke2r3
    - name: registry.rancher.com/rancher/system-agent:v0.3.16-suc
    - name: registry.rancher.com/rancher/system-upgrade-controller:v0.19.1
    - name: registry.rancher.com/rancher/turtles:v0.26.1
    - name: registry.rancher.com/rancher/ui-plugin-catalog:4.15.0
    - name: registry.rancher.com/rancher/kubectl:v1.20.2
    - name: registry.rancher.com/rancher/mirrored-ingress-nginx-kube-webhook-certgen:v1.6.7

As compared to the full list of 600+ container images, this slimmed down version only contains ~60 which makes the new CRB image only about 7GB.

We also need to create a Helm values file for Rancher:

cat << EOF > $CONFIG_DIR/kubernetes/helm/values/rancher-values.yaml
hostname: 192.168.100.50.sslip.io
replicas: 1
bootstrapPassword: "adminadminadmin"
systemDefaultRegistry: registry.rancher.com
useBundledSystemChart: true
EOF

Warning

Setting the systemDefaultRegistry to registry.rancher.com allows Rancher to automatically look for images in the embedded artifact registry started within the CRB image at boot. Omitting this field may result in failure to find the container images on the node.

Let’s build the image:

podman run --rm -it --privileged -v $CONFIG_DIR:/eib \
registry.suse.com/edge/3.6/edge-image-builder:1.3.3.1 \
build --definition-file eib-iso-definition.yaml

The output should be similar to the following:

Downloading file: dl-manifest-1.yaml 100% |██████████████████████████████████████████████████████████████████████████████| (583/583 kB, 12 MB/s)
Pulling selected Helm charts... 100% |███████████████████████████████████████████████████████████████████████████████████████████| (2/2, 3 it/s)
Generating image customization components...
Identifier ................... [SUCCESS]
Custom Files ................. [SKIPPED]
Time ......................... [SKIPPED]
Network ...................... [SUCCESS]
Groups ....................... [SKIPPED]
Users ........................ [SUCCESS]
Proxy ........................ [SKIPPED]
Rpm .......................... [SKIPPED]
Os Files ..................... [SKIPPED]
Systemd ...................... [SKIPPED]
Fips ......................... [SKIPPED]
Elemental .................... [SKIPPED]
Suma ......................... [SKIPPED]
Populating Embedded Artifact Registry... 100% |███████████████████████████████████████████████████████████████████████████| (56/56, 8 it/min)
Embedded Artifact Registry ... [SUCCESS]
Keymap ....................... [SUCCESS]
Configuring Kubernetes component...
The Kubernetes CNI is not explicitly set, defaulting to 'cilium'.
Downloading file: rke2_installer.sh
Downloading file: rke2-images-core.linux-amd64.tar.zst 100% |███████████████████████████████████████████████████████████| (644/644 MB, 29 MB/s)
Downloading file: rke2-images-cilium.linux-amd64.tar.zst 100% |█████████████████████████████████████████████████████████| (400/400 MB, 29 MB/s)
Downloading file: rke2.linux-amd64.tar.gz 100% |███████████████████████████████████████████████████████████████████████████| (36/36 MB, 30 MB/s)
Downloading file: sha256sum-amd64.txt 100% |█████████████████████████████████████████████████████████████████████████████| (4.3/4.3 kB, 29 MB/s)
Kubernetes ................... [SUCCESS]
Certificates ................. [SKIPPED]
Cleanup ...................... [SKIPPED]
Building ISO image...
Kernel Params ................ [SKIPPED]
Build complete, the image can be found at: eib-image.iso

Once a node using the built image is provisioned, we can verify the Rancher installation:

/var/lib/rancher/rke2/bin/kubectl get all -n cattle-system --kubeconfig /etc/rancher/rke2/rke2.yaml

The output should be similar to the following, showing that everything has been successfully deployed:

NAME                                            READY   STATUS      RESTARTS   AGE
pod/helm-operation-6l6ld                        0/2     Completed   0          107s
pod/helm-operation-8tk2v                        0/2     Completed   0          2m2s
pod/helm-operation-blnrr                        0/2     Completed   0          2m49s
pod/helm-operation-hdcmt                        0/2     Completed   0          3m19s
pod/helm-operation-m74c7                        0/2     Completed   0          97s
pod/helm-operation-qzzr4                        0/2     Completed   0          2m30s
pod/helm-operation-s9jh5                        0/2     Completed   0          3m
pod/helm-operation-tq7ts                        0/2     Completed   0          2m41s
pod/rancher-99d599967-ftjkk                     1/1     Running     0          4m15s
pod/rancher-webhook-79798674c5-6w28t            1/1     Running     0          2m27s
pod/system-upgrade-controller-56696956b-trq5c   1/1     Running     0          104s

NAME                      TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
service/rancher           ClusterIP   10.43.255.80   <none>        80/TCP,443/TCP   4m15s
service/rancher-webhook   ClusterIP   10.43.7.238    <none>        443/TCP          2m27s

NAME                                        READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/rancher                     1/1     1            1           4m15s
deployment.apps/rancher-webhook             1/1     1            1           2m27s
deployment.apps/system-upgrade-controller   1/1     1            1           104s

NAME                                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/rancher-99d599967                     1         1         1       4m15s
replicaset.apps/rancher-webhook-79798674c5            1         1         1       2m27s
replicaset.apps/system-upgrade-controller-56696956b   1         1         1       104s

And when we go to https://192.168.100.50.sslip.io and log in with the adminadminadmin password that we set earlier, we are greeted with the Rancher dashboard:

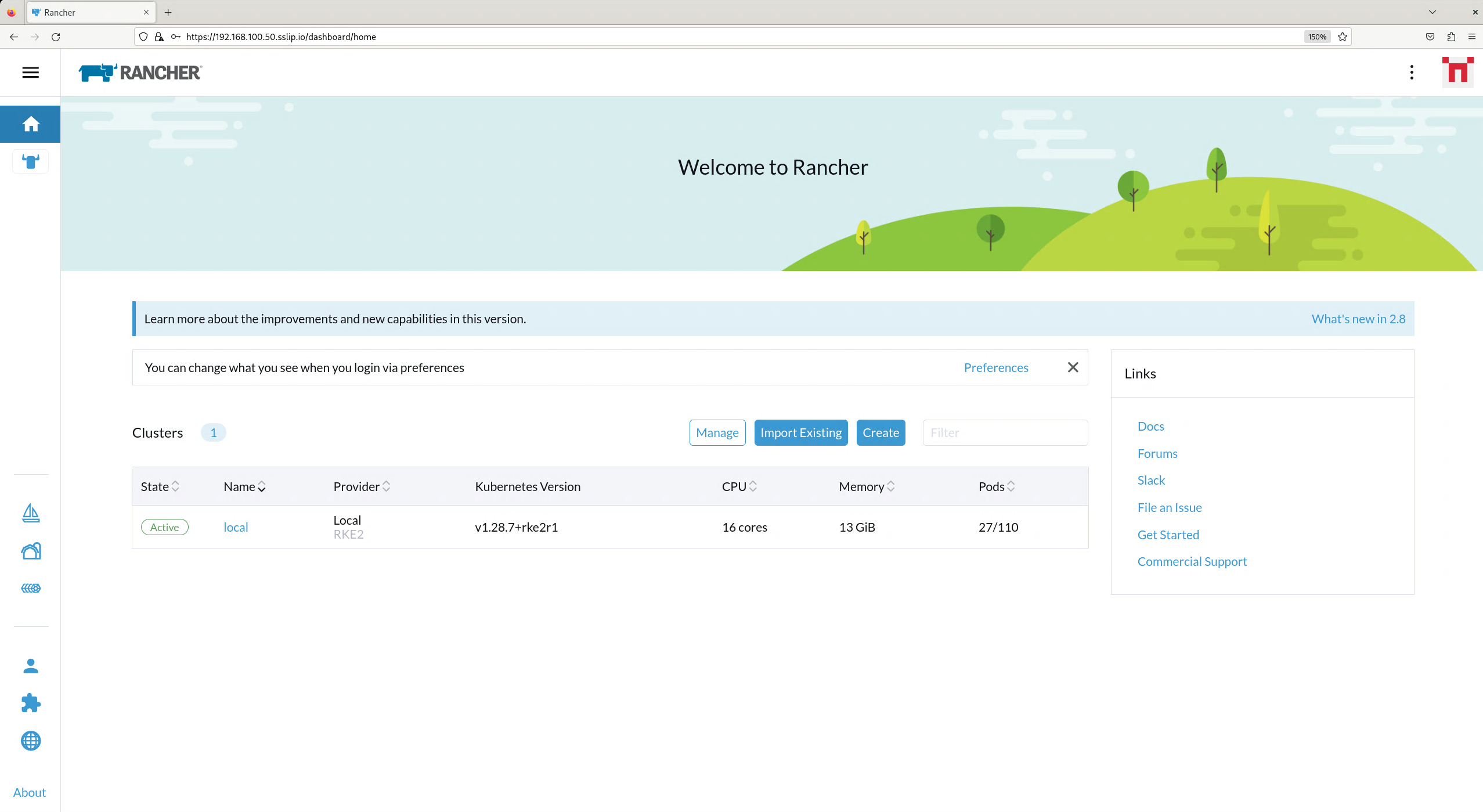

Unlike the Rancher installation, the SUSE Security installation does not require any special handling in EIB. EIB will automatically air-gap every image required by its underlying component NeuVector.

We will create the definition file:

apiVersion: 1.3
image:
  imageType: iso
  arch: x86_64
  baseImage: slemicro.iso
  outputImageName: eib-image.iso
operatingSystem:
  users:
    - username: root
      encryptedPassword: $6$jHugJNNd3HElGsUZ$eodjVe4te5ps44SVcWshdfWizrP.xAyd71CVEXazBJ/.v799/WRCBXxfYmunlBO2yp1hm/zb4r8EmnrrNCF.P/
kubernetes:
  version: v1.35.3+rke2r3
  helm:
    charts:
      - name: neuvector-crd
        version: 109.0.1+up2.8.13
        repositoryName: rancher-charts
        targetNamespace: neuvector
        createNamespace: true
        installationNamespace: kube-system
        valuesFile: neuvector-values.yaml
      - name: neuvector
        version: 109.0.1+up2.8.13
        repositoryName: rancher-charts
        targetNamespace: neuvector
        createNamespace: true
        installationNamespace: kube-system
        valuesFile: neuvector-values.yaml
    repositories:
      - name: rancher-charts
        url: https://charts.rancher.io/

We will also create a Helm values file for NeuVector:

cat << EOF > $CONFIG_DIR/kubernetes/helm/values/neuvector-values.yaml
controller:
  replicas: 1
manager:
  enabled: false
cve:
  scanner:
    enabled: false
    replicas: 1
k3s:
  enabled: true
crdwebhook:
  enabled: false
EOF

Let’s build the image:
