Custom OpenTelemetry Collector

This guide explains how to configure SUSE® Admission Policy Manager to send telemetry data to an OpenTelemetry collector already deployed on the cluster.

You should deploy only one instance of the OpenTelemetry Collector in the cluster.

Install dependencies

First, begin by installing the dependencies of OpenTelemetry Collector.

You need encrypted communication between the SUSE® Admission Policy Manager components and the collector. You can use cert-manager to manage all the certificates required for secure communication.

OpenTelemetry Collector traces get sent to a Jaeger instance.

The SUSE® Admission Policy Manager stack sends metrics to the OpenTelemetry Collector. This one exposes the metrics as a Prometheus endpoint. The metrics are then collected by a Prometheus instance and stored in its database. The same Prometheus instance also exposes a UI to view and use the metrics.

Resources you create get defined in the kubewarden Namespace, or expect its existence. Due to that, you should begin by creating the Namespace:

kubectl create namespace kubewarden

Install cert-manager and OpenTelemetry

You install cert-manager and OpenTelemetry operator in this way:

helm repo add jetstack https://charts.jetstack.io
helm install --wait \
  --namespace cert-manager \
  --create-namespace \
  --set crds.enabled=true \
  --version 1.15.1 \
  cert-manager jetstack/cert-manager

helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
helm install --wait \
  --namespace open-telemetry \
  --create-namespace \
  --version 0.65.0 \
  --set "manager.collectorImage.repository=otel/opentelemetry-collector-contrib" \
  my-opentelemetry-operator open-telemetry/opentelemetry-operator

You setup communication between SUSE® Admission Policy Manager components and the OpenTelemetry Collector using mTLS.

To do that, you need to create the whole Public Key Infrastructure (PKI):

# pki.yaml file
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: my-client-certificate
  namespace: kubewarden
spec:
  dnsNames:
  - kubewarden.kubewarden.svc
  - kubewarden.kubewarden.svc.cluster.local
  issuerRef:
  kind: Issuer
  name: my-selfsigned-issuer
  secretName: my-client-cert
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: my-certificate
  namespace: kubewarden
spec:
  dnsNames:
  - my-collector-collector.kubewarden.svc
  - my-collector-collector.kubewarden.svc.cluster.local
  issuerRef:
  kind: Issuer
  name: my-selfsigned-issuer
  secretName: my-server-cert
---
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: my-selfsigned-issuer
  namespace: kubewarden
spec:
  selfSigned: {}

Apply the manifest:

kubectl apply -f pki.yaml

Install Jaeger and Prometheus

After that, you install Jaeger to store and visualize trace events.

helm repo add jaegertracing https://jaegertracing.github.io/helm-charts
helm upgrade -i --wait \
  --namespace jaeger \
  --create-namespace \
  --version 2.49.0 \
  jaeger-operator jaegertracing/jaeger-operator \
  --set rbac.clusterRole=true

kubectl apply -f - <<EOF
apiVersion: jaegertracing.io/v1
kind: Jaeger
metadata:
  name: my-open-telemetry
  namespace: jaeger
spec:
  ingress:
  enabled: true
  annotations:
    kubernetes.io/ingress.class: nginx
EOF

Now you install Prometheus to store and visualize metrics.

cat <<EOF > kube-prometheus-stack-values.yaml
prometheus:
  additionalServiceMonitors:
  - name: kubewarden
    selector:
    matchLabels:
      app.kubernetes.io/instance: kubewarden.my-collector
    namespaceSelector:
    matchNames:
      - kubewarden
    endpoints:
    - port: prometheus
    interval: 10s
EOF

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm install --wait --create-namespace \
  --namespace prometheus \
  --version 51.5.3 \
  --values kube-prometheus-stack-values.yaml \
  prometheus prometheus-community/kube-prometheus-stack

The Prometheus service monitor obtains the SUSE® Admission Policy Manager metrics by scraping the OpenTelemetry collector running in the kubewarden Namespace.

Install OpenTelemetry Collector

Now you can deploy a custom OpenTelemetry Collector in the kubewarden Namespace.

# otel-collector.yaml file
apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: my-collector
  namespace: kubewarden
spec:
  mode: deployment # This configuration is omittable.
  volumes:
  - name: server-certificate
    secret:
    secretName: my-server-cert
  - name: client-certificate
    secret:
    secretName: my-client-cert
  volumeMounts:
  - name: server-certificate
    mountPath: /tmp/etc/ssl/certs/my-server-cert
    readOnly: true
  - name: client-certificate
    mountPath: /tmp/etc/ssl/certs/my-client-cert
    readOnly: true
  config:
  receivers:
    otlp:
    protocols:
      grpc:
      tls:
        cert_file: /tmp/etc/ssl/certs/my-server-cert/tls.crt
        key_file: /tmp/etc/ssl/certs/my-server-cert/tls.key
        client_ca_file: /tmp/etc/ssl/certs/my-client-cert/ca.crt
  processors: {}
  exporters:
    debug:
    verbosity: normal
    prometheus:
    endpoint: ":8080"
    otlp/jaeger:
    endpoint: "my-open-telemetry-collector.jaeger.svc.cluster.local:4317"
    tls:
      insecure: true
  service:
    pipelines:
    metrics:
      receivers: [otlp]
      processors: []
      exporters: [debug, prometheus]
    traces:
      receivers: [otlp]
      processors: []
      exporters: [debug, otlp/jaeger]

Apply the manifest:

kubectl apply -f otel-collector.yaml

That configuration uses a trivial processing pipeline to receive trace events and to forward them to Jaeger. It also receives metrics and exposes them for collection by Prometheus.

You secure communication between the SUSE® Admission Policy Manager stack and the OpenTelemetry Collector using mTLS. However the communication between the OpenTelemetry Collector and Jaeger isn’t secured, to reduce the complexity of the example.

Install SUSE® Admission Policy Manager stack

When the OpenTelemetry Collector is running, you can deploy SUSE® Admission Policy Manager in the usual way.

You need to configure the SUSE® Admission Policy Manager components so they send events and metrics to the OpenTelemetry Collector.

# values.yaml
telemetry:
  mode: custom
  metrics: True
  tracing: True
  custom:
  endpoint: "https://my-collector-collector.kubewarden.svc:4317"
  insecure: false
  otelCollectorCertificateSecret: "my-server-cert"
  otelCollectorClientCertificateSecret: "my-client-cert"

The Secret referenced by the otelCollectorCertificateSecret key must have an entry named ca.crt. That holds the certificate of the CA that issued the certificate used by the OpenTelemetry Collector.

The Secret referenced by the otelCollectorClientCertificateSecret key must have the following entries: tls.crt and tls.key keys. These are the client certificate and its key used by the SUSE® Admission Policy Manager stack to authenticate against the OpenTelemetry Collector.

Leave these values empty if you don’t use encryption or mTLS.

Install the SUSE® Admission Policy Manager stack:

helm install --wait \
  --namespace kubewarden --create-namespace \
  kubewarden-crds kubewarden/kubewarden-crds
helm install --wait \
  --namespace kubewarden \
  --create-namespace \
  --values values.yaml \
  kubewarden-controller kubewarden/kubewarden-controller
helm install --wait \
  --namespace kubewarden \
  --create-namespace \
  kubewarden-defaults kubewarden/kubewarden-defaults \
  --set recommendedPolicies.enabled=True \
  --set recommendedPolicies.defaultPolicyMode=monitor

Now everything is in place.

Exploring the Jaeger UI

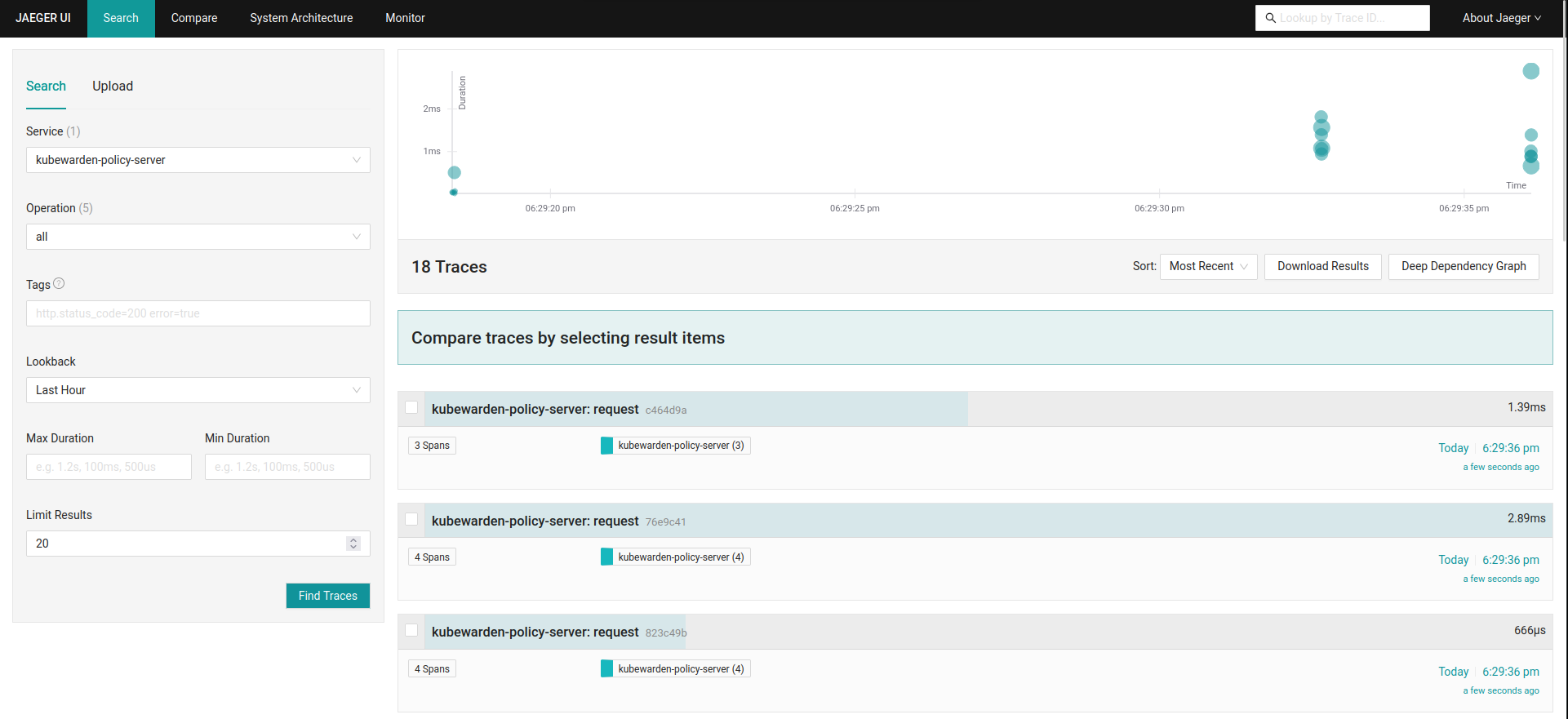

You can see the trace events generated by SUSE® Admission Policy Manager by using the Jaeger web UI. They’re grouped under the kubewarden-policy-server service:

The Jaeger dashboard

To access the Jaeger UI, you can create an Ingress or you can do a port forwarding to your local machine:

kubectl -n jaeger port-forward service/my-open-telemetry-query 16686

The web UI is reachable at http://localhost:16686.

Exploring the Prometheus UI

You can access the Prometheus UI by port forwarding to your local machine:

kubectl port-forward -n prometheus --address 0.0.0.0 svc/prometheus-operated 9090

The web UI is now reachable at http://localhost:9090.
