Backing Image Backup

Longhorn supports backing up of backing images.

Prerequisites

You must first set up a backup target. If you skip this crucial step, the missing backup target will prevent Longhorn from creating a backup of the backing image.

Create a Backup of a Backing Image

Because backing images are globally unique within the Longhorn system, the corresponding backups are also globally unique and are identified using the same name.

Create a Backup Using YAML

Example of backing image:

apiVersion: longhorn.io/v1beta2
kind: BackingImage
metadata:
  name: parrot-backup
  namespace: longhorn-system
spec:
  backingImage: parrot
  backupTargetName: default
  sourceType: download
  sourceParameters:
    url: https://longhorn-backing-image.s3-us-west-1.amazonaws.com/parrot.raw
  checksum: 304f3ed30ca6878e9056ee6f1b02b328239f0d0c2c1272840998212f9734b196371560b3b939037e4f4c2884ce457c2cbc9f0621f4f5d1ca983983c8cdf8cd9a

Example of YAML code used to create a backup of the sample backing image:

apiVersion: longhorn.io/v1beta2
kind: BackupBackingImage
metadata:
  name: parrot
  namespace: longhorn-system
spec:
  userCreated: true
  labels:
    usecase: test
    type: raw

name: If the names are not unique, Longhorn will not be able to create a backup of the backing image.
backingImage: Backing image of the backup.
backupTargetName: Endpoint used to store and access the backup in the backupstore.
userCreated: Set the value to true to indicate that you created the backup custom resource, which enabled the creation of the backup in the backupstore. The value false indicates that the backup custom resource was synced from the backupstore.
labels: You can add labels to the backing image backup.

Create a Backup Using the Longhorn UI

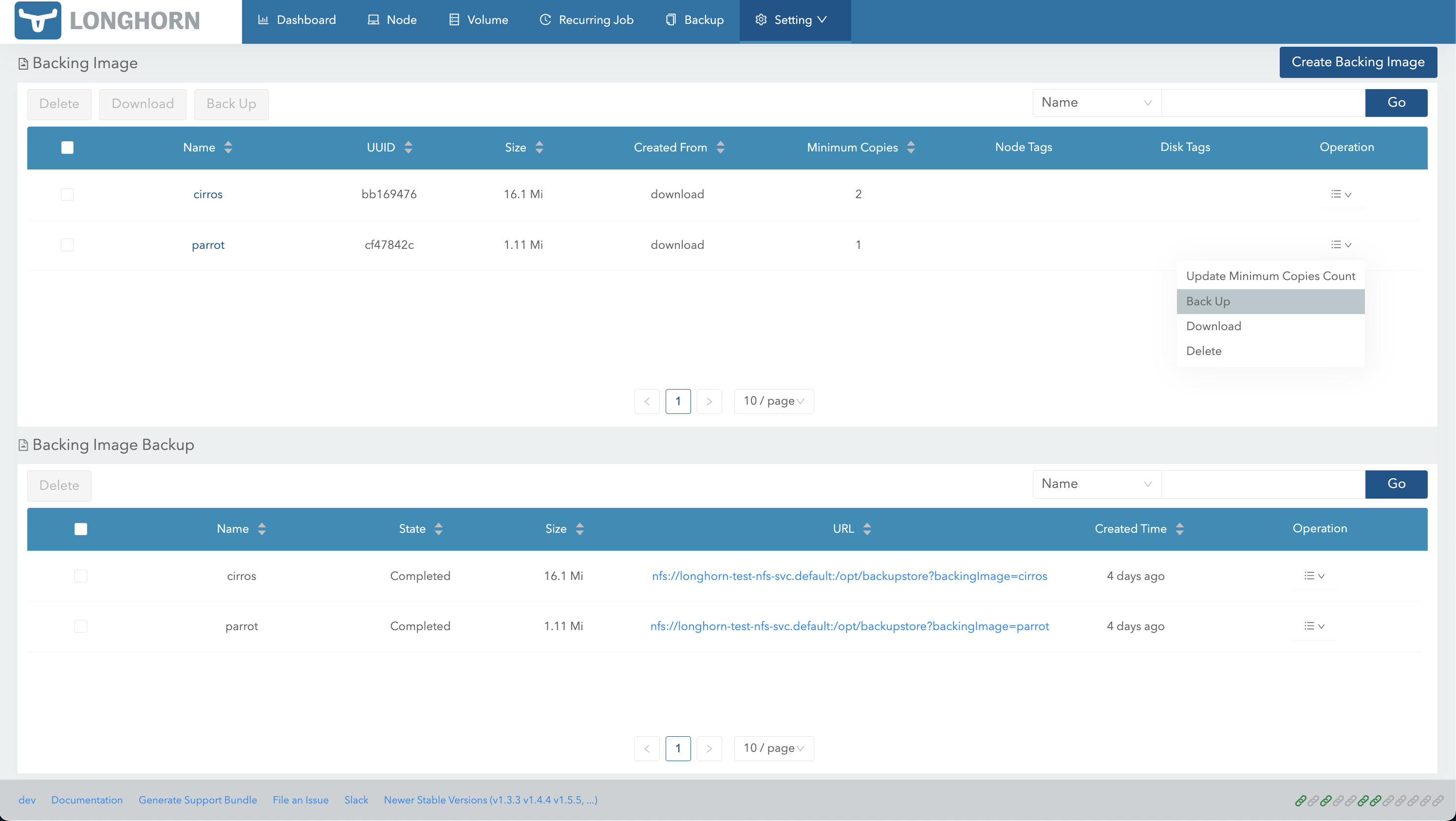

Go to Setting → Backing Image.
Select the backing image that you want to back up, and then click Back Up in the Operation menu.

Longhorn creates the backup and adds the details to the Backing Image Backup list.

Restore a Backing Image from a Backup

You can restore a backing image in another cluster after creating a backup in the backupstore.

Example of YAML code used to restore a backing image:

apiVersion: longhorn.io/v1beta2
kind: BackingImage
metadata:
    name: parrot-restore
    namespace: longhorn-system
spec:
    sourceType: restore
    sourceParameters:
        # change to your backup URL
        # backup-url: nfs://longhorn-test-nfs-svc.default:/opt/backupstore?backingImage=parrot
        backup-url: s3://backupbucket@us-east-1/?backingImage=parrot
        concurrent-limit: "2"
    checksum: 304f3ed30ca6878e9056ee6f1b02b328239f0d0c2c1272840998212f9734b196371560b3b939037e4f4c2884ce457c2cbc9f0621f4f5d1ca983983c8cdf8cd9a

sourceType: Set the value to restore.
sourceParameters: Configure the following parameters:
- backup-url: URL of the backing image resource in the backupstore. You can find this information in the status of the backup custom resource .Status.URL.
- concurrent-limit: Maximum number of worker threads that can concurrently run for each restore operation. When unspecified, Longhorn uses the default value.
checksum: You can specify the expected SHA-512 checksum of the backing image file, which Longhorn uses to validate the restored file. When unspecified, Longhorn uses the checksum of the restored file as the truth.

Restore from a Backup Using the Longhorn UI

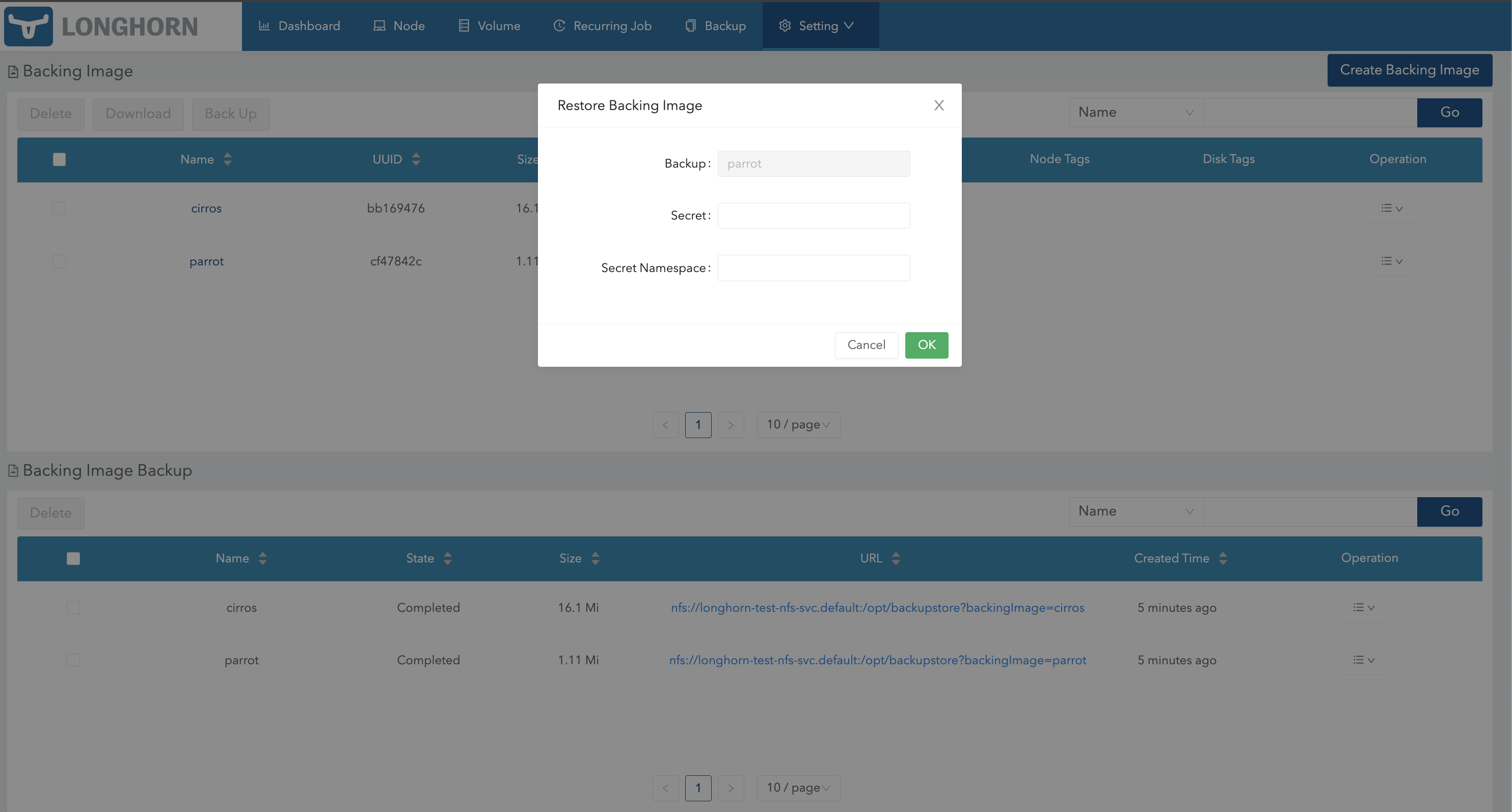

Go to Setting → Backing Image.
Select the backup that you want to use, and then click Restore in the Operation menu.
If you are restoring an encrypted backing image, specify the Secret and Secret Namespace.
Click OK.

Longhorn currently does not store secret-related information in backing image backups. You must specify the secret and secret namespace when restoring encrypted backing images. This issue will be addressed in a future release.

Volume with a Backing Image

When you create a backup of a volume, Longhorn automatically creates a backup of its backing image.

You can restore a volume with a backing image. If the image already exists in the cluster, Longhorn uses the image directly. If the image exists in the backupstore but not in the cluster, Longhorn automatically restores the backing image.
