42 The Apache HTTP server

According to the surveys from http://www.netcraft.com/ and https://w3techs.com/, the Apache HTTP Server (Apache) is one of the world's most popular Web servers. Developed by the Apache Software Foundation (http://www.apache.org/), it is available for most operating systems. SUSE® Linux Enterprise Server includes Apache version 2.4. This chapter describes how to install, configure, and operate Apache. It also shows how to use additional modules, such as SSL, and how to troubleshoot Apache.

42.1 Quick start

This section will help you quickly configure and start Apache. You must be root to install and configure Apache.

42.1.1 Requirements

Make sure the following requirements are met before trying to set up the Apache Web server:

  1. The machine's network is configured properly. For more information about this topic, refer to Chapter 23, Basic networking.

  2. The machine's exact system time is maintained by synchronizing with a time server. This is necessary because parts of the HTTP protocol depend on the correct time. See Chapter 38, Time synchronization with NTP to learn more about this topic.

  3. The latest security updates are installed. If in doubt, run a YaST Online Update.

  4. The default Web server port (80) is opened in the firewall. For this, configure firewalld to allow the service http in the public zone. See Section 23.4.3, “Configuring the firewall on the command line” for details.

42.1.2 Installation

Apache on SUSE Linux Enterprise Server is not installed by default. To install it with a standard, predefined configuration that runs out of the box, proceed as follows:

Procedure 42.1: Installing Apache with the default configuration
  1. Start YaST and select Software › Software Management.

  2. Choose Filter › Patterns and select Web and LAMP Server.

  3. Confirm the installation of the dependent packages to finish the installation process.

42.1.3 Start

You can start Apache automatically at boot time or start it manually.

To make sure that Apache is automatically started during boot in the targets multi-user.target and graphical.target, execute the following command:

> sudo systemctl enable apache2.service

For more information about the systemd targets in SUSE Linux Enterprise Server and a description of the YaST Services Manager, refer to Section 19.4, “Managing services with YaST”.

To manually start Apache using the shell, run systemctl start apache2.service.

Procedure 42.2: Checking if Apache is running

If you do not receive error messages when starting Apache, this usually indicates that the Web server is running. To test this:

  1. Start a browser and open http://localhost/.

    If Apache is up and running, you get a test page stating It works!.

  2. If you do not see this page, refer to Section 42.9, “Troubleshooting”.

Now that the Web server is running, you can add your own documents, adjust the configuration according to your needs, or add functionality by installing modules.

42.2 Configuring Apache

SUSE Linux Enterprise Server offers two configuration options:

Manual configuration offers a higher level of detail, but lacks the convenience of the YaST GUI.

Important
Important: Reload or restart Apache after configuration changes

Most configuration changes require a reload (some also a restart) of Apache to take effect. Manually reload Apache with systemctl reload apache2.service or use one of the restart options as described in Section 42.3, “Starting and stopping Apache”.

If you configure Apache with YaST, this can be taken care of automatically if you set HTTP Service to Enabled as described in Section 42.2.3.2, “HTTP server configuration”.

42.2.1 Apache configuration files

This section gives an overview of the Apache configuration files. If you use YaST for configuration, you do not need to touch these files—however, the information might be useful for you to switch to manual configuration later on.

Apache configuration files can be found in two different locations:

42.2.1.1 /etc/sysconfig/apache2

/etc/sysconfig/apache2 controls some global settings of Apache, like modules to load, additional configuration files to include, flags with which the server should be started, and flags that should be added to the command line. Every configuration option in this file is extensively documented and therefore not mentioned here. For a general-purpose Web server, the settings in /etc/sysconfig/apache2 should be sufficient for any configuration needs.

42.2.1.2 /etc/apache2/

/etc/apache2/ hosts all configuration files for Apache. In the following, the purpose of each file is explained. Each file includes several configuration options (also called directives). Every configuration option in these files is extensively documented and therefore not mentioned here.

The Apache configuration files are organized as follows:

/etc/apache2/
     |
     |- charset.conv
     |- conf.d/
     |   |
     |   |- *.conf
     |
     |- default-server.conf
     |- errors.conf
     |- global.conf
     |- httpd.conf
     |- listen.conf
     |- loadmodule.conf
     |- magic
     |- mime.types
     |- mod_*.conf
     |- protocols.conf
     |- server-tuning.conf
     |- ssl-global.conf
     |- ssl.*
     |- sysconfig.d
     |   |
     |   |- global.conf
     |   |- include.conf
     |   |- loadmodule.conf . .
     |
     |- uid.conf
     |- vhosts.d
     |   |- *.conf
Apache configuration files in /etc/apache2/
charset.conv

Specifies which character sets to use for different languages. Do not edit this file.

conf.d/*.conf

Configuration files added by other modules. These configuration files can be included into your virtual host configuration where needed. See vhosts.d/vhost.template for examples. By doing so, you can provide different module sets for different virtual hosts.

default-server.conf

Global configuration for all virtual hosts with reasonable defaults. Instead of changing the values, overwrite them with a virtual host configuration.

errors.conf

Defines how Apache responds to errors. To customize these messages for all virtual hosts, edit this file. Otherwise overwrite these directives in your virtual host configurations.

global.conf

General configuration of the main Web server process, such as the access path, error logs, or the level of logging.

httpd.conf

The main Apache server configuration file. Avoid changing this file. It primarily contains include statements and global settings. Overwrite global settings in the pertinent configuration files listed here. Change host-specific settings (such as document root) in your virtual host configuration.

listen.conf

Binds Apache to specific IP addresses and ports. Name-based virtual hosting is also configured here. For details, see Section 42.2.2.1.1, “Name-based virtual hosts”.

magic

Data for the mime_magic module that helps Apache automatically determine the MIME type of an unknown file. Do not change this file.

mime.types

MIME types known by the system (this actually is a link to /etc/mime.types). Do not edit this file. If you need to add MIME types not listed here, add them to mod_mime-defaults.conf.

mod_*.conf

Configuration files for the modules that are installed by default. Refer to Section 42.4, “Installing, activating, and configuring modules” for details. Note that configuration files for optional modules reside in the directory conf.d.

protocols.conf

Configuration directives for serving pages over HTTP2 connection.

server-tuning.conf

Contains configuration directives for the different MPMs (see Section 42.4.4, “Multiprocessing modules”) and general configuration options that control Apache's performance. Properly test your Web server when making changes here.

ssl-global.conf and ssl.*

Global SSL configuration and SSL certificate data. Refer to Section 42.6, “Setting up a secure Web server with SSL” for details.

sysconfig.d/*.conf

Configuration files automatically generated from /etc/sysconfig/apache2. Do not change any of these files—edit /etc/sysconfig/apache2 instead. Do not put other configuration files in this directory.

uid.conf

Specifies under which user and group ID Apache runs. Do not change this file.

vhosts.d/*.conf

Your virtual host configuration should be located here. The directory contains template files for virtual hosts with and without SSL. Every file in this directory ending with .conf is automatically included in the Apache configuration. Refer to Section 42.2.2.1, “Virtual host configuration” for details.

42.2.2 Configuring Apache manually

Configuring Apache manually involves editing plain text configuration files as user root.

42.2.2.1 Virtual host configuration

The term virtual host refers to Apache's ability to serve multiple universal resource identifiers (URIs) from the same physical machine. This means that several domains, such as www.example.com and www.example.net, are run by a single Web server on one physical machine.

It is common practice to use virtual hosts to save administrative effort (only a single Web server needs to be maintained) and hardware expenses (each domain does not require a dedicated server). Virtual hosts can be name based, IP based, or port based.

To list all existing virtual hosts, use the command apache2ctl -S. This outputs a list showing the default server and all virtual hosts together with their IP addresses and listening ports. Furthermore, the list also contains an entry for each virtual host showing its location in the configuration files.

Virtual hosts can be configured via YaST as described in Section 42.2.3.1.4, “Virtual hosts” or by manually editing a configuration file. By default, Apache in SUSE Linux Enterprise Server is prepared for one configuration file per virtual host in /etc/apache2/vhosts.d/. All files in this directory with the extension .conf are automatically included to the configuration. A basic template for a virtual host is provided in this directory (vhost.template or vhost-ssl.template for a virtual host with SSL support).

Tip
Tip: Always create a virtual host configuration

It is recommended to always create a virtual host configuration file, even if your Web server only hosts one domain. By doing so, you not only have the domain-specific configuration in one file, but you can always fall back to a working basic configuration by simply moving, deleting, or renaming the configuration file for the virtual host. For the same reason, you should also create separate configuration files for each virtual host.

When using name-based virtual hosts it is recommended to set up a default configuration that will be used when a domain name does not match a virtual host configuration. The default virtual host is the one whose configuration is loaded first. Since the order of the configuration files is determined by file name, start the file name of the default virtual host configuration with an underscore character (_) to make sure it is loaded first (for example: _default_vhost.conf).

The <VirtualHost></VirtualHost> block holds the information that applies to a particular domain. When Apache receives a client request for a defined virtual host, it uses the directives enclosed in this section. Almost all directives can be used in a virtual host context. See http://httpd.apache.org/docs/2.4/mod/quickreference.html for further information about Apache's configuration directives.

42.2.2.1.1 Name-based virtual hosts

With name-based virtual hosts, more than one Web site is served per IP address. Apache uses the host field in the HTTP header that is sent by the client to connect the request to a matching ServerName entry of one of the virtual host declarations. If no matching ServerName is found, the first specified virtual host is used as a default.

The first step is to create a <VirtualHost> block for each different name-based host that you want to serve. Inside each <VirtualHost> block, you will need at minimum a ServerName directive to designate which host is served and a DocumentRoot directive to show where in the file system the content for that host resides.

Example 42.1: Basic examples of name-based VirtualHost entries
<VirtualHost *:80>
# This first-listed virtual host is also the default for *:80
ServerName www.example.com
ServerAlias example.com
DocumentRoot /srv/www/htdocs/domain
</VirtualHost>

<VirtualHost *:80>
ServerName other.example.com
DocumentRoot /srv/www/htdocs/otherdomain
</VirtualHost>

The opening VirtualHost tag takes the IP address (or fully qualified domain name) as an argument in a name-based virtual host configuration. A port number directive is optional.

The wild card * is also allowed as a substitute for the IP address. When using IPv6 addresses, the address must be included in square brackets.

Example 42.2: Name-based VirtualHost directives
<VirtualHost 192.168.3.100:80>
  ...
</VirtualHost>

<VirtualHost 192.168.3.100>
  ...
</VirtualHost>

<VirtualHost *:80>
  ...
</VirtualHost>

<VirtualHost *>
  ...
</VirtualHost>

<VirtualHost [2002:c0a8:364::]>
  ...
</VirtualHost>
42.2.2.1.2 IP-based virtual hosts

This alternative virtual host configuration requires the setup of multiple IP addresses for a machine. One instance of Apache hosts several domains, each of which is assigned a different IP.

The physical server must have one IP address for each IP-based virtual host. If the machine does not have multiple network cards, virtual network interfaces (IP aliasing) can also be used.

The following example shows Apache running on a machine with the IP 192.168.3.100, hosting two domains on the additional IP addresses 192.168.3.101 and 192.168.3.102. A separate VirtualHost block is needed for every virtual server.

Example 42.3: IP-based VirtualHost directives
<VirtualHost 192.168.3.101>
  ...
</VirtualHost>

<VirtualHost 192.168.3.102>
  ...
</VirtualHost>

Here, VirtualHost directives are only specified for interfaces other than 192.168.3.100. When a Listen directive is also configured for 192.168.3.100, a separate IP-based virtual host must be created to answer HTTP requests to that interface—otherwise the directives found in the default server configuration (/etc/apache2/default-server.conf) are applied.

42.2.2.1.3 Basic virtual host configuration

At least the following directives should be in each virtual host configuration to set up a virtual host. See /etc/apache2/vhosts.d/vhost.template for more options.

ServerName

The fully qualified domain name under which the host should be addressed.

DocumentRoot

Path to the directory from which Apache should serve files for this host. For security reasons, access to the entire file system is forbidden by default, so you must explicitly unlock this directory within a Directory container.

ServerAdmin

E-mail address of the server administrator. This address is, for example, shown on error pages Apache creates.

ErrorLog

The error log file for this virtual host. Although it is not necessary to create separate error log files for each virtual host, it is common practice to do so, because it makes the debugging of errors much easier. /var/log/apache2/ is the default directory for Apache's log files.

CustomLog

The access log file for this virtual host. Although it is not necessary to create separate access log files for each virtual host, it is common practice to do so, because it allows the separate analysis of access statistics for each host. /var/log/apache2/ is the default directory for Apache's log files.

As mentioned above, access to the whole file system is forbidden by default for security reasons. Therefore, explicitly unlock the directories in which you have placed the files Apache should serve—for example the DocumentRoot:

<Directory "/srv/www/www.example.com/htdocs">
  Require all granted
</Directory>
Note
Note: Require all granted

In previous versions of Apache, the statement Require all granted was expressed as:

Order allow,deny
Allow from all

This old syntax is still supported by the mod_access_compat module.

The complete configuration file looks like this:

Example 42.4: Basic VirtualHost configuration
<VirtualHost 192.168.3.100>
  ServerName www.example.com
  DocumentRoot /srv/www/www.example.com/htdocs
  ServerAdmin webmaster@example.com
  ErrorLog /var/log/apache2/www.example.com_log
  CustomLog /var/log/apache2/www.example.com-access_log common
  <Directory "/srv/www/www.example.com/htdocs">
  Require all granted
  </Directory>
</VirtualHost>

42.2.3 Configuring Apache with YaST

To configure your Web server with YaST, start YaST and select Network Services › HTTP Server. When starting the module for the first time, the HTTP Server Wizard starts, prompting you to make a few basic decisions concerning administration of the server. After having finished the wizard, the HTTP Server Configuration dialog starts each time you call the HTTP Server module. For more information, see Section 42.2.3.2, “HTTP server configuration”.

42.2.3.1 HTTP server wizard

The HTTP Server Wizard consists of five steps. In the last step of the dialog, you may enter the expert configuration mode to make even more specific settings.

42.2.3.1.1 Network device selection

Here, specify the network interfaces and ports Apache uses to listen for incoming requests. You can select any combination of existing network interfaces and their respective IP addresses. Ports from all three ranges (well-known ports, registered ports, and dynamic or private ports) that are not reserved by other services can be used. The default setting is to listen on all network interfaces (IP addresses) on port 80.

Check Open Port In Firewall to open the ports in the firewall that the Web server listens on. This is necessary to make the Web server available on the network, which can be a LAN, WAN, or the public Internet. Keeping the port closed is only useful in test situations where no external access to the Web server is necessary. If you have multiple network interfaces, click Firewall Details to specify on which interface(s) the port(s) should be opened.

Click Next to continue with the configuration.

42.2.3.1.2 Modules

The Modules configuration option allows for the activation or deactivation of the script languages that the Web server should support. For the activation or deactivation of other modules, refer to Section 42.2.3.2.2, “Server modules”. Click Next to advance to the next dialog.

42.2.3.1.3 Default host

This option pertains to the default Web server. As explained in Section 42.2.2.1, “Virtual host configuration”, Apache can serve multiple virtual hosts from a single physical machine. The first declared virtual host in the configuration file is commonly called the default host. Each virtual host inherits the default host's configuration.

To edit the host settings (also called directives), select the appropriate entry in the table then click Edit. To add new directives, click Add. To delete a directive, select it and click Delete.

HTTP server wizard: default host
Figure 42.1: HTTP server wizard: default host

Here is list of the default settings of the server:

Document Root

Path to the directory from which Apache serves files for this host. /srv/www/htdocs is the default location.

Alias

Using Alias directives, URLs can be mapped to physical file system locations. This means that a certain path even outside the Document Root in the file system can be accessed via a URL aliasing that path.

The default SUSE Linux Enterprise Server Alias /icons points to /usr/share/apache2/icons for the Apache icons displayed in the directory index view.

ScriptAlias

Similar to the Alias directive, the ScriptAlias directive maps a URL to a file system location. The difference is that ScriptAlias designates the target directory as a CGI location, meaning that CGI scripts should be executed in that location.

Directory

With Directory settings, you can enclose a group of configuration options that will only apply to the specified directory.

Access and display options for the directories /srv/www/htdocs, /usr/share/apache2/icons and /srv/www/cgi-bin are configured here. It should not be necessary to change the defaults.

Include

With include, additional configuration files can be specified. Two Include directives are already preconfigured: /etc/apache2/conf.d/ is the directory containing the configuration files that come with external modules. With this directive, all files in this directory ending in .conf are included. With the second directive, /etc/apache2/conf.d/apache2-manual.conf, the apache2-manual configuration file is included.

Server Name

This specifies the default URL used by clients to contact the Web server. Use a fully qualified domain name (FQDN) to reach the Web server at http://FQDN/ or its IP address. You cannot choose an arbitrary name here—the server must be known under this name.

Server Administrator E-Mail

E-mail address of the server administrator. This address is, for example, shown on error pages Apache creates.

After finishing with the Default Host step, click Next to continue with the configuration.

42.2.3.1.4 Virtual hosts

In this step, the wizard displays a list of already configured virtual hosts (see Section 42.2.2.1, “Virtual host configuration”). If you have not made manual changes prior to starting the YaST HTTP wizard, no virtual host is present.

To add a host, click Add to open a dialog in which to enter basic information about the host, such as Server Name, Server Contents Root (DocumentRoot), and the Administrator E-Mail. Server Resolution is used to determine how a host is identified (name based or IP based). Specify the name or IP address with Change Virtual Host ID

Clicking Next advances to the second part of the virtual host configuration dialog.

In part two of the virtual host configuration you can specify whether to enable CGI scripts and which directory to use for these scripts. It is also possible to enable SSL. If you do so, you must specify the path to the certificate as well. See Section 42.6.2, “Configuring Apache with SSL” for details on SSL and certificates. With the Directory Index option, you can specify which file to display when the client requests a directory (by default, index.html). Add one or more file names (space-separated) to change this. With Enable Public HTML, the content of the users public directories (~USER/public_html/) is made available on the server under http://www.example.com/~USER.

Important
Important: Creating virtual hosts

It is not possible to add virtual hosts at will. If using name-based virtual hosts, each host name must be resolved on the network. If using IP-based virtual hosts, you can assign only one host to each IP address available.

42.2.3.1.5 Summary

This is the final step of the wizard. Here, determine how and when the Apache server is started: when booting or manually. Also see a short summary of the configuration made so far. If you are satisfied with your settings, click Finish to complete configuration. To change something, click Back until you have reached the desired dialog. Clicking HTTP Server Expert Configuration opens the dialog described in Section 42.2.3.2, “HTTP server configuration”.

HTTP server wizard: summary
Figure 42.2: HTTP server wizard: summary

42.2.3.2 HTTP server configuration

The HTTP Server Configuration dialog also lets you make even more adjustments to the configuration than the wizard (which only runs if you configure your Web server for the first time). It consists of four tabs described in the following. No configuration option you change here is effective immediately—you always must confirm your changes with Finish to make them effective. Clicking Abort leaves the configuration module and discards your changes.

42.2.3.2.1 Listen ports and addresses

In HTTP Service, select whether Apache should be running (Enabled) or stopped (Disabled). In Listen on Ports, Add, Edit, or Delete addresses and ports on which the server should be available. The default is to listen on all interfaces on port 80. You should always check Open Port In Firewall, because otherwise the Web server is not reachable from outside. Keeping the port closed is only useful in test situations where no external access to the Web server is necessary. If you have multiple network interfaces, click Firewall Details to specify on which interface(s) the port(s) should be opened.

With Log Files, watch either the access log file or the error log file. This is useful if you want to test your configuration. The log file opens in a separate window from which you can also restart or reload the Web server. For details, see Section 42.3, “Starting and stopping Apache”. These commands are effective immediately and their log messages are also displayed immediately.

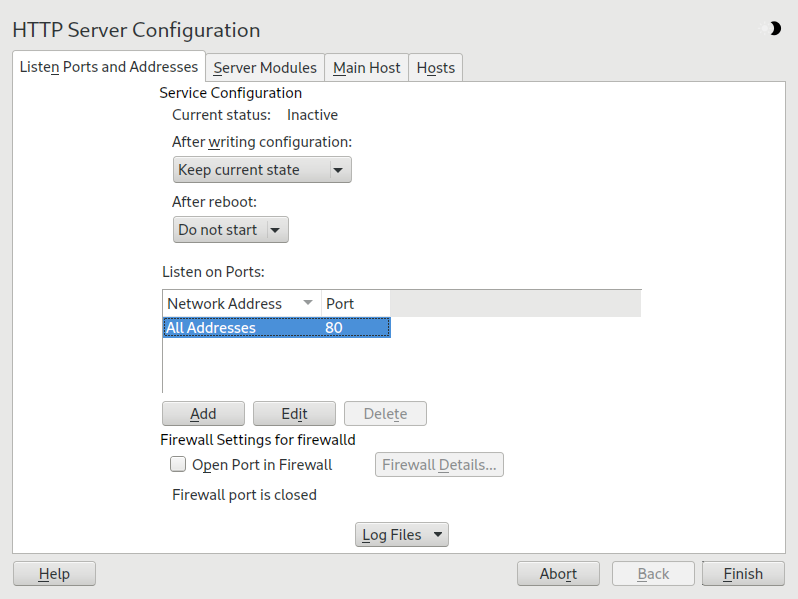

HTTP server configuration: listen ports and addresses
Figure 42.3: HTTP server configuration: listen ports and addresses
42.2.3.2.2 Server modules

You can change the status (enabled or disabled) of Apache2 modules by clicking Toggle Status. Click Add Module to add a new module that is already installed but not yet listed. Learn more about modules in Section 42.4, “Installing, activating, and configuring modules”.

HTTP server configuration: server modules
Figure 42.4: HTTP server configuration: server modules
42.2.3.2.3 Main host or hosts

These dialogs are identical to the ones already described. Refer to Section 42.2.3.1.3, “Default host” and Section 42.2.3.1.4, “Virtual hosts”.

42.3 Starting and stopping Apache

If configured with YaST as described in Section 42.2.3, “Configuring Apache with YaST”, Apache is started at boot time in the multi-user.target and graphical.target. You can change this behavior using YaST's Services Manager or with the systemctl command line tool (systemctl enable or systemctl disable).

To start, stop, or manipulate Apache on a running system, use either the systemctl or the apachectl commands as described below.

For general information about systemctl commands, refer to Section 19.2.1, “Managing services in a running system”.

systemctl status apache2.service

Checks if Apache is started.

systemctl start apache2.service

Starts Apache if it is not already running.

systemctl stop apache2.service

Stops Apache by terminating the parent process.

systemctl restart apache2.service

Stops and then restarts Apache. Starts the Web server if it was not running before.

systemctl try-restart apache2.service

Stops then restarts Apache only if it is already running.

systemctl reload apache2.service

Stops the Web server by advising all forked Apache processes to first finish their requests before shutting down. As each process dies, it is replaced by a newly started one, resulting in a complete restart of Apache.

Tip
Tip: Restarting Apache in production environments

This command allows activating changes in the Apache configuration without causing connection break-offs.

systemctl stop apache2.service

Stops the Web server after a defined period of time configured with GracefulShutdownTimeout to ensure that existing requests can be finished.

apachectl configtest

Checks the syntax of the configuration files without affecting a running Web server. Because this check is forced every time the server is started, reloaded, or restarted, it is usually not necessary to run the test explicitly (if a configuration error is found, the Web server is not started, reloaded, or restarted).

apachectl status and apachectl fullstatus

Dumps a short or full status screen, respectively. Requires the module mod_status to be enabled and a text-based browser (such as links or w3m) to be installed. In addition to that, STATUS must be added to APACHE_SERVER_FLAGS in the file /etc/sysconfig/apache2.

Tip
Tip: Additional flags

If you specify additional flags to the commands, these are passed through to the Web server.

42.4 Installing, activating, and configuring modules

The Apache software is built in a modular fashion: all functionality except some core tasks are handled by modules. This has progressed so far that even HTTP is processed by a module (http_core).

Apache modules can be compiled into the Apache binary at build time or be dynamically loaded at runtime. Refer to Section 42.4.2, “Activation and deactivation” for details of how to load modules dynamically.

Apache modules are organized into the following categories:

Base modules

Base modules are compiled into Apache by default. Apache in SUSE Linux Enterprise Server has only mod_so (needed to load other modules) and http_core compiled in. All others are available as shared objects: rather than being included in the server binary itself, they can be included at runtime.

Extension modules

In general, modules labeled as extensions are included in the Apache software package, but are usually not compiled into the server statically. In SUSE Linux Enterprise Server, they are available as shared objects that can be loaded into Apache at runtime.

External modules

Modules labeled external are not included in the official Apache distribution. However, SUSE Linux Enterprise Server provides several of them.

Multiprocessing modules (MPMs)

MPMs are responsible for accepting and handling requests to the Web server, representing the core of the Web server software.

42.4.1 Module installation

If you have done a default installation as described in Section 42.1.2, “Installation”, the following modules are already installed: all base and extension modules, the multiprocessing module Prefork MPM, and the external module mod_python.

You can install additional external modules by starting YaST and choosing Software › Software Management. Now choose View › Search and search for apache. Among other packages, the results list contains all available external Apache modules.

42.4.2 Activation and deactivation

Activate or deactivate particular modules either manually or with YaST. In YaST, script language modules (PHP 8 and Python) need to be enabled or disabled with the module configuration described in Section 42.2.3.1, “HTTP server wizard”. All other modules can be enabled or disabled as described in Section 42.2.3.2.2, “Server modules”.

If you prefer to activate or deactivate the modules manually, use the commands a2enmod MODULE or a2dismod MODULE, respectively. a2enmod -l outputs a list of all currently active modules.

Important
Important: Including configuration files for external modules

If you have activated external modules manually, make sure to load their configuration files in all virtual host configurations. Configuration files for external modules are located under /etc/apache2/conf.d/ and are loaded in /etc/apache2/default-server.conf by default. For more fine-grained control you can comment out the inclusion in /etc/apache2/default-server.conf and add it to specific virtual hosts only. See /etc/apache2/vhosts.d/vhost.template for examples.

42.4.3 Base and extension modules

All base and extension modules are described in detail in the Apache documentation. Only a brief description of the most important modules is available here. Refer to http://httpd.apache.org/docs/2.4/mod/ to learn details about each module.

mod_actions

Provides methods to execute a script whenever a certain MIME type (such as application/pdf), a file with a specific extension (like .rpm), or a certain request method (such as GET) is requested. This module is enabled by default.

mod_alias

Provides Alias and Redirect directives with which you can map a URL to a specific directory (Alias) or redirect a requested URL to another location. This module is enabled by default.

mod_auth*

The authentication modules provide different authentication methods: basic authentication with mod_auth_basic or digest authentication with mod_auth_digest.

mod_auth_basic and mod_auth_digest must be combined with an authentication provider module, mod_authn_* (for example, mod_authn_file for text file–based authentication) and with an authorization module mod_authz_* (for example, mod_authz_user for user authorization).

More information about this topic is available in the Authentication HOWTO at http://httpd.apache.org/docs/2.4/howto/auth.html.

mod_auth_openidc

mod_auth_openidc the only certified way to use OpenID Connect with the Apache HTTP server. (See https://openid.net/developers/certified/.)

mod_autoindex

Autoindex generates directory listings when no index file (for example, index.html) is present. The look and feel of these indexes is configurable. This module is enabled by default. However, directory listings are disabled by default via the Options directive—overwrite this setting in your virtual host configuration. The default configuration file for this module is located at /etc/apache2/mod_autoindex-defaults.conf.

mod_cgi

mod_cgi is needed to execute CGI scripts. This module is enabled by default.

mod_deflate

Using this module, Apache can be configured to compress given file types on the fly before delivering them.

mod_dir

mod_dir provides the DirectoryIndex directive with which you can configure which files are automatically delivered when a directory is requested (index.html by default). It also provides an automatic redirect to the correct URL when a directory request does not contain a trailing slash. This module is enabled by default.

mod_env

Controls the environment that is passed to CGI scripts or SSI pages. Environment variables can be set or unset or passed from the shell that invoked the httpd process. This module is enabled by default.

mod_expires

With mod_expires, you can control how often proxy and browser caches refresh your documents by sending an Expires header. This module is enabled by default.

mod_http2

With mod_http2, Apache gains support for the HTTP/2 protocol. It can be enabled by specifying Protocols h2 http/1.1 in a VirtualHost.

mod_include

mod_include lets you use Server Side Includes (SSI), which provide a basic functionality to generate HTML pages dynamically. This module is enabled by default.

mod_info

Provides a comprehensive overview of the server configuration under http://localhost/server-info/. For security reasons, you should always limit access to this URL. By default only localhost is allowed to access this URL. mod_info is configured at /etc/apache2/mod_info.conf.

mod_log_config

With this module, you can configure the look of the Apache log files. This module is enabled by default.

mod_mime

The mime module ensures that a file is delivered with the correct MIME header based on the file name's extension (for example text/html for HTML documents). This module is enabled by default.

mod_negotiation

Necessary for content negotiation. See http://httpd.apache.org/docs/2.4/content-negotiation.html for more information. This module is enabled by default.

mod_rewrite

Provides the functionality of mod_alias, but offers more features and flexibility. With mod_rewrite, you can redirect URLs based on multiple rules, request headers, and more.

mod_setenvif

Sets environment variables based on details of the client's request, such as the browser string the client sends, or the client's IP address. This module is enabled by default.

mod_spelling

mod_spelling attempts to automatically correct typographical errors in URLs, such as capitalization errors.

mod_ssl

Enables encrypted connections between Web server and clients. See Section 42.6, “Setting up a secure Web server with SSL” for details. This module is enabled by default.

mod_status

Provides information on server activity and performance under http://localhost/server-status/. For security reasons, you should always limit access to this URL. By default, only localhost is allowed to access this URL. mod_status is configured at /etc/apache2/mod_status.conf.

mod_suexec

mod_suexec lets you run CGI scripts under a different user and group. This module is enabled by default.

mod_userdir

Enables user-specific directories available under ~USER/. The UserDir directive must be specified in the configuration. This module is enabled by default.

42.4.4 Multiprocessing modules

SUSE Linux Enterprise Server provides two different multiprocessing modules (MPMs) for use with Apache:

42.4.4.1 Prefork MPM

The prefork MPM implements a non-threaded, preforking Web server. It makes the Web server behave similarly to Apache version 1.x. In this version it isolates each request and handles it by forking a separate child process. Thus problematic requests cannot affect others, avoiding a lockup of the Web server.

While providing stability with this process-based approach, the prefork MPM consumes more system resources than its counterpart, the worker MPM. The prefork MPM is considered the default MPM for Unix-based operating systems.

Important
Important: MPMs in this document

This document assumes Apache is used with the prefork MPM.

42.4.4.2 Worker MPM

The worker MPM provides a multi-threaded Web server. A thread is a lighter form of a process. The advantage of a thread over a process is its lower resource consumption. Instead of only forking child processes, the worker MPM serves requests by using threads with server processes. The preforked child processes are multi-threaded. This approach makes Apache perform better by consuming fewer system resources than the prefork MPM.

One major disadvantage is the stability of the worker MPM: if a thread becomes corrupt, all threads of a process can be affected. In the worst case, this may result in a server crash. Especially when using the Common Gateway Interface (CGI) with Apache under heavy load, internal server errors might occur because of threads being unable to communicate with system resources. Another argument against using the worker MPM with Apache is that not all available Apache modules are thread-safe and thus cannot be used with the worker MPM.

Warning
Warning: Using PHP modules with MPMs

Not all available PHP modules are thread-safe. Using the worker MPM with mod_php is strongly discouraged.

42.4.5 External modules

Find a list of all external modules shipped with SUSE Linux Enterprise Server here. Find the module's documentation in the listed directory.

mod_apparmor

Adds support to Apache to provide AppArmor confinement to individual CGI scripts handled by modules like mod_php8.

Package Name: apache2-mod_apparmor
More Information: Part V, “Confining privileges with AppArmor
mod_php8

PHP is a server-side, cross-platform HTML embedded scripting language.

Package Name: apache2-mod_php8
Configuration File: /etc/apache2/conf.d/php8.conf
mod_python

mod_python allows embedding Python within the Apache HTTP server for a considerable boost in performance and added flexibility in designing Web-based applications.

Package Name: apache2-mod_python
More Information: /usr/share/doc/packages/apache2-mod_python
mod_security

mod_security provides a Web application firewall to protect Web applications from a range of attacks. It also enables HTTP traffic monitoring and real-time analysis.

Package Name: apache2-mod_security2
Configuration File: /etc/apache2/conf.d/mod_security2.conf
More Information: /usr/share/doc/packages/apache2-mod_security2
Documentation: http://modsecurity.org/documentation/

42.4.6 Compilation

Apache can be extended by advanced users by writing custom modules. To develop modules for Apache or compile third-party modules, the package apache2-devel is required along with the corresponding development tools. apache2-devel also contains the apxs2 tools, which are necessary for compiling additional modules for Apache.

apxs2 enables the compilation and installation of modules from source code (including the required changes to the configuration files), which creates dynamic shared objects (DSOs) that can be loaded into Apache at runtime.

The apxs2 binaries are located under /usr/sbin:

  • /usr/sbin/apxs2—suitable for building an extension module that works with any MPM. The installation location is /usr/lib64/apache2.

  • /usr/sbin/apxs2-prefork—suitable for prefork MPM modules. The installation location is /usr/lib64/apache2-prefork.

  • /usr/sbin/apxs2-worker—suitable for worker MPM modules. The installation location is /usr/lib64/apache2-worker.

Install and activate a module from source code with the following commands:

> sudo cd /path/to/module/source
> sudo apxs2 -cia MODULE.c

where -c compiles the module, -i installs it, and -a activates it. Other options of apxs2 are described in the apxs2(1) man page.

42.5 Enabling CGI scripts

Apache's Common Gateway Interface (CGI) lets you create dynamic content with programs or scripts usually called CGI scripts. CGI scripts can be written in any programming language. Usually, script languages such as PHP are used.

To enable Apache to deliver content created by CGI scripts, mod_cgi needs to be activated. mod_alias is also needed. Both modules are enabled by default. Refer to Section 42.4.2, “Activation and deactivation” for details on activating modules.

Warning
Warning: CGI security

Allowing the server to execute CGI scripts is a potential security hole. Refer to Section 42.8, “Avoiding security problems” for additional information.

42.5.1 Apache configuration

In SUSE Linux Enterprise Server, the execution of CGI scripts is only allowed in the directory /srv/www/cgi-bin/. This location is already configured to execute CGI scripts. If you have created a virtual host configuration (see Section 42.2.2.1, “Virtual host configuration”) and want to place your scripts in a host-specific directory, you must unlock and configure this directory.

Example 42.5: VirtualHost CGI configuration
ScriptAlias /cgi-bin/ "/srv/www/www.example.com/cgi-bin/"1

<Directory "/srv/www/www.example.com/cgi-bin/">
 Options +ExecCGI2
 AddHandler cgi-script .cgi .pl3
 Require all granted4
</Directory>

1

Tells Apache to handle all files within this directory as CGI scripts.

2

Enables CGI script execution

3

Tells the server to treat files with the extensions .pl and .cgi as CGI scripts. Adjust according to your needs.

4

The Require directive controls the default access state. In this case, access is granted to the specified directory without limitation. For more information on authentication and authorization, see http://httpd.apache.org/docs/2.4/howto/auth.html.

42.5.2 Running an example script

CGI programming differs from "regular" programming in that the CGI programs and scripts must be preceded by a MIME-Type header such as Content-type: text/html. This header is sent to the client, so it understands what kind of content it receives. Secondly, the script's output must be something the client, usually a Web browser, understands—HTML usually, or plain text or images, for example.

A simple test script available under /usr/share/doc/packages/apache2/test-cgi is part of the Apache package. It outputs the content of some environment variables as plain text. Copy this script to either /srv/www/cgi-bin/ or the script directory of your virtual host (/srv/www/www.example.com/cgi-bin/) and name it test.cgi. Edit the file to have #!/bin/sh as the first line.

Files accessible by the Web server should be owned by the user root. For additional information see Section 42.8, “Avoiding security problems”. Because the Web server runs with a different user, the CGI scripts must be world-executable and world-readable. Change into the CGI directory and use the command chmod 755 test.cgi to apply the proper permissions.

Now call http://localhost/cgi-bin/test.cgi or http://www.example.com/cgi-bin/test.cgi. You should see the CGI/1.0 test script report.

42.5.3 CGI troubleshooting

If you do not see the output of the test program but an error message instead, check the following:

CGI troubleshooting
  • Have you reloaded the server after having changed the configuration? If not, reload with systemctl reload apache2.service.

  • If you have configured your custom CGI directory, is it configured properly? If in doubt, try the script within the default CGI directory /srv/www/cgi-bin/ and call it with http://localhost/cgi-bin/test.cgi.

  • Are the file permissions correct? Change into the CGI directory and execute ls -l test.cgi. The output should start with

    -rwxr-xr-x  1 root root
  • Make sure that the script does not contain programming errors. If you have not changed test.cgi, this should not be the case, but if you are using your own programs, always make sure that they do not contain programming errors.

42.6 Setting up a secure Web server with SSL

Whenever sensitive data, such as credit card information, is transferred between Web server and client, it is desirable to have a secure, encrypted connection with authentication. mod_ssl provides strong encryption using the secure sockets layer (SSL) and transport layer security (TLS) protocols for HTTP communication between a client and the Web server. Using TLS/SSL, a private connection between Web server and client is established. Data integrity is ensured and client and server can authenticate each other.

For this purpose, the server sends an SSL certificate that holds information proving the server's valid identity before any request to a URL is answered. In turn, this guarantees that the server is the uniquely correct end point for the communication. Additionally, the certificate generates an encrypted connection between client and server that can transport information without the risk of exposing sensitive, plain-text content.

mod_ssl does not implement the TLS/SSL protocols itself, but acts as an interface between Apache and an SSL library. In SUSE Linux Enterprise Server, the OpenSSL library is used. OpenSSL is automatically installed with Apache.

The most visible effect of using mod_ssl with Apache is that URLs are prefixed with https:// instead of http://.

42.6.1 Creating an SSL certificate

To use TLS/SSL with the Web server, you need to create an SSL certificate. This certificate is needed for the authorization between Web server and client, so that each party can clearly identify the other party. To ensure the integrity of the certificate, it must be signed by a party every user trusts.

There are three types of certificates you can create: a dummy certificate for testing purposes only, a self-signed certificate for a defined circle of users that trust you, and a certificate signed by an independent, publicly-known certificate authority (CA).

Creating a certificate is a two step process. First, a private key for the certificate authority is generated then the server certificate is signed with this key.

Tip
Tip: More information

To learn more about concepts and definitions of TLS/SSL, refer to https://httpd.apache.org/docs/2.4/ssl/ssl_intro.html.

42.6.1.1 Creating a dummy certificate

To generate a dummy certificate, call the script /usr/bin/gensslcert. It creates or overwrites the files listed below. Use gensslcert's optional switches to fine-tune the certificate. Call /usr/bin/gensslcert -h for more information.

  • /etc/apache2/ssl.crt/ca.crt

  • /etc/apache2/ssl.crt/server.crt

  • /etc/apache2/ssl.key/server.key

  • /etc/apache2/ssl.csr/server.csr

A copy of ca.crt is also placed at /srv/www/htdocs/CA.crt for download.

Important
Important: For testing purposes only

A dummy certificate should never be used on a production system. Only use it for testing purposes.

42.6.1.2 Creating a self-signed certificate

If you are setting up a secure Web server for an intranet or for a defined circle of users, it is probably sufficient if you sign a certificate with your own certificate authority (CA). Note that visitors to such a site will see a warning like this is an untrusted site, as Web browsers do not recognize self-signed certificates.

Important
Important: Self-signed certificates

Only use a self-signed certificate on a Web server that is accessed by people who know and trust you as a certificate authority. It is not recommended to use such a certificate for a public shop, for example.

First you need to generate a certificate signing request (CSR). You are going to use openssl, with PEM as the certificate format. During this step, you will be asked for a passphrase, and to answer several questions. Remember the passphrase you enter as you will need it in the future.

> sudo openssl req -new > new.cert.csr
Generating a 1024 bit RSA private key
..++++++
.........++++++
writing new private key to 'privkey.pem'
Enter PEM pass phrase:1
Verifying - Enter PEM pass phrase:2
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:3
State or Province Name (full name) [Some-State]:4
Locality Name (eg, city) []:5
Organization Name (eg, company) [Internet Widgits Pty Ltd]:6
Organizational Unit Name (eg, section) []:7
Common Name (for example server FQDN, or YOUR name) []:8
Email Address []:9

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:10
An optional company name []:11

1

Fill in your passphrase.

2

Fill it in once more (and remember it).

3

Fill in your 2 letter country code, such as GB or CZ.

4

Fill in the name of the state where you live.

5

Fill in the city name, such as Prague.

6

Fill in the name of the organization you work for.

7

Fill in your organization unit, or leave blank if you have none.

8

Fill in either the domain name of the server, or your first and last name.

9

Fill in your work e-mail address.

10

Leave the challenge password empty, otherwise you will need to enter it every time you restart the Apache Web server.

11

Fill in the optional company name, or leave blank.

Now you can generate the certificate. You are going to use openssl again, and the format of the certificate is the default PEM.

Procedure 42.3: Generating the certificate
  1. Export the private part of the key to new.cert.key. You will be prompted for the passphrase you entered when creating the certificate signing request (CSR).

    > sudo openssl rsa -in privkey.pem -out new.cert.key
  2. Generate the public part of the certificate according to the information you filled out in the signing request. The -days option specifies the length of time before the certificate expires. You can revoke a certificate, or replace one before it expires.

    > sudo openssl x509 -in new.cert.csr -out new.cert.cert -req \
    -signkey new.cert.key -days 365
  3. Copy the certificate files to the relevant directories, so that the Apache server can read them. Make sure that the private key /etc/apache2/ssl.key/server.key is not world-readable, while the public PEM certificate /etc/apache2/ssl.crt/server.crt is.

    > sudo cp new.cert.cert /etc/apache2/ssl.crt/server.crt
    > sudo cp new.cert.key /etc/apache2/ssl.key/server.key
Tip
Tip: Public certificate location

The last step is to copy the public certificate file from /etc/apache2/ssl.crt/server.crt to a location where your users can access it to incorporate it into the list of known and trusted CAs in their Web browsers. Otherwise a browser complains that the certificate was issued by an unknown authority.

42.6.1.3 Getting an officially signed certificate

There are several official certificate authorities that sign your certificates. The certificate is signed by a trustworthy third party, so can be fully trusted. Publicly operating secure Web servers usually have an officially signed certificate. A list of the most used Certificate Authorities (CAs) is available at https://en.wikipedia.org/wiki/Certificate_authority#Providers.

When requesting an officially signed certificate, you do not send a certificate to the CA. Instead, issue a Certificate Signing Request (CSR). To create a CSR, run the following command:

> openssl req -new -newkey rsa:2048 -nodes -keyout newkey.pem -out newreq.pem

You are asked to enter a distinguished name. This requires you to answer a few questions, such as country name or organization name. Enter valid data—everything you enter here later shows up in the certificate and is checked. You do not need to answer every question. If one does not apply to you or you want to leave it blank, use .. Common name is the name of the CA itself—choose a significant name, such as My company CA. Last, a challenge password and an alternative company name must be entered.

Find the CSR in the directory from which you called the script. The file is named newreq.pem.

42.6.2 Configuring Apache with SSL

The default port for TLS/SSL requests on the Web server side is 443. There is no conflict between a regular Apache listening on port 80 and an TLS/SSL-enabled Apache listening on port 443. In fact, HTTP and HTTPS can be run with the same Apache instance. Usually separate virtual hosts are used to dispatch requests to port 80 and port 443 to separate virtual servers.

Important
Important: Firewall configuration

Do not forget to open the firewall for SSL-enabled Apache on port 443. This can be done with firewalld as described in Section 23.4.3, “Configuring the firewall on the command line”.

The SSL module is enabled by default in the global server configuration. In case it has been disabled on your host, activate it with the following command: a2enmod ssl. To finally enable SSL, the server needs to be started with the flag SSL. To do so, call a2enflag SSL (case-sensitive!). If you have chosen to encrypt your server certificate with a password, you should also increase the value for APACHE_TIMEOUT in /etc/sysconfig/apache2, so you have enough time to enter the passphrase when Apache starts. Restart the server to make these changes active. A reload is not sufficient.

The virtual host configuration directory contains a template /etc/apache2/vhosts.d/vhost-ssl.template with SSL-specific directives that are extensively documented. Refer to Section 42.2.2.1, “Virtual host configuration” for the general virtual host configuration.

To get started, copy the template to /etc/apache2/vhosts.d/MYSSL-HOST.conf and edit it. Adjusting the values for the following directives should be sufficient:

  • DocumentRoot

  • ServerName

  • ServerAdmin

  • ErrorLog

  • TransferLog

42.6.2.1 Name-based virtual hosts and SSL

By default it is not possible to run multiple SSL-enabled virtual hosts on a server with only one IP address. Name-based virtual hosting requires that Apache knows which server name has been requested. The problem with SSL connections is, that such a request can only be read after the SSL connection has already been established (by using the default virtual host). As a result, users will receive a warning message stating that the certificate does not match the server name.

SUSE Linux Enterprise Server comes with an extension to the SSL protocol called Server Name Indication (SNI) addresses this issue by sending the name of the virtual domain as part of the SSL negotiation. This enables the server to switch to the correct virtual domain early and present the browser the correct certificate.

SNI is enabled by default on SUSE Linux Enterprise Server. To enable Name-Based Virtual Hosts for SSL, configure the server as described in Section 42.2.2.1.1, “Name-based virtual hosts” (note that you need to use port 443 rather than port 80 with SSL).

Important
Important: SNI browser support

SNI must also be supported on the client side. However, SNI is supported by most browsers, except for certain older browsers. For more information, see https://en.wikipedia.org/wiki/Server_Name_Indication#Support.

To configure handling of non-SNI capable browsers, use the directive SSLStrictSNIVHostCheck. When set to on in the server configuration, non-SNI capable browser will be rejected for all virtual hosts. When set to on within a VirtualHost directive, access to this particular host will be rejected.

When set to off in the server configuration, the server will behave as if not having SNI support. SSL requests will be handled by the first virtual host defined (for port 443).

42.7 Running multiple Apache instances on the same server

Running multiple Apache instances on the same server has several advantages over running multiple virtual hosts (see Section 42.2.2.1, “Virtual host configuration”):

  • When a virtual host needs to be disabled for some time, you need to change the Web server configuration and restart it so that the change takes effect.

  • In case of problems with one virtual host, you need to restart all of them.

You can run the default Apache instance as usual:

> sudo systemctl start apache2.service

It reads the default /etc/sysconfig/apache2 file. If the file is not present, or it is present but it does not set the APACHE_HTTPD_CONF variable, it reads /etc/apache2/httpd.conf.

To activate another Apache instance, run:

> sudo systemctl start apache2@INSTANCE_NAME

For example:

> sudo systemctl start apache2@example_web.org

By default, the instance uses /etc/apache2@example_web.org/httpd.conf as a main configuration file, which can be overwritten by setting APACHE_HTTPD_CONF in /etc/sysconfig/apache2@example_web.org.

An example to set up an additional instance of Apache follows. Note that you need to execute all the commands as root.

Procedure 42.4: Configuring an additional Apache instance
  1. Create a new configuration file based on /etc/sysconfig/apache2, for example /etc/sysconfig/apache2@example_web.org:

    > sudo cp /etc/sysconfig/apache2 /etc/sysconfig/apache2@example_web.org
  2. Edit the file /etc/sysconfig/apache2@example_web.org and change the line containing

    APACHE_HTTPD_CONF

    to

    APACHE_HTTPD_CONF="/etc/apache2/httpd@example_web.org.conf"
  3. Create the file /etc/apache2/httpd@example_web.org.conf based on /etc/apache2/httpd.conf.

    > sudo cp /etc/apache2/httpd.conf /etc/apache2/httpd@example_web.org.conf
  4. Edit /etc/apache2/httpd@example_web.org.conf and change

    Include /etc/apache2/listen.conf

    to

    Include /etc/apache2/listen@example_web.org.conf

    Review all the directives and change them to fit your needs. You will probably want to change

    Include /etc/apache2/global.conf

    and create new global@example_web.org.conf for each instance. We suggest to change

    ErrorLog /var/log/apache2/error_log

    to

    ErrorLog /var/log/apache2/error@example_web.org_log

    to have separate logs for each instance.

  5. Create /etc/apache2/listen@example_web.org.conf based on /etc/apache2/listen.conf.

    > sudo cp /etc/apache2/listen.conf /etc/apache2/listen@example_web.org.conf
  6. Edit /etc/apache2/listen@example_web.org.conf and change

    Listen 80

    to the port number you want the new instance to run on, for example 82:

    Listen 82

    To run the new Apache instance over a secured protocol (see Section 42.6, “Setting up a secure Web server with SSL”), change also the line

    Listen 443

    for example to

    Listen 445
  7. Start the new Apache instance:

    > sudo systemctl start apache2@example_web.org
  8. Check if the server is running by pointing your Web browser at http://server_name:82. If you previously changed the name of the error log file for the new instance, you can check it:

    > sudo tail -f /var/log/apache2/error@example_web.org_log

Here are several points to consider when setting up more Apache instances on the same server:

  • The file /etc/sysconfig/apache2@INSTANCE_NAME can include the same variables as /etc/sysconfig/apache2, including module loading and MPM setting.

  • The default Apache instance does not need to be running while other instances run.

  • The Apache helper utilities a2enmod, a2dismod and apachectl operate on the default Apache instance if not specified otherwise with the HTTPD_INSTANCE environment variable. The following example

    > sudo export HTTPD_INSTANCE=example_web.org
    > sudo a2enmod access_compat
    > sudo a2enmod status
    > sudo apachectl start

    will add access_compat and status modules to the APACHE_MODULES variable of /etc/sysconfig/apache2@example_web.org, and then start the example_web.org instance.

42.8 Avoiding security problems

A Web server exposed to the public Internet requires an ongoing administrative effort. It is inevitable that security issues appear, both related to the software and to accidental misconfiguration. Here are some tips for how to deal with them.

42.8.1 Up-to-date software

If there are vulnerabilities found in the Apache software, a security advisory will be issued by SUSE. It contains instructions for fixing the vulnerabilities, which in turn should be applied when possible. The SUSE security announcements are available from the following locations:

42.8.2 DocumentRoot permissions

By default in SUSE Linux Enterprise Server, the DocumentRoot directory /srv/www/htdocs and the CGI directory /srv/www/cgi-bin belong to the user and group root. You should not change these permissions. If the directories are writable for all, any user can place files into them. These files might then be executed by Apache with the permissions of wwwrun, which may give the user unintended access to file system resources. Use subdirectories of /srv/www to place the DocumentRoot and CGI directories for your virtual hosts and make sure that directories and files belong to user and group root.

42.8.3 File system access

By default, access to the whole file system is denied in /etc/apache2/httpd.conf. You should never overwrite these directives, but specifically enable access to all directories Apache should be able to read. For details, see Section 42.2.2.1.3, “Basic virtual host configuration”. In doing so, ensure that no critical files, such as password or system configuration files, can be read from the outside.

42.8.4 CGI scripts

Interactive scripts in PHP, SSI, or any other programming language can essentially run arbitrary commands and therefore present a general security issue. Scripts that will be executed from the server should only be installed from sources the server administrator trusts—allowing users to run their own scripts is generally not a good idea. It is also recommended to do security audits for all scripts.

To make the administration of scripts as easy as possible, it is common practice to limit the execution of CGI scripts to specific directories instead of globally allowing them. The directives ScriptAlias and Option ExecCGI are used for configuration. The SUSE Linux Enterprise Server default configuration does not allow execution of CGI scripts from everywhere.

All CGI scripts run as the same user, so different scripts can potentially conflict with each other. The module suEXEC lets you run CGI scripts under a different user and group.

42.8.5 User directories

When enabling user directories (with mod_userdir or mod_rewrite) you should strongly consider not allowing .htaccess files, which would allow users to overwrite security settings. At least you should limit the user's engagement by using the directive AllowOverRide. In SUSE Linux Enterprise Server, .htaccess files are enabled by default, but the user is not allowed to overwrite any Option directives when using mod_userdir (see the /etc/apache2/mod_userdir.conf configuration file).

42.9 Troubleshooting

If Apache does not start, the Web page is not accessible, or users cannot connect to the Web server, it is important to find the cause of the problem. Here are some typical places to look for error explanations and important things to check:

Output of the apache2.service subcommand:

Instead of starting and stopping the Web server with the binary /usr/sbin/apache2ctl, rather use the systemctl commands instead (described in Section 42.3, “Starting and stopping Apache”). systemctl status apache2.service is verbose about errors, and it even provides tips and hints for fixing configuration errors.

Log files and verbosity

In case of both fatal and nonfatal errors, check the Apache log files for causes, mainly the error log file located at /var/log/apache2/error_log by default. Additionally, you can control the verbosity of the logged messages with the LogLevel directive if more detail is needed in the log files.

Tip
Tip: A simple test

Watch the Apache log messages with the command tail -F /var/log/apache2/MY_ERROR_LOG. Then run systemctl restart apache2.service. Now, try to connect with a browser and check the output.

Firewall and ports

A common mistake is to not open the ports for Apache in the firewall configuration of the server. If you configure Apache with YaST, there is a separate option available to take care of this specific issue (see Section 42.2.3, “Configuring Apache with YaST”). If you are configuring Apache manually, open firewall ports for HTTP and HTTPS via YaST's firewall module.

If the error cannot be tracked down with any of these, check the online Apache bug database at http://httpd.apache.org/bug_report.html. Additionally, the Apache user community can be reached via a mailing list available at http://httpd.apache.org/userslist.html.

42.10 More information

The package apache2-doc contains the complete Apache manual in various localizations for local installation and reference. It is not installed by default—the quickest way to install it is to use the command zypper in apache2-doc. Having been installed, the Apache manual is available at http://localhost/manual/. You may also access it on the Web at http://httpd.apache.org/docs-2.4/. SUSE-specific configuration hints are available in the directory /usr/share/doc/packages/apache2/README.*.

42.10.1 Apache 2.4

For a list of new features in Apache 2.4, refer to http://httpd.apache.org/docs/2.4/new_features_2_4.html. Information about upgrading from version 2.2 to 2.4 is available at http://httpd.apache.org/docs-2.4/upgrading.html.

42.10.2 Apache modules

More information about external Apache modules that are briefly described in Section 42.4.5, “External modules” is available at the following locations:

mod_apparmor

https://en.opensuse.org/SDB:AppArmor

mod_php8

http://www.php.net/manual/en/install.unix.apache2.php

You can obtain detailed information about mod_php8 configuration in its well-commented main configuration file /etc/php8/apache2/php.ini.

mod_python

http://www.modpython.org/

mod_security

http://modsecurity.org/

42.10.3 Development

More information about developing Apache modules or about getting involved in the Apache Web server project are available at the following locations:

Apache developer information

http://httpd.apache.org/dev/

Apache developer documentation

http://httpd.apache.org/docs/2.4/developer/

42.10.4 Miscellaneous sources

If you experience difficulties specific to Apache in SUSE Linux Enterprise Server, take a look at the Technical Information Search at https://www.suse.com/support. The history of Apache is provided at https://httpd.apache.org/ABOUT_APACHE.html. This page also explains why the server is called Apache.
