Applies to SUSE Private Registry 1.0

5 Configure Rancher as an OIDC Identity Provider #

This guide explains how to configure Rancher to act as an OIDC Identity Provider, allowing users to authenticate into external applications such as SUSE Private Registry using their Rancher credentials.

5.1 Step 1: Enable the oidc-provider feature flag #

Log in to the Rancher UI as an administrator.

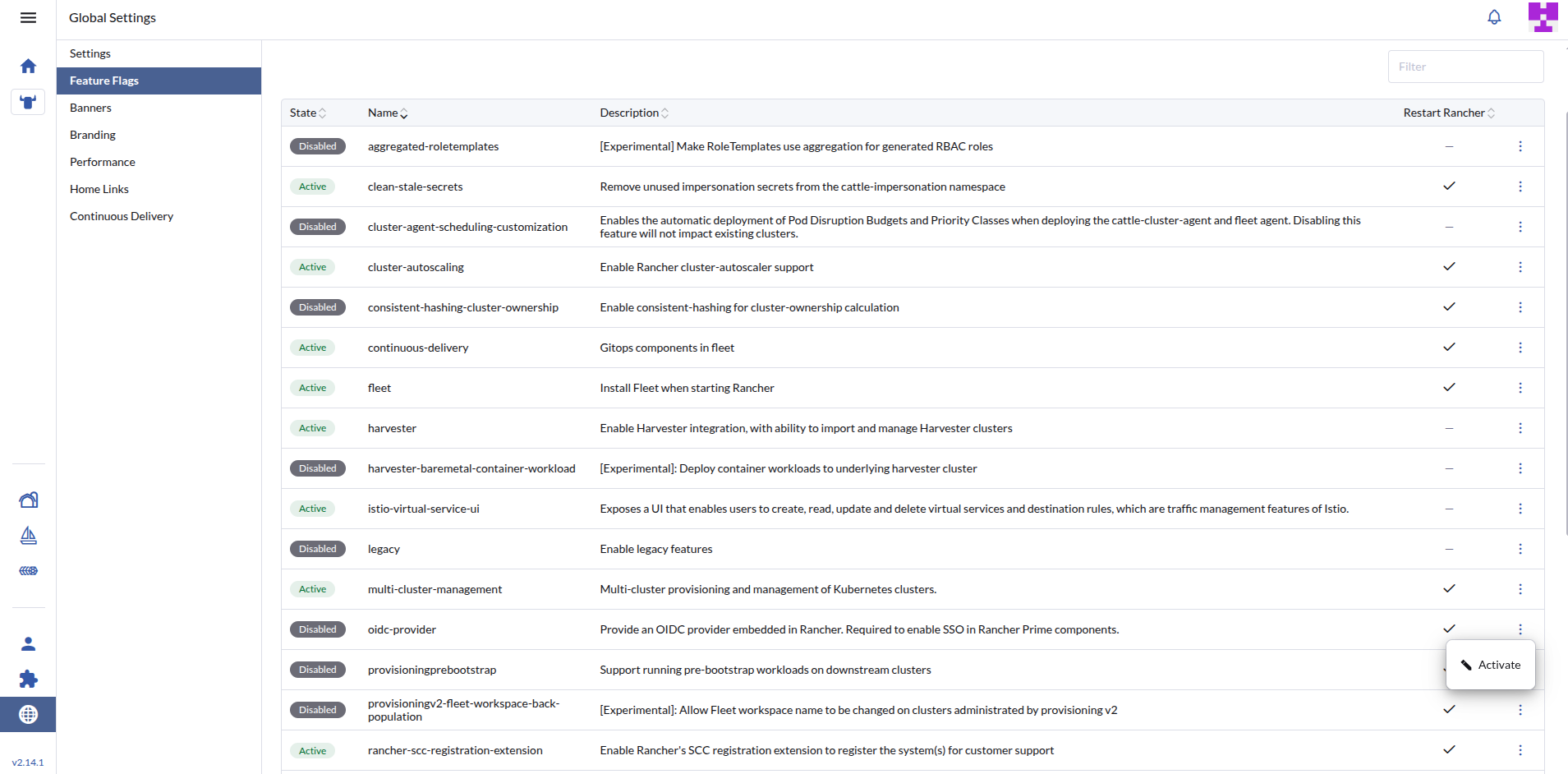

Click the three-line menu (☰) in the upper left and go to Global Settings › Feature Flags.
Find the oidc-provider flag, click the More Actions icon (⋮), and click Activate.

Configure Rancher as an OIDC Identity Provider

5.2 Step 2: Create an OIDCClient resource #

Rancher uses an OIDCClient Custom Resource to register downstream applications.

Create a file named rancher-oidc-client.yaml with the following content:

apiVersion: management.cattle.io/v3
kind: OIDCClient
metadata:
  name: spr-client
spec:
  tokenExpirationSeconds: 600
  refreshTokenExpirationSeconds: 3600
  redirectURIs:
    # Replace this with the actual callback URL of your SUSE private registry instance
    - "https://<SUSE_PRIVATE_REGISTR_URL>/c/oidc/callback"

Apply the file to the cluster where Rancher is running:
```
> kubectl apply -f rancher-oidc-client.yaml
```

5.3 Step 3: Retrieve the Client ID and Secret #

Once the resource is created, Rancher automatically populates the clientID and provisions a Kubernetes Secret containing the clientSecret.

Get the generated Client ID:

> kubectl get oidcclient spr-client -o jsonpath="{.status.clientID}"

Fetch the Client Secret. Remember to replace <YOUR_CLIENT_ID> with the ID retrieved in the previous step:

> kubectl get secret <YOUR_CLIENT_ID>
  -n cattle-oidc-client-secrets
  -o jsonpath="{.data.client-secret-1}" | base64 -d

5.4 Step 4: Configure SUSE Private Registry #

You can configure SUSE Private Registry to use Rancher as its OIDC provider by passing the values via Helm. Use the core.configureUserSettings block in your values-oidc.yaml configuration.

The following is an example block using your Rancher endpoint and the credentials retrieved above. Replace the values of <YOUR_CLIENT_ID> and <YOUR_CLIENT_SECRET>.

core:
  configureUserSettings: |
    {
      "auth_mode": "oidc_auth",
      "oidc_name": "Rancher",
      "oidc_endpoint": "<RANCHER_URL>/oidc",
      "oidc_client_id": "<YOUR_CLIENT_ID>",
      "oidc_client_secret": "<YOUR_CLIENT_SECRET>",
      "oidc_scope": "openid,profile,offline_access",
      "oidc_verify_cert": false,
      "oidc_auto_onboard": true,
      "oidc_user_claim": "preferred_username",
      "oidc_groups_claim": "groups",
      "oidc_admin_group": "spr-admins"
    }

Note

Ensure oidc_verify_cert is set to false if your Rancher instance is using self-signed certificates. By specifying oidc_admin_group, any Rancher user belonging to the spr-admins group will automatically be granted System Administrator privileges in SUSE Private Registry.
