OCI Storage

Fleet stores Kubernetes bundle resources in etcd by default. However, etcd has strict size limits and is not optimized for large workloads. If your bundle resources exceed the etcd size limits in the target cluster, consider using an OCI registry as the storage backend.

To reduce bundle size, compress and base64-encode bundle content before uploading to the OCI registry.

Using an OCI registry helps you:

Reduce etcd load by offloading large bundle content.
Use a standardized storage backend for large manifests or Helm charts.

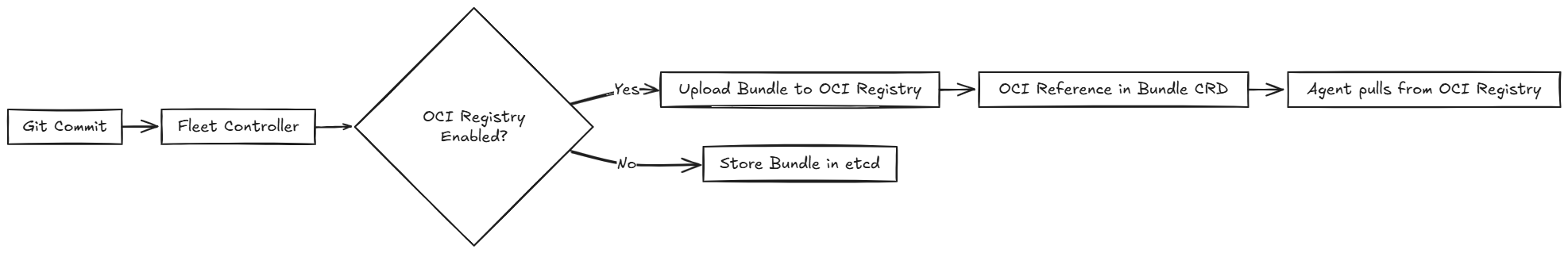

A visual asset displaying the flow of Fleet with OCI Storage.

Fleet checks for the integrity of OCI artifacts and tags OCI artifacts as latest.

Prerequisites

A running OCI registry.
A Kubernetes secret with valid credentials.
A Fleet installation (v2.12.0 or later).

How to enable OCI storage

To enable OCI storage, create a secret that includes the necessary information and access options for the OCI registry. There are two ways of defining secrets:

Global secret: A secret exactly named ocistorage in the same namespace as your `GitRepo`s.
- This is the fallback secret. If no GitRepo-level secret is specified, Fleet uses this secret for all `GitRepo`s in the namespace.
GitRepo-level secret: A custom secret for specific GitRepo resources.
- This is a user-defined secret that can have any name and must be referenced in the GitRepo resource.
- Set the ociRegistrySecret field in the GitRepo spec to the secret’s name.

Fleet does not fall back to etcd if the secret is missing or invalid. Instead, it logs an error and skips the deployment.

Create a Kubernetes Secret that contains the registry address and optional credentials:

apiVersion: v1
kind: Secret
metadata:
  name: ocistorage
  namespace: fleet-local
type: fleet.cattle.io/bundle-oci-storage/v1alpha1
data:
  reference: <base64-encoded-registry-url> # Only the reference field is required. All other fields are optional.
  username: <base64-encoded-user>
  password: <base64-encoded-password>
  insecureSkipTLS: <base64-encoded-true/false>
  basicHTTP: <base64-encoded-true/false>
  agentUsername: <base64-encoded-readonly-user>
  agentPassword: <base64-encoded-password>

The secret must have the type: fleet.cattle.io/bundle-oci-storage/v1alpha1. Fleet requires this value and rejects any secret with a different type.

Changing the secret does not trigger a redeployment. Fleet uses the new registry only after a Git update or a manual force update.

Secret Field Reference

The fields you can configure are:

Field Description Format Notes

Field	Description	Format	Notes
`reference`	URL of the OCI registry.	Base64-encoded string	Do not use `oci://` or similar prefixes.
`username`	Username with write access to the registry.	Base64-encoded string	If not specified, Fleet accesses the registry without authentication.
`password`	Password for the write-access user.	Base64-encoded string	If not specified, Fleet accesses the registry without authentication.
`agentUsername`	Read-only username for agents.	Base64-encoded string	Use read-only credentials for agents to enhance security. If you don’t set these credentials, the agent uses username.
`agentPassword`	Read-only password for agents.	Base64-encoded string	Use read-only credentials for agents to enhance security. If you don’t set these credentials, the agent uses user password.
`insecureSkipTLS`	Skips TLS certificate validation.	Base64-encoded `true/false`	Use only for development or testing. By default, `insecureSkipTLS` is set to `false`.
`basicHTTP`	Enables HTTP instead of HTTPS.	Base64-encoded `true/false`	Not recommended. Allows insecure traffic. By default, `basicHTTP` is set to `false`.

reference

URL of the OCI registry.

Base64-encoded string

Do not use oci:// or similar prefixes.

username

Username with write access to the registry.

Base64-encoded string

If not specified, Fleet accesses the registry without authentication.

password

Password for the write-access user.

Base64-encoded string

If not specified, Fleet accesses the registry without authentication.

agentUsername

Read-only username for agents.

Base64-encoded string

Use read-only credentials for agents to enhance security. If you don’t set these credentials, the agent uses username.

agentPassword

Read-only password for agents.

Base64-encoded string

Use read-only credentials for agents to enhance security. If you don’t set these credentials, the agent uses user password.

insecureSkipTLS

Skips TLS certificate validation.

Base64-encoded true/false

Use only for development or testing. By default, insecureSkipTLS is set to false.

basicHTTP

Enables HTTP instead of HTTPS.

Base64-encoded true/false

Not recommended. Allows insecure traffic. By default, basicHTTP is set to false.

Fleet Example

Consider the following GitRepo file:

apiVersion: fleet.cattle.io/v1alpha1
kind: GitRepo
metadata:
  name: frontend-oci
  namespace: fleet-local
spec:
  repo: https://github.com/your-org/fleet-oci-example.git
  branch: main
  paths:
    - ./frontend
  ociRegistrySecret: ocistorage

You can either create and apply a YAML file that contains the registry address and optional credentials similar to the example above. Then run:

kubectl apply -f secrets/oci-secret.yaml

Or you can use kubectl to create the secret using unencoded text. Kubernetes will convert the values to base64 automatically.

kubectl -n fleet-local create secret generic ocistorage \
  --type=fleet.cattle.io/bundle-oci-storage/v1alpha1 \
  --from-literal=username=fleet-ci \
  --from-literal=password=fleetRocks \
  --from-literal=reference=192.168.1.39:8082 \
  --from-literal=insecureSkipTLS=true \
  --from-literal=basicHTTP=false \
  --from-literal=agentUsername=fleet-ci-readonly \
  --from-literal=agentPassword=readonlypass

To validate your secret, run:

kubectl get secret ocistorage -n fleet-local -o yaml

To decrypt and view your secret:

kubectl get secret ocistorage -n fleet-local -o json | jq '.data | map_values(@base64d)'

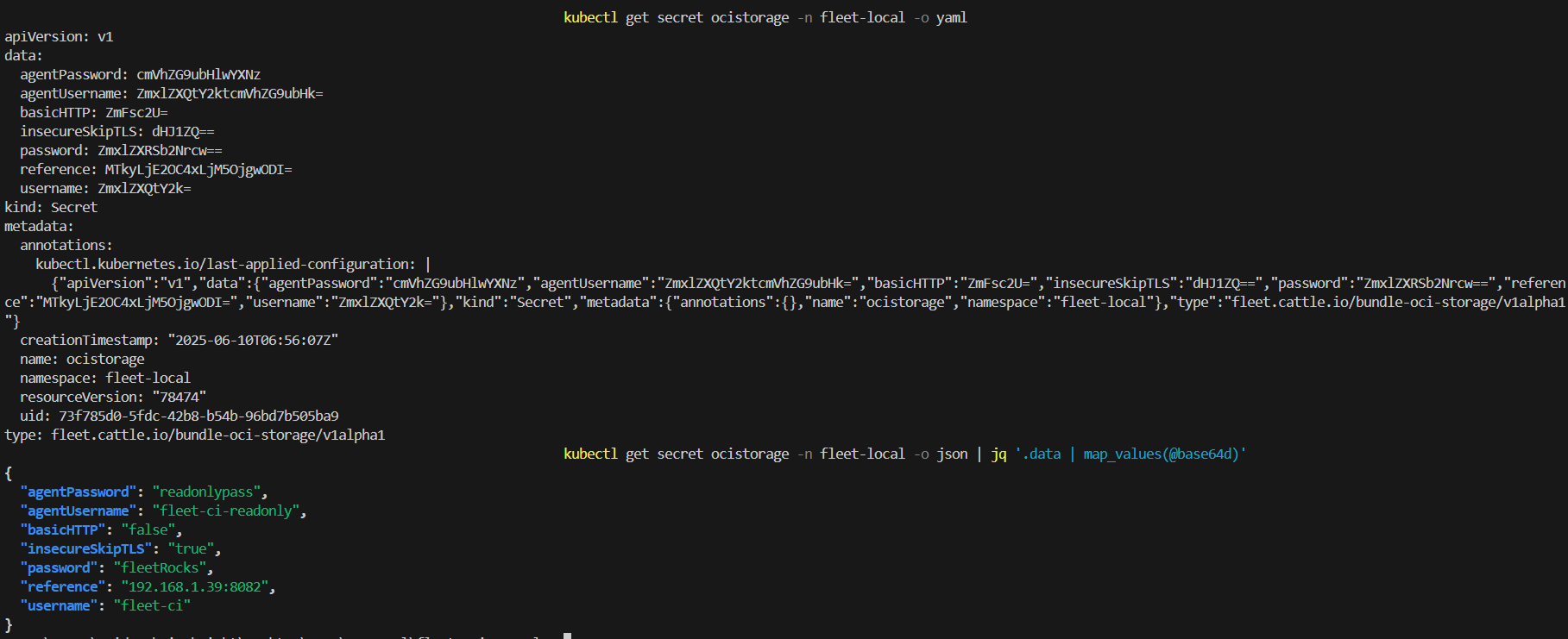

A screenshot of OCI secrets enabled for Fleet
