Access the User Interface

Once Longhorn has been installed in your Kubernetes cluster, you can access the UI dashboard.

  1. Get the Longhorn’s external service IP:

     kubectl -n longhorn-system get svc

    For Longhorn v0.8.0, the output should look like this, and the CLUSTER-IP of the longhorn-frontend is used to access the Longhorn UI:

     NAME                TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)        AGE
 longhorn-backend    ClusterIP      10.20.248.250   <none>           9500/TCP       58m
 longhorn-frontend   ClusterIP      10.20.245.110   <none>           80/TCP         58m

    In the example above, the IP is 10.20.245.110.

    For Longhorn v0.8.0+, UI service type changed from LoadBalancer to ClusterIP.

  2. Navigate to the IP of longhorn-frontend in your browser.

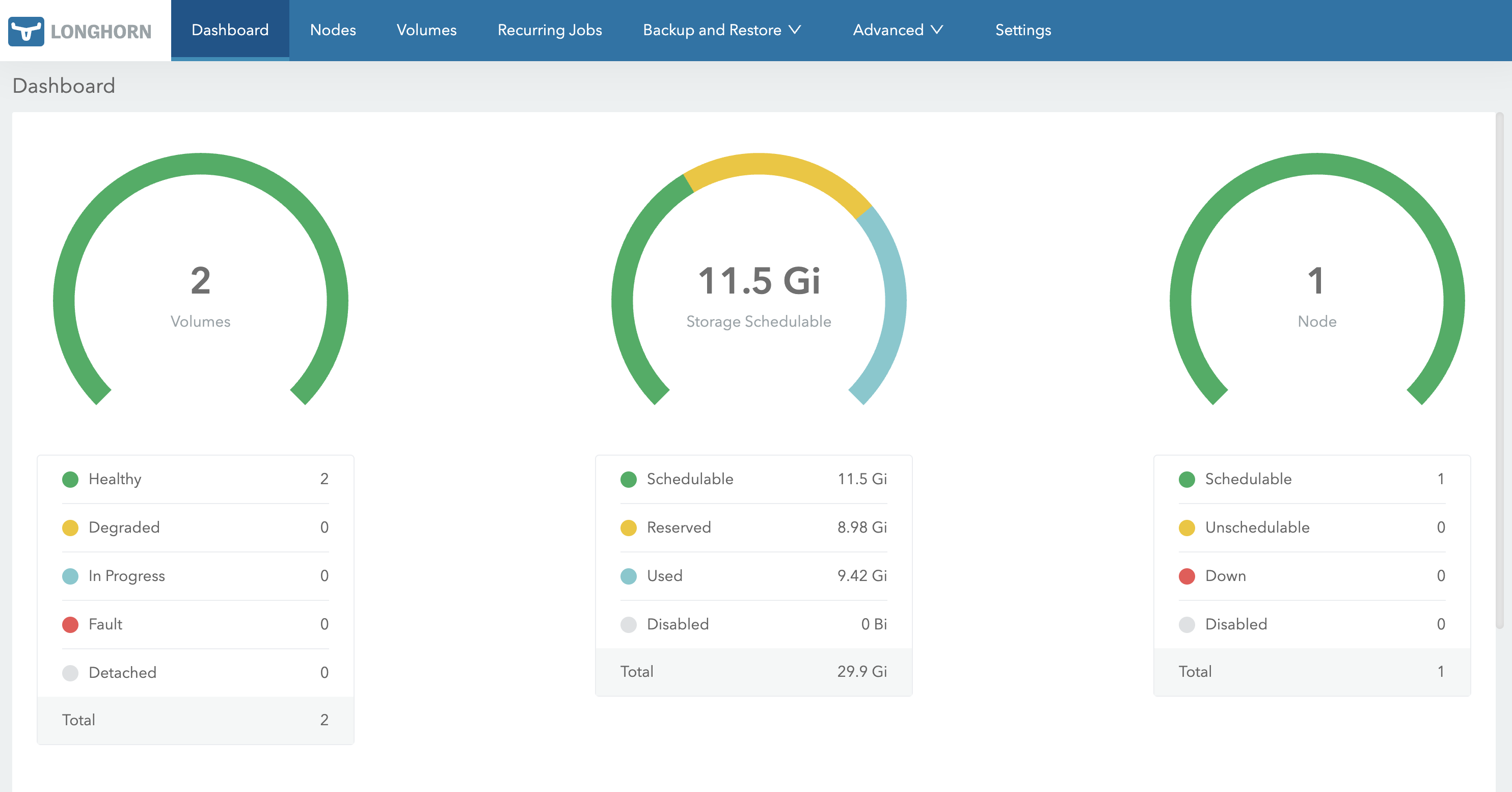

    The Longhorn UI looks like this:
