Registry Scanning Configuration

Registry scanning requires that the SUSE® Security Allinone or Controller container be deployed on a host/node. Please see the Installation/Deployment section for how to deploy the SUSE® Security containers. Configure registry scanning from the SUSE® Security console after logging in to the manager.

In addition, make sure there is a SUSE® Security scanner container deployed and configured to connect to the Allinone or Controller. In 4.0 and later, the neuvector/scanner container must be deployed separate from the allinone or controller.

Registry image scanning is performed by the scanner and the image is pulled and expanded in memory. If expanded image sizes larger than 500MB are expected, consider increasing the scanner memory to 1.5GB or more to provide capacity and headroom for the scanner.

To increase registry scanning performance and scalability, multiple scanner pods can be deployed on different nodes to distribute the scanning tasks across multiple scanners. See the section Multiple Parallel Scanners for details.

For multi-cluster (federated) environments, the primary (master) cluster can scan a registry/repo designated as a federated registry. The scan results from these registries will be synchronized to all managed (remote) clusters. This enables display of scan results in the managed cluster console as well as use of the results in admission control rules of the managed cluster. Registries only need to be scanned once instead of by each cluster, reducing CPU/memory and network bandwidth usage. See the multi-cluster section for more details.

Configure Registry Scanning

To configure registries and repositories to be scanning, go to the Assets → Registries menu in the SUSE® Security console. Add or edit registries to be scanned. Use the Filter to define repositories or subsets of images to be scanned. If your registry requires access through a proxy, this can be configured in Settings → Configuration.

Registry

The registry will be scanned according to a schedule, which is configurable. By default, only new or updated images will be scanned. If you want to re-scan all applicable images whenever the CVE database is updated, select the Rescan After CVE DB Update button when configuring the registry. You can also select Layered Scan to show vulnerabilities by each layer in the image (note: layered scans can take longer and consume more resources to complete).

After the scan is completed you will see the results below it. Click on the repository/tag to see vulnerabilities and click on the vulnerability to see more info. You can also download the report in a CSV file or see the results in the Event logs.

Layered

The scan results include vulnerabilities by image layer, if this option was selected during registry/repository configuration, as well the compliance checks results. Click the compliance tab when viewing the scan results for the image to see compliance checks.

Scanning will also discover and list all Modules (ie, an inventory) in the image, as shown below. It will also summarize the vulnerability risk by module and list all vulnerabilities for each module.

Modules

Scanning is supported for images on public and private docker registries that are based on Native Docker, Amazon ECR, Redhat/Openshift, jFrog, Microsoft ACR, Sonatype Nexus, Harbor, Google cloud and other registries. The scan report for the image comprises of the vulnerability status of various packages and binaries in the image. The brief summary of the scan report can be sent via webhook using the Response rule configuration in Policy → Response Rules, or by Syslog by configuring a syslog server in Settings → Configuration. Results can also be viewed in the Event logs.

At least one repository filter is required (can’t be left blank).

Repository filter examples

filters

To scan all image tags, add filter as * or *:*. This works on all registry types except the public docker registry.
Repository should be full name if organization is nil for public docker registry or add library before repository as given above.
Create a virtual repository and add all local repository to it to scan all tags on a JFrog registry with the subdomain docker access method.
Regular expressions can be used in a filter. For example alpine:3.[8|9].* will scan all 3.8.x and 3.9.x images and tags on docker hub.

Registry scan options

Scan Layers:
- Provides vulnerability scan result for every image layer separately
- Provides information about commands executed, packages added in the layer
- Images size of each layer
Auto Scan:
- Auto Scan is only supported with OpenShift imagestream integration. Proper role binding should be configured in advance.
- When Auto Scan is enabled, as soon as an image is pushed to the registry, the image scan will be scheduled.
Periodical Scan:
- Enable periodic scan to scan periodically
- Scan interval can set to be between 5 minutes to every 7 days.
- Because many Admission Control checks rely on image scan result, enabling periodical scan helps make sure Admission Control has the up-to-date information of the images.
- Note that SUSE® Security will scan images in a regsistry that are new/changed from the previous scan.
Rescan after CVE DB update
- Enable this option to rescan all images after the vulnerability database is updated.

Configuring Proxy server for Registry

Please go to Settings → Configuration to configure proxy settings for registry scanning.

Native Docker registry (also Quay and Harbor)

Add Native Docker registry

Choose Docker registry as type
Give unique name to the registry
Type registry URL with port
Provide username and password if required by the registry
Add repository as filter in the below format
- Organization/repository:tag
- Repository can have wildcard with starting string
- Example neuvector/all*:2*

Adding private docker registry with username/password, scan layers enabled, periodic scan for every 30 minutes enabled and * as filter to scan all tags from all repository.

docker

Adding public docker registry for scanning without username/password and 2 repositories with wildcard, scan layers enabled and periodic scan enabled.

docker3

Adding public docker registry for scanning with username/password, wildcard repository, scan layers enabled, and periodic scan enabled.

docker4

Quay registry

Enter the top-level URL for your Quay registry; do not enter any directories to the path.
You will need to generate an encrypted password in your Quay server/account, and use these credentials here. Then, pass filter(s) as described above.

4 1-quay

Start scanning the Docker registry

Select registry to be scanned
Click start button to scan
Wait till status changes from scanning to idle
- Scanning time varies depending on the size of the repository

scandocker

View the scan result

Click on an image from images pane to view the scan result for the image.
Access the scan result to find the vulnerability status of the image.
Click download button to download scan result of the image if needed
Move mouse in between CVE detail and images to get back to summary

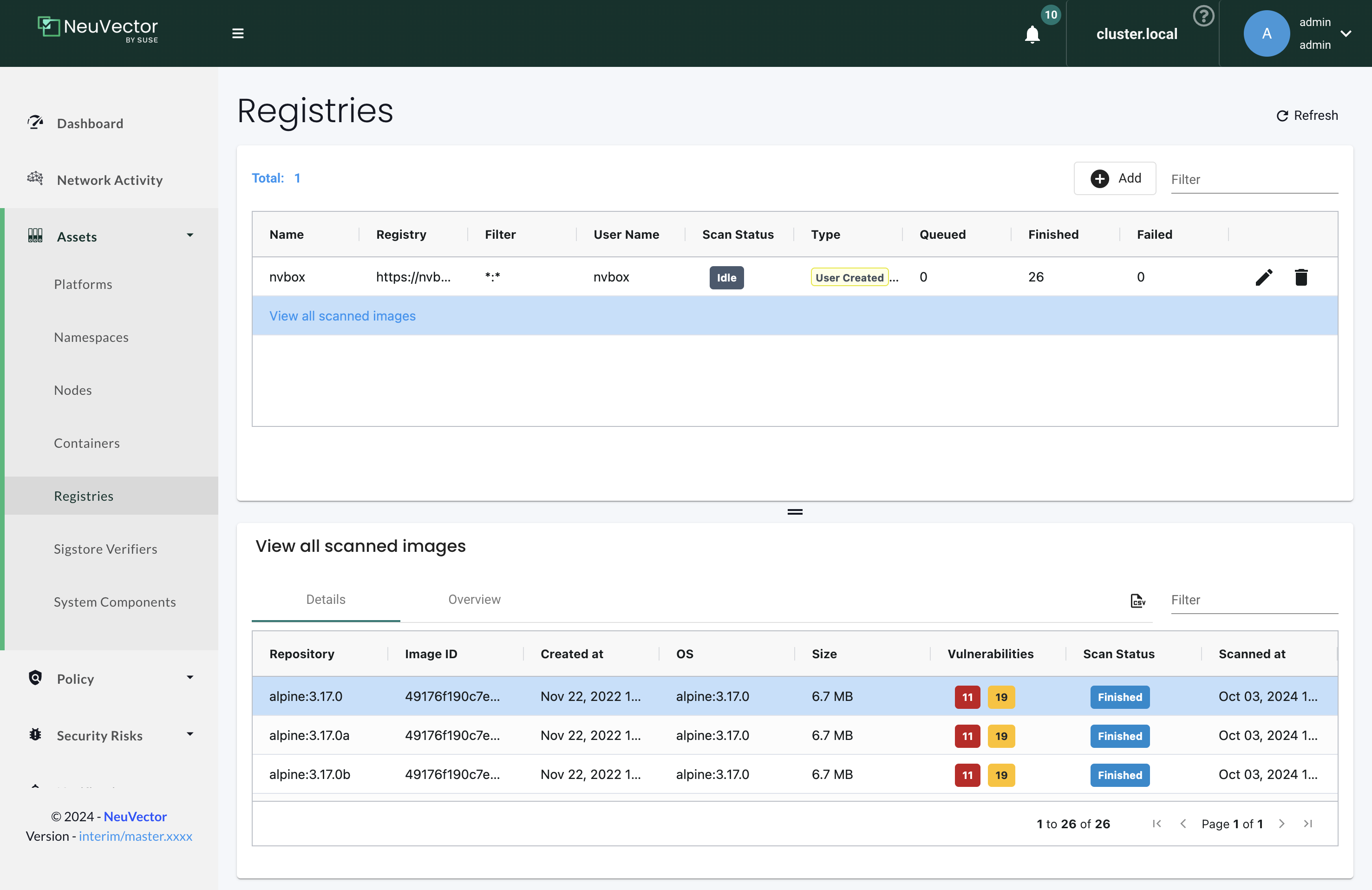

Showing images scanned for the selected registry

scanned

Example showing layer scan result of an image, which shows vulnerabilities of each layer, layer size and commands run on each layer. In addition, there is a Compliance tab which shows the compliance test results for the image.

layered

Amazon ECR Registry

Ref: https://docs.aws.amazon.com/AmazonECR/latest/userguide/Registries.html

Add Amazon ECR registry

Choose Amazon registry as type
Give unique name to the registry
Registry URL is automatically found with other information
Supply below information for the registry. Refer above amazon link to get below information
- Registry id
- Region
- Access key id
- Secret access key
Add repository as filter in the following format
- Organization/repository:tag
- Repository can have wildcard with starting string
- Example neuvector/all*:2*
- Organization can be empty if such image available in the registry
- * to scan all image tags

aws

Redhat registry

Ref: https://access.redhat.com/containers

Add Red Hat registry

Choose Redhat registry as type
Give unique name to the registry
Type registry URL https://registry.connect.redhat.com/
Provide username and password of the account used for managing registry
Add repository as filter in the below format
- Organization/repository:tag
- Repository can have wildcard with starting string
- Example neuvector/all*:2*
- * to scan all image tags

redhat

Openshift registry

Add OpenShift registry with username and password

Choose OpenShift registry as type
Give unique name to the registry
Type registry URL (obtain from the output of "oc get is" command in OpenShift network if it is different than default)
- Default registry URL https://docker-registry.default.svc:5000/
Provide username and password of the account used for managing registry
Add repository as filter in the below format
- Organization/repository:tag
- Example openshift/htt*:*
- * to scan all image tags
Enable auto scan to start the scan as soon as image is updated on OpenShift image stream.

openshift

Add OpenShift registry with token

Choose OpenShift registry as type
Give unique name to the registry
Type registry URL (obtain from the output of "oc get is" command in OpenShift network if it is different than default)
- Default registry URL https://docker-registry.default.svc:5000/
Provide token of the service account which has access to all namespaces
- Check below note to create service account and get token.
- Create service account
  - oc project default
  - oc create sa nvqa
  - oc get sa
- Assign cluster admin role to service account to read all registry
  - oc adm policy add-cluster-role-to-user cluster-admin system:serviceaccount:default:nvqa
- Get token for the service account
  - oc sa get-token nvqa
Add repository as filter in the below format
- Organization/repository:tag
- Example openshift/htt*:*
- * to scan all image tags
Enable auto scan to start the scan as soon image is updated on OpenShift image stream.

openshift

Stability issues in Openshift 3.7 Registry

In OpenShift 3.7, API calls to pull container image metadata or to download an image can fail randomly. It can also fail on random images in different scan runs. You may see incomplete image lists or scans may fail on some images when this happens. If this occurs, the repository can be rescanned.

JFrog Artifactory

Adding JFrog Artifactory registry (Docker Access method — Repository Path) JFrog management page admin→HTTP Setting showing docker access method - Repository Path

jfrog

Add JFrog Artifactory registry (Docker Access method — Repository Path)

Choose JFrog Artifactory as type
Give a unique name to the registry
- Type the registry URL with port, for example http://10.1.7.122:8081/
Provide a username and password if required by the registry
Add the repository as a filter in the below format
- Organization/repository:tag
- Repository or tag can have wildcards at end, such as abc/*, abc/n*
- To scan all tags for a repository, for example alpine, use alpine:*
- The wildcard must be preceded by the full name, path, or starting string
- * to scan all tags

Adding JFrog Artifactory registry (Docker Access method — subdomain)

JFrog management page admin→HTTP Setting showing docker access method — Sub Domain

artifactory

Add JFrog Artifactory registry (Docker Access method — subdomain)

Choose JFrog Artifactory as type
Give a unique name to the registry
Type the registry URL with port, for example http://10.1.7.122:8081/
Choose Subdomain as JFrog Docker Access Method
Provide a username and password if required by the registry
Add the repository as a filter in the below format
- Subdomain/repository:tag
- Repository or tag can have wildcards at end, such as abc/*, abc/n*
- To scan all tags for a repository, for example alpine, use alpine:*
- The wildcard must be preceded by the full name, path, or starting string
- * for scanning all tags from all subdomains

Create a virtual repository and add all local and remote repository to it. Specify this virtual repository in the filter section to scan all tags from local and remote remote repository.

Adding subdomain based JFrog registry to scan images from docker-local subdomain

local

Adding subdomain based JFrog registry to scan all tags from all subdomains

all

Add JFrog Artifactory registry (Docker Access method — port)

JFrog management page admin→HTTP Setting showing docker access method - Port

jfrogport

JFrog management page admin→Local Repository→docker-local repository→ Advanced - showing repository URL and registry port 8181

jfrogport

JFrog management page admin→Local Repository→guo repository→ Advanced - showing repository URL and registry port 8182

jfrogport

Choose JFrog Artifactory as type
Give a unique name to the registry
Type the registry URL with port, for example http://10.1.7.122:8181/
- Every Registry name has unique port
Choose Port as JFrog Docker Access Method
Provide a username and password if required by the registry
Add the repository as a filter in the below format
- Organization/repository:tag
- Repository or tag can have wildcards at end, such as abc/, abc/n
- To scan all tags for a repository, for example alpine, use alpine:*
- The wildcard must be preceded by the full name, path, or starting string
- * for scanning all tags

Adding JFrog registry for port access method for registry docker-local with port 8181

jfrogport

Adding JFrog registry for port access method for registry with port 8182

jfrogport

Adding JFrog registry for port access method for the virtual registry with port 8188, which has all local registries added to it.

jfrogport

Showing scanned result for docker-local registry

jfrogport

Add SaaS JFrog Artifactory registry (Docker access method — Port)

Choose JFrog Artifactory as type

Give a unique name to the registry
Type the registry URL, for example https://jfrogtraining-docker-nv-virtual.jfrog.io
Choose Port as JFrog Docker Access Method
Provide a username and password if required by the registry
Add the repository as a filter in the below format
- Organization/repository:tag
- * to scan all tags of all repository

jfrogsaas

Start Scanning a JFrog Artifactory Registry

Select registry to be scanned
Click start button to scan
Wait until status changes from scanning to idle
- Scanning time varies depending on the size of the repository

Google Container Registry

Ref: https://cloud.google.com/container-registry/docs/advanced-authentication https://cloud.google.com/container-registry/docs/advanced-authentication#json_key_file

Enable Cloud Resource Manager API for the project

Google Cloud Platform→Choose Project→API and Services→Enable APIS and Services→Search “Cloud Resource Manager API”→Enable API https://console.cloud.google.com/apis/library?project=nvtest-219600&q=Cloud%20Resource%20Manager%20API (change project name)

gcp

Create key for container service account

Google Cloud Platform→IAM→Service Account→account with container registry→CreateKey(action)

gcpiam

Copy json file to client machine

Add Google Container Registry from the SUSE® Security GUI

Choose Google registry as type
Give unique name to the registry
Type registry URL. Sample https://gcr.io/ (this could also be us.gcr.io, eu.gcr.io etc)
Paste all content above captured json file into JSON key.
Add repository as filter in the below format
- Project-id/repository:tag
- Example nvtestid-1/neuvector*:*
- * to scan all image tags

gcpscan

Start Scanning a Google Container Registry

Select registry to be scanned
Click start button to scan
Wait until status changes from scanning to idle
- Scanning time varies depending on the size of the repository

Azure Container Registry

Ref: https://azure.microsoft.com/en-us/services/container-registry/

Obtain Azure container username and password as shown below

Azure container registry → user→ access keys→password

Showing azure portal username and password for container registry access

azure

Add Azure Container Registry from the SUSE® Security GUI

Choose Azure registry as type
Give unique name to the registry
Type registry URL. Sample https://neuvector.azure.io (obtain from azure portal)
- Container registry→user→Overview→Login Server
Add username and password
- Azure container registry → user→ access keys→password
Add repository as filter in the below format
- repository:tag
- example alpine:*
- * to scan all image tags

Showing azure portal login server for Azure container registry

azure

Adding Azure container registry to scan all tags

azureadd

Start Scanning a Azure Container Registry

Select registry to be scanned
Click start button to scan
Wait until status changes from scanning to idle
- Scanning time varies depending on the size of the repository

Sonatype Nexus Docker registry

Ref: https://help.sonatype.com/repomanager3/private-registry-for-docker https://hub.docker.com/r/sonatype/nexus3/

Add Sonatype Nexus Docker registry

Choose Sonatype Nexus as type
Give unique name to the registry
Type registry URL with port
Provide username and password if required by the registry
Add repository as filter in the below format
- Organization/repository:tag
- Repository can have wildcard with starting string
- Example neuvector/all*:2*
- * to scan all image tags

Adding Sonatype Nexus docker registry with username/password and repository *:* for scanning

sonatype

Start scanning Sonatype Nexus Docker registry

Select registry to be scanned
Click start button to scan
Wait till status changes from scanning to idle
- Scanning time varies depending on the size of the repository

Gitlab Container Registry

Sample GitLab Environmnent Configurations

sudo docker run --detach \
  --hostname gitlab \
  --env GITLAB_OMNIBUS_CONFIG="external_url 'http://10.1.7.73:9096'; gitlab_rails['lfs_enabled'] = true;" \
  --publish 10.1.7.73:9095:9095 --publish 10.1.7.73:9096:9096 --publish 10.1.7.73:6222:22 \
  --name gitlab \
  --restart always \
  --volume /srv/gitlab/config:/etc/gitlab \
  --volume /srv/gitlab/logs:/var/log/gitlab \
  --volume /srv/gitlab/data:/var/opt/gitlab \
gitlab/gitlab-ce:latest
External_URL:  http://10.1.7.73:9096
Registry_URL: https://10.1.7.73:9095

Obtain Gitlab private token as shown below

Navigate to the settings page from the icon located at the upper-righthand corner of the GitLab login page as illustrated below:

gitlab

Navigate to the Access_Tokens page as shown below from the User_Settings page:

gitlab

Fill in all applicable fields, and click “Create personal access token” when ready to generate the access token:

gitlab

Access token will no longer be available once the user has navigated away from the generated token page. Therefore, it is highly recommended to make a copy of the access token prior to navigating or closing the following page:

gitlab

Obtaining External and Registry URLs

External-URL: The external url is the API-Server’s URL.
Registry-URL: This can be obtained from the Container Registry page of the GitLab webconsole. One way to get to this page is navigating from the GitLab’s webconsole from Projects > Your Projects > Administrator / … > Left-Pane (Container Registry) > Mouse-over (root/…/)

The following is a sample screen-capture of the page that reveals both the External-URL and the Registry-URL:

gitlab

Add Gitlab Registry from the SUSE® Security Console

Choose Gitlab as the registry type
Give unique name to the registry
Type registry URL with port
Provide username and password if required by the registry
Provide Gitlab external URL and the private token obtained from the last section

gitlab

The Registry URL is used for pulling images into the SUSE® Security scanner-platform from GitLab to do registry scanning. While the External URL is used for retrieving a list of images, registries, and metadata used by the registry scanning feature.

IBM Cloud Container Registry

Ref: https://www.ibm.com/cloud/container-registry

Add IBM Container registry

Choose IBM Cloud Container Registry as type
Give unique name to the registry
Type registry URL https://us.icr.io/
Provide iamapikey as username and the apikey below as password
- Create apikey from CLI
  - ibmcloud iam api-key-create atibmKey
- Create apikey from GUI
  - IBM Cloud→Manage-Access(IAM)-IBM Cloud API Keys
Provide IBM Cloud Account
- Obtain IBM cloud account from CLI
  - Ibmcloud cr info
Add repository as filter in the below format
- Organization/repository:tag
- Repository can have wildcard with starting string
- Example neuvector/all:2
- - to scan all image tags
Enable other parameters if needed

ibm

The username for the registry authentication must be 'iamapikey'

Harbor Registry

Use the same instructions as for the Native Docker registry, choosing Docker as the registry.

The filter field can not be left blank. Enter a repository filter, or add filter as * to scan all repositories.
