8 MCP Integration #

The Trento MCP Server is an optional component that enables AI-assisted infrastructure management for your SAP landscape. It exposes Trento functionality through the Model Context Protocol (MCP), an open standard that facilitates secure communication between data sources and AI agents. While the core Trento Server operates independently, the Trento MCP Server component allows you to integrate Trento into an agentic AI workflow. This enables the use of Large Language Models (LLMs) to perform common monitoring and troubleshooting tasks using natural language, providing a standardized way for AI tools to access real-time system state and best-practice validations.

8.1 Installing Trento MCP Server #

The Trento MCP Server can be deployed in different ways depending on your infrastructure and requirements.

Supported installation methods:

8.1.1 Prerequisites Trento MCP Server #

The Trento MCP Server is lightweight and stateless. No persistent storage is required; allocate space for logs as per your logging policy. Before installing the Trento MCP Server, both Trento Web and Trento Wanda components must be running and be accessible for the Trento MCP Server to function properly.

There must be network connectivity between the Trento MCP Server and Trento Server components.
Access to the Trento Server URL (important when deployed behind NGINX, or any other reverse proxy) must be possible.

8.1.2 Kubernetes deployment of Trento MCP Server #

The subsection uses the following placeholders:

TRENTO_SERVER_HOSTNAME: the host name used by the end user to access the console.
ADMIN_PASSWORD: the password of the admin user created during the installation process.
The password must meet the following requirements:
- minimum length of 8 characters
- the password must not contain 3 identical numbers or letters in a row (for example, 111 or aaa)
- the password must not contain 4 sequential numbers or letters (for example, 1234, abcd, ABCD)

8.1.2.1 Enable the Trento MCP Server #

When installing Trento Server following the instructions in Section 4.1.1, “Kubernetes deployment”, the Trento MCP Server is disabled by default. Enable it by passing --set trento-mcp-server.enabled=true:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true

The Trento MCP Server will automatically connect to the Trento Web and Trento Wanda internal services within the Kubernetes cluster.

8.1.2.2 Verify the Trento MCP Server installation #

Check that the Trento MCP Server Pod is running:

kubectl get pods -l app.kubernetes.io/name=mcp-server

Example output:

NAME                                       READY   STATUS    RESTARTS   AGE
trento-server-mcp-server-xxxxxxxxxx-xxxxx  1/1     Running   0          2m

Check the logs:

kubectl logs -l app.kubernetes.io/name=mcp-server

Check the Trento MCP Server health endpoints:

# Expose the health check port from the Pod, as it is not exposed as a Kubernetes Service.
kubectl port-forward --namespace default \
  $(kubectl get pods --namespace default -l app.kubernetes.io/name=mcp-server -o jsonpath="{.items[0].metadata.name}") \
  8080:8080

While the previous command is running, perform the following check:

# Liveness endpoint:
curl http://localhost:8080/livez

# Readiness endpoint:
curl http://localhost:8080/readyz

Example output:

# Liveness:
{"info":{"name":"trento-mcp-server","version":"0.1.0"},"status":"up"}

# Readiness:
{"status":"up","details":{"mcp-server":{"status":"up","timestamp":"2025-10-09T12:11:09.528898849Z"},"wanda-api":{"status":"up","timestamp":"2025-10-09T12:11:09.544855047Z"},"web-api":{"status":"up","timestamp":"2025-10-09T12:11:09.544855047Z"}}}

8.1.2.3 Trento MCP Server Helm configuration options #

The Trento MCP Server Helm chart supports various configuration options:

8.1.2.3.1 Customize Ingress Path #

By default, ingress is enabled. To customize the ingress configuration in a basic K3s installation, run the command below:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true \
  --set trento-mcp-server.ingress.hosts[0].host=TRENTO_SERVER_HOSTNAME \
  --set trento-mcp-server.ingress.hosts[0].paths[0].path=/mcp-server-trento \
  --set trento-mcp-server.ingress.hosts[0].paths[0].pathType=ImplementationSpecific

The Trento MCP Server endpoint will be: https://TRENTO_SERVER_HOSTNAME/mcp-server-trento/mcp

8.1.2.3.2 Adjust Log Verbosity #

The default log level is info. Adjust it for debugging:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true \
  --set trento-mcp-server.mcpServer.verbosity=debug

8.1.2.3.3 Adjust Resource Limits #

For production deployments with different resource requirements:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true \
  --set trento-mcp-server.resources.requests.cpu=100m \
  --set trento-mcp-server.resources.requests.memory=128Mi \
  --set trento-mcp-server.resources.limits.cpu=1000m \
  --set trento-mcp-server.resources.limits.memory=1Gi

8.1.2.3.4 Disabling Health Check Probes #

Health check probes are enabled by default. To disable them if needed, run the following command:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true \
  --set trento-mcp-server.livenessProbe.enabled=false \
  --set trento-mcp-server.readinessProbe.enabled=false

8.1.2.4 Complete configuration example #

Below is a complete example that configures external access via a custom ingress path:

helm upgrade --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=https://trento.example.com \
  --set trento-web.adminUser.password=SecurePassword123 \
  --set trento-mcp-server.enabled=true \
  --set trento-mcp-server.mcpServer.trentoURL=https://trento.example.com \
  --set trento-mcp-server.ingress.hosts[0].host=trento.example.com \
  --set trento-mcp-server.ingress.hosts[0].paths[0].path=/mcp-server-trento \
  --set trento-mcp-server.ingress.hosts[0].paths[0].pathType=ImplementationSpecific

8.1.3 systemd deployment #

A systemd-based installation of the Trento MCP Server using RPM packages can be performed manually on the latest supported versions of SUSE Linux Enterprise Server for SAP applications.

Supported versions:

SUSE Linux Enterprise Server for SAP applications 15: SP4–SP7
SUSE Linux Enterprise Server for SAP applications 16.0

8.1.3.1 Installing Trento MCP Server using RPM packages #

Install the Trento MCP Server package:
```
zypper install mcp-server-trento
```

8.1.3.2 Configure Trento MCP Server #

Create the Trento MCP Server configuration file /etc/trento/mcp-server-trento by copying the example:
```
cp /etc/trento/mcp-server-trento.example /etc/trento/mcp-server-trento
```

Edit the configuration file to point to your Trento Server:

vim /etc/trento/mcp-server-trento

Example configuration:

AUTODISCOVERY_PATHS=/api/all/openapi,/wanda/api/all/openapi
ENABLE_HEALTH_CHECK=false
HEADER_NAME=Authorization
HEALTH_API_PATH=/api/healthz
HEALTH_PORT=8080
# OAS_PATH=https://trento.example.com/api/all/openapi,https://trento.example.com/wanda/api/all/openapi
PORT=5000
TAG_FILTER=MCP
TRANSPORT=streamable
TRENTO_URL=https://trento.example.com
VERBOSITY=info
INSECURE_SKIP_TLS_VERIFY=false

Configure the Trento MCP Server using either TRENTO_URL or OAS_PATH.
If OAS_PATH is left empty, the Trento MCP Server automatically discovers the APIs from the Trento Server using TRENTO_URL.
If OAS_PATH is set, it takes precedence and TRENTO_URL is ignored.

Use TRENTO_URL when one or more of the following conditions apply:

Trento Server is deployed behind a reverse proxy (NGINX, etc.).
The Trento MCP Server runs on a different host or network than Trento Server.
You want to use external or public URLs.
You prefer automatic API autodiscovery.

Use OAS_PATH when one or more of the following conditions apply:

You want to connect directly to internal services without autodiscovery.
You need to bypass reverse proxy configurations.

8.1.3.2.1 Start the Trento MCP Server service #

Enable and start the Trento MCP Server service:

systemctl enable --now mcp-server-trento

8.1.3.3 Verify the Trento MCP Server service #

Verify the service is running:

systemctl status mcp-server-trento

Expected output:

● mcp-server-trento.service - Trento MCP Server service
     Loaded: loaded (/usr/lib/systemd/system/mcp-server-trento.service; enabled)
     Active: active (running) since ...

Check the service logs:
```
journalctl -u mcp-server-trento -f
```
If firewalld is running, allow Trento MCP Server to be accessible and add an exception to firewalld:
```
firewall-cmd --zone=public --add-port=5000/tcp --permanent
firewall-cmd --reload
```
If you enabled health checks and want to expose them, also allow the health check port:
```
firewall-cmd --zone=public --add-port=8080/tcp --permanent
firewall-cmd --reload
```

If you enabled health checks, verify the endpoints locally:

# Note: Replace localhost with the server's IP/hostname if running these commands from a remote machine,
# and ensure the health port is allowed by your firewall.

# Liveness endpoint:
curl http://localhost:8080/livez

# Example output:
# {"info":{"name":"trento-mcp-server","version":"0.1.0"},"status":"up"}

# Readiness endpoint:
curl http://localhost:8080/readyz

# Example output:
# {"status":"up","details":{"mcp-server":{"status":"up","timestamp":"2025-10-09T12:11:09.528898849Z"},"wanda-api":{"status":"up","timestamp":"2025-10-09T12:11:09.542078327Z"},"web-api":{"status":"up","timestamp":"2025-10-09T12:11:09.544855047Z"}}}

8.2 Configuring Trento MCP Server #

This section provides an overview of how to configure the Trento MCP Server depending on the deployment method.

8.2.1 Configuration in a Kubernetes deployment #

8.2.1.1 Configuration Sources #

The Trento MCP Server supports multiple configuration sources with the following priority order (highest to lowest):

Environment variables - Used for containerized deployments.
Built-in defaults - Fallback values.

8.2.1.2 Configuration Overview #

Environment Variable	Default Value	Description
`TRENTO_MCP_AUTODISCOVERY_PATHS`	`/api/all/openapi,/wanda/api/all/openapi`	Custom paths for API autodiscovery.
`TRENTO_MCP_ENABLE_HEALTH_CHECK`	`false`	Enable the health check server.
`TRENTO_MCP_CONFIG`	(empty)	Configuration file path.
`TRENTO_MCP_HEADER_NAME`	`Authorization`	Header name used to pass the Trento API key to the Trento MCP Server.
`TRENTO_MCP_HEALTH_API_PATH`	`/api/healthz`	API path used for health checks on target servers.
`TRENTO_MCP_HEALTH_PORT`	`8080`	Port where the health check server runs.
`TRENTO_MCP_INSECURE_SKIP_TLS_VERIFY`	`false`	Skip TLS certificate verification when fetching OAS specs from HTTPS.
`TRENTO_MCP_OAS_PATH`	`[]`	Path(s) to OpenAPI specification file(s). Can be set multiple times.
`TRENTO_MCP_PORT`	`5000`	Port where the Trento MCP Server runs.
`TRENTO_MCP_TAG_FILTER`	`["MCP"]`	Only include operations that contain one of these tags.
`TRENTO_MCP_TRANSPORT`	`streamable`	Protocol to use: `streamable` or `sse`.
`TRENTO_MCP_TRENTO_URL`	(empty)	Target Trento server URL. Required for autodiscovery if OAS path is not set.
`TRENTO_MCP_VERBOSITY`	`info`	Log level: `debug`, `info`, `warning`, or `error`.

8.2.1.3 Kubernetes Deployment Example #

apiVersion: apps/v1
kind: Deployment
metadata:
  name: mcp-server-trento
spec:
  template:
    spec:
      containers:
      - name: mcp-server-trento
        image: mcp-server-trento:latest
        env:
        - name: TRENTO_MCP_PORT
          value: "5000"
        - name: TRENTO_MCP_HEALTH_PORT
          value: "8080"
        - name: TRENTO_MCP_ENABLE_HEALTH_CHECK
          value: "true"
        - name: TRENTO_MCP_TRENTO_URL
          value: "https://trento.example.com"
        - name: TRENTO_MCP_VERBOSITY
          value: "info"
        ports:
        - containerPort: 5000
          name: mcp
        - containerPort: 8080
          name: health

8.2.2 Configuration in an systemd deployment #

8.2.2.1 Configuration Sources #

The Trento MCP Server supports multiple configuration sources with the following priority order (highest to lowest):

Command-line flags - Override config for the current process.
Configuration file - Persistent settings configuration.

8.2.2.2 Configuration Overview #

The mcp-server-trento binary accepts several command-line flags to configure its behavior. The following table lists all available configuration options, their corresponding flags, configuration variables, and default values.

Flag	Config Variable	Default Value	Description
`--autodiscovery-paths, -A`	`AUTODISCOVERY_PATHS`	`/api/all/openapi,/wanda/api/all/openapi`	Custom paths for API autodiscovery.
`--config, -c`	(empty)	(empty)	Configuration file path.
`--enable-health-check, -d`	`ENABLE_HEALTH_CHECK`	`false`	Enable the health check server.
`--header-name, -H`	`HEADER_NAME`	`Authorization`	Header name used to pass the Trento API key to the Trento MCP Server.
`--health-api-path, -a`	`HEALTH_API_PATH`	`/api/healthz`	API path used for health checks on target servers.
`--health-port, -z`	`HEALTH_PORT`	`8080`	Port where the health check server runs.
`--insecure-skip-tls-verify, -i`	`INSECURE_SKIP_TLS_VERIFY`	`false`	Skip TLS certificate verification when fetching OAS specs from HTTPS.
`--oas-path, -P`	`OAS_PATH`	`[]`	Path(s) to OpenAPI specification file(s). Can be set multiple times.
`--port, -p`	`PORT`	`5000`	Port where the Trento MCP Server runs.
`--tag-filter, -f`	`TAG_FILTER`	`["MCP"]`	Only include operations that contain one of these tags.
`--transport, -t`	`TRANSPORT`	`streamable`	Protocol to use: `streamable` or `sse`.
`--trento-url, -u`	`TRENTO_URL`	(empty)	Target Trento server URL. Required for autodiscovery if OAS path is not set.
`--verbosity, -v`	`VERBOSITY`	`info`	Log level: `debug`, `info`, `warning`, or `error`.

8.2.2.3 Configure Trento MCP Server with Command-Line Flags #

Trento MCP Server allows you to override configuration settings using command-line flags for temporary changes. These overrides are not persistent and are lost when the process stops or the system is rebooted. To make configuration changes permanent for the systemd service, update /etc/trento/mcp-server-trento and restart the service.

Basic usage with custom port, verbosity, and target URL:

mcp-server-trento --port 9000 --verbosity debug --trento-url https://trento.example.com

Using multiple OpenAPI specifications:

mcp-server-trento --oas-path https://api1.example.com/openapi.json --oas-path https://api2.example.com/openapi.json

Autodiscovery with custom paths:

mcp-server-trento --trento-url https://trento.example.com --autodiscovery-paths /api/v1/openapi,/wanda/api/v1/openapi

Enable health checks on a custom port:

mcp-server-trento --enable-health-check --health-port 8080 --port 5000

8.2.2.4 Help and Validation #

You can see all available flags by running:

mcp-server-trento --help

The server will validate the configuration on startup and log any issues with debug verbosity enabled.

8.2.3 Health Check Configuration #

The Trento MCP Server includes built-in health check endpoints for systemd and Kubernetes integration.

Note

Health check functionality is disabled by default and must be explicitly enabled using the --enable-health-check flag or the TRENTO_MCP_ENABLE_HEALTH_CHECK environment variable.

8.2.3.1 Health Check Endpoints #

The health check server provides the following endpoints:

/livez - Liveness probe for Kubernetes pod restart decisions.
/readyz - Readiness probe for traffic routing decisions.

The readiness endpoint performs comprehensive health checks, including:

mcp-server - Validates Trento MCP Server connectivity using an MCP client.
api-server - Verifies connectivity to the configured Trento API server.

8.2.3.2 Enable Health Checks with Helm on a Kubernetes deployment #

Enable health checks when deploying on Kubernetes with Helm:

helm upgrade \
  --install trento-server oci://registry.suse.com/trento/trento-server \
  --set global.trentoWeb.origin=TRENTO_SERVER_HOSTNAME \
  --set trento-web.adminUser.password=ADMIN_PASSWORD \
  --set trento-mcp-server.enabled=true \
  --set TRENTO_MCP_ENABLE_HEALTH_CHECK=true \
  --set TRENTO_MCP_HEALTH_PORT=8080

The health port is internal to the Kubernetes cluster. To reach it from the host running Kubernetes, forward the Pod port. Replace NAMESPACE with your target namespace (Helm defaults to default).

kubectl port-forward --namespace NAMESPACE \
  $(kubectl get pods --namespace NAMESPACE -l app.kubernetes.io/name=mcp-server -o jsonpath="{.items[0].metadata.name}") \
  8080:8080 &

With the port forward active, test the endpoints in Testing Health Endpoints.

8.2.3.3 Enable Health Checks with the command-line for systemd deployment #

mcp-server-trento --enable-health-check

mcp-server-trento --enable-health-check --health-port 8080

8.2.3.4 Testing Health Endpoints #

# Test liveness endpoint
curl http://localhost:8080/livez

# Test readiness endpoint
curl http://localhost:8080/readyz

# Expected readiness response format:
# {"status":"up","checks":{"mcp-server":{"status":"up"},"api-server":{"status":"up"},"api-documentation":{"status":"up"}}}

# Expected liveness response format:
# {"status":"up"}

8.2.4 Troubleshooting #

This section provides solutions for common issues when deploying and using the Trento MCP Server.

8.2.4.1 Connection Issues #

Trento MCP Server cannot connect to Trento API
- Verify the TRENTO_URL or OAS_PATH configuration points to accessible endpoints
- Check network connectivity between the Trento MCP Server and Trento components
- Ensure API authentication is properly configured with valid tokens
MCP clients cannot connect to Trento MCP Server
- Verify the Trento MCP Server is running and listening on the correct port (default: 5000)
- Check firewall rules allow access to the Trento MCP Server port
- Ensure the Trento MCP Server endpoint URL is correctly configured in client applications

8.2.4.2 Authentication Issues #

API token authentication fails
- Verify the Personal Access Token is valid and not expired
- Ensure the token has the necessary permissions in Trento
- Check that the HEADER_NAME configuration matches between server and client
Token not accepted
- Confirm the token was generated from the correct Trento instance
- Verify the token format and ensure it includes the "Bearer " prefix if required

8.2.4.3 Configuration Issues #

OpenAPI specification not found
- Check that TRENTO_URL or OAS_PATH point to valid Trento API endpoints
- Verify the Trento Web and Trento Wanda services are running and accessible
- Ensure autodiscovery paths are correct if using TRENTO_URL
Tools not appearing in MCP clients
- Check the TAG_FILTER configuration - only operations with matching tags are exposed
- Verify the OpenAPI specifications are accessible and valid
- Ensure the Trento MCP Server can parse the API documentation

8.2.4.4 Performance Issues #

Slow response times
- Check network latency between Trento MCP Server and Trento components
- Review Trento API performance and database query times
- Consider enabling debug logging to identify bottlenecks
High resource usage
- Monitor Trento MCP Server memory and CPU usage
- Check for memory leaks in long-running processes
- Consider adjusting logging verbosity to reduce I/O overhead

8.2.4.5 Health Check Issues #

Health checks failing
- Verify health check endpoints are accessible
- Check that all required services (Trento API, Trento MCP Server) are responding
- Review health check configuration and timeouts

8.2.4.6 Logging and Debugging #

Enable debug logging
- Set VERBOSITY=debug to get detailed logs
- Check Trento MCP Server logs for error messages and connection attempts
- Review Trento component logs for API-related issues
Common log messages
- "Failed to fetch OpenAPI specification" - Check API endpoint accessibility
- "Authentication failed" - Verify API token configuration
- "No tools available" - Check tag filtering and API documentation

8.2.4.7 Getting Help #

If you continue to experience issues:

Check the Trento MCP Server logs for detailed error messages
Verify configuration values:
1. For systemd deployments, use mcp-server-trento --help
2. For Kubernetes deployments, run Helm with --render-subchart-notes to view the rendered Trento MCP Server settings
Test API connectivity directly using curl or similar tools
Check the Trento server logs for API authentication and access issues

8.3 Using the Trento MCP Server #

The Trento MCP Server provides the interface for AI-assisted infrastructure operations, enabling agentic assistants to integrate with Trento. By utilizing the Model Context Protocol, these assistants can perform monitoring and troubleshooting tasks through natural language. See MCPHost on SLES or Using alternative MCP clients for details.

8.3.1 Integrating the Trento MCP Server with MCPHost #

This guide explains how to connect the Trento MCP Server to SUSE Linux Enterprise Server 16 using MCPHost, a lightweight CLI tool for the Model Context Protocol (MCP).

Important

Supported only on SUSE Linux Enterprise Server for SAP applications 16.0

8.3.1.1 Prerequisites #

To configure MCPHost, ensure you have the following:

8.3.1.2 Prerequisites #

An LLM provider and credentials.
- Public hosted options, such as Google Gemini, OpenAI, etc.
- Private/on-premises option, such as SUSE AI.
A running Trento Server installation with the Trento MCP Server component enabled.
A Trento Personal Access Token generated in Trento Web Profile view.

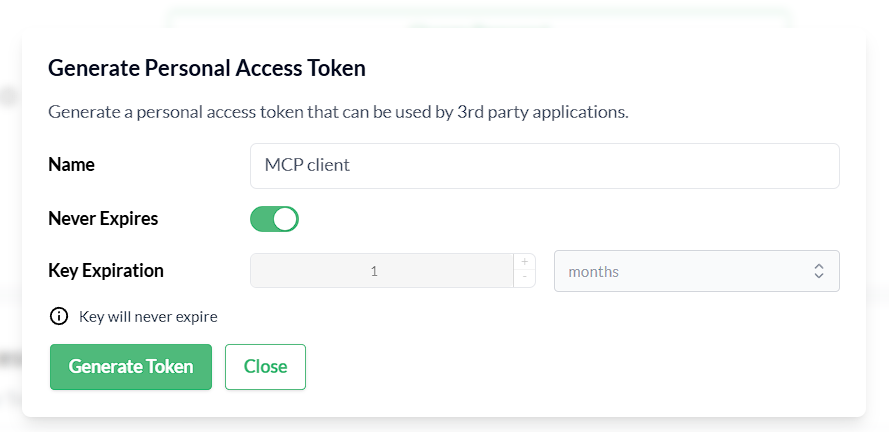

Figure 8.1: Generate a Personal Access Token in Trento #

8.3.1.3 Install MCPHost #

To install MCPHost, open a terminal and run the following commands:

sudo zypper refresh
sudo zypper install mcphost

After installation, verify that MCPHost is available and working by checking its version:

mcphost --version

8.3.1.4 Configure MCPHost #

MCPHost reads its configuration from several locations; one common location is ~/.mcphost.yml. Create ~/.mcphost.yml with the following content:

mcpServers:
  trento-mcp-server:
    type: "remote"
    url: https://trento.example.com/mcp-server-trento/mcp
    headers:
      - "Authorization: Bearer ${env://TRENTO_PAT}"

Replace https://trento.example.com/mcp-server-trento/mcp with the actual URL where your Trento MCP Server is accessible:
- For Kubernetes deployments with ingress, use the ingress URL (e.g., https://trento.example.com/mcp-server-trento/mcp).
- For local or development setups, use http://localhost:5000/mcp (adjust the port as needed).
- The transport type is configured on the Trento MCP Server, if using Server-Sent Events (SSE) transport instead of the default streamable transport, change the path from /mcp to /sse.
If you configured a custom header name (using HEADER_NAME or --header-name), update Authorization accordingly.

Note

Security best practice: Keep secrets out of configuration files. Store your keys in environment variables instead of hardcoding them.

Export your keys in the shell before running MCPHost. For example:

export GOOGLE_API_KEY=<your-google-api-key>
export TRENTO_PAT=<your-trento-personal-access-token>

Tip

Configure remote LLM models directly in your MCPHost configuration. For example, to use Google Gemini as your model provider:

model: "google:gemini-2.5-flash"
provider-url: "https://generativelanguage.googleapis.com/v1beta/openai/"
provider-api-key: "${env://GOOGLE_API_KEY}"
mcpServers:
  mcp-server-trento:
    type: "remote"
    url: https://trento.example.com/mcp-server-trento/mcp
    headers:
      - "Authorization: Bearer ${env://TRENTO_PAT}"

8.3.1.5 Run MCPHost and use Trento tools #

Start MCPHost:
```
mcphost
```
Tip
If no servers appear on startup, confirm your configuration file exists at ~/.mcphost.yml and that your environment variables are exported in the same shell session.
Verify the connection to Trento and basic status:
```
/servers
```

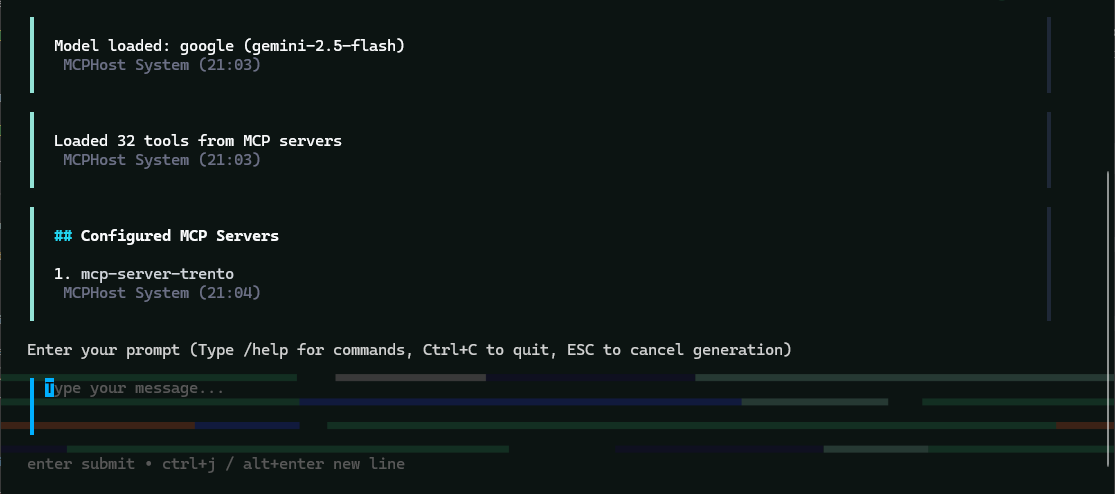

Figure 8.2: MCPHost initial screen with the Trento MCP Server connected #

8.3.1.6 Use MCPHost to interact with Trento Server #

Ask the model to invoke Trento tools using natural language prompts, such as: #

"List all SAP systems managed".
"Show my HANA clusters".
"Are my SAP systems compliant?"
"What is the health status of my SAP landscape?"
"Show me all hosts running SAP applications".
"Are there any critical alerts I need to address?"
"Get details about the latest check execution results".
"Which SAP systems are currently running?"

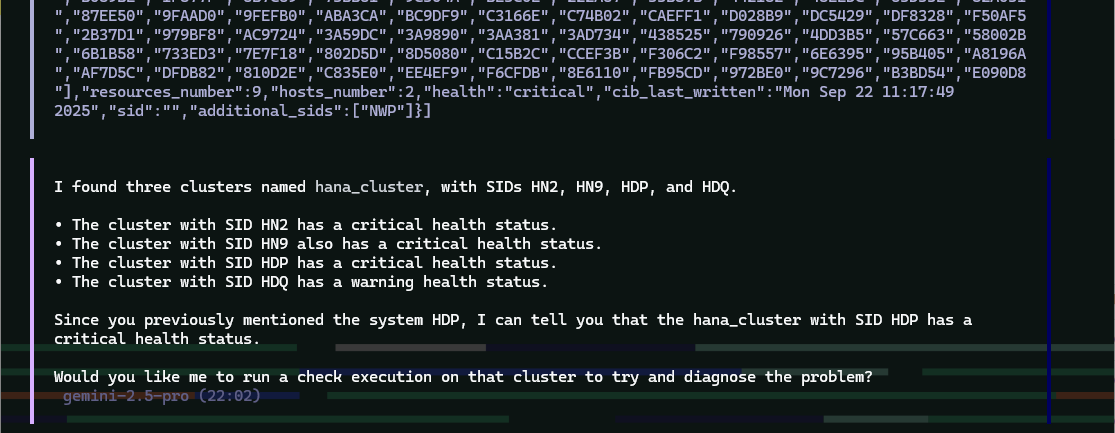

Example MCPHost session querying Trento about SAP systems:

8.3.1.7 MCPHost Troubleshooting #

If you encounter issues connecting MCPHost to the Trento MCP Server:

Connection errors
- Verify that the Trento MCP Server URL in ~/.mcphost.yml is correct and accessible from your system.
- Check if the Trento MCP Server is running by reviewing logs from your Trento installation.
- Ensure network connectivity and that any required firewall rules are in place.
- Test basic connectivity: curl -I https://trento.example.com/mcp-server-trento/mcp.
Authentication errors
- Verify that your personal access token is valid by testing it directly with your Trento Server API.
- Ensure TRENTO_PAT is exported in the same shell session before running mcphost.
- Check that the header name matches your server configuration (default: Authorization).
- Ensure the token has the necessary permissions in Trento.
LLM provider errors
- Verify that LLM GOOGLE_API_KEY (or your provider’s API key) is exported correctly.
- Check the provider-url and model configuration in your ~/.mcphost.yml.
- Confirm that your API key has sufficient quota and permissions with your provider.
General issues
- Check the MCPHost terminal output for detailed error messages during startup or operation.
- Review the Trento MCP Server logs for connection attempts and errors.
- Verify that your configuration file exists at ~/.mcphost.yml and has correct YAML syntax.

8.3.2 Integrating the Trento MCP Server with other clients #

The Trento MCP Server can be integrated with any client application that supports the Model Context Protocol. This makes it possible to interact with the Trento API and execute tools defined in the OpenAPI specification through your preferred AI assistant or development tool.

This guide uses Visual Studio Code with GitHub Copilot as an example, but the configuration procedures apply to any MCP-compatible client.

8.3.2.1 Prerequisites #

To configure your client, make sure that you have the following:

8.3.2.2 Prerequisites #

An LLM provider and credentials.
- Public hosted options, such as Google Gemini, OpenAI, etc.
- Private/on-premises option, such as SUSE AI.
A running Trento Server installation with the Trento MCP Server component enabled.
A Trento Personal Access Token generated in Trento Web Profile view.
Figure 8.3: Generate a Personal Access Token in Trento #

8.3.2.3 Configuring your client #

Once you have your Trento Server installation ready with the Trento MCP Server URL and API token, you can configure the MCP Server client. The examples below show JSON configuration format used by most MCP Server clients, including VS Code, Claude Desktop, and others.

8.3.2.3.1 Option 1: Configuration with prompted input #

This configuration asks for your personal access token when the client starts, keeping credentials secure and out of configuration files. The password: true setting ensures your personal access token input is masked when you type it.

Note

This option is supported by most clients, including VS Code. Check your client’s documentation if the prompt feature is not available.

{
  "servers": {
    "trento": {
      "type": "http",
      "url": "https://trento.example.com/mcp-server-trento/mcp",
      "headers": {
        "Authorization": "${input:trento-personal-access-token}"
      }
    }
  },
  "inputs": [
    {
      "type": "promptString",
      "id": "trento-personal-access-token",
      "description": "Trento API key",
      "password": true
    }
  ]
}

8.3.2.3.2 Option 2: Direct header configuration #

For clients that don’t support prompted input, or for testing purposes, set your Trento personal access token directly in the configuration file.

Warning

When using this option, ensure your configuration file has appropriate permissions and is not committed to version control systems.

{
  "servers": {
    "trento": {
      "type": "http",
      "url": "https://trento.example.com/mcp-server-trento/mcp",
      "headers": {
        "Authorization": "trento-personal-access-token"
      }
    }
  }
}

Note

Replace https://trento.example.com/mcp-server-trento/mcp with your actual Trento MCP Server endpoint URL from your installation.

8.3.2.3.3 Client options #

For detailed guidance on taking advantage of MCP capabilities in different tools, refer to the following official documentation:

Visual Studio Code with GitHub Copilot - MCP Server Configuration.
Claude Desktop - Model Context Protocol Integration.
Cursor - AI-powered code editor with MCP support.
Google Cloud Gemini Code Assist - Agentic Chat.
Windsurf - Cascade MCP Support.
