This is unreleased documentation for SUSE® Storage 1.10 (Dev).

Clone Volumes

SUSE Storage supports CSI volume cloning.

Clone a Volume Using YAML

Suppose that you have the following source-pvc:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: source-pvc
spec:
  storageClassName: longhorn
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

You can create a new PVC that has the exact same content as the source-pvc by applying the following yaml file:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cloned-pvc
spec:
  storageClassName: longhorn
  dataSource:
    name: source-pvc
    kind: PersistentVolumeClaim
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

Note: In addition to the requirements listed at CSI volume cloning, the cloned-pvc must have the same resources.requests.storage as the source-pvc.

Clone Volume Using the SUSE Storage UI

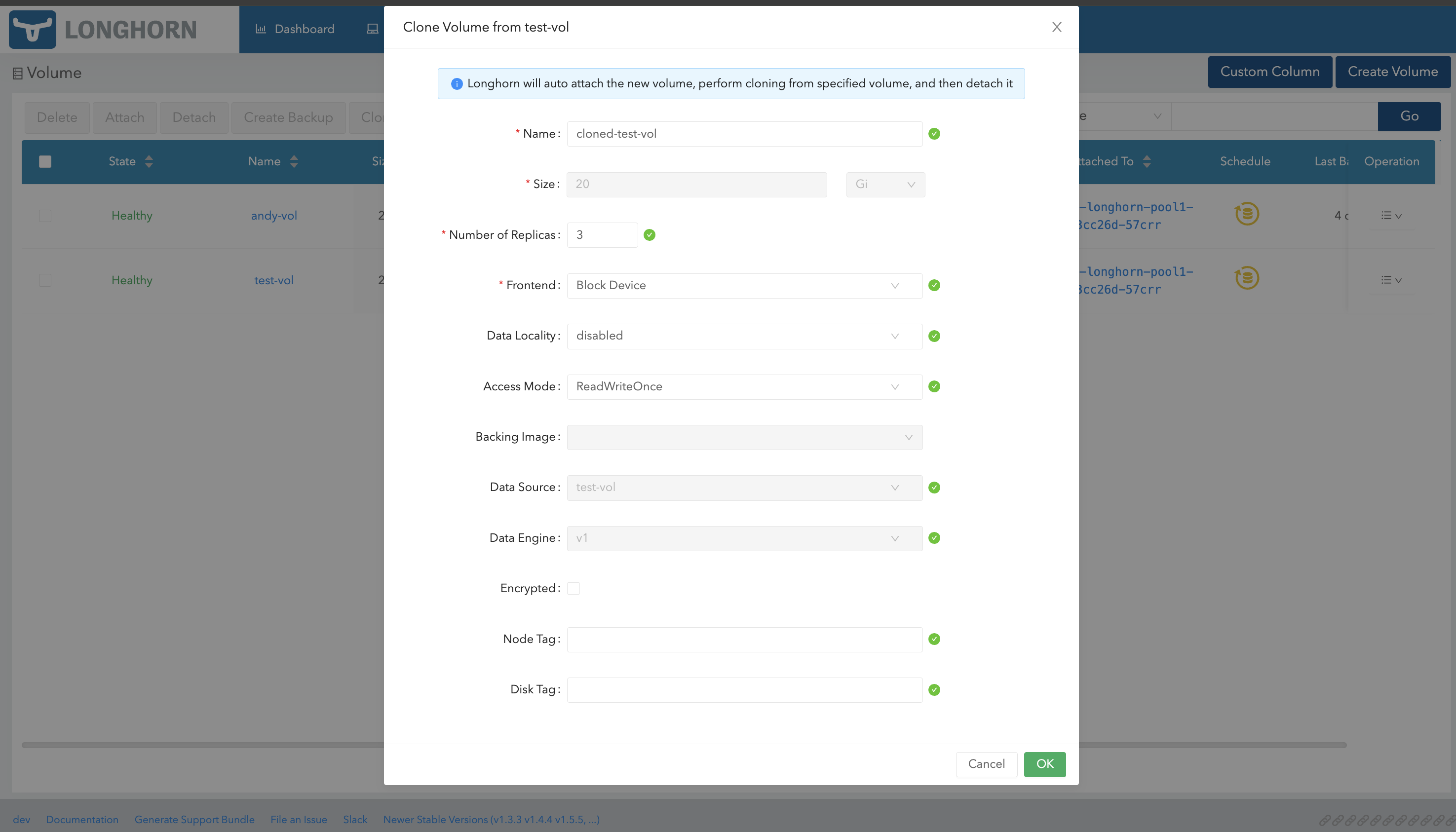

Clone a volume

Go to the Volumes page.
Select a volume, and then click Clone Volume in the Operation menu.
(Optional) Configure the settings of the new volume.
Click OK.

Clone a Volume Using a Snapshot

Go to the Volumes page.
Click the name of the volume that you want to clone.
In the Snapshot and Backups section of the details screen, identify the snapshot that you want to use and then click Clone Volume.
(Optional) Configure the settings of the new volume.
Click OK.

Clone Multiple Volumes (Bulk Cloning)

Go to the Volumes page.
Select the volume you want to clone.
Click Clone Volume button on top of the table.
(Optional) Configure the settings of the new volumes
Click OK

The SUSE Storage UI pre-fills certain fields and prevents you from modifying the values to ensure that those match the settings of the source volume.
SUSE Storage automatically attaches the new volume, clones the source volume, and then detaches the new volume.

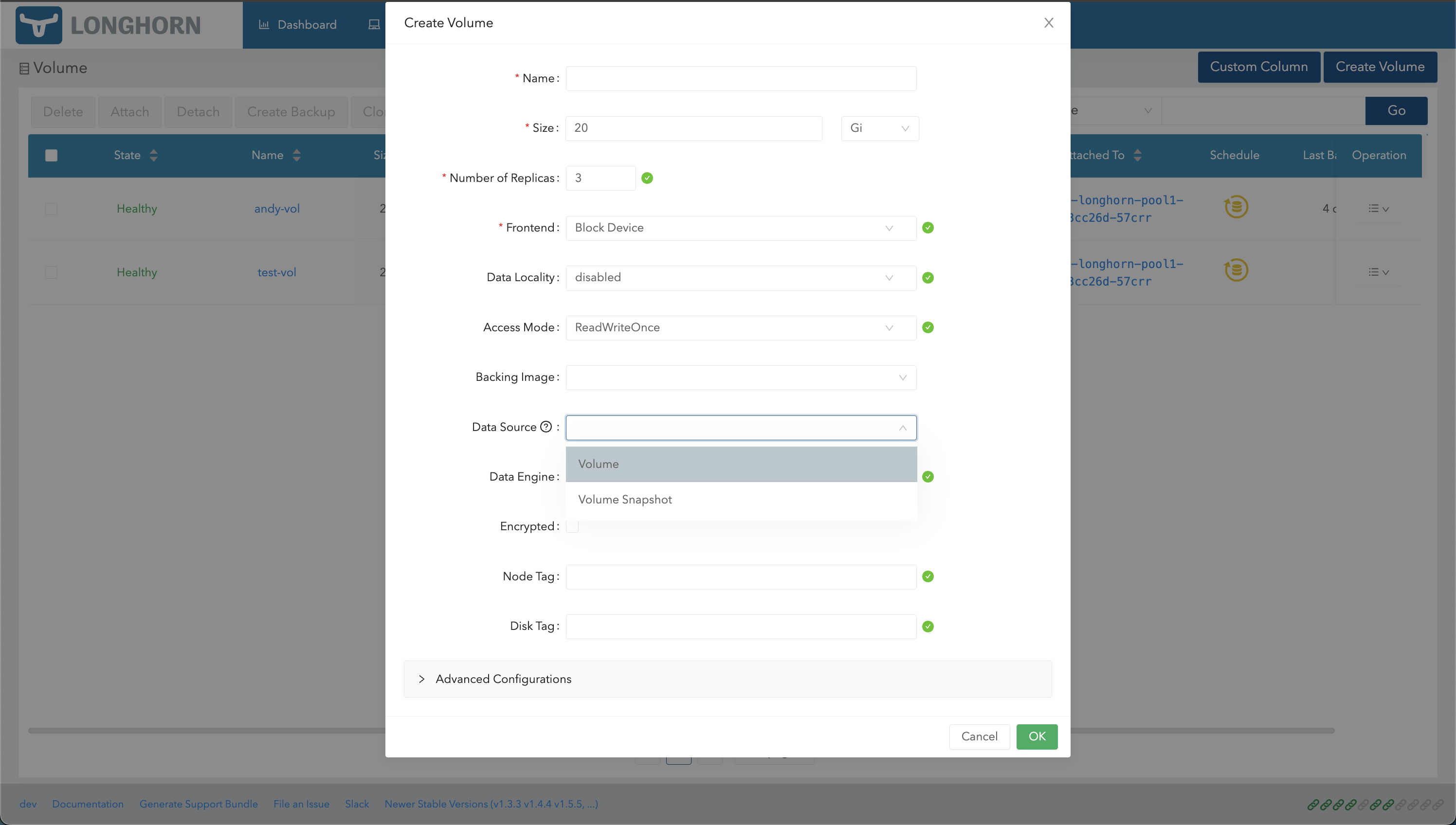

Volume Creation

Go to the Volumes page.
Click Create Volume.
Select the data source (Volume or Volume Snapshot) that you want to use.
If you select Volume Snapshot, choose a snapshot.
Specify the volume name.
Click OK.
