Rancher Terraform

Rancher Terraform Provider 允许管理员使用 Terraform 创建和管理 RKE2 客户集群。

部署

先决条件

Kubernetes 集群构建在 Harvester 虚拟机之上。
作为客户 Kubernetes 节点运行的 Harvester 虚拟机位于同一名称空间中。

使用 Rancher Terraform Provider 部署客户集群

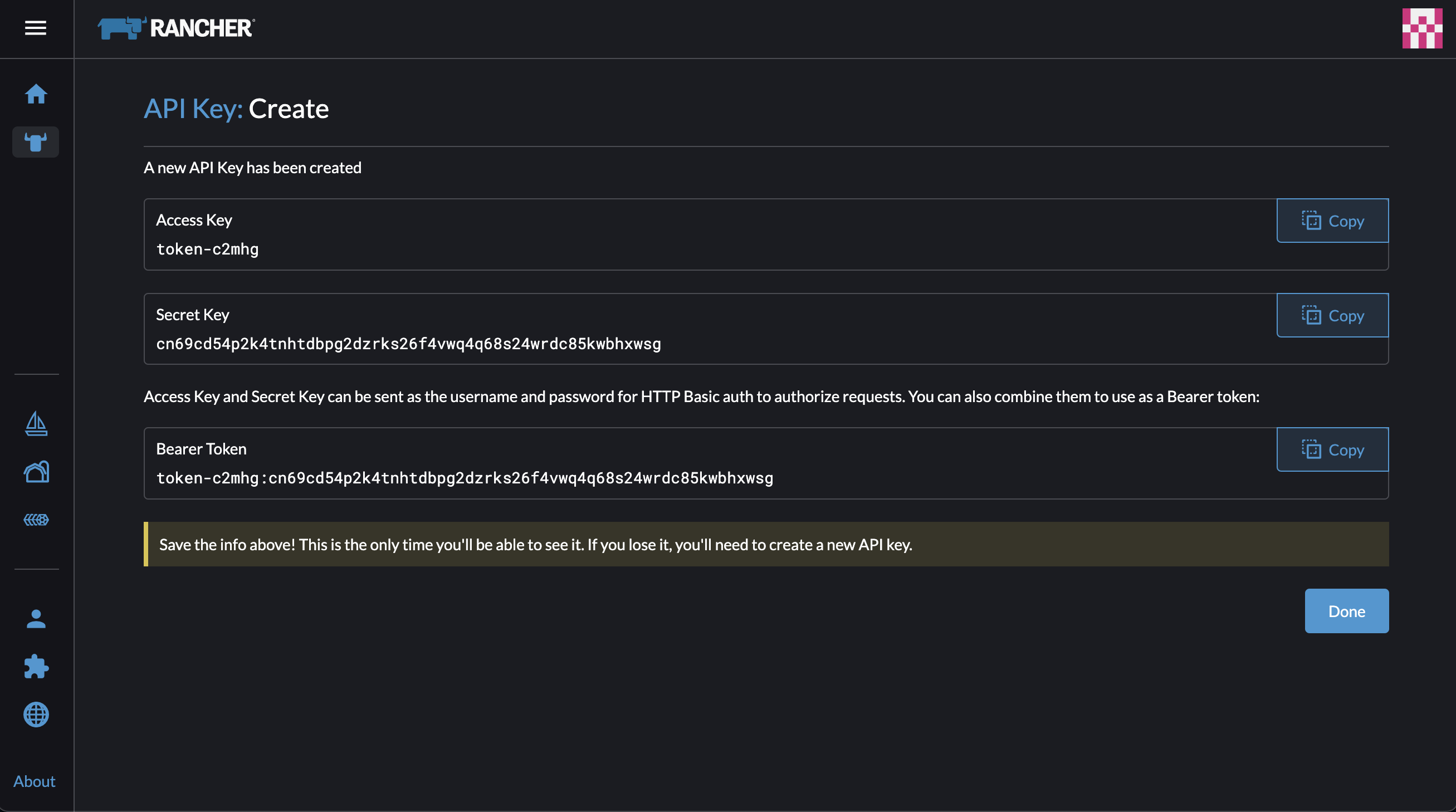

创建一个 API 密钥。

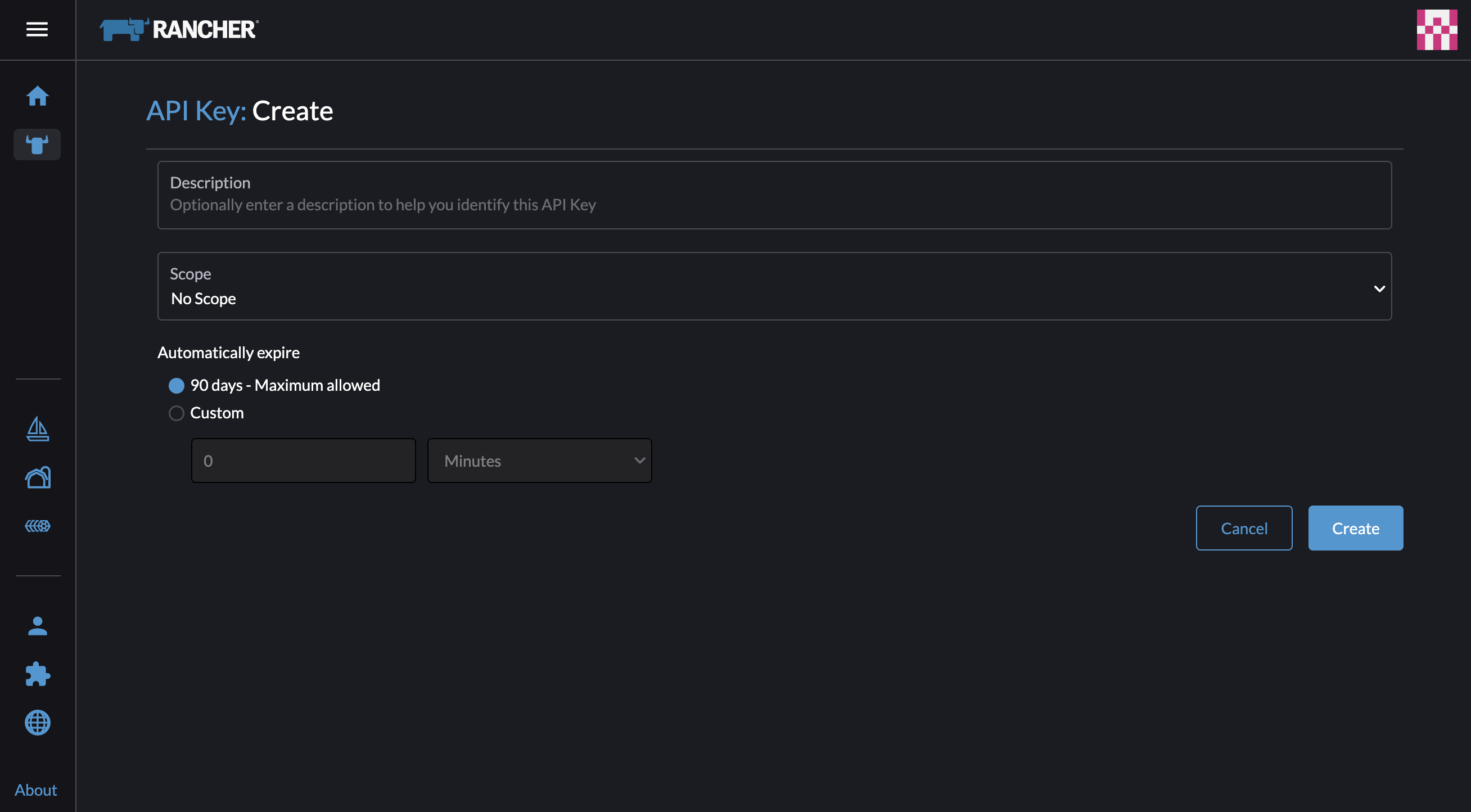

在 Rancher UI 中，转到 账户与 API 密钥 > 创建 API 密钥 > 创建。

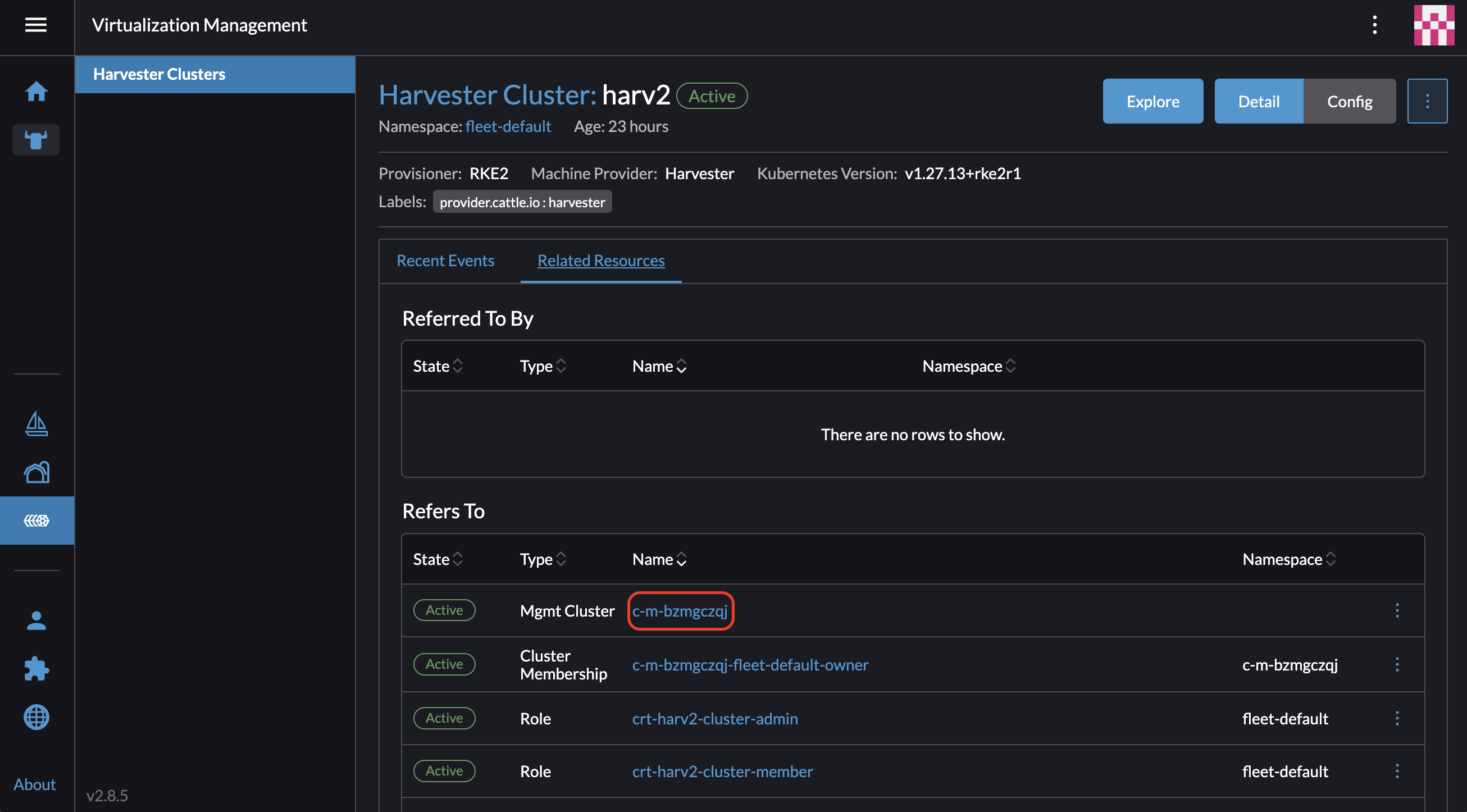

获取 Harvester 集群 ID。

在 Rancher UI 中，转到 虚拟化管理 > 管理 > 相关资源 > 管理集群名称。

获取 Harvester 云提供商和 Harvester CSI 驱动程序的 kubeconfig。

UI
外壳

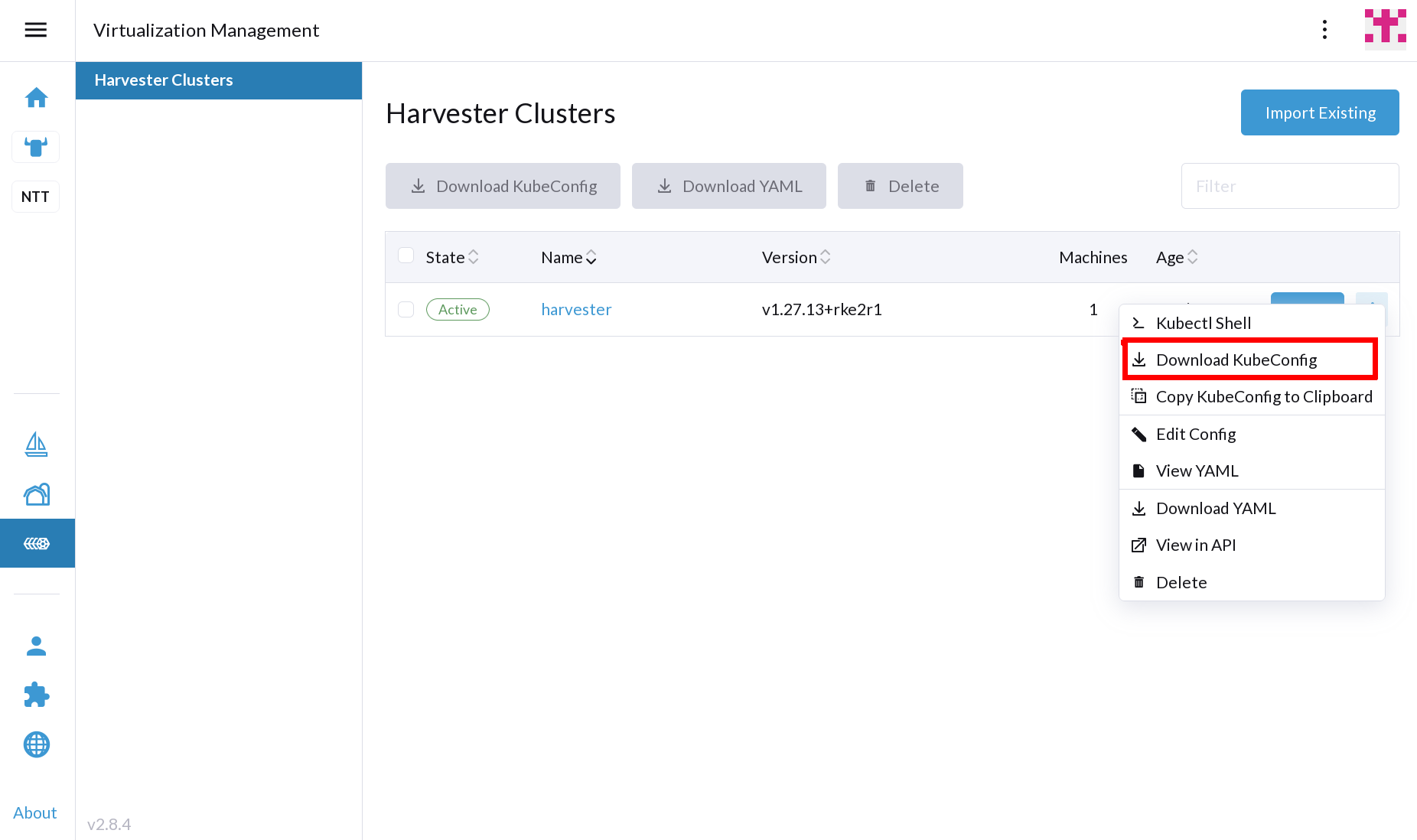

在 Rancher UI 中，转到 虚拟化管理。在列表中找到目标 Harvester 集群，然后选择 ⋮ > 下载 KubeConfig。

# Generate harvester cloud provider kubeconfig
RANCHER_SERVER_URL="<RANCHER_SERVER_URL>" # Pure server URL like https://192.168.0.181:6443
RANCHER_ACCESS_KEY="<RANCHER_ACCESS_KEY>"
RANCHER_SECRET_KEY="<RANCHER_SECRET_KEY>"
HARVESTER_CLUSTER_ID="<HARVESTER_CLUSTER_ID>"
CLUSTER_NAME="rke2-demo"
curl -k -X POST ${RANCHER_SERVER_URL}/k8s/clusters/${HARVESTER_CLUSTER_ID}/v1/harvester/kubeconfig \
-H 'Content-Type: application/json' \
-u ${RANCHER_ACCESS_KEY}:${RANCHER_SECRET_KEY} \
-d '{"clusterRoleName": "harvesterhci.io:cloudprovider", "namespace": "default", "serviceAccountName": "'${CLUSTER_NAME}'"}' | xargs | sed 's/\\n/\n/g' > ${CLUSTER_NAME}-kubeconfig

准备一个 provider.tf 文件，并包含以下内容：

 terraform {
 required_providers {
     rancher2 = {
         source  = "rancher/rancher2"
         version = "4.2.0"
         }
     }
 }

 # Configure the Rancher2 provider to admin
 provider "rancher2" {
     api_url    = "<api_url>" # API Endpoint on Account & API Keys page
     access_key = "<access_key>"
     secret_key = "<secret_key>"
     insecure   = true # Set to true if the Rancher server uses a self-signed certificate
 }

准备一个 main.tf 文件，并包含以下内容：

 # Get imported harvester cluster info
 data "rancher2_cluster_v2" "harv" {
     name = "<harvester_cluster_name_in_rancher>"
 }

 # Create a new Cloud Credential for an imported Harvester cluster
 resource "rancher2_cloud_credential" "harv-cred" {
     name = "harv-cred"
     harvester_credential_config {
         cluster_id = data.rancher2_cluster_v2.harv.cluster_v1_id
         cluster_type = "imported"
         kubeconfig_content = data.rancher2_cluster_v2.harv.kube_config
     }
 }

 # Create a new rancher2 machine config v2 using harvester node_driver
 resource "rancher2_machine_config_v2" "rke2-machine" {
     generate_name = "rke2-machine"
     harvester_config {
         vm_namespace = "default"
         cpu_count = "2"
         memory_size = "4"
         disk_info = <<EOF
         {
             "disks": [{
                 "imageName": "default/<vmimage-name>",
                 "size": 15,
                 "bootOrder": 1
             }]
         }
         EOF
         network_info = <<EOF
         {
             "interfaces": [{
                 "networkName": "default/<network-name>"
             }]
         }
         EOF
         ssh_user = "<ssh_user>"
         user_data = <<EOF
         package_update: true
         packages:
         - qemu-guest-agent
         - iptables
         runcmd:
         - - systemctl
             - enable
             - '--now'
             - qemu-guest-agent.service
         EOF
     }
 }

 resource "rancher2_cluster_v2" "rke2-demo" {
     name = "rke2-demo"
     kubernetes_version = "v1.28.10+rke2r1"
     rke_config {
         machine_pools {
             name = "pool1"
             cloud_credential_secret_name = rancher2_cloud_credential.harv-cred.id
             control_plane_role = true
             etcd_role = true
             worker_role = true
             quantity = 1
             machine_config {
                 kind = rancher2_machine_config_v2.rke2-machine.kind
                 name = rancher2_machine_config_v2.rke2-machine.name
             }
         }

         machine_selector_config {
             config = yamlencode({
                 cloud-provider-config = file("${path.module}/rke2-demo-kubeconfig")
                 cloud-provider-name = "harvester"
             })
         }

         machine_global_config = <<EOF
         cni: "calico"
         disable-kube-proxy: false
         etcd-expose-metrics: false
         EOF

         upgrade_strategy {
             control_plane_concurrency = "1"
             worker_concurrency = "1"
         }

         etcd {
             snapshot_schedule_cron = "0 */5 * * *"
             snapshot_retention = 5
         }

         chart_values = <<EOF
         harvester-cloud-provider:
         clusterName: rke2-demo
         cloudConfigPath: /var/lib/rancher/rke2/etc/config-files/cloud-provider-config
         EOF
     }
 }

运行 terraform init。
运行 terraform apply。
