Clone Volumes

SUSE Storage supports CSI volume cloning.

Volume Cloning

Clone a Volume Using YAML

V1 Data Engine

Suppose that you have the following source-pvc:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: source-pvc
spec:
  storageClassName: longhorn
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

You can create a new PVC that has the exact same content as the source-pvc by applying the following yaml file:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cloned-pvc
spec:
  storageClassName: longhorn
  dataSource:
    name: source-pvc
    kind: PersistentVolumeClaim
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

Along with the requirements listed at CSI volume cloning, the cloned-pvc must have the same resources.requests.storage as the source-pvc.

V2 Data Engine

Assume you have a StorageClass named longhorn-v2 with dataEngine: "v2", and a PVC named source-pvc-v2 provisioned from it. You can clone it using one of two modes:

1. Clone using `full-copy` mode

You can create a new PVC with the exact same content as source-pvc-v2 by applying the YAML below. SUSE Storage copies the data from the source PVC to the new PVC.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cloned-pvc-v2
spec:
  storageClassName: longhorn-v2
  dataSource:
    name: source-pvc-v2
    kind: PersistentVolumeClaim
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

2. Clone using `linked-clone` mode

The full-copy mode creates a new PVC that is fully independent of the source PVC, but it requires time and resources to copy the data. If you need to quickly create a temporary PVC with the same content as the source without copying the data (for example, for backup solutions like Velero or Kasten), you can use the linked-clone mode. This mode creates a new PVC that shares the same data blocks as the source PVC.

First, create a StorageClass with cloneMode set to linked-clone:

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: longhorn-v2-linked-clone
provisioner: driver.longhorn.io
reclaimPolicy: Delete
volumeBindingMode: Immediate
parameters:
  dataEngine: "v2"
  cloneMode: "linked-clone"
  numberOfReplicas: "1"
  staleReplicaTimeout: "2880"

Next, create a new PVC that uses the above StorageClass and references the source PVC in the dataSource field:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cloned-pvc-v2-linked-clone
spec:
  storageClassName: longhorn-v2-linked-clone
  dataSource:
    name: source-pvc-v2
    kind: PersistentVolumeClaim
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

The linked-clone mode is only supported by the v2 data engine.
A PVC created using linked-clone shares data blocks with the source and has the following limitations:
- It can have only one replica.
- It cannot be snapshotted or backed up.
- It cannot be used as the source for another clone operation.
- A source PVC can only have one linked-clone PVC at a time.
- linked-clone PVCs are designed to be short-lived. It is highly recommended to delete them when no longer needed. For more examples of linked-clone, see the blog - Backup Applications with Longhorn V2 Volumes using Velero.

Clone CSI Snapshot

To clone a CSI snapshot, refer to the documentation on Creating a Volume from a Snapshot.

Clone Volume Using the SUSE Storage UI

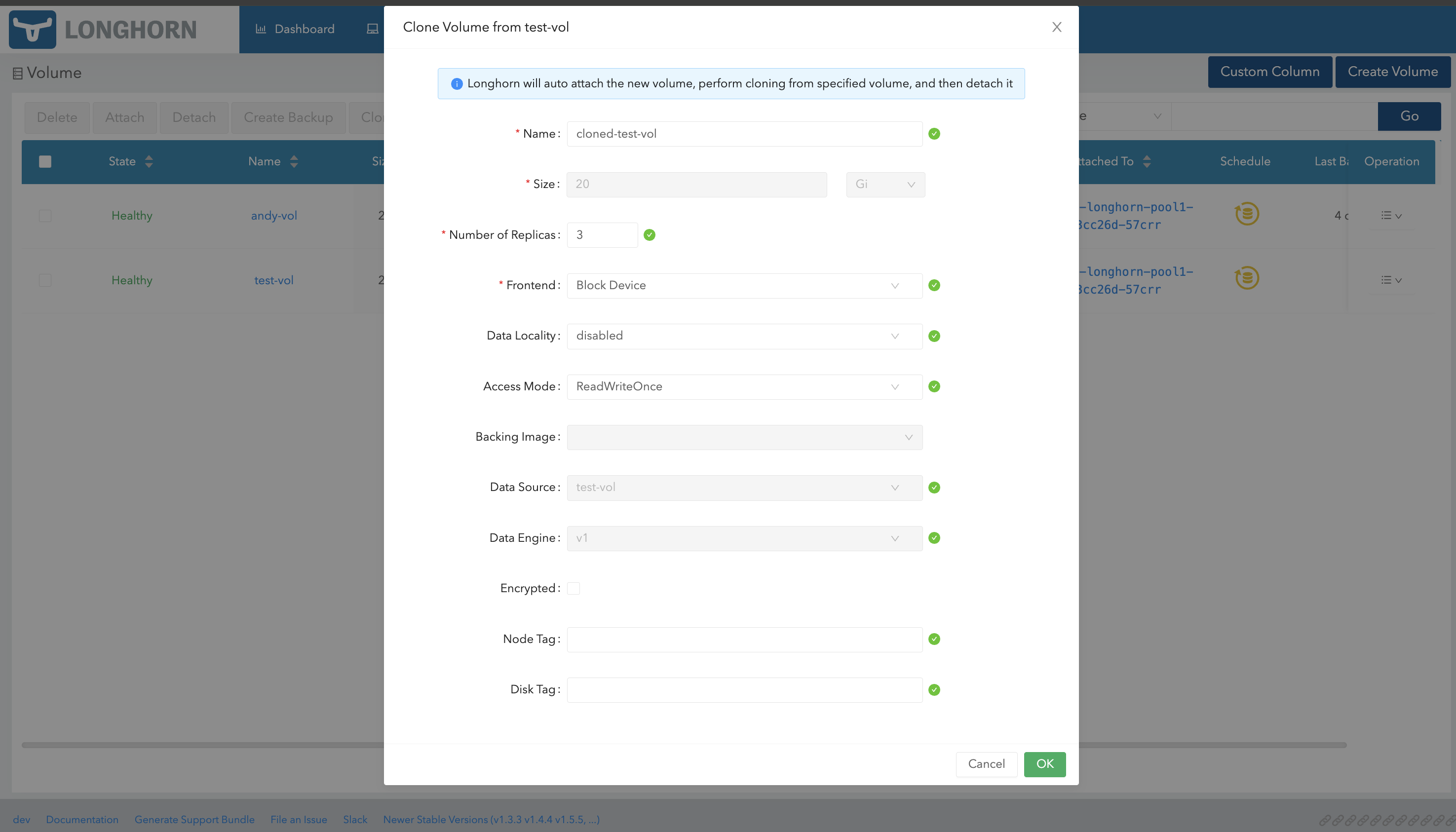

Clone a volume

Go to the Volumes page.
Select a volume, and then click Clone Volume in the Operation menu.
(Optional) Configure the settings of the new volume.
Click OK.

Clone a Volume Using a Snapshot

Go to the Volumes page.
Click the name of the volume that you want to clone.
In the Snapshot and Backups section of the details screen, identify the snapshot that you want to use and then click Clone Volume.
(Optional) Configure the settings of the new volume.
Click OK.

Clone Multiple Volumes (Bulk Cloning)

Go to the Volumes page.
Select the volume you want to clone.
Click Clone Volume button on top of the table.
(Optional) Configure the settings of the new volumes
Click OK

The SUSE Storage UI pre-fills certain fields and prevents you from modifying the values to ensure that those match the settings of the source volume.
SUSE Storage automatically attaches the new volume, clones the source volume, and then detaches the new volume.
With efficient cloning enabled, a newly cloned and detached volume is degraded and has only one replica, with its clone status set to copy-completed-awaiting-healthy. To bring the volume to a healthy state, transition the clone status to completed and rebuild the remaining replica by either enabling offline replica rebuilding or attaching the volume to trigger replica rebuilding. See Issue #12341 and Issue #12328.

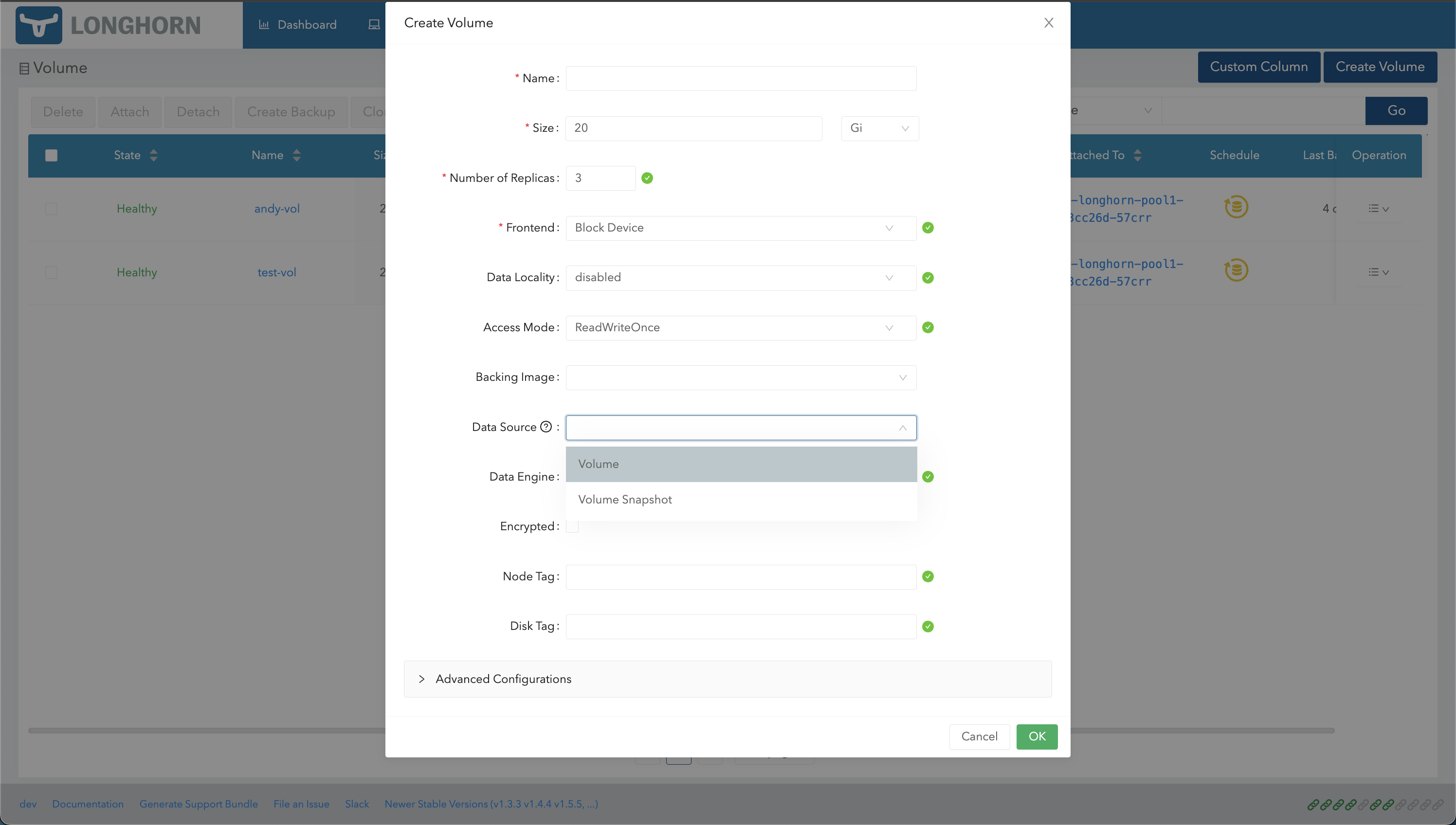

Volume Creation

Go to the Volumes page.
Click Create Volume.
Select the data source (Volume or Volume Snapshot) that you want to use.
If you select Volume Snapshot, choose a snapshot.
Specify the volume name.
Click OK.

History

Available since v1.2.0 (V1 Data Engine) and v1.10.0 (V2 Data Engine).
