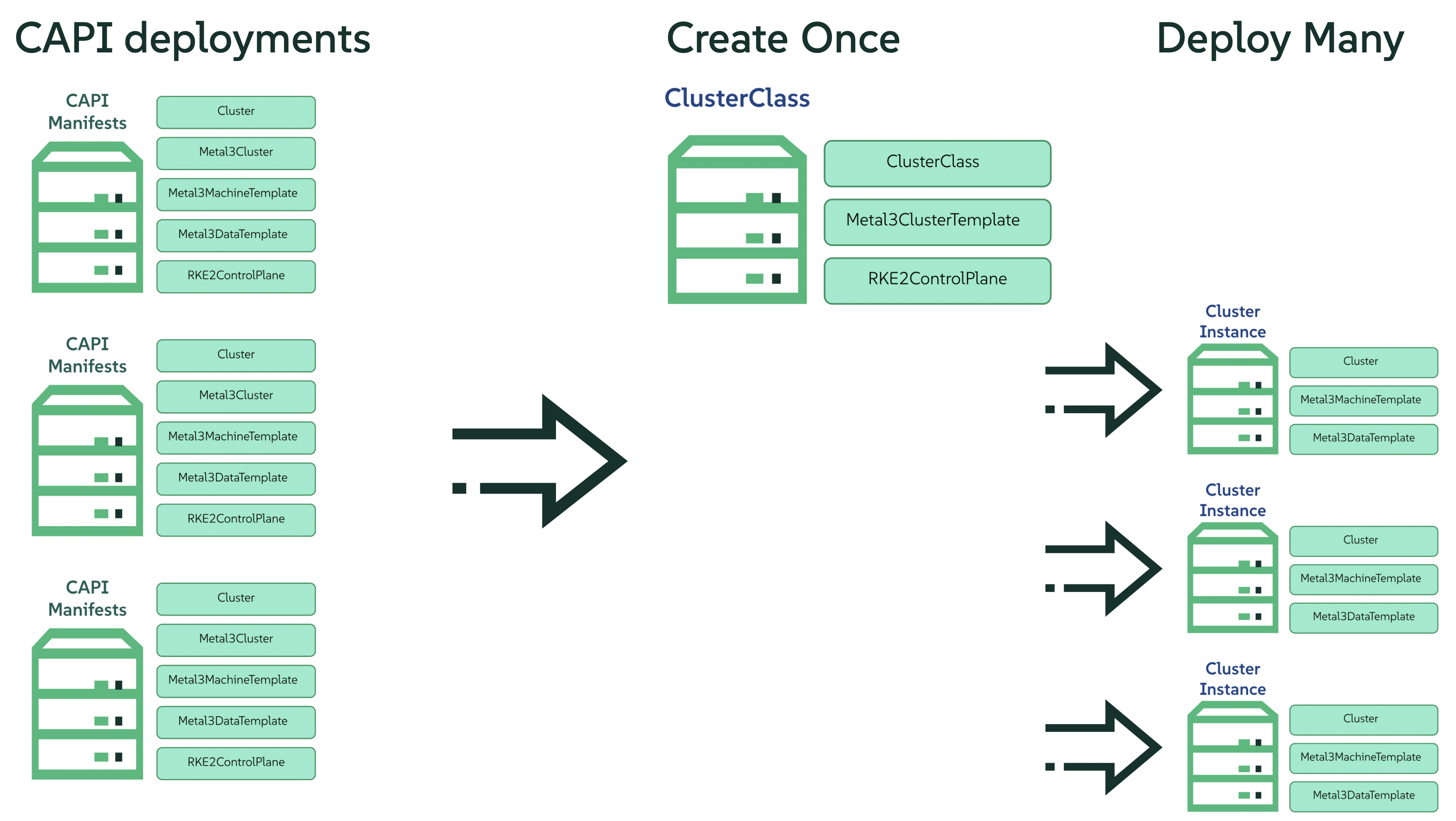

29 ClusterClassを使用したダウンストリームクラスタのデプロイ #

apiVersion: controlplane.cluster.x-k8s.io/v1beta1
kind: RKE2ControlPlaneTemplate
metadata:
  name: example-controlplane-type2
  namespace: emea-spa
spec:
  template:
    spec:
      infrastructureRef:
        apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
        kind: Metal3MachineTemplate
        name: example-controlplane    # This will be replaced by the patch applied in each cluster instances
        namespace: emea-spa
      replicas: 1
      version: v1.32.4+rke2r1
      rolloutStrategy:
        type: "RollingUpdate"
        rollingUpdate:
          maxSurge: 1
      registrationMethod: "control-plane-endpoint"
      registrationAddress: "default"  # This will be replaced by the patch applied in each cluster instances
      serverConfig:
        cni: cilium
        cniMultusEnable: true
        tlsSan:
          - "default"  # This will be replaced by the patch applied in each cluster instances
      agentConfig:
        format: ignition
        additionalUserData:
          config: |
            default
        kubelet:
          extraArgs:
            - provider-id=metal3://BAREMETALHOST_UUID
        nodeName: "localhost.localdomain"
---
apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
kind: Metal3ClusterTemplate
metadata:
  name: example-cluster-template-type2
  namespace: emea-spa
spec:
  template:
    spec:
      controlPlaneEndpoint:
        host: "default"  # This will be replaced by the patch applied in each cluster instances
        port: 6443
      noCloudProvider: true
---
apiVersion: cluster.x-k8s.io/v1beta1
kind: ClusterClass
metadata:
  name: example-clusterclass-type2
  namespace: emea-spa
spec:
  variables:
    - name: controlPlaneMachineTemplate
      required: true
      schema:
        openAPIV3Schema:
          type: string
    - name: controlPlaneEndpointHost
      required: true
      schema:
        openAPIV3Schema:
          type: string
    - name: tlsSan
      required: true
      schema:
        openAPIV3Schema:
          type: array
          items:
            type: string
  infrastructure:
    ref:
      kind: Metal3ClusterTemplate
      apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
      name: example-cluster-template-type2
  controlPlane:
    ref:
      kind: RKE2ControlPlaneTemplate
      apiVersion: controlplane.cluster.x-k8s.io/v1beta1
      name: example-controlplane-type2
  patches:
    - name: setControlPlaneMachineTemplate
      definitions:
        - selector:
            apiVersion: controlplane.cluster.x-k8s.io/v1beta1
            kind: RKE2ControlPlaneTemplate
            matchResources:
              controlPlane: true
          jsonPatches:
            - op: replace
              path: "/spec/template/spec/infrastructureRef/name"
              valueFrom:
                variable: controlPlaneMachineTemplate
    - name: setControlPlaneEndpoint
      definitions:
        - selector:
            apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
            kind: Metal3ClusterTemplate
            matchResources:
              infrastructureCluster: true  # Added to select InfraCluster
          jsonPatches:
            - op: replace
              path: "/spec/template/spec/controlPlaneEndpoint/host"
              valueFrom:
                variable: controlPlaneEndpointHost
    - name: setRegistrationAddress
      definitions:
        - selector:
            apiVersion: controlplane.cluster.x-k8s.io/v1beta1
            kind: RKE2ControlPlaneTemplate
            matchResources:
              controlPlane: true  # Added to select ControlPlane
          jsonPatches:
            - op: replace
              path: "/spec/template/spec/registrationAddress"
              valueFrom:
                variable: controlPlaneEndpointHost
    - name: setTlsSan
      definitions:
        - selector:
            apiVersion: controlplane.cluster.x-k8s.io/v1beta1
            kind: RKE2ControlPlaneTemplate
            matchResources:
              controlPlane: true  # Added to select ControlPlane
          jsonPatches:
            - op: replace
              path: "/spec/template/spec/serverConfig/tlsSan"
              valueFrom:
                variable: tlsSan
    - name: updateAdditionalUserData
      definitions:
        - selector:
            apiVersion: controlplane.cluster.x-k8s.io/v1beta1
            kind: RKE2ControlPlaneTemplate
            matchResources:
              controlPlane: true
          jsonPatches:
            - op: replace
              path: "/spec/template/spec/agentConfig/additionalUserData"
              valueFrom:
                template: |
                  config: |
                    variant: fcos
                    version: 1.4.0
                    storage:
                      files:
                        - path: /var/lib/rancher/rke2/server/manifests/endpoint-copier-operator.yaml
                          overwrite: true
                          contents:
                            inline: |
                              apiVersion: helm.cattle.io/v1
                              kind: HelmChart
                              metadata:
                                name: endpoint-copier-operator
                                namespace: kube-system
                              spec:
                                chart: oci://registry.suse.com/edge/charts/endpoint-copier-operator
                                targetNamespace: endpoint-copier-operator
                                version: 303.0.0+up0.2.1
                                createNamespace: true
                        - path: /var/lib/rancher/rke2/server/manifests/metallb.yaml
                          overwrite: true
                          contents:
                            inline: |
                              apiVersion: helm.cattle.io/v1
                              kind: HelmChart
                              metadata:
                                name: metallb
                                namespace: kube-system
                              spec:
                                chart: oci://registry.suse.com/edge/charts/metallb
                                targetNamespace: metallb-system
                                version: 303.0.0+up0.14.9
                                createNamespace: true
                        - path: /var/lib/rancher/rke2/server/manifests/metallb-cr.yaml
                          overwrite: true
                          contents:
                            inline: |
                              apiVersion: metallb.io/v1beta1
                              kind: IPAddressPool
                              metadata:
                                name: kubernetes-vip-ip-pool
                                namespace: metallb-system
                              spec:
                                addresses:
                                  - {{ .controlPlaneEndpointHost }}/32
                                serviceAllocation:
                                  priority: 100
                                  namespaces:
                                    - default
                                  serviceSelectors:
                                    - matchExpressions:
                                      - {key: "serviceType", operator: In, values: [kubernetes-vip]}
                              ---
                              apiVersion: metallb.io/v1beta1
                              kind: L2Advertisement
                              metadata:
                                name: ip-pool-l2-adv
                                namespace: metallb-system
                              spec:
                                ipAddressPools:
                                  - kubernetes-vip-ip-pool
                        - path: /var/lib/rancher/rke2/server/manifests/endpoint-svc.yaml
                          overwrite: true
                          contents:
                            inline: |
                              apiVersion: v1
                              kind: Service
                              metadata:
                                name: kubernetes-vip
                                namespace: default
                                labels:
                                  serviceType: kubernetes-vip
                              spec:
                                ports:
                                - name: rke2-api
                                  port: 9345
                                  protocol: TCP
                                  targetPort: 9345
                                - name: k8s-api
                                  port: 6443
                                  protocol: TCP
                                  targetPort: 6443
                                type: LoadBalancer
                    systemd:
                      units:
                        - name: rke2-preinstall.service
                          enabled: true
                          contents: |
                            [Unit]
                            Description=rke2-preinstall
                            Wants=network-online.target
                            Before=rke2-install.service
                            ConditionPathExists=!/run/cluster-api/bootstrap-success.complete
                            [Service]
                            Type=oneshot
                            User=root
                            ExecStartPre=/bin/sh -c "mount -L config-2 /mnt"
                            ExecStart=/bin/sh -c "sed -i \"s/BAREMETALHOST_UUID/$(jq -r .uuid /mnt/openstack/latest/meta_data.json)/\" /etc/rancher/rke2/config.yaml"
                            ExecStart=/bin/sh -c "echo \"node-name: $(jq -r .name /mnt/openstack/latest/meta_data.json)\" >> /etc/rancher/rke2/config.yaml"
                            ExecStartPost=/bin/sh -c "umount /mnt"
                            [Install]
                            WantedBy=multi-user.target

apiVersion: cluster.x-k8s.io/v1beta1
kind: Cluster
metadata:
  name: emea-spa-cluster-3
  namespace: emea-spa
spec:
  topology:
    class: example-clusterclass-type2  # Correct way to reference ClusterClass
    version: v1.32.4+rke2r1
    controlPlane:
      replicas: 1
    variables:                         # Variables to be replaced for this cluster instance
      - name: controlPlaneMachineTemplate
        value: emea-spa-cluster-3-machinetemplate
      - name: controlPlaneEndpointHost
        value: 192.168.122.203
      - name: tlsSan
        value:
          - 192.168.122.203
          - https://192.168.122.203.sslip.io
---
apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
kind: Metal3MachineTemplate
metadata:
  name: emea-spa-cluster-3-machinetemplate
  namespace: emea-spa
spec:
  nodeReuse: True
  template:
    spec:
      automatedCleaningMode: metadata
      dataTemplate:
        name: emea-spa-cluster-3
      hostSelector:
        matchLabels:
          cluster-role: control-plane
          deploy-region: emea-spa
          cluster-type: type2
      image:
        checksum: http://fileserver.local:8080/eibimage-downstream-cluster.raw.sha256
        checksumType: sha256
        format: raw
        url: http://fileserver.local:8080/eibimage-downstream-cluster.raw
---
apiVersion: infrastructure.cluster.x-k8s.io/v1beta1
kind: Metal3DataTemplate
metadata:
  name: emea-spa-cluster-3
  namespace: emea-spa
spec:
  clusterName: emea-spa-cluster-3
  metaData:
    objectNames:
      - key: name
        object: machine
      - key: local-hostname
        object: machine
