使用 Prometheus 和 Grafana 进行监控

1. In the SUSE Multi-Linux Manager Web UI, open the details page of the system where Prometheus is to be installed, and navigate to the Formulas tab.

2. Check the Prometheus checkbox to enable monitoring formulas, and click Save.

3. Navigate to the Prometheus tab in the top menu.

4. In the SUSE Multi-Linux Manager Server section, enter valid SUSE Multi-Linux Manager API credentials. 确保您输入的身份凭证允许访问您要监控的系统集。

5. 根据需要自定义任何其他配置选项。

6. 单击 保存公式。

7. 应用 Highstate 并确认它成功完成。

8. Check that the Prometheus interface loads correctly. In your browser, navigate to the URL of the server where Prometheus is installed, on port 9090 (for example, http://example.com:9090).

1. On the monitoring server, install the golang-github-prometheus-prometheus package:

   zypper in golang-github-prometheus-prometheus

2. 启用 Prometheus 服务：

   systemctl enable --now prometheus

3. Check that the Prometheus interface loads correctly. In your browser, navigate to the URL of the server where Prometheus is installed, on port 9090 (for example, http://example.com:9090).

4. Open the configuration file at /etc/prometheus/prometheus.yml and add this configuration information. Replace server.url with your SUSE Multi-Linux Manager server URL and adjust username and password fields to match your SUSE Multi-Linux Manager credentials.

   # {productname} self-health metrics
   scrape_configs:
   - job_name: 'mgr-server'
     static_configs:
       - targets:
         - 'server.url:9100'  # Node exporter
         - 'server.url:9187'  # PostgreSQL exporter
         - 'server.url:5556'  # JMX exporter (Tomcat)
         - 'server.url:5557'  # JMX exporter (Taskomatic)
         - 'server.url:9800'  # Taskomatic
       - targets:
         - 'server.url:80'    # Message queue
         labels:
           __metrics_path__: /rhn/metrics

   # Managed systems metrics:
   - job_name: 'mgr-clients'
     uyuni_sd_configs:
      - server: "http://server.url"
        username: "admin"
        password: "admin"
     relabel_configs:
      - source_labels: [__meta_uyuni_exporter]
        target_label: exporter
      - source_labels: [__address__]
        replacement: "No group"
        target_label: groups
      - source_labels: [__meta_uyuni_groups]
        regex: (.+)
        target_label: groups
      - source_labels: [__meta_uyuni_minion_hostname]
        target_label: hostname
      - source_labels: [__meta_uyuni_primary_fqdn]
        regex: (.+)
        target_label: hostname
      - source_labels: [hostname, __address__]
        regex: (.*);.*:(.*)
        replacement: ${1}:${2}
        target_label: __address__
      - source_labels: [__meta_uyuni_metrics_path]
        regex: (.+)
        target_label: __metrics_path__
      - source_labels: [__meta_uyuni_proxy_module]
        target_label: __param_module
      - source_labels: [__meta_uyuni_scheme]
        target_label: __scheme__

5. 保存该配置文件。

6. 重启 Prometheus 服务：

   systemctl restart prometheus

1. In the SUSE Multi-Linux Manager Web UI, open the details page of the system where Grafana is to be installed, and navigate to the Formulas tab.

2. Check the Grafana checkbox to enable monitoring formulas, and click Save.

3. Navigate to the Grafana tab in the top menu.

4. In the Enable and configure Grafana section, enter the admin credentials you want to use to log in Grafana.

5. On the Datasources section, make sure that the Prometheus URL field points to the system where Prometheus is running.

6. 根据需要自定义任何其他配置选项。

7. 单击 保存公式。

8. 应用 Highstate 并确认它成功完成。

9. Check that the Grafana interface is loading correctly. In your browser, navigate to the URL of the server where Grafana is installed, on port 3000 (for example, http://example.com:3000).

   • 请确保防火墙已开放 3000 端口，以顺利访问 Grafana

1. Install the grafana package:

   zypper in grafana

2. 启用 Grafana 服务：

   systemctl enable --now grafana-server

3. In your browser, navigate to the URL of the server where Grafana is installed, on port 3000 (for example, http://example.com:3000).

   • 请确保防火墙已开放 3000 端口，以顺利访问 Grafana。

4. On the login page, enter admin for username and password.

5. 单击 登录。如果成功登录，您将会看到要求您更改口令的提示。

6. 针对提示单击 确定，然后更改您的口令。

7. 将光标移到边栏菜单中的齿轮图标上，配置选项即会显示。

8. 单击 数据源。

9. 单击 添加数据源 会看到支持的所有数据源列表。

10. 选择 Prometheus 数据源。

11. 务必指定正确的 Prometheus 服务器 URL。

12. 单击 保存并测试。

13. 要导入仪表板，请单击边栏菜单中的 + 图标，然后单击 导入。

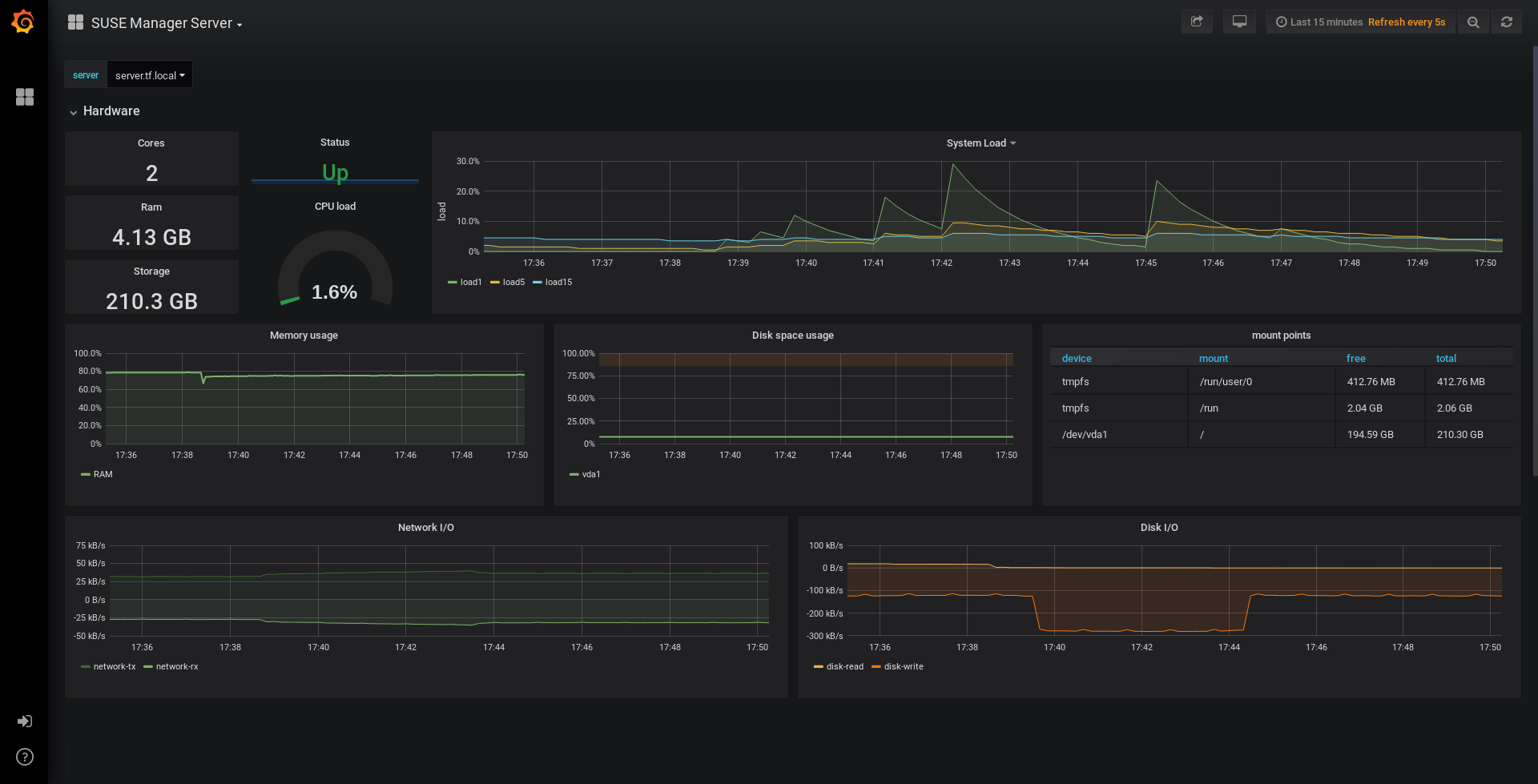

14. For SUSE Multi-Linux Manager server overview load the dashboard ID: 17569.

15. For SUSE Multi-Linux Manager clients overview load the dashboard ID: 17570.



1. 在 SUSE Multi-Linux Manager Web UI 中，导航到管理  管理器配置  监控。

2. 单击 启用服务。

3. 重启 Tomcat 和 Taskomatic。

4. Navigate to the URL of your Prometheus server, on port 9090 (for example, http://example.com:9090)

5. In the Prometheus UI, navigate to Status  Targets and confirm that all the endpoints on the mgr-server group are up.

6. 如果您还使用 Web UI 安装了 Grafana，则可以通过 SUSE Multi-Linux Manager 服务器仪表板上的管理  管理器配置  监视查看服务器深入信息。

1. 在 SUSE Multi-Linux Manager Web UI 中，打开要监视的客户端的细节页面，并导航到公式选项卡。

2. Check the Enabled checkbox on the Prometheus Exporters formula.

3. 单击 保存。

4. 导航到公式  Prometheus 导出器选项卡。

5. 选择要启用的导出器并根据需要自定义参数。 The Address field accepts either a port number preceded by a colon (:9100), or a fully resolvable address (example:9100).

6. 单击 保存公式。

7. 应用 highstate。

1. In the SUSE Multi-Linux Manager Web UI, open the details page of the system to be monitored, and navigate to the Formulas tab.

2. Check the Prometheus Exporters checkbox to enable the exporters formula, and click Save.

3. Navigate to the Prometheus Exporters tab in the top menu.

4. Check the Enable reverse proxy option, and enter a valid reverse proxy port number. For example, 9999.

   • 请确保防火墙已开放 9999/tcp 端口。

5. 根据需要自定义其他导出器。

6. 单击 保存公式。

7. 应用 Highstate 并确认它成功完成。

1. 在 SUSE Multi-Linux Manager 容器主机的命令行中，以 root 身份运行以下命令：

   1. 运行以下命令生成证书文件。

      Ensure that the set-cname parameter is the fully qualified domain name (FQDN) of your Salt client. You can use the set-cname parameter multiple times if you require multiple aliases:

      mgrctl exec -ti -- mgr-ssl-tool --gen-server --dir="/root/ssl-build" --set-country="COUNTRY" \
        --set-state="STATE" --set-city="CITY" --set-org="ORGANIZATION" \
        --set-org-unit="ORGANIZATION UNIT" --set-email="name@example.com" \
        --set-hostname="minion.example.com" --set-cname="minion.example.com" --no-rpm

      命令执行的结果：

      Generating the web server's SSL private key: /root/ssl-build/minion/server.key
      Generating web server's SSL certificate request: /root/ssl-build/minion/server.csr
      Generating/signing web server's SSL certificate: server.crt

   2. Copy server.crt and server.key files from the server container to the host:

      mgrctl cp server:/root/ssl-build/minion/server.key server.key
      mgrctl cp server:/root/ssl-build/minion/server.crt server.crt

   3. Copy server.crt and server.key files from the host to the monitoring client:

      ssh minion.example.com 'mkdir /etc/ssl/mlm-server-certs'
      scp /root/server.* minion.example.com:/etc/ssl/mlm-server-certs
      ssh minion.example.com 'chmod go+r /etc/ssl/mlm-server-certs/server.*; ls -la /etc/ssl/mlm-server-certs'

2. 要配置 Salt 公式，请输入之前的步骤中指定的目录名称。

   1. formular server

      Server Certificate /etc/ssl/mlm-server-certs/server.crt
      Server Key /etc/ssl/mlm-server-certs/server.key

   2. 公式 受控端
